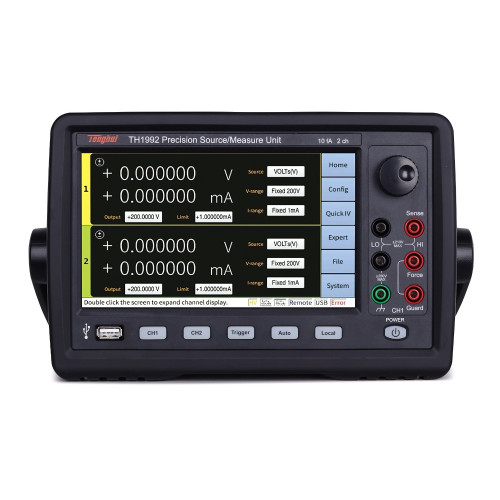

TECHMIZE TH1992 Source Measure Unit (SMU), 2 Channels, 210V

Kliknij opcję Obraz dla galerii

TECHMIZE TH1992 is a Dual Channel Precision Source Measure Unit (SMU), 200mV-210V, 10nA-3A (DC) / 10A (pulse), resolution: source 100nV/10fA, measure 100nV/10fA, source/measure 6.5 digits.

Series Performance Characteristics:
- 7" capacitive touch screen, resolution 800 x 480 pixels
- Linux operating system
- Four-quadrant precision power output and measurement
- Single/dual channel output and measurement
- Up to ±210V DC voltage, ±3A DC current / ±10.5A pulse
- 10fA/100nV minimum measurement resolution (6 1/2 digits)
- 10fA/100nV minimum supply resolution (6 1/2 digits)
- Up to 1,000,000 dots/sec sampling rate
- Arbitrary waveform generation
- List scan function (minimum 1μs interval)
- Direct generation of I/V curves of diodes, triodes, MOS tubes and IGBTs
- Standard interfaces: RS232, Handler, USB Host and Device, LAN

Standard accessories:
1 x Sharp needle test probe
1 x Banana plug
1 x TECHMIZE PC software
1 x Power cord
1 x USB cable

Optional accessories:
- GPIB adapter board
- Low noise filter
- Kelvin probe set
- Banana to Triaxial Adapter (2-wire or 4-wire)
- Triaxial connection test fixture

Specifications			TH1991C	TH1991B	TH1991A	TH1991	TH1992A	TH1992
Source	DC	Voltage	± 63 V	± 210 V
		Current	± 1.515 A	± 3.03 A
	Impulse		N/A		± 10.5 A
Resolution	Source		5.5 Digit			6.5 Digit	5.5 Digit	6.5 Digit
	Measurement		6.5 Digit
Current Resolution	Source		1pA	100fA	1pA	10fA	1pA	10fA
	Measurement		100fA	10fA	100fA	10fA	100fA	10fA
Current Range (DC)			100nA - 1.5A	10nA - 3A
Voltage Resolution	Source		1μV	1μV	1μV	100nV	1μV	100nV
	Measurement		100nV
Voltage Range			200mV - 60V	200mV - 200V
Minimum Time Interval			50μs	20μs	10μs	1μs	10μs	1μs
Channel			1					2
