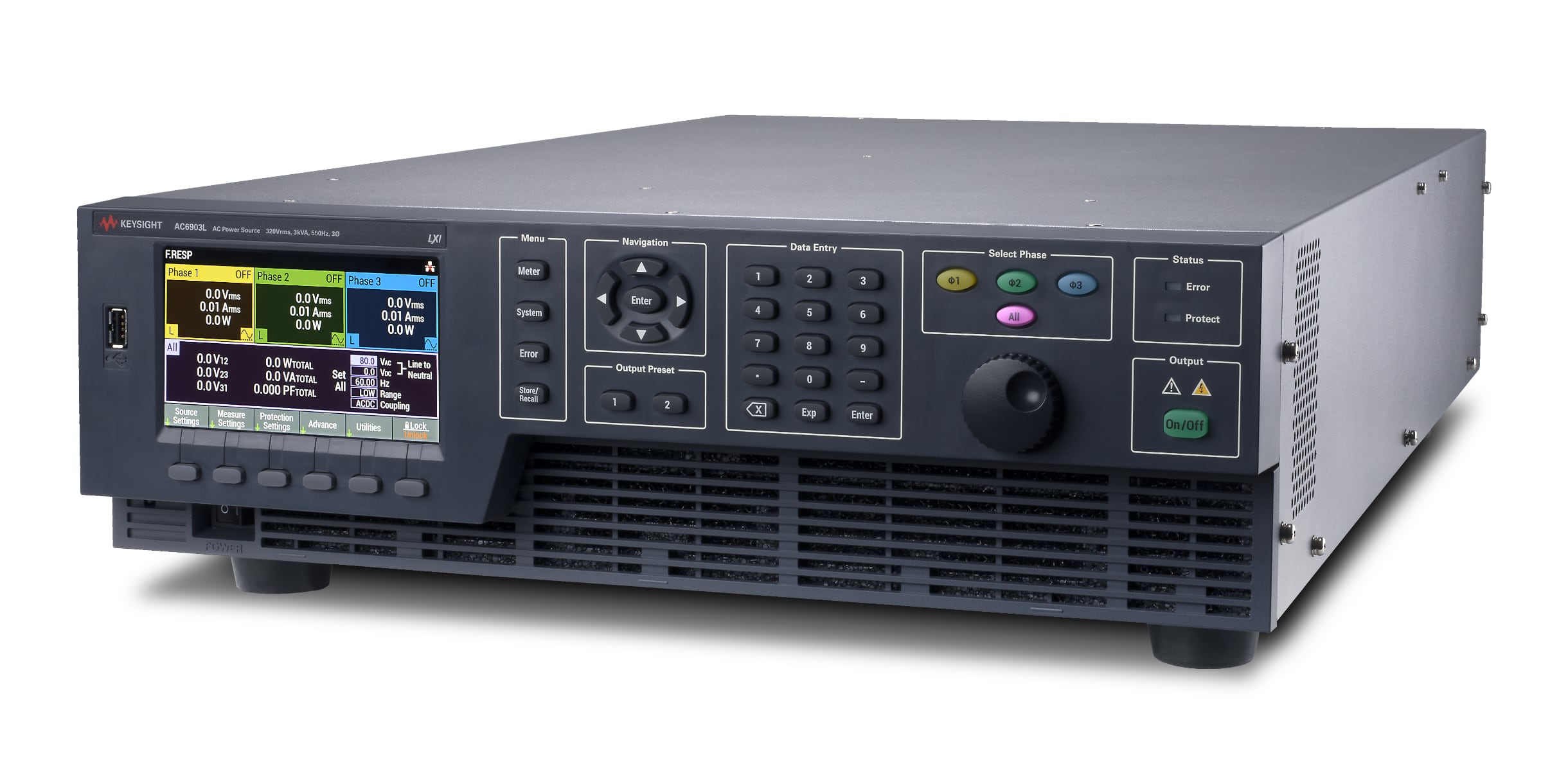

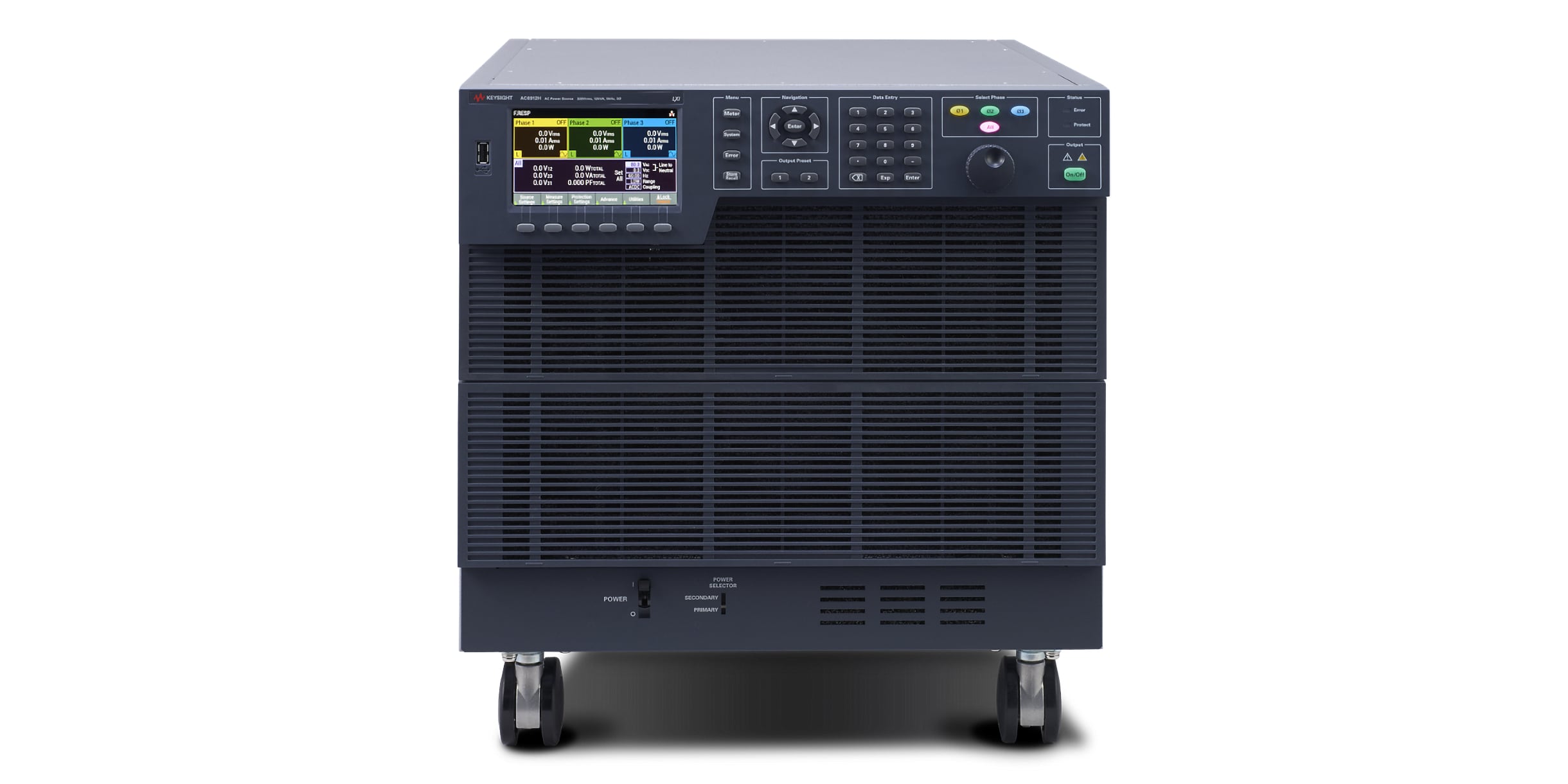

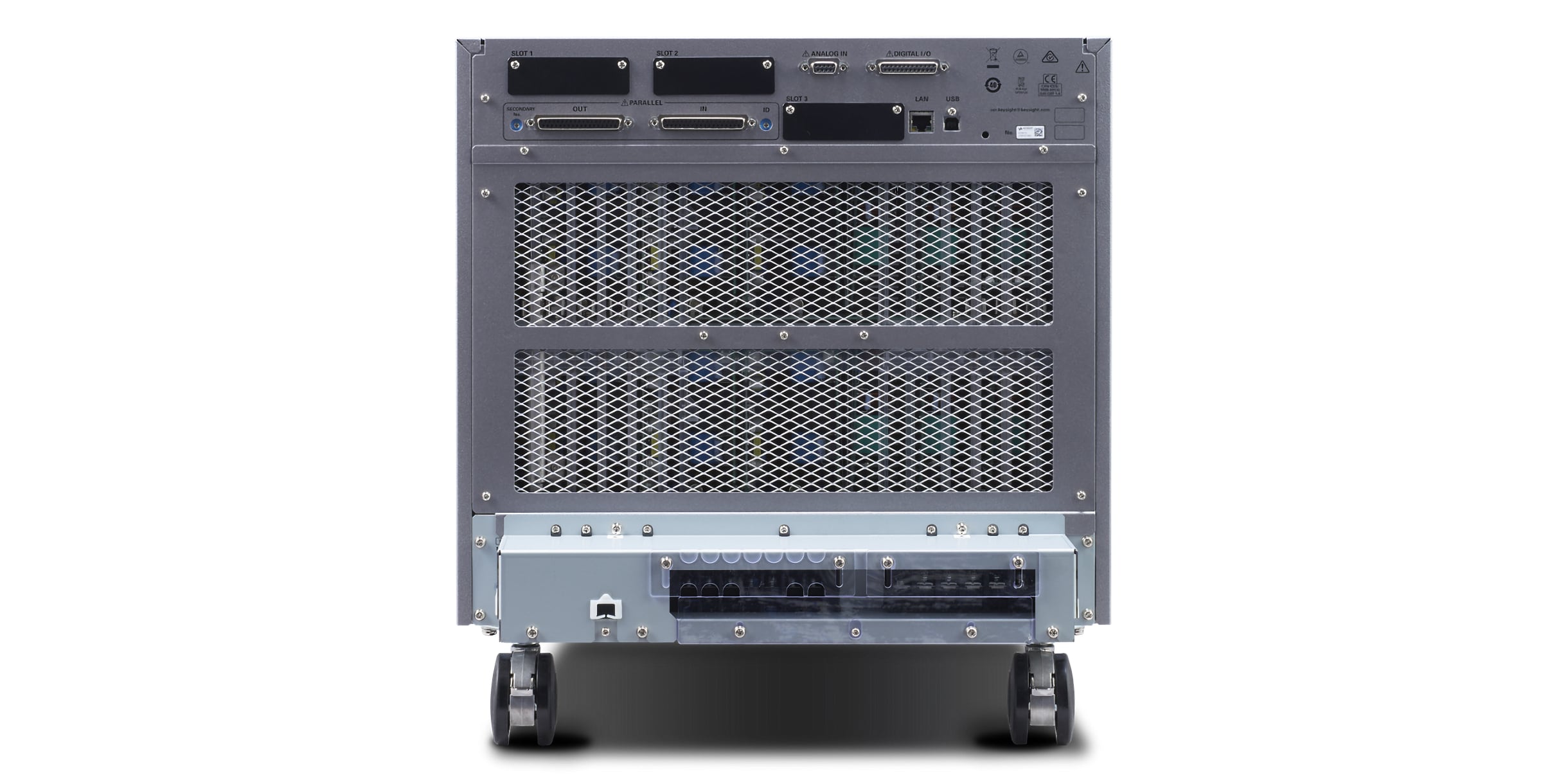

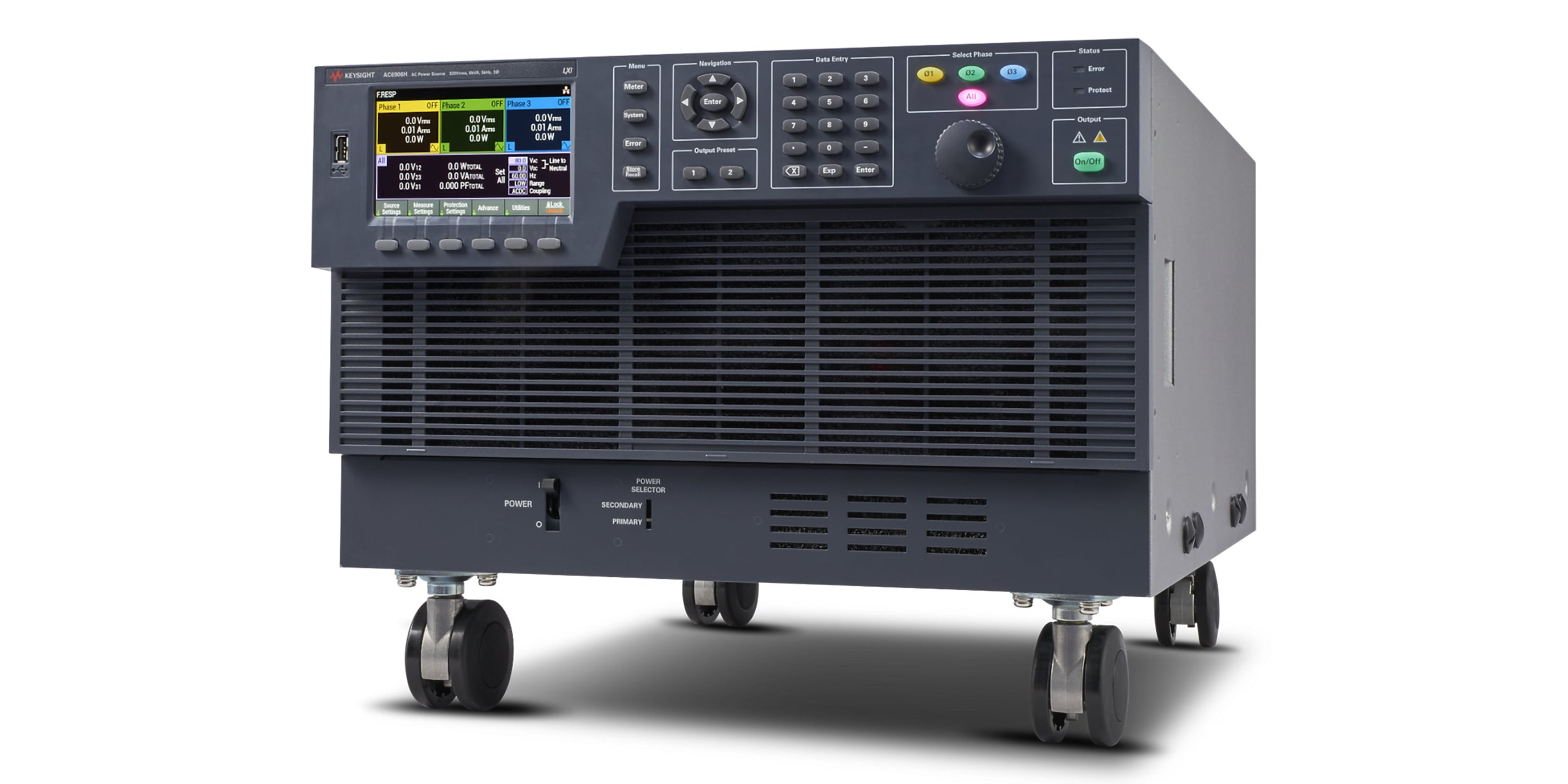

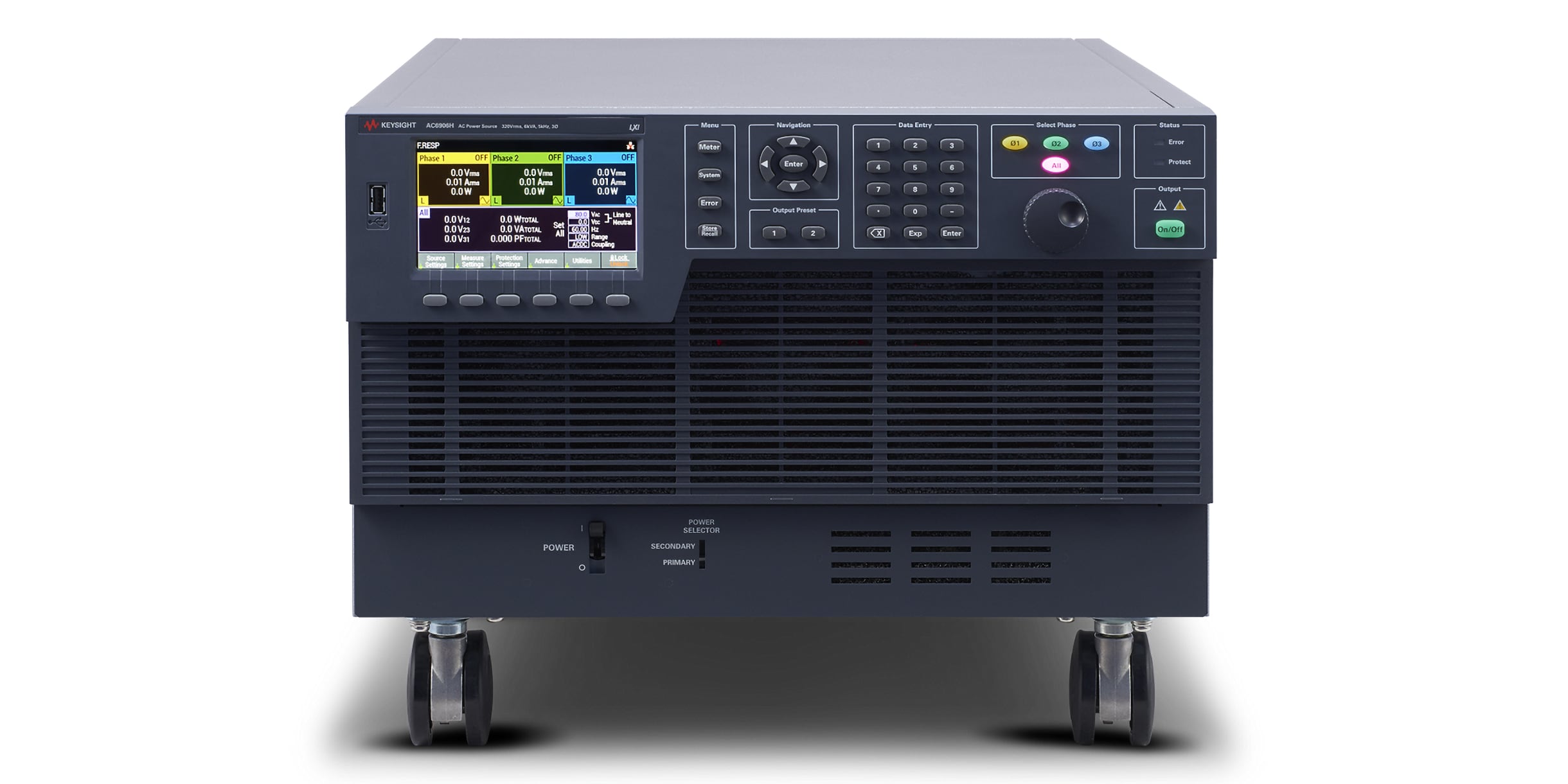

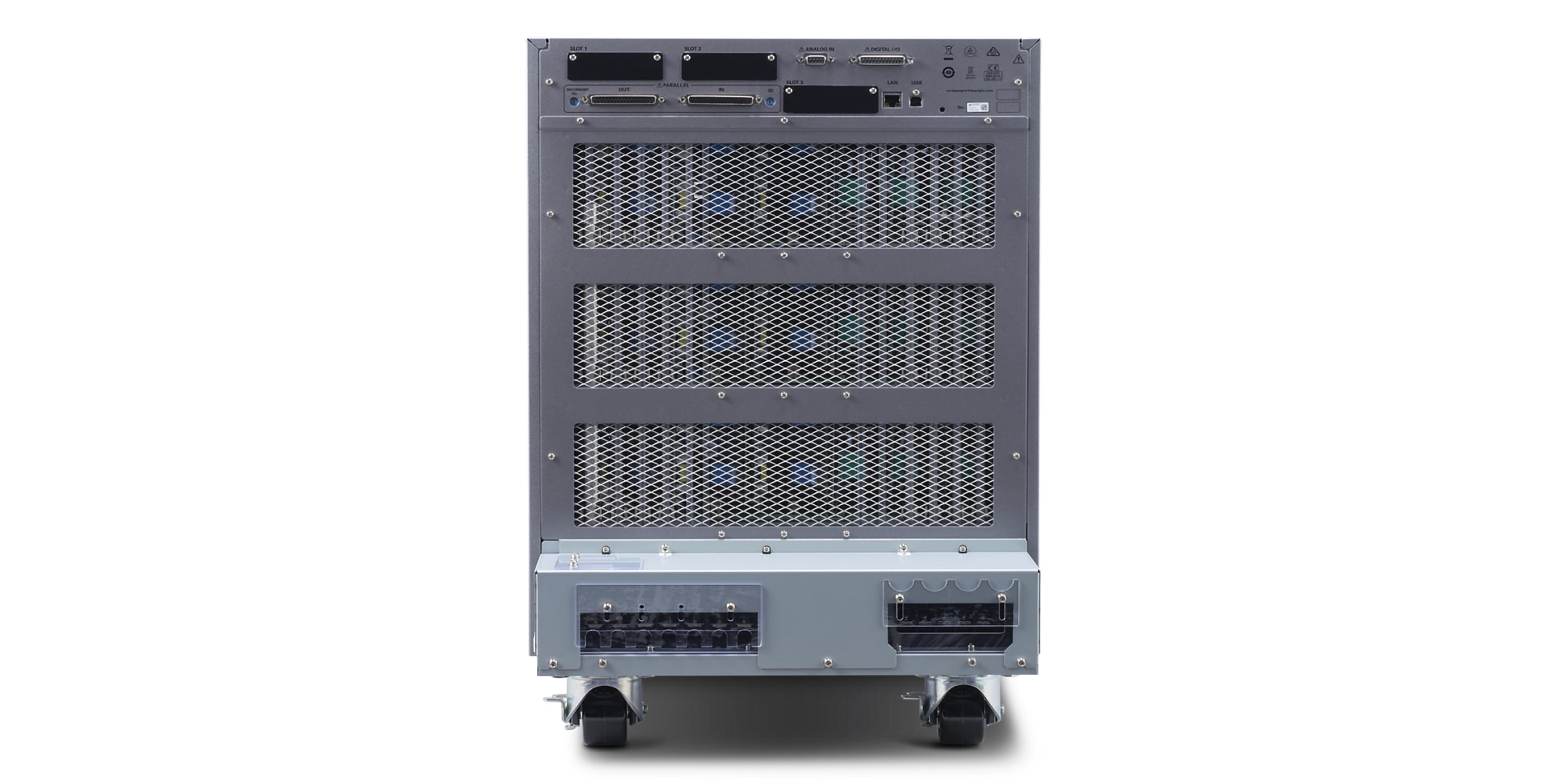

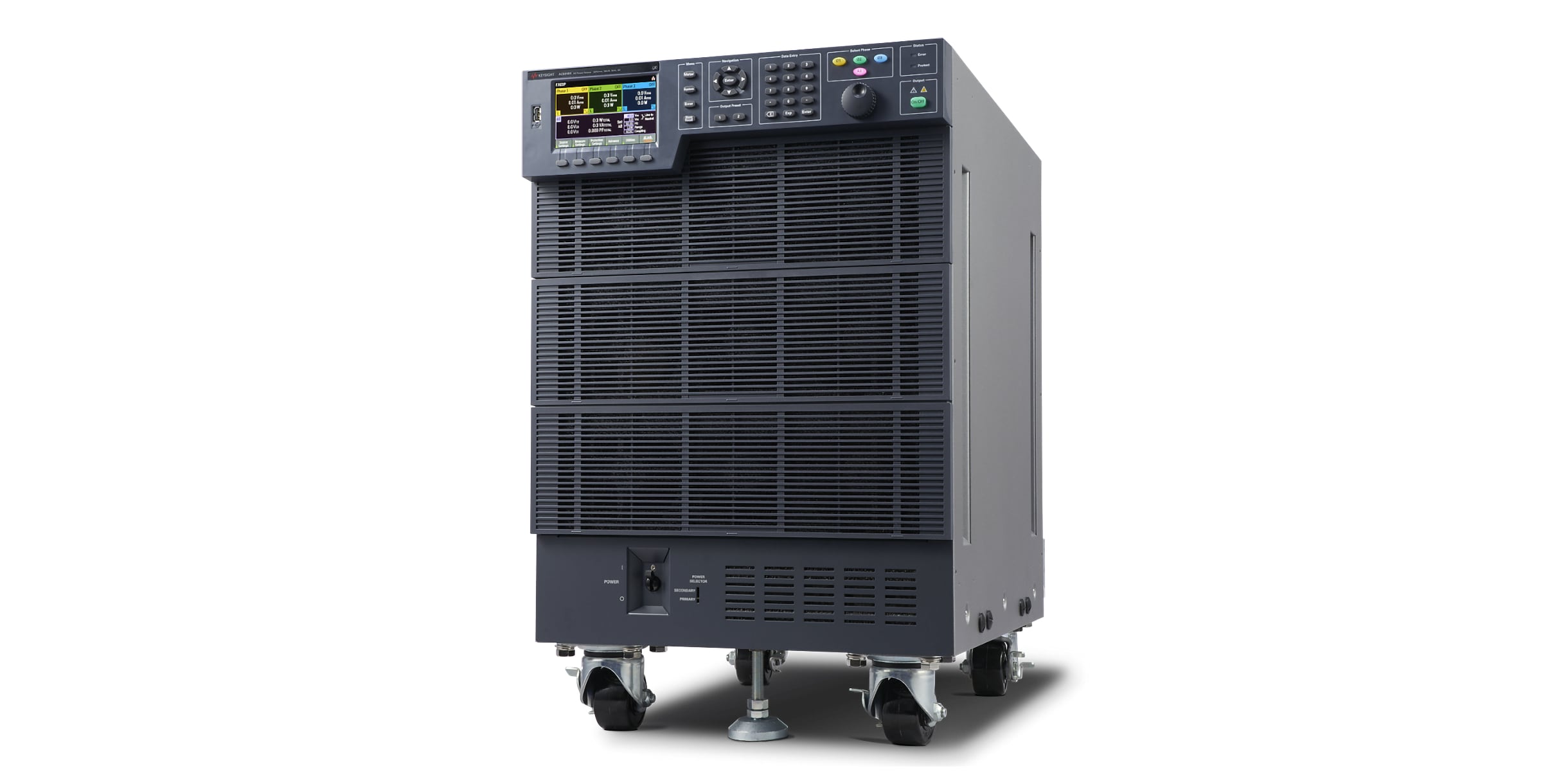

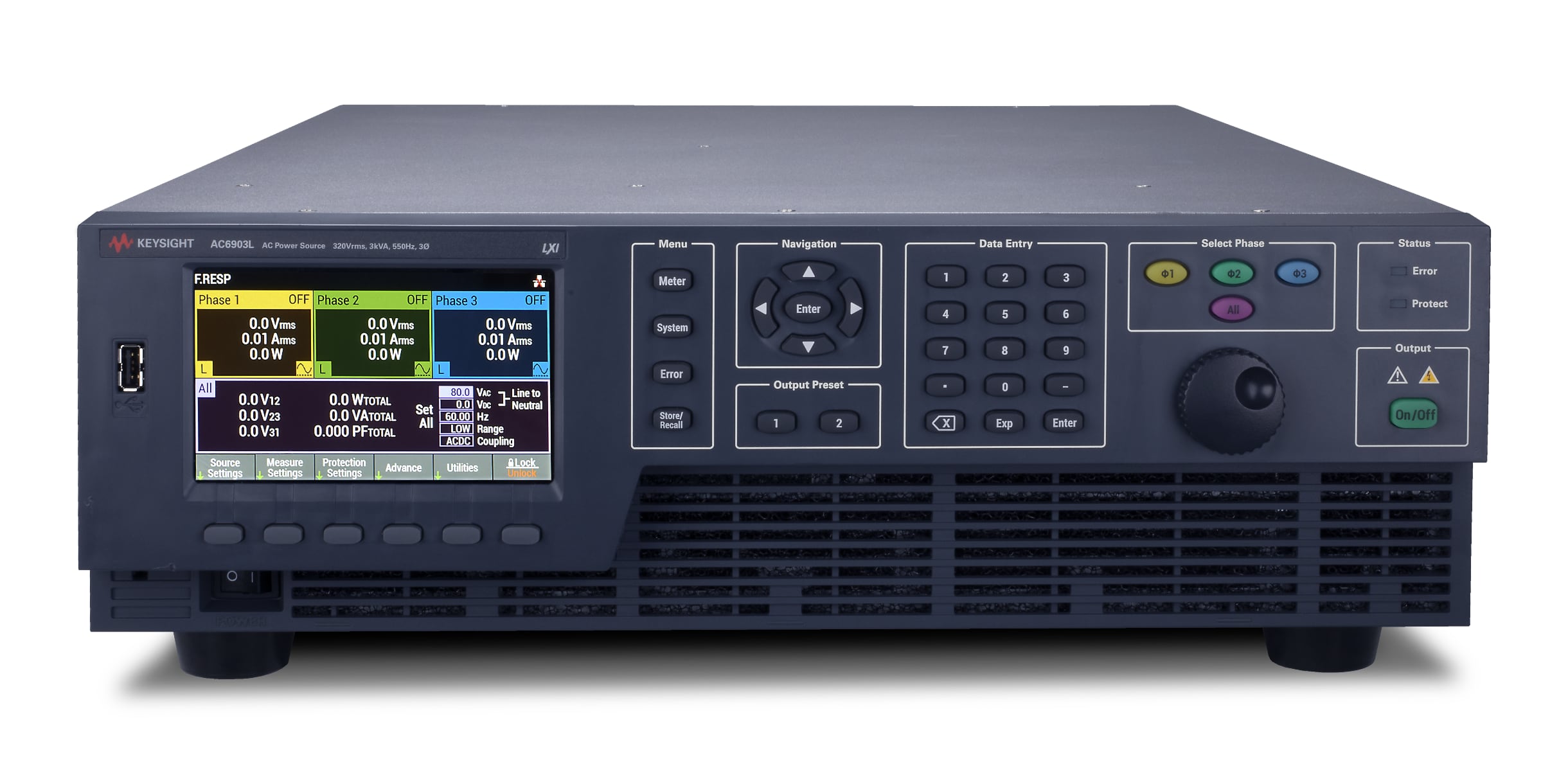

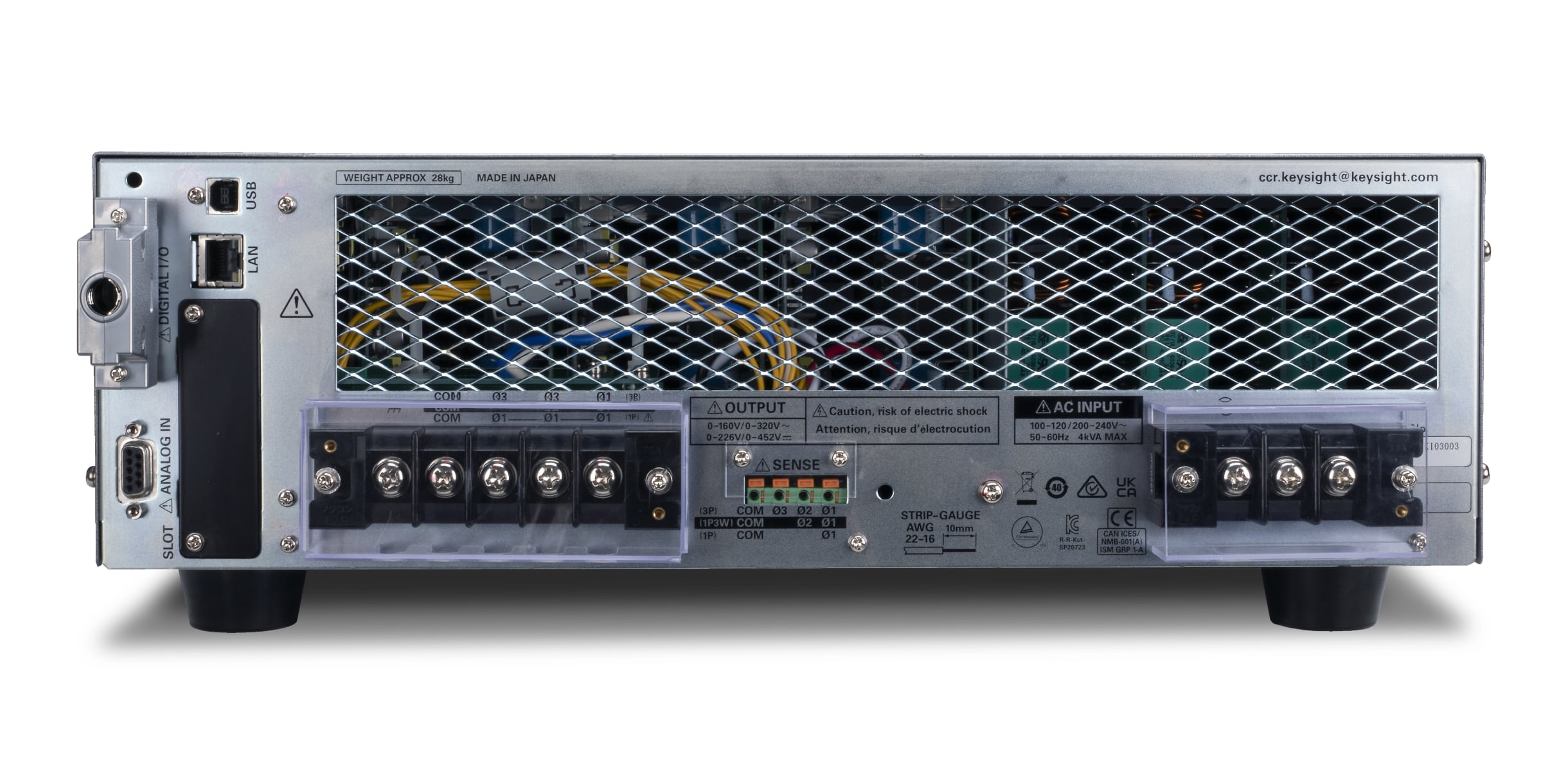

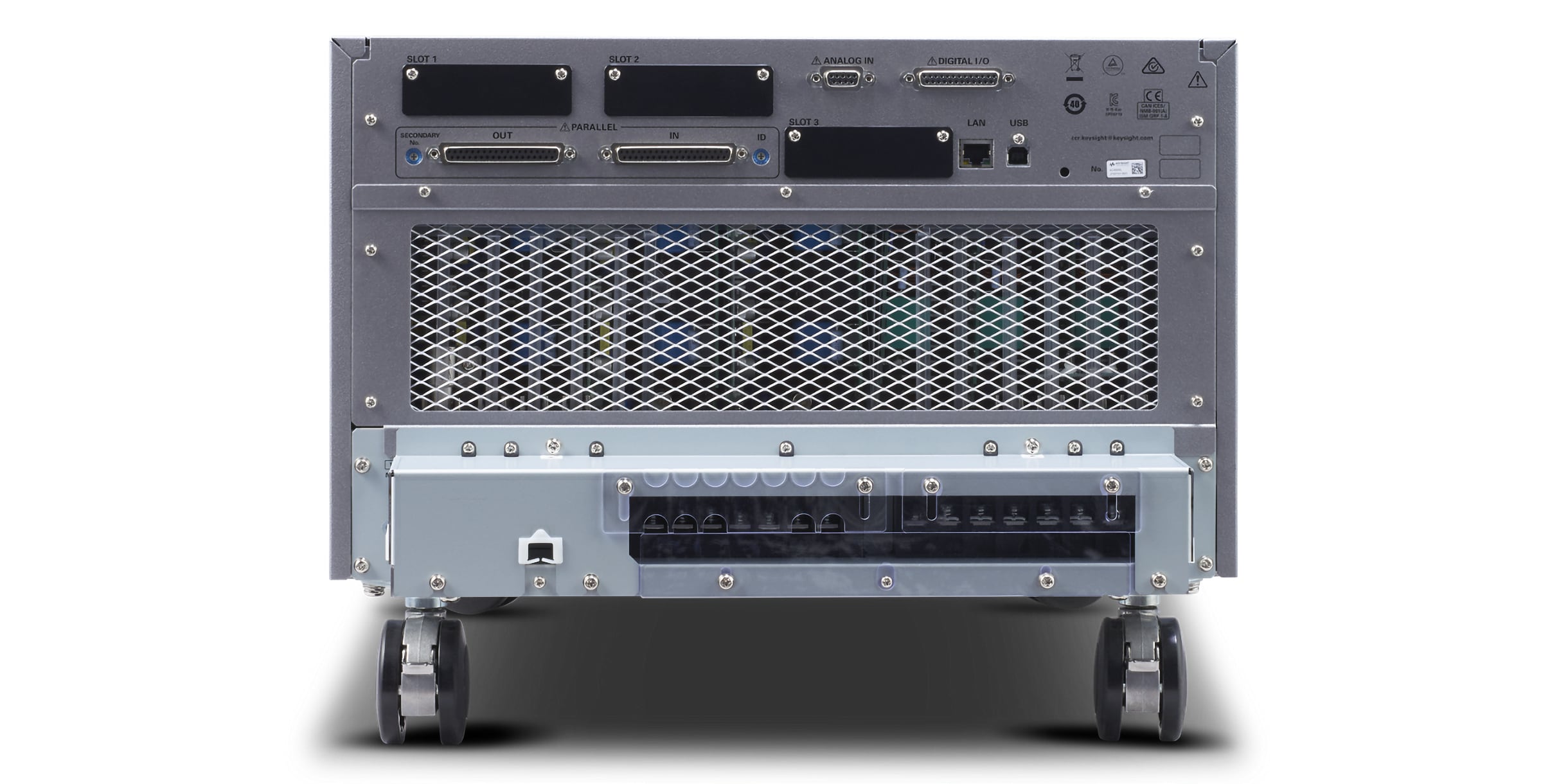

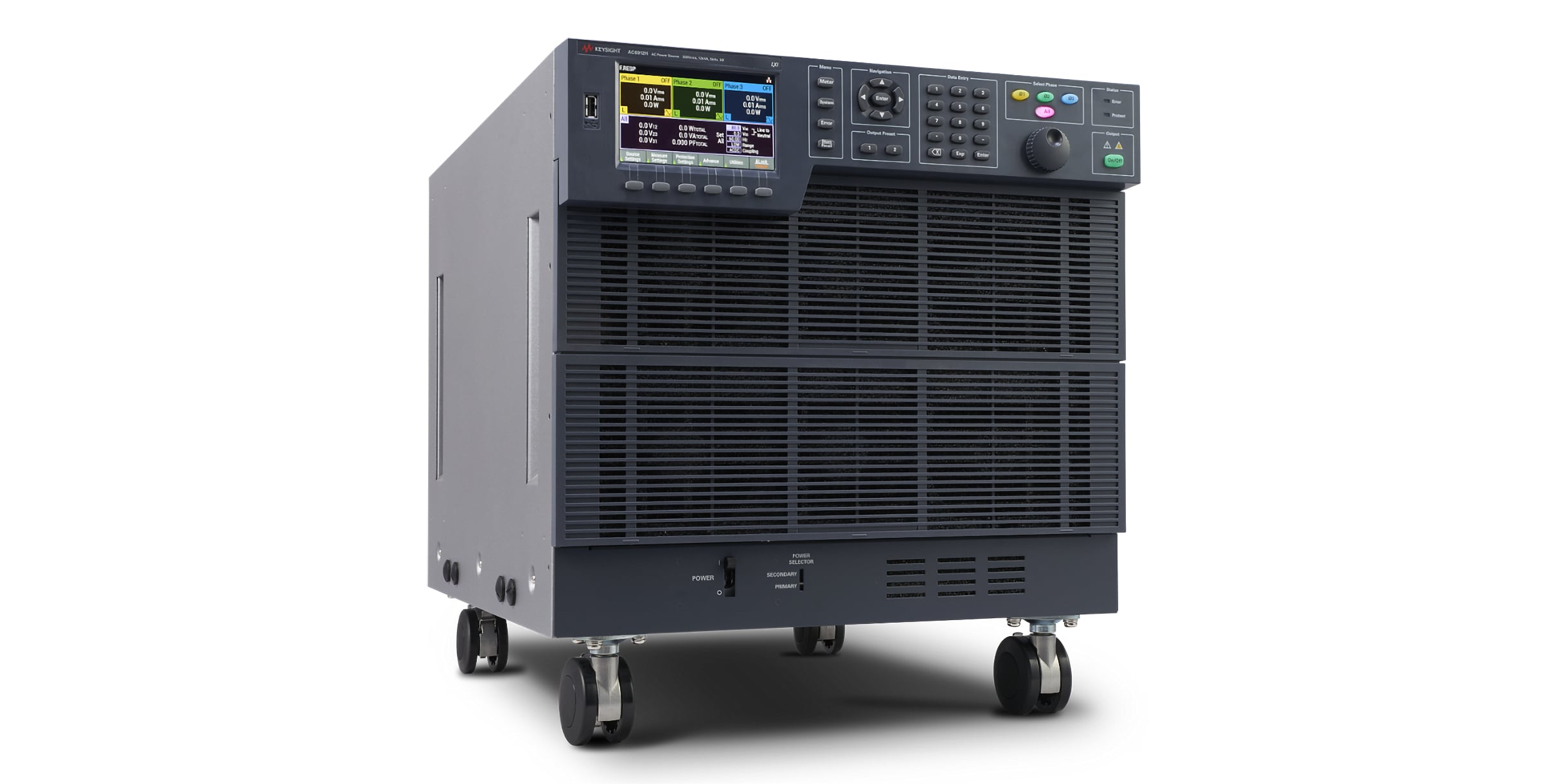

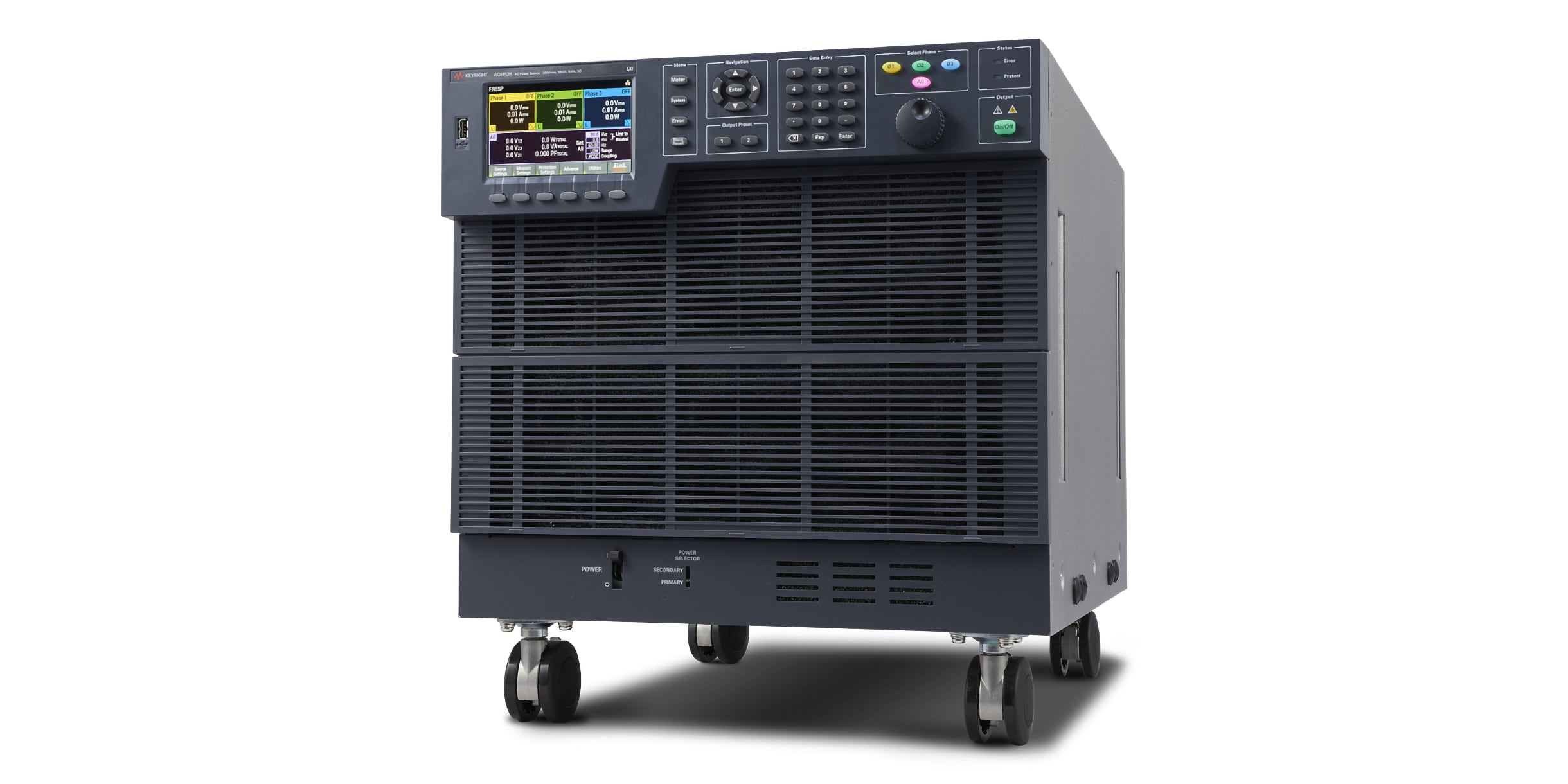

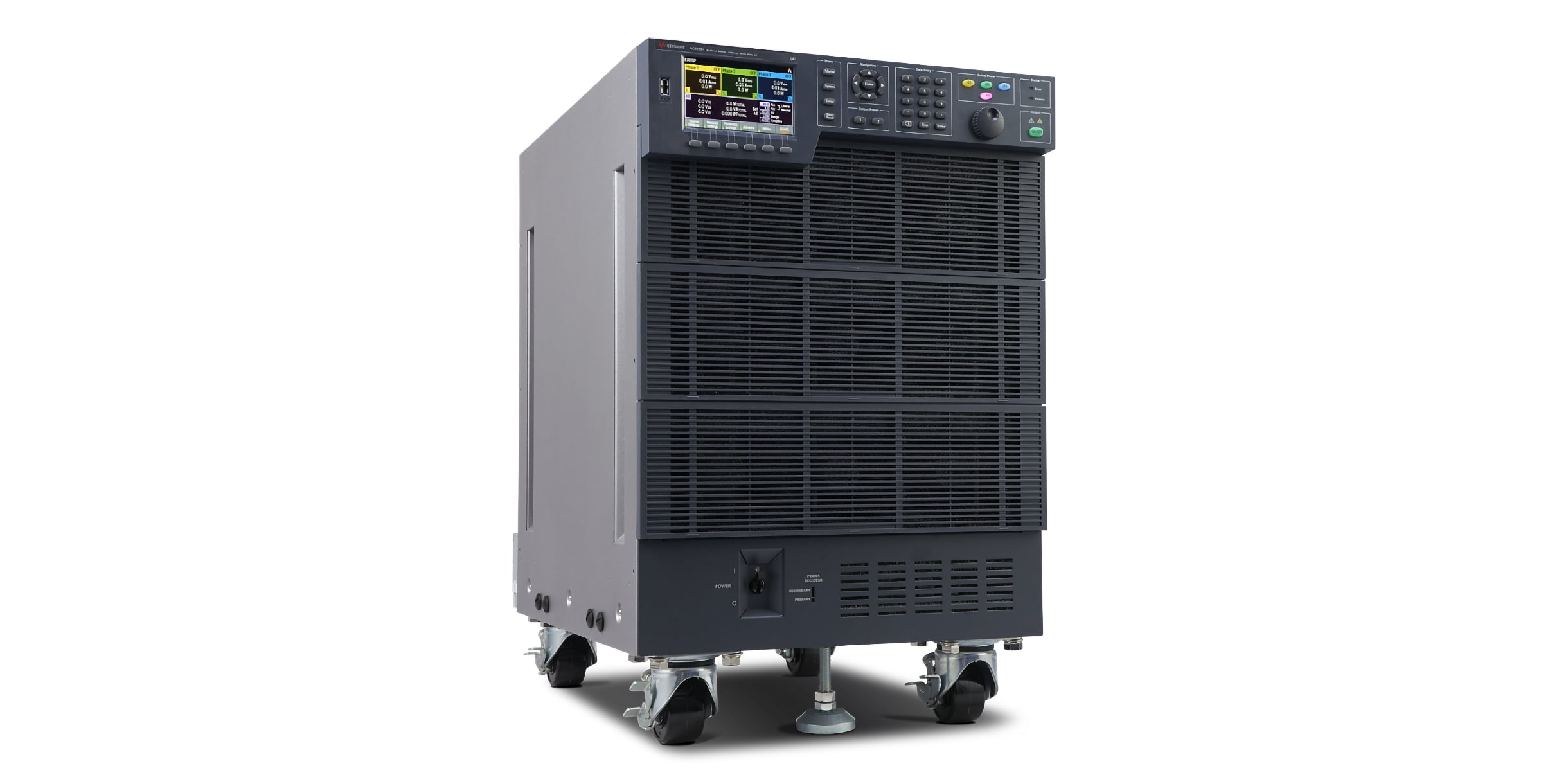

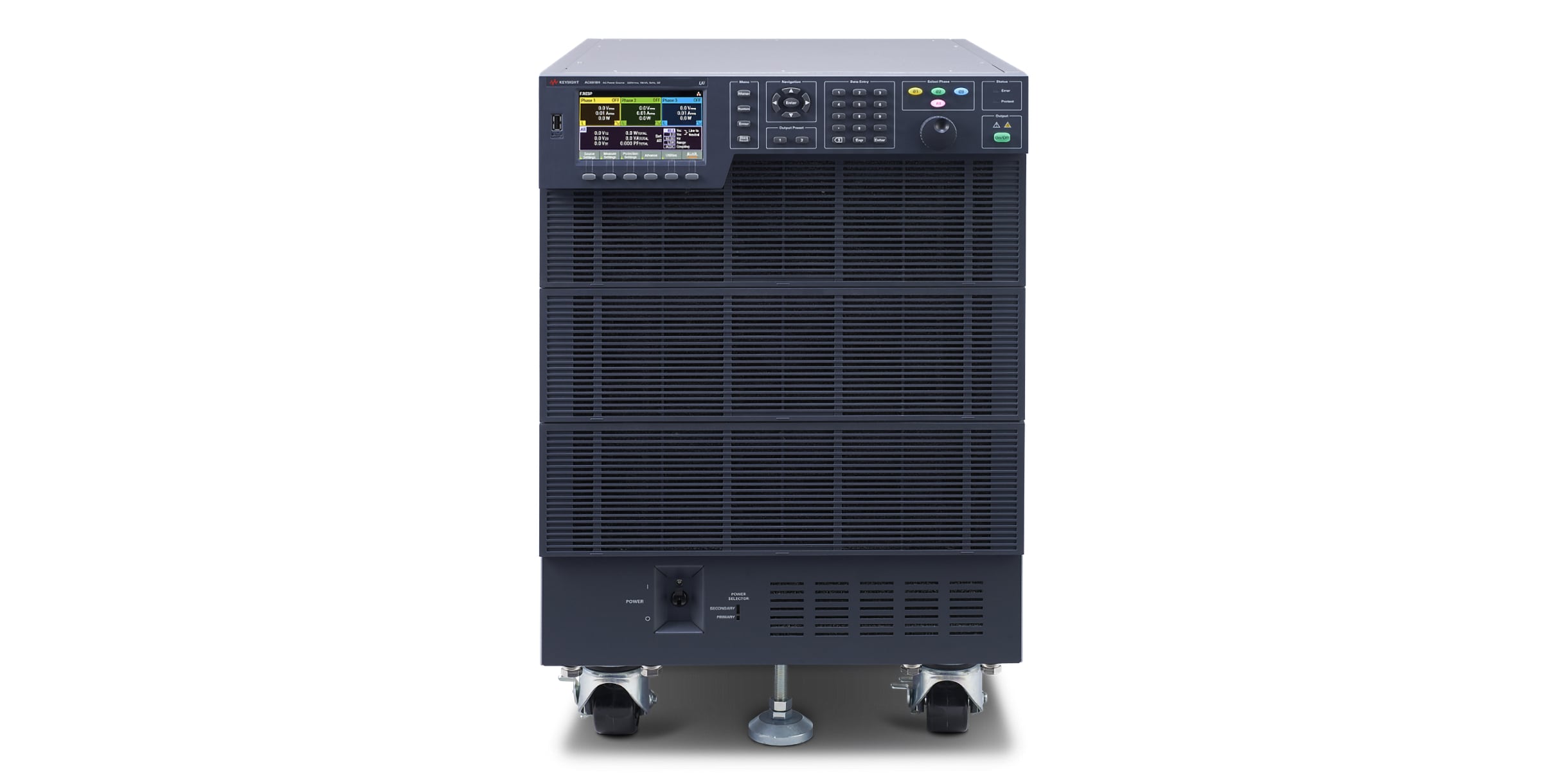

The KEYSIGHT AC6900 Series provides a complete solution for three-phase AC and DC power generation, combining the capabilities of a multimeter, harmonic analyzer, and power analyzer in a single instrument. Ideal for testing avionics devices, industrial electronics, power systems, and laboratory equipment, the AC6900 Series allows you to simulate real-world grid conditions, disturbances, brownouts, dropouts, sags, and frequency variations up to 5 kHz.
Output modes: single-phase, single-phase three-wire, three-phase four-wire
AC, DC, or AC+DC operation
Maximum AC voltage: 320 Vrms; maximum DC voltage: 452 V
Frequency up to 5 kHz (H models) or 550 Hz (L models)

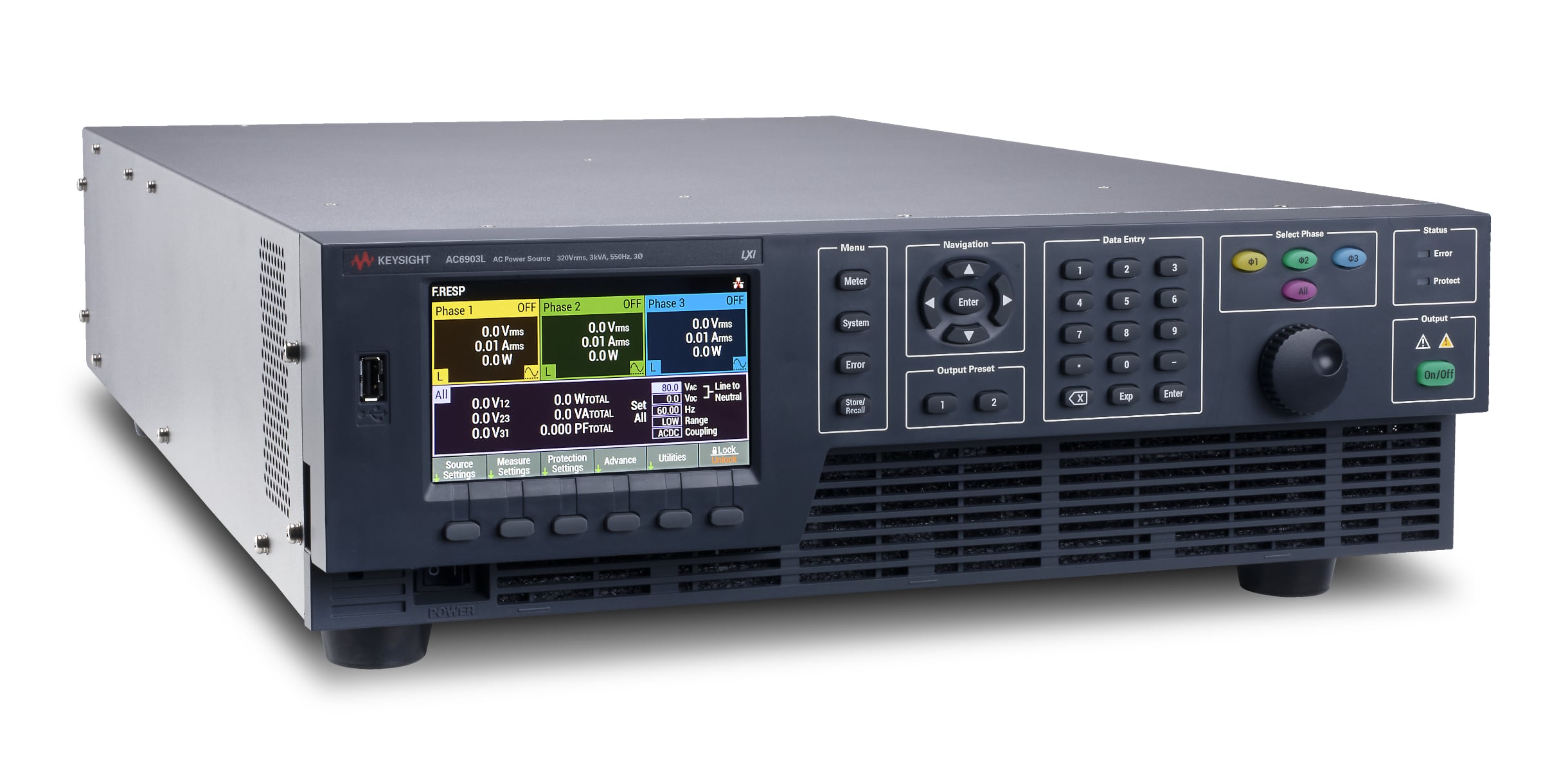

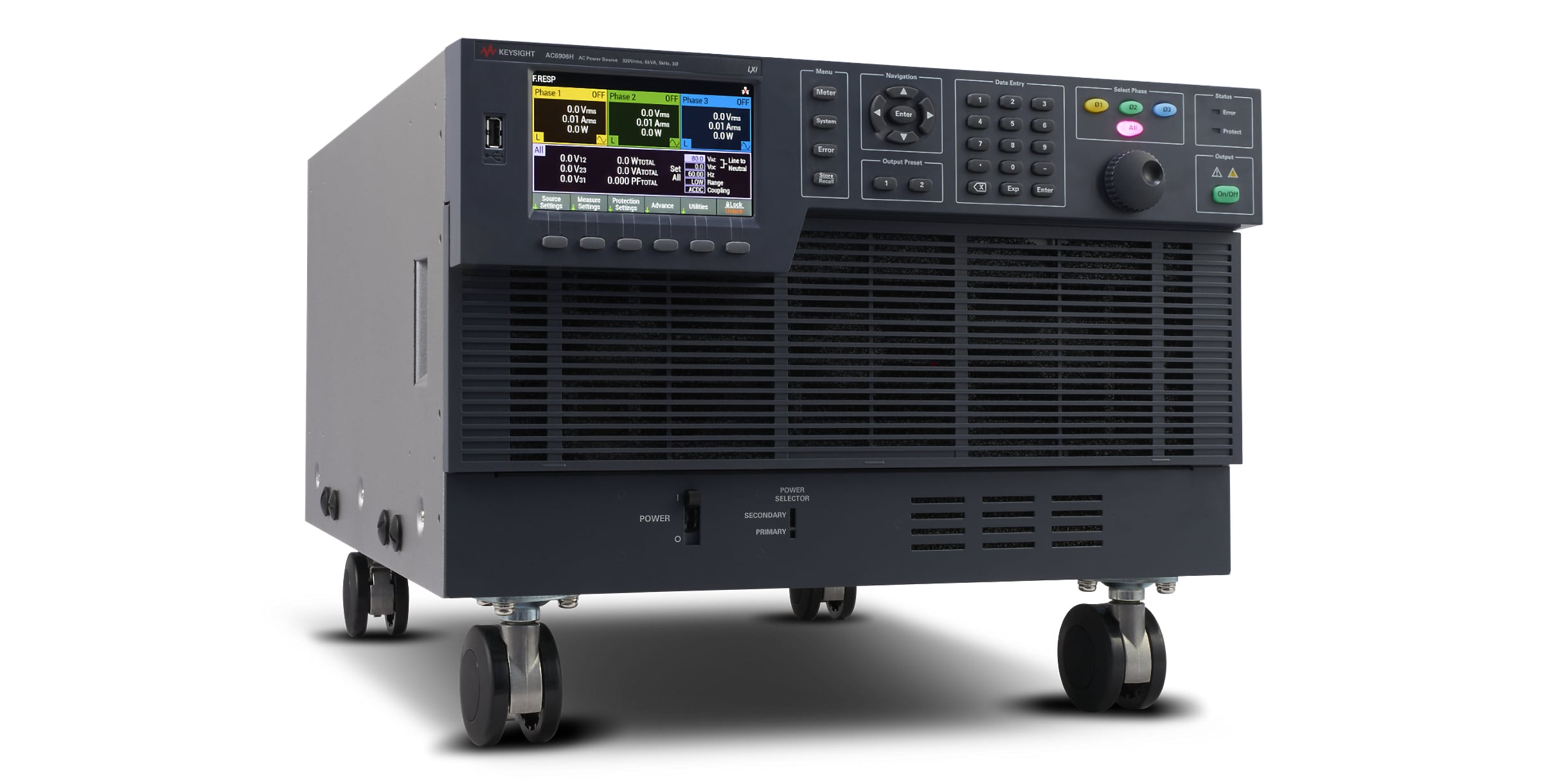

5" color LCD with simultaneous display of all phases
Built-in harmonic analysis up to the 50th order, custom waveform generation
Power line disturbance testing, transient sequencing, brownout/sag/surge simulation
Advanced protection: overcurrent, overvoltage, overpower, overtemperature, fast disconnect relay, and remote inhibit function
Connectivity: LAN LXI, USB, optional GPIB
Parallel operation for up to 4 units (up to 72 kVA)
Compatible with PathWave BenchVue for remote control, logging, and IEC61000-4 pre-compliance testing
Model
Power
Max Frequency
Max Current (1P / 3P)
Description
AC6903H
3 kVA
5 kHz
30A / 10A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6903L
3 kVA
550 Hz
30A / 10A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6906H
6 kVA
5 kHz
60A / 20A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6906L
6 kVA
550 Hz
60A / 20A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6912H
12 kVA
5 kHz
120A / 40A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6912L
12 kVA
550 Hz
120A / 40A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6918H
18 kVA
5 kHz
180A / 60A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
AC6918L
18 kVA
550 Hz
180A / 60A
Three-phase, 320 Vrms, AC/DC, avionics and industrial testing
