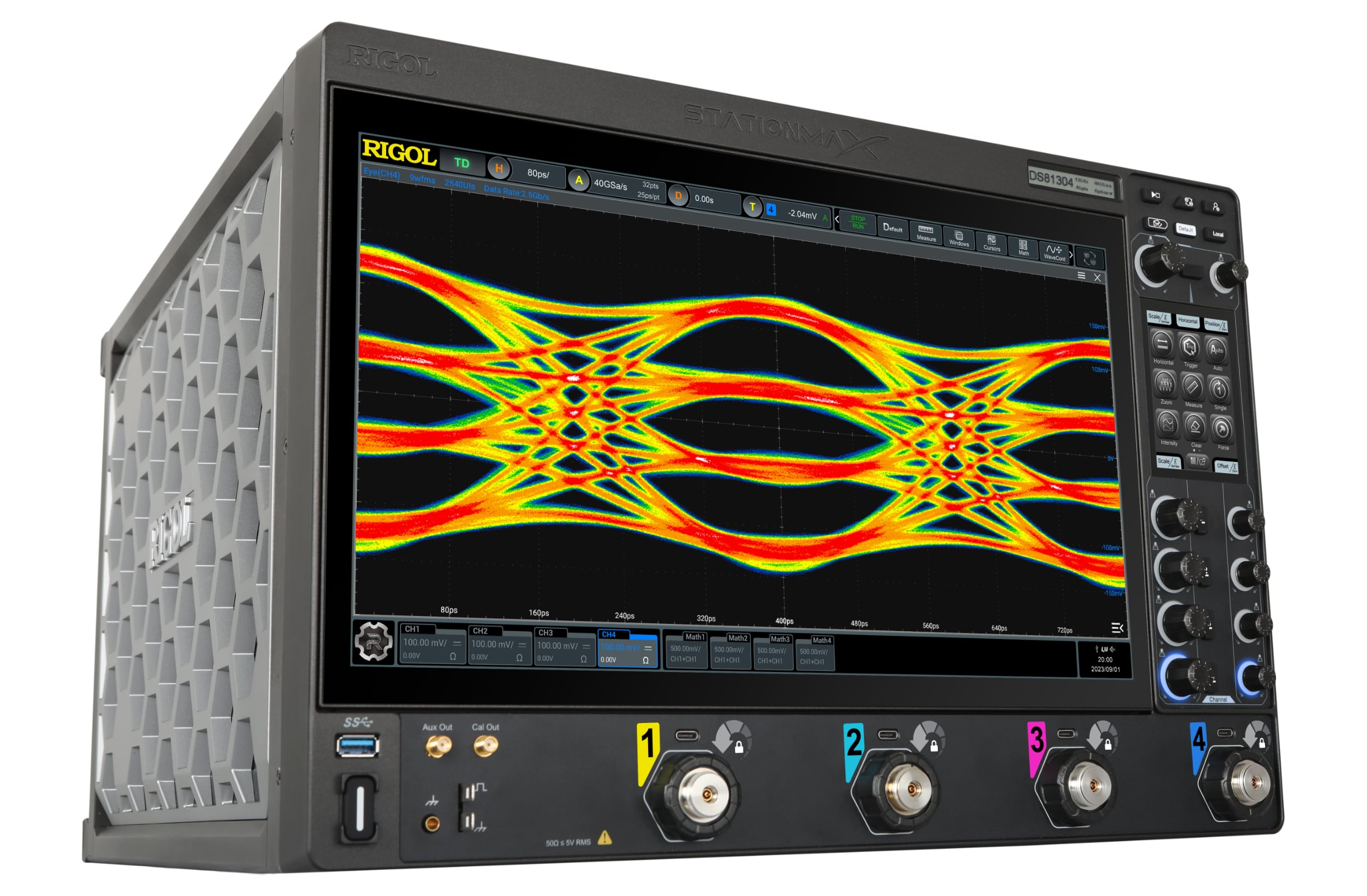

RIGOL DS80000 Series High Bandwidth Real-Time Digital Oscilloscope Introduction
RIGOL DS80000 series represents the eighth generation of high-performance digital oscilloscopes developed in-house by RIGOL. Designed to meet the needs of analysis and verification in high-speed electronic projects, this family offers analog bandwidth up to 13 GHz, real-time sampling up to 40 GSa/s, and memory depth up to 4 Gpts per channel.
| Specifications |
DS80604 |
DS80804 |
DS81004 |
DS81304 |
| Analog Channels |
4 |
| Bandwidth |
6 GHz |
8 GHz |
10 GHz |
13 GHz |
| Max. Sample Rate |
40 GSa/s |
| Max. Memory Depth |
500 Mpts (std.)
2 Gpts or 4 Gpts (opt.) |
| Vertical Resolution |
8–16 bits (selectable) |
| Waveform Capture Rate |
250,000 wfms/s |
| Display |
15.6" capacitive multi-touch screen, 1920×1080 pixel |
| Protocol Decoding (optional) |
RS232/UART, I2C, SPI, CAN, CAN-FD, FlexRay, LIN, I2S, MIL-STD-1553, USB2.0 |
| Compliance Analysis (optional) |
USB2.0, Ethernet, Automotive, Audio, Aerospace |
Main Features
- Analog bandwidth: up to 13 GHz
- Real-time sampling: up to 40 GSa/s

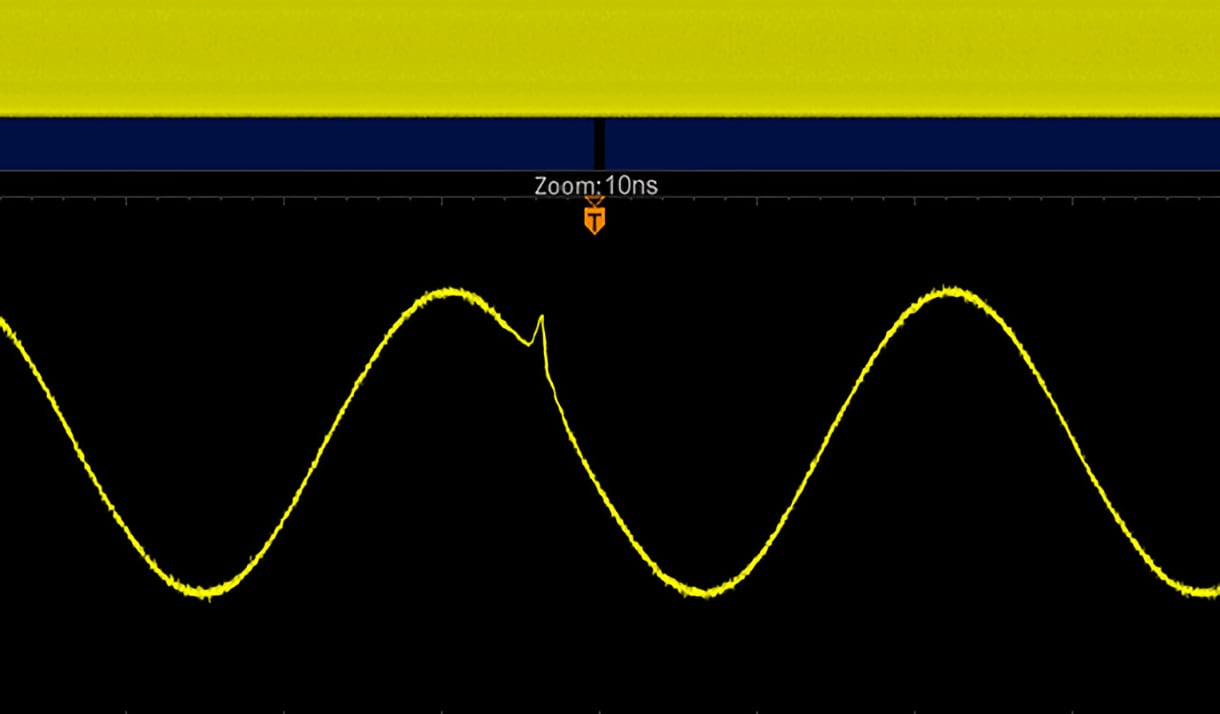

- Memory depth: up to 4 Gpts per channel (optional)
- Analog channels: 4 + 1 EXT channel
- Vertical resolution: adjustable from 8 to 16 bits
- Vertical sensitivity: from 1 mV/div to 1 V/div (50 Ω)

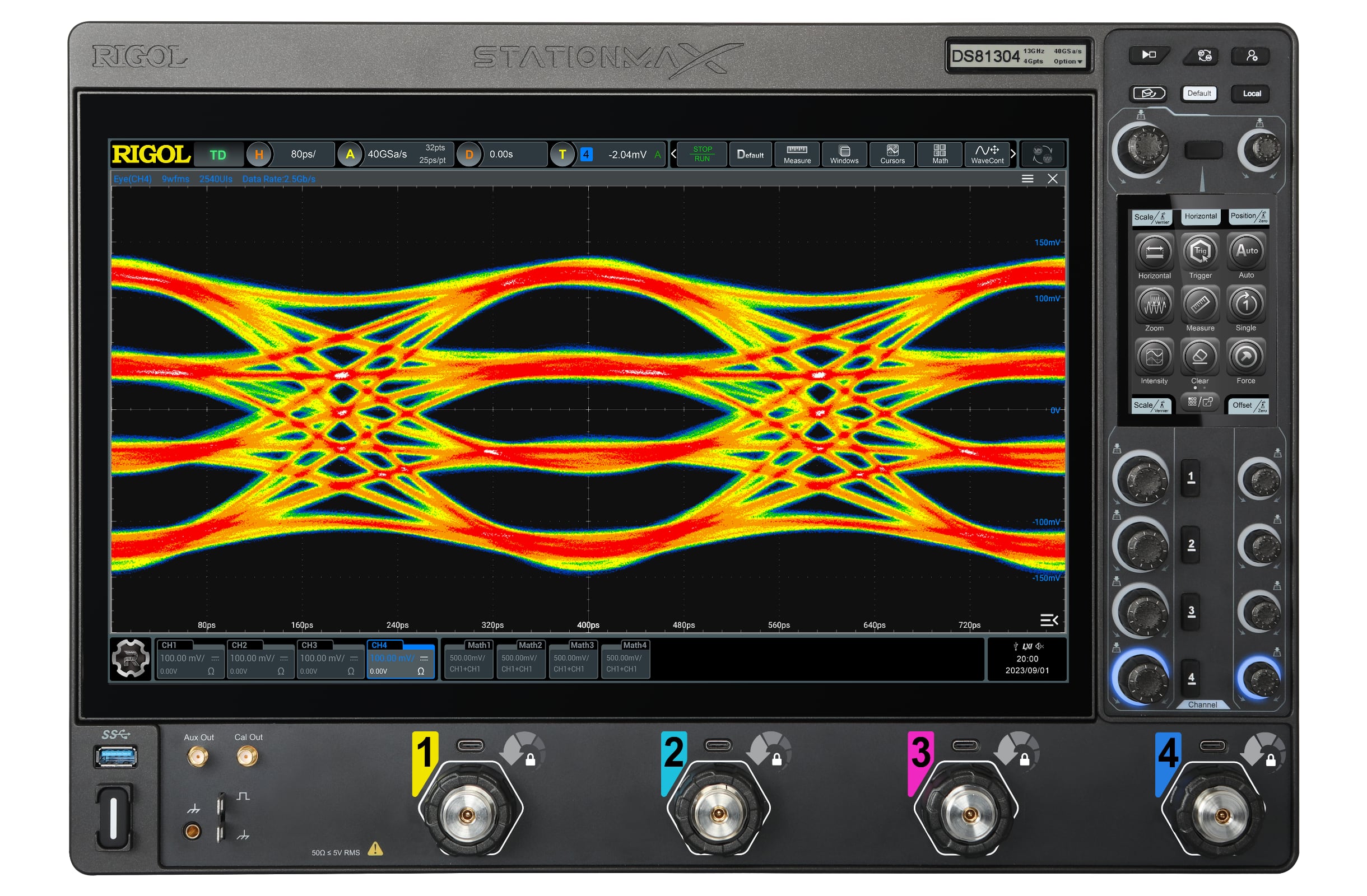

- Screen: high-definition 15.6" touchscreen with electric tilt
- Waveform capture rate: over 500,000 wfms/s
- Advanced triggers: area, edge, pulse width, slope, video, pattern, duration, timeout, runt pulse, overamplitude, delay, settling hold, Nth edge, and serial bus-specific triggers (RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL-STD-1553)
Advanced Functions
- Serial bus analysis and decoding: support for major protocols (RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, MIL-STD-1553, USB2.0, ARINC429, 8b10b, MANCHESTER, automotive Ethernet, PCIe, DDR) with optional compliance analysis.

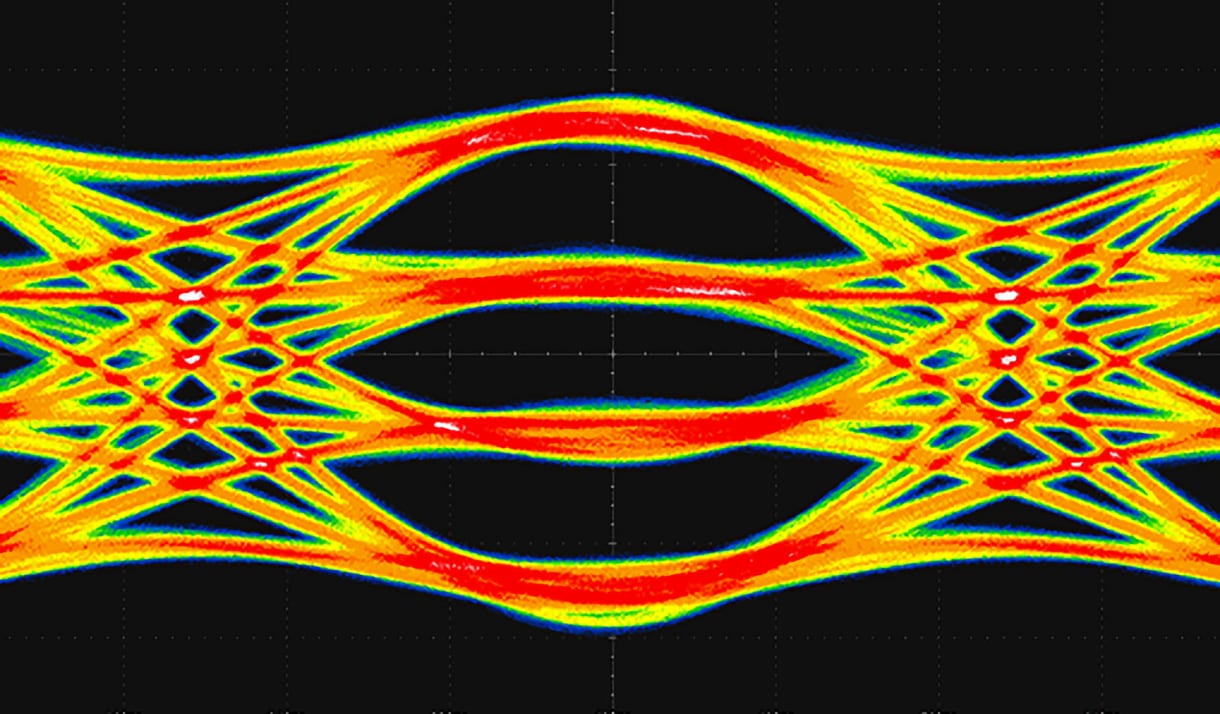

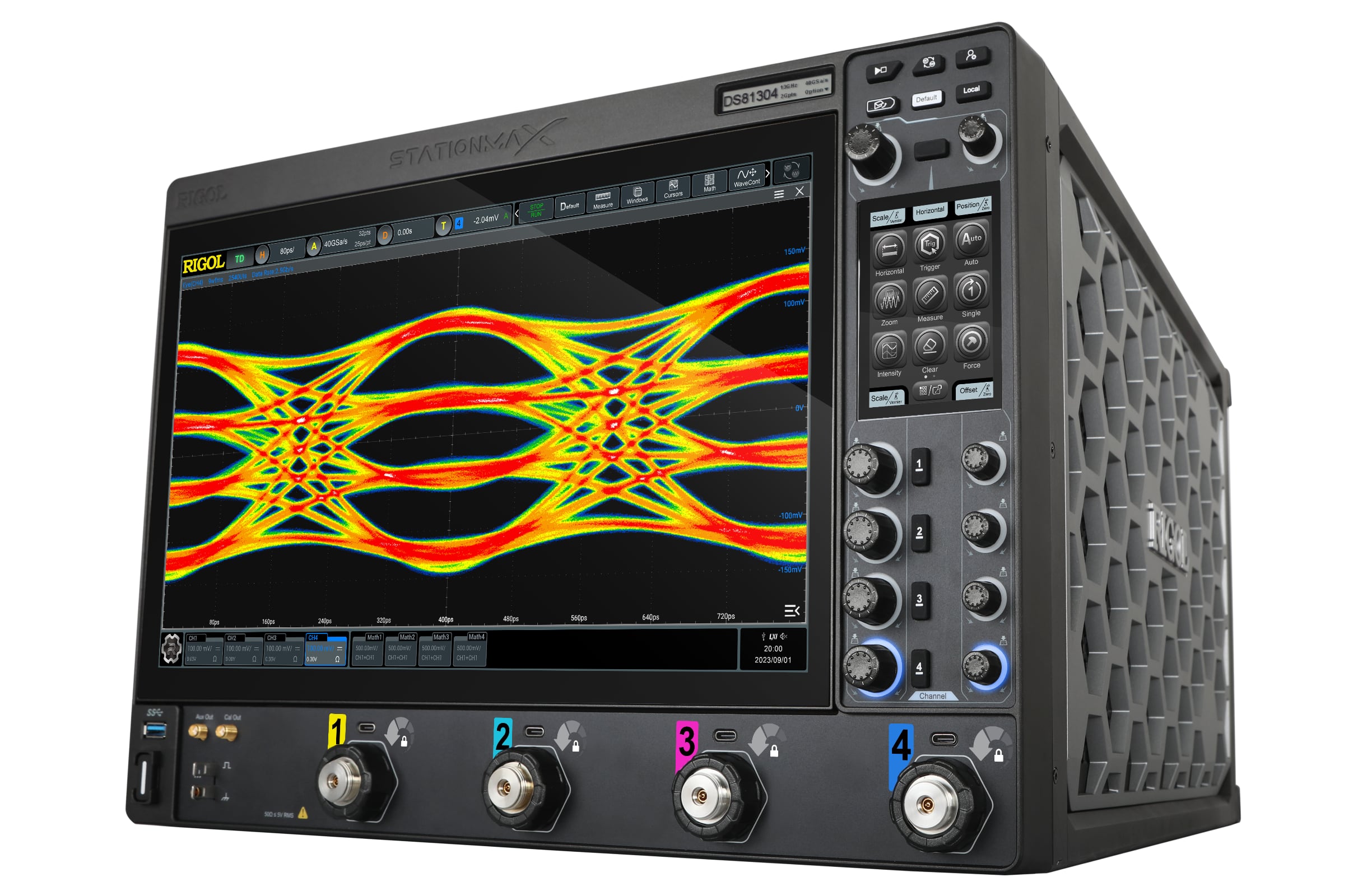

- Real-time eye diagram and jitter analysis: optional, allows evaluation of signal fidelity and detection of timing issues.
- Math and measurements: advanced math operations (addition, subtraction, multiplication, division, FFT, logarithms, filtering, peak search), automatic measurement of over 41 parameters, and histogram functions for statistical analysis.
- Recording and playback: up to 2,000,000 frames in hardware, with time navigation of acquisitions.

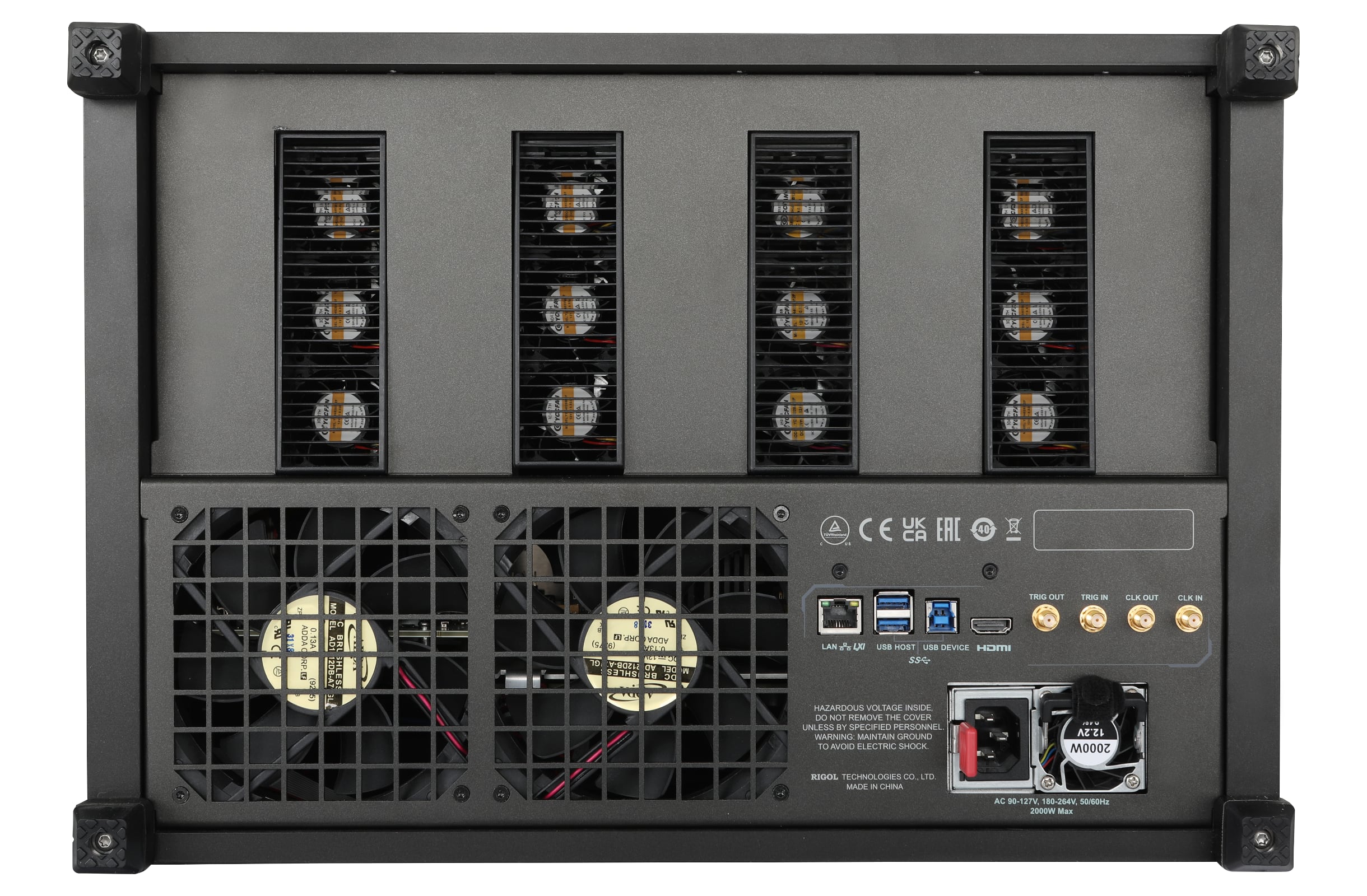

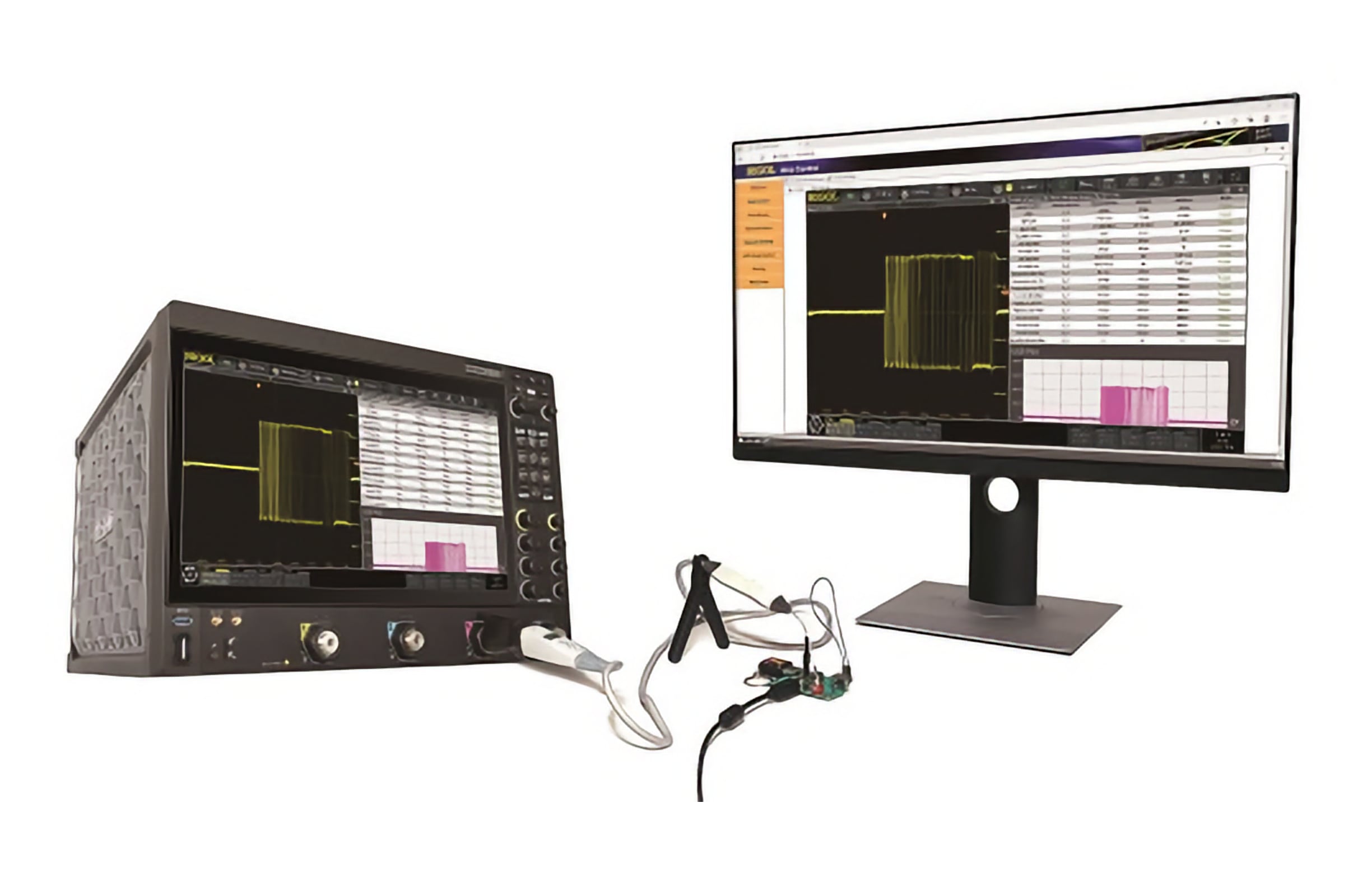

- Interfaces: USB Host & Device, LAN (LXI), HDMI, AUX OUT, remote control via Web Control.
Typical Applications
- Analysis of high-speed digital signals and protocol compliance verification
- Debug of complex embedded and automotive systems
- Testing of RF and telecommunications devices
- Eye diagram and jitter analysis for digital clock and data signals
Standard Equipment and Options
- Stand-alone instrument integrating oscilloscope, digital voltmeter, 8-digit frequency counter, totalizer, and protocol analyzer (optional)
- Software options activated via code: jitter analysis, eye diagram, bus decoding, power analysis, waveform generator

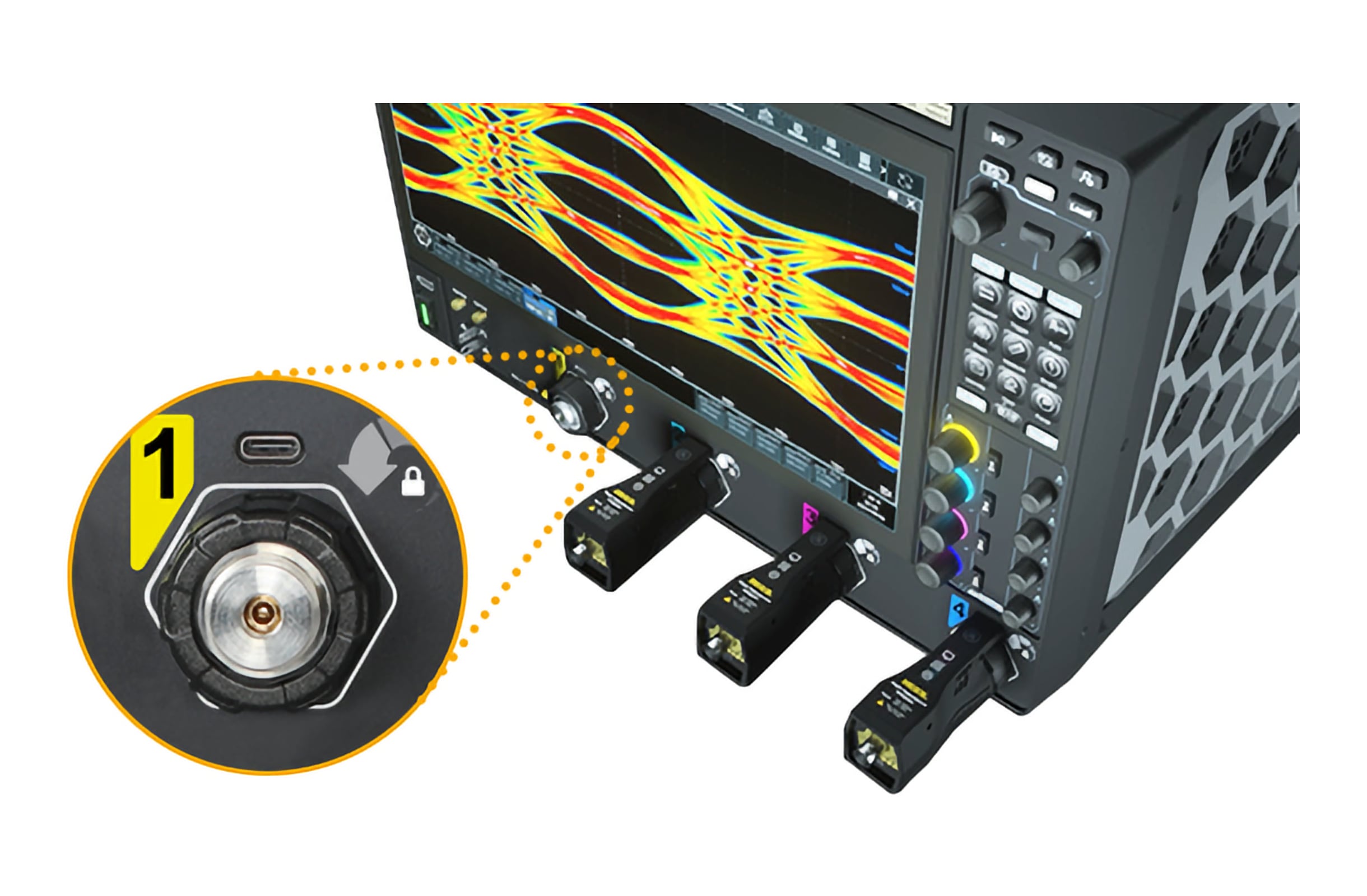

- Dedicated accessories and probes for every measurement need
Available Software Options and Upgrades
- DS80000-RLU-20 – Memory upgrade to 2 Gpts/ch
Enables longer acquisitions and detailed analysis of complex signals.
- DS80000-RLU-40 – Memory upgrade to 4 Gpts/ch
For exceptionally extended acquisition windows and in-depth analysis.
- DS80000-JITTA – Eye diagram and jitter analysis
Advanced tools for evaluating signal integrity and timing.
- DS80000-ENETC – 100M/1000M Ethernet compliance test
Automated tests and reports for verifying Ethernet signal quality and compliance.
- DS80000-USBC – USB 2.0 compliance test
Automated measurements and reports for USB 2.0 signals, including eye diagram and jitter.
- DS80000-EMBDA – Embedded bus trigger and decoding
Supports RS232/UART, I2C, SPI for debugging and validating embedded systems.
- DS80000-AUTOA – Automotive bus trigger and decoding
Supports CAN, CAN-FD, LIN, FlexRay for vehicle network analysis.
- DS80000-AUDIOA – Audio bus trigger and decoding
Dedicated to digital audio protocols such as I2S.
- DS80000-AEROA – Aerospace bus trigger and decoding
For protocols such as MIL-STD-1553, ideal for avionics and defense.
