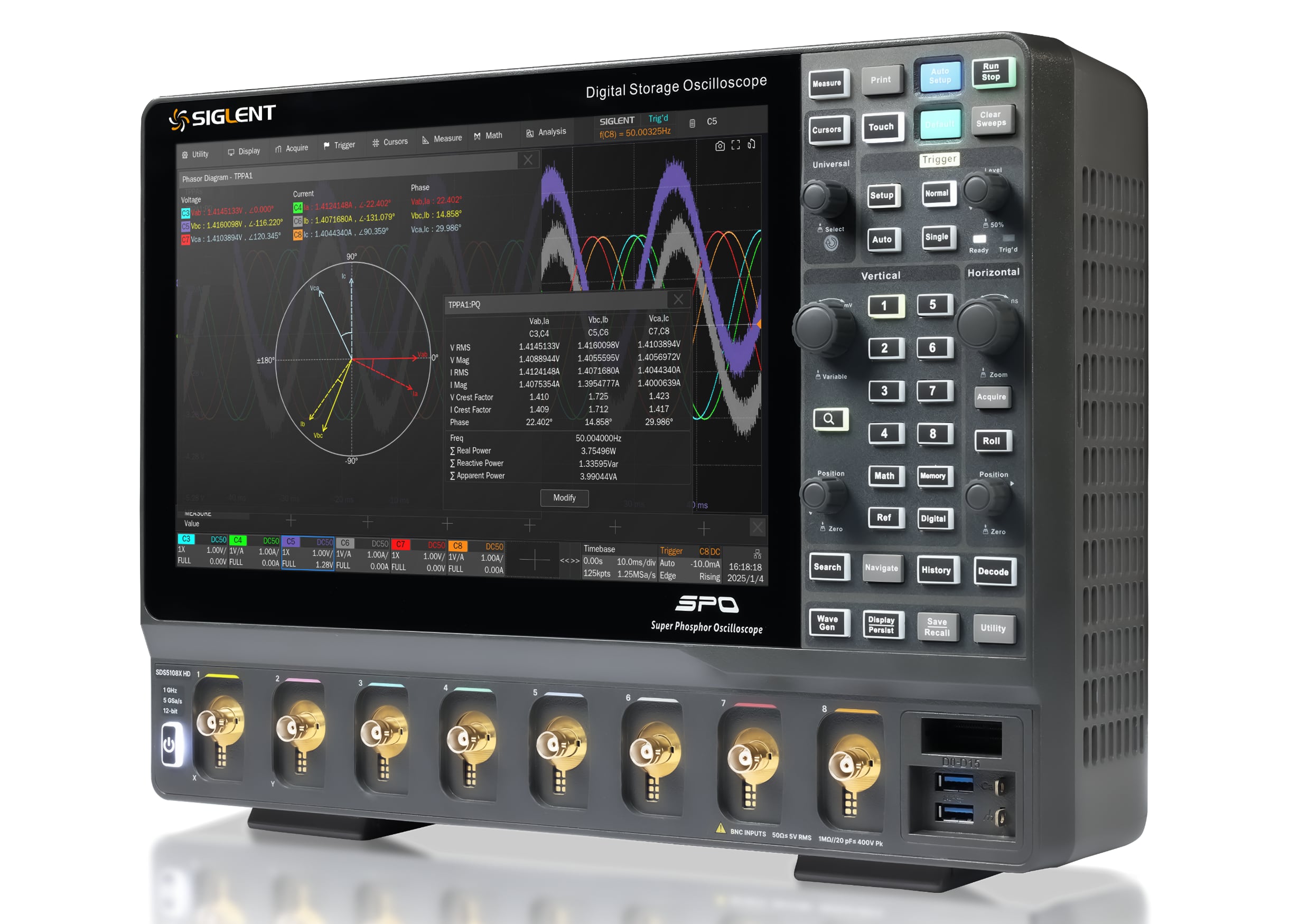

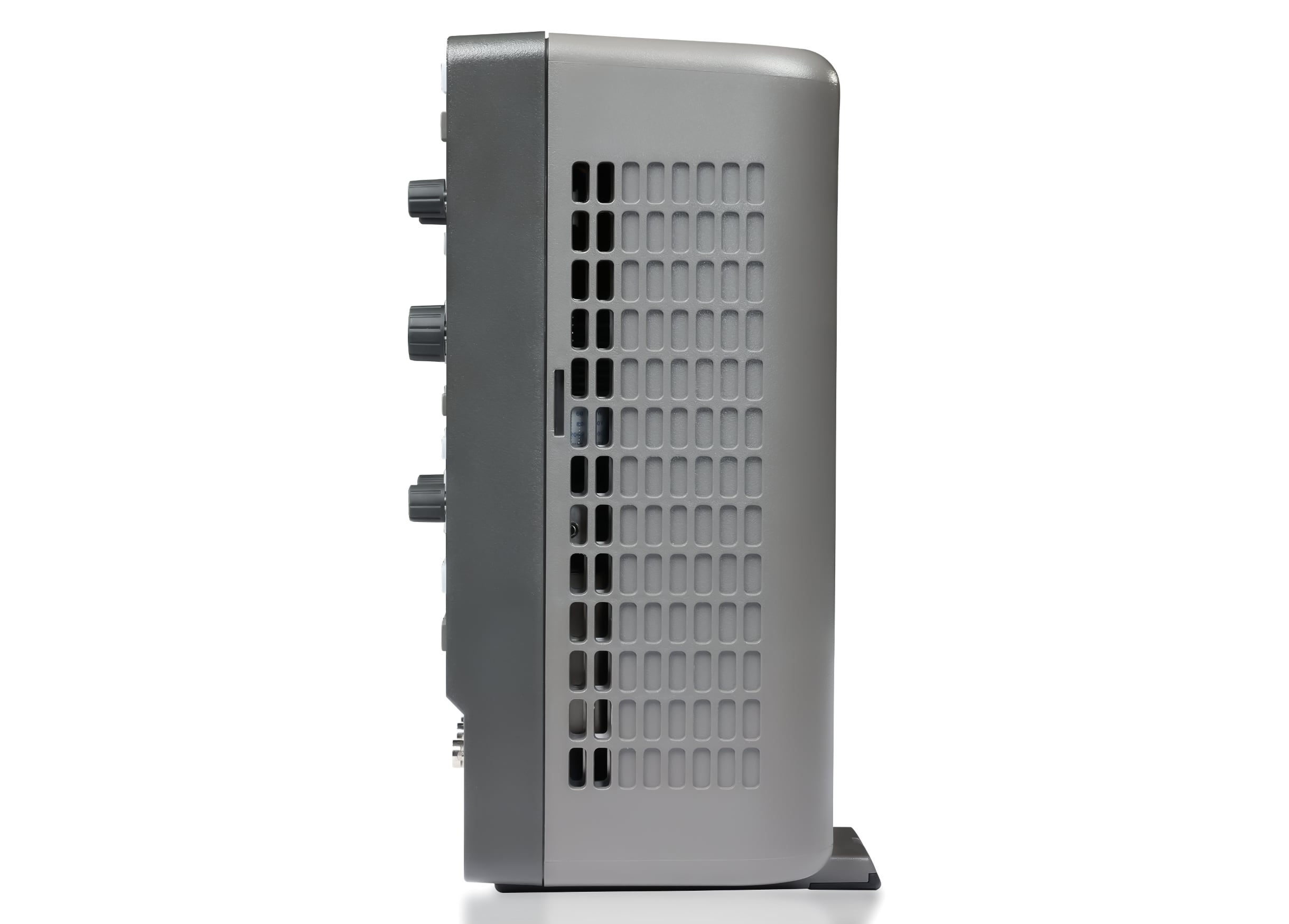

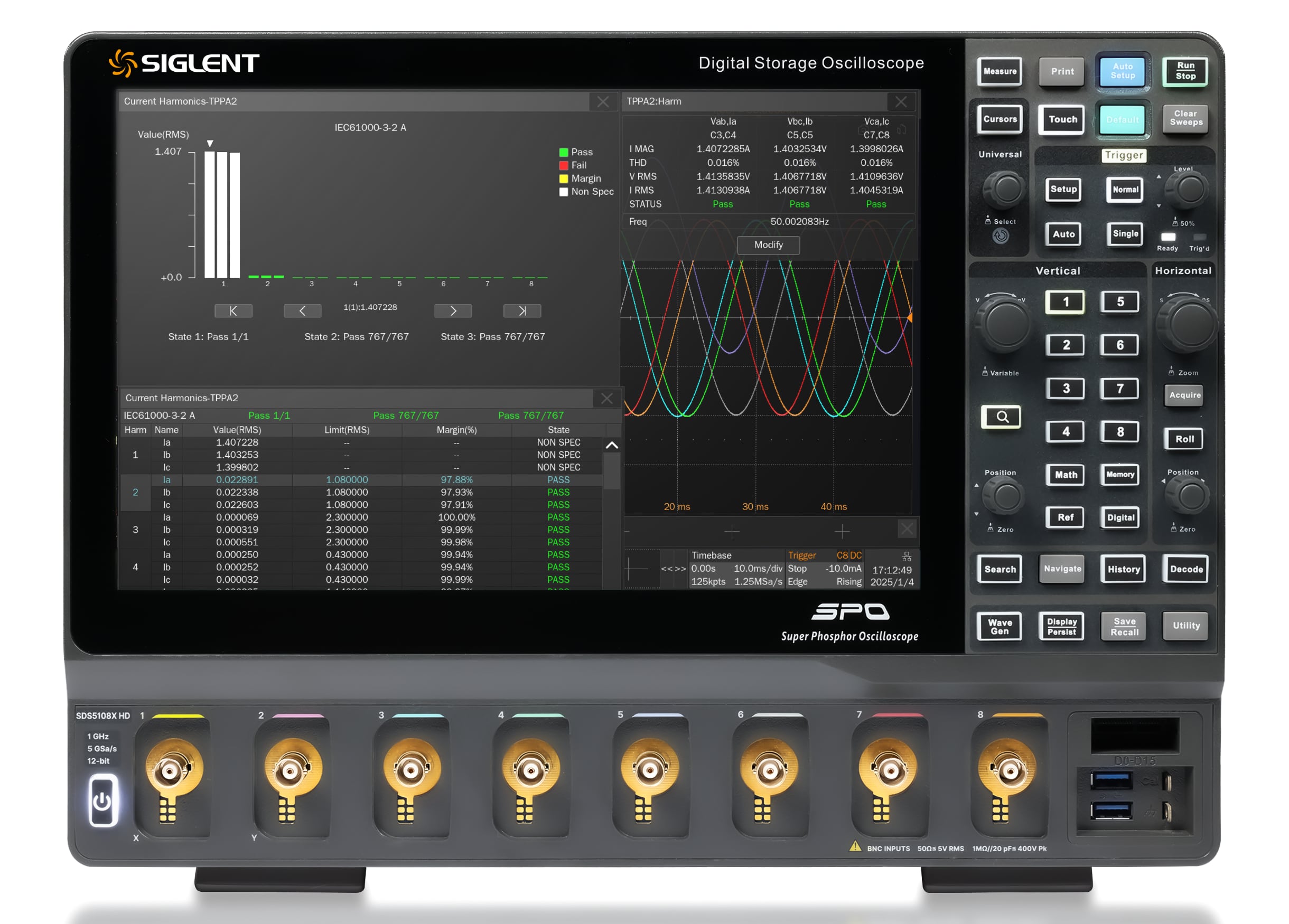

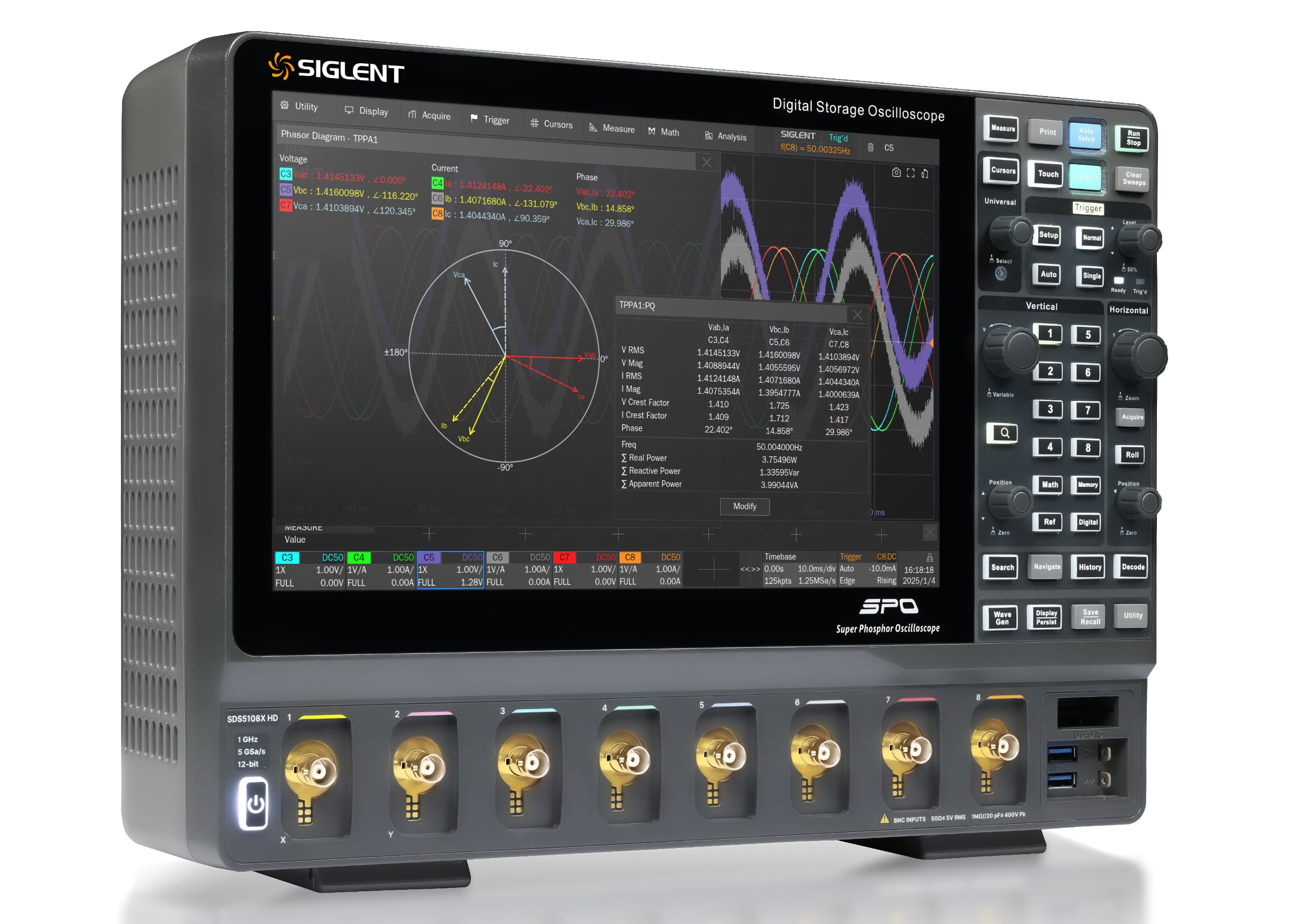

The SIGLENT SDS5000X HD series represents the new generation of high-resolution digital oscilloscopes, designed to provide advanced measurement performance in R&D, laboratory, and production environments. Equipped with 12-bit ADC converters, bandwidth up to 1 GHz, and acquisition memory up to 2.5 Gpts per channel, this series offers exceptional signal visibility and superior accuracy even in the most complex applications. The 12.1-inch capacitive touch display allows intuitive interaction, while SPO technology ensures high update speed and detailed waveform visualization. Advanced features such as intelligent triggers, power analysis, Bode Plot, serial decoding, and History mode complete an ideal platform for multi-channel analysis and in-depth debugging.
Available in 4, 6, and 8 analog channel versions
Selectable bandwidth: 350 MHz, 500 MHz, 1 GHz
Real vertical resolution at 12 bits (up to 16 bits in HiRes mode)
Acquisition memory up to 2.5 Gpts/channel
Update rate up to 160,000 wfm/s (650,000 in sequence mode)
12.1-inch multi-gesture capacitive touchscreen
16 integrated digital channels (MSO)
Advanced triggers: zones, serial, pattern, runt, window, etc.
Standard serial analysis (I2C, SPI, UART, CAN, LIN) and optional (CAN FD, FlexRay, I2S, ARINC429, SENT, MIL-STD-1553B, Manchester)
Single-phase and three-phase power analysis (optional)
Test on WBG semiconductors and Double Pulse Test (DPT)
History and Sequence function for segmented acquisitions and event search

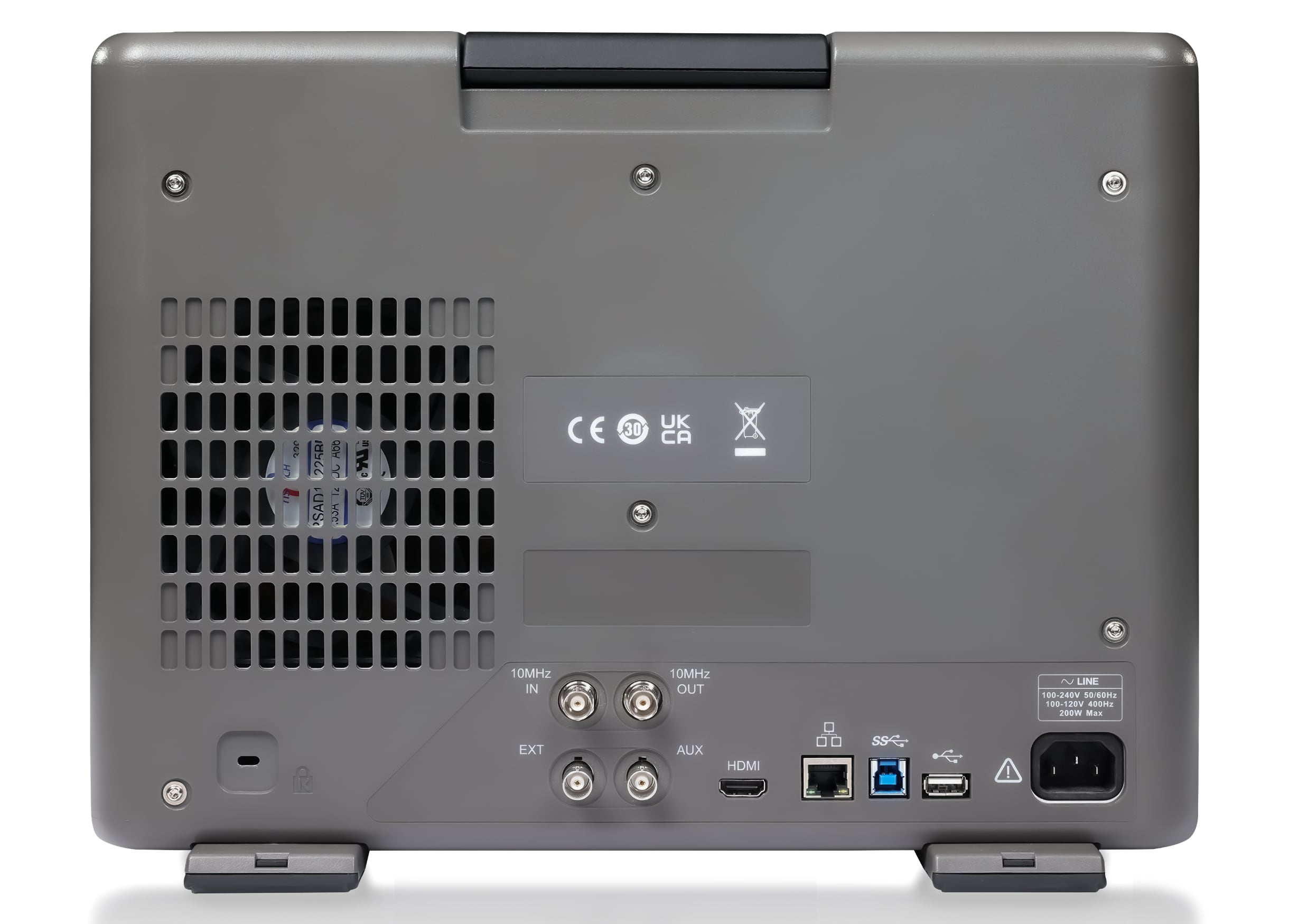

Interfaces: USB 3.0, 1G LAN, HDMI, 10 MHz I/O, built-in web server
Equipment: 500 MHz passive probes (1 per channel), wireless mouse, USB cable, power supply, calibration certificate

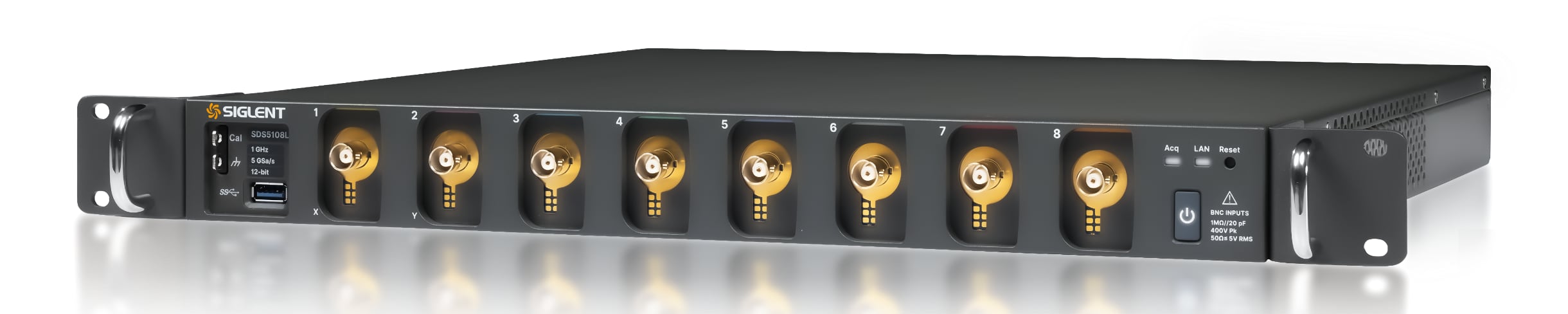

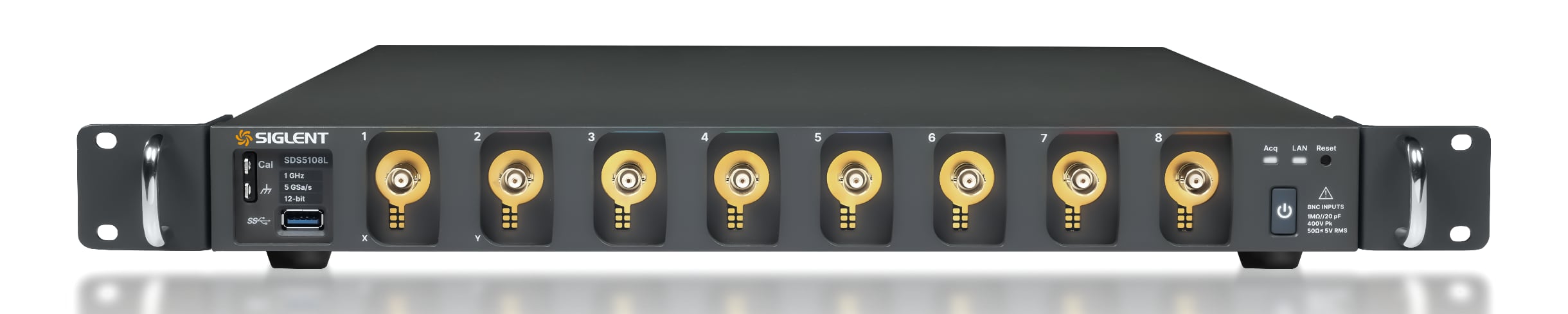

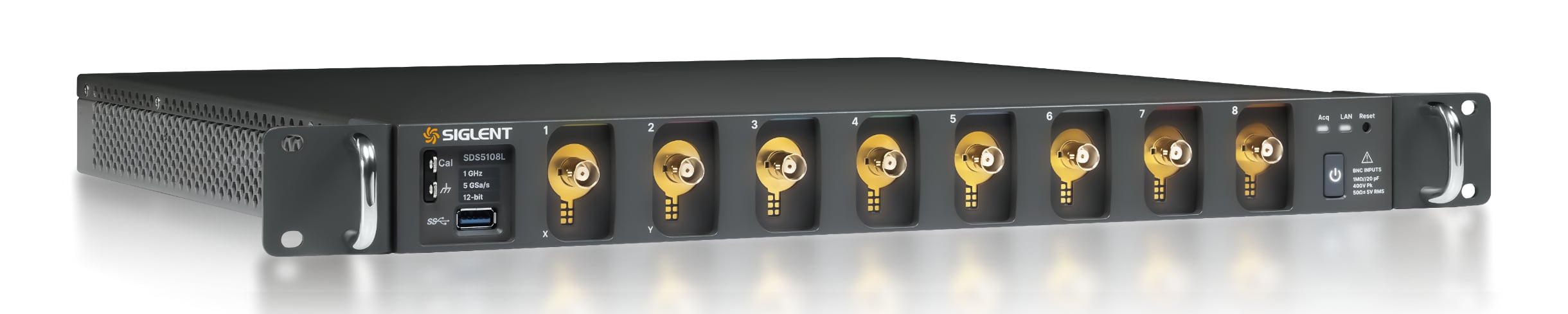

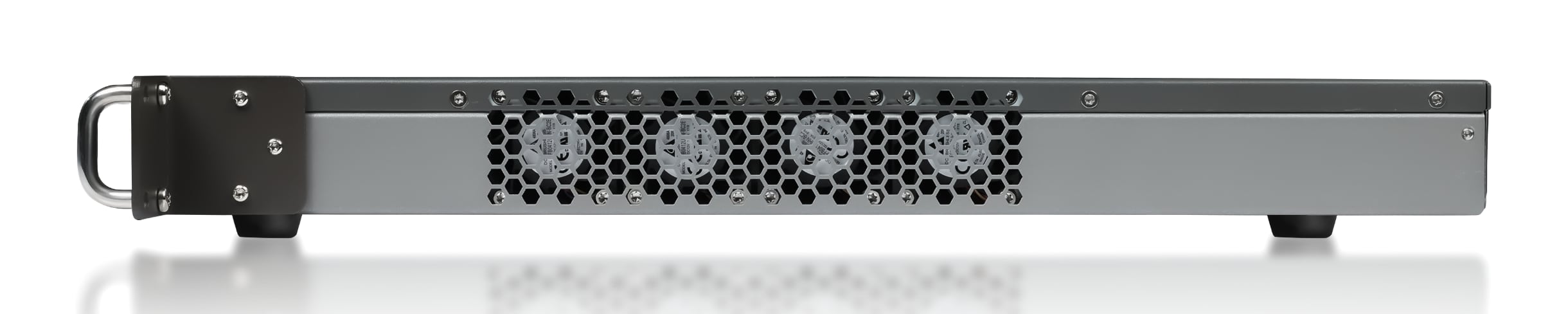

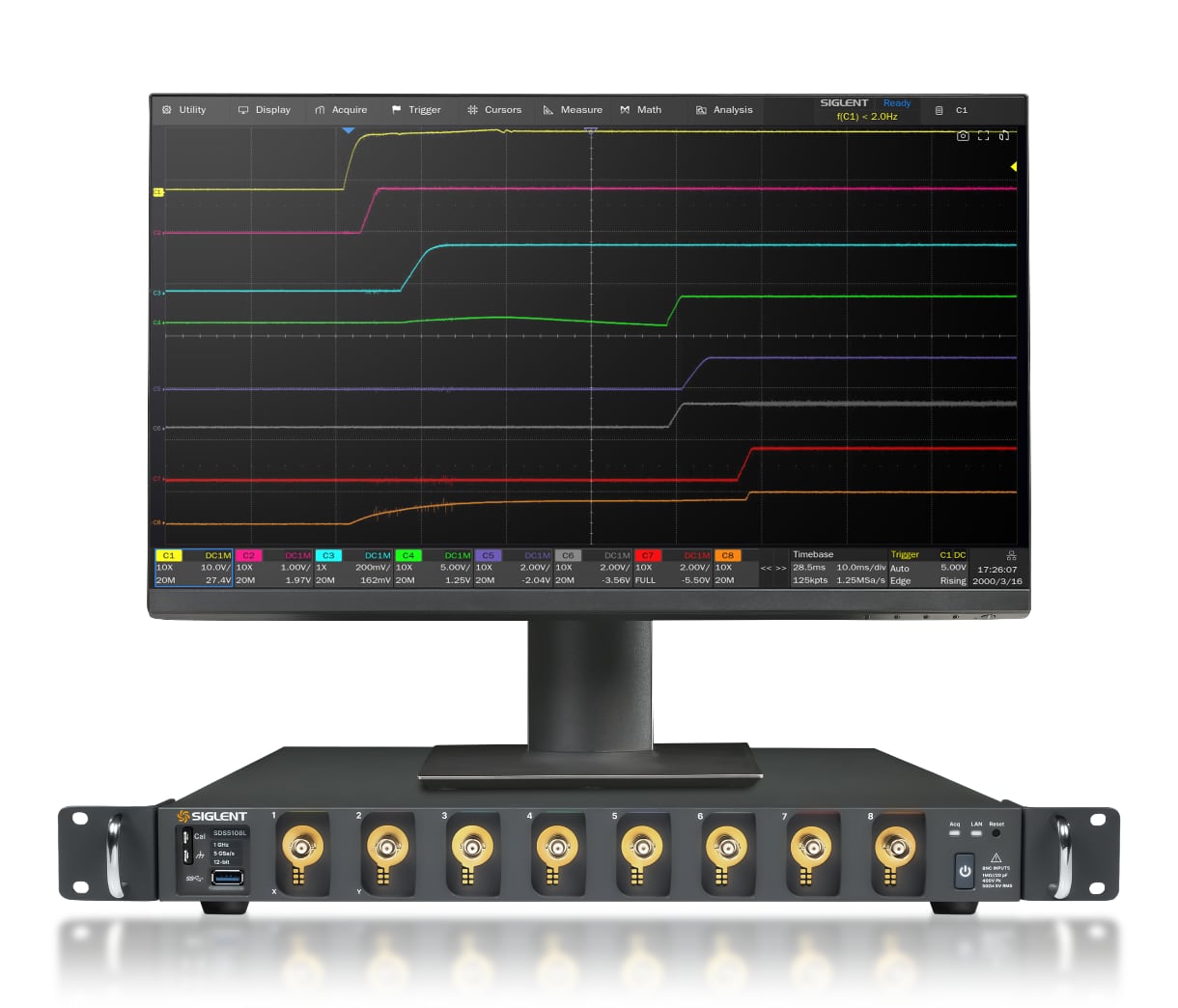

SDS5000L: the power of the HD series in a modular and compact version

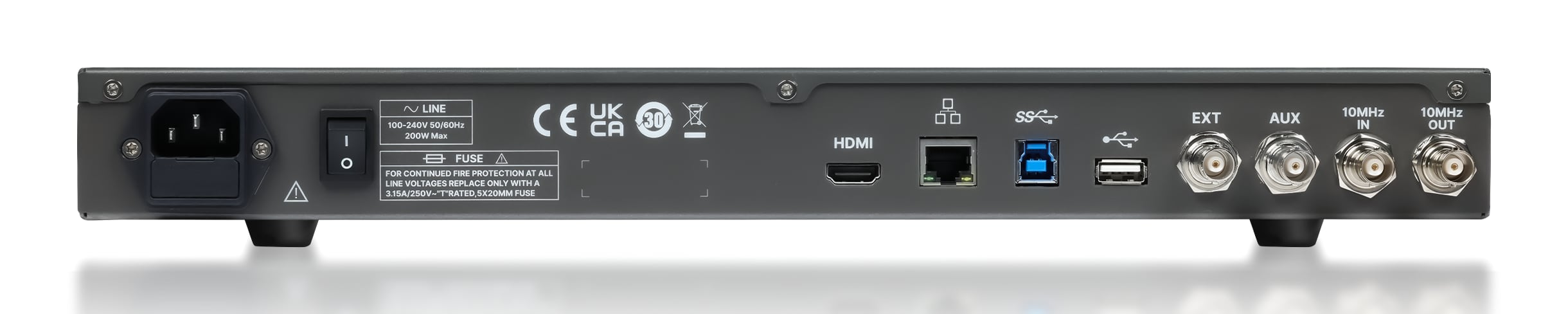

The SDS5000L series offers the same acquisition performance, memory, bandwidth, and analysis as the SDS5000X HD, but in a 1U rack format without display and without integrated digital channels. It is the ideal solution for scalable multi-channel systems up to 512 channels, automated tests, test benches, and distributed acquisition applications. Thanks to support for multi-synchronization (via SYN64), advanced remote control via LAN/web, and HDMI output for external displays, the L series integrates perfectly into production and research environments where compactness and modularity are essential. All analysis functions, advanced triggers, serial decoding, and software options are available as in the HD version.
