SIGLENT SSA5000A and SSG5000A Introduction, Spectrum Analyzers and RF Signal Generators Series

SIGLENT introduces two new series of the A-Line family: spectrum analyzers up to 25.6 GHz with optional real-time spectrum analysis capabilities and RF signal generators up to 20 GHz.

SSA5000A Series Spectrum Analyzer

❮ ❯

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With a capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

Applications include broadcast monitoring and evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

Features and Benefits:

■ Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz or 26.5 GHz
■ -165 dBm/Hz Displayed Average Noise Level (Typ.)
■ -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
■ 25 MHz, 40 MHz Real Time Analysis Bandwidth (optional)
■ 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
■ Channel power, ACPR, OBW, Harmonic, TOI measurement etc
■ Analog Modulation Analysis and Vector Digital Modulation Analysis
■ 12.1 inch Multi-Touch Screen, HDMI output
■ Web Browser Remote Control on PC and Mobile Terminals and File Operation

Models and Main index


Design Features

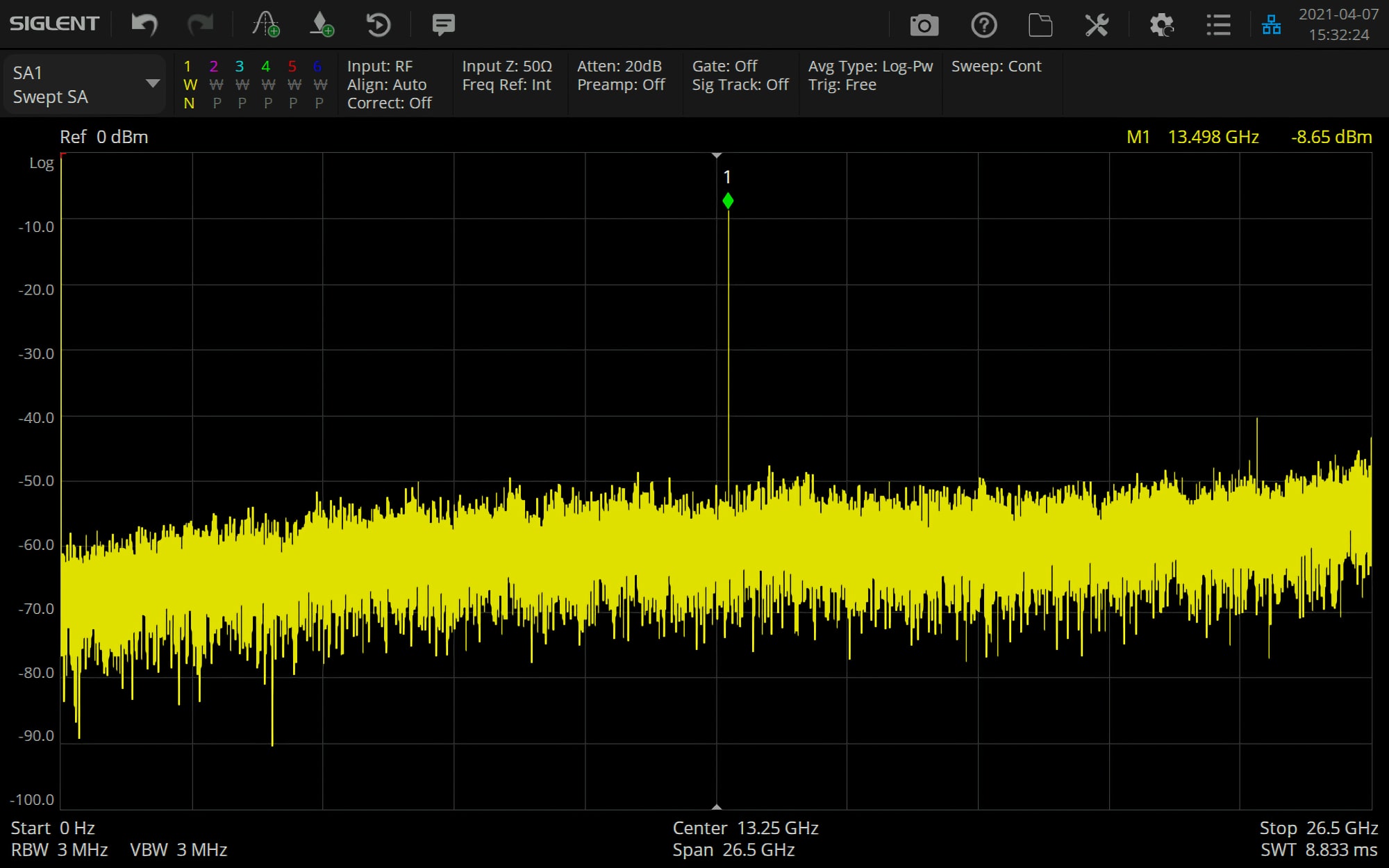

Spectrum Analyzer Mode

Various RF spectrum measurement and analysis

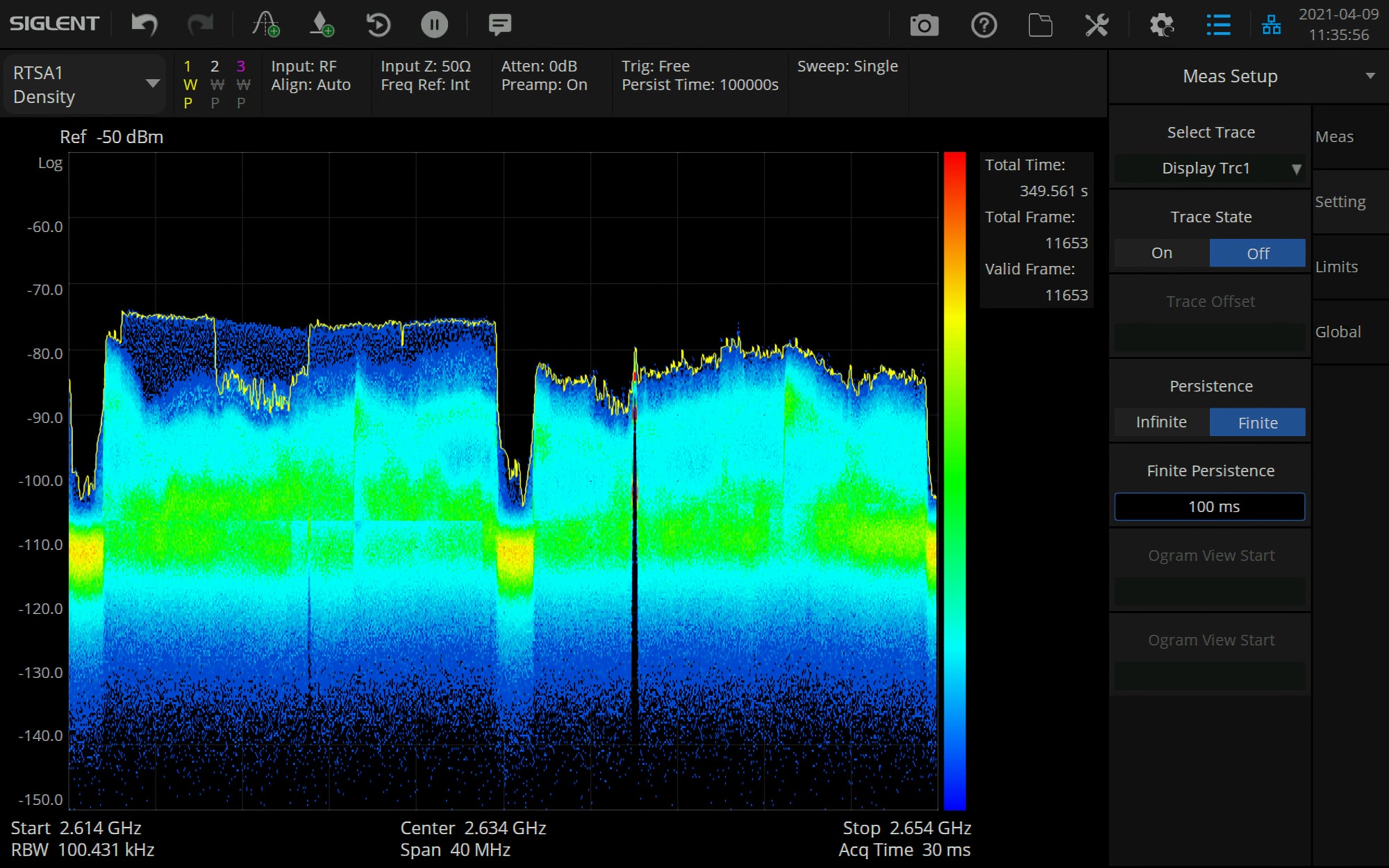

Real Time Analysis Mode

Multi-view and dimensions to monitor complex signals

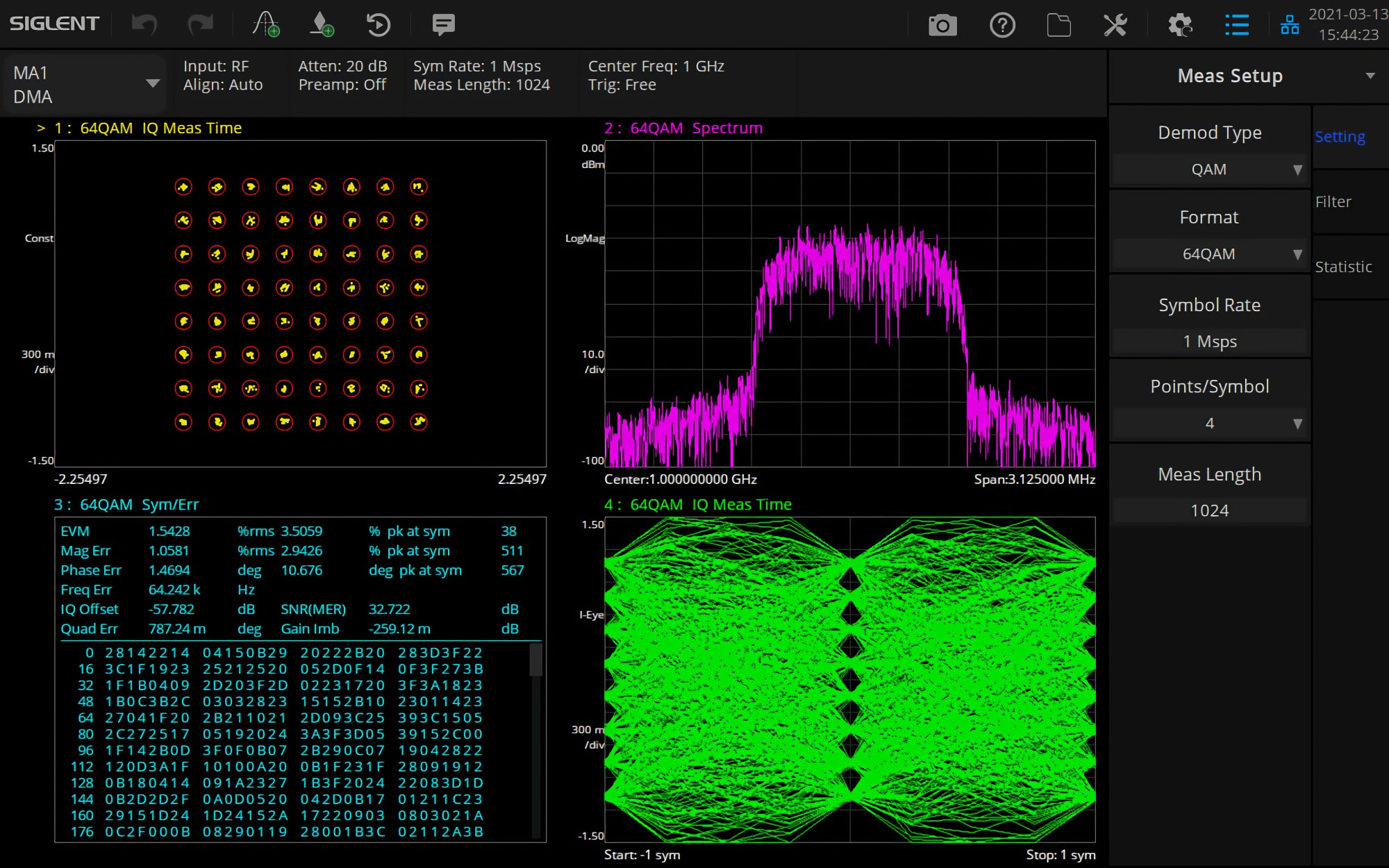

Modulation Analysis Mode

AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM digital modulation analysis

REQUEST INFORMATIONS

SSG5000A Series RF Signal Generator

❮ ❯

SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures highprecision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

Features and Benefits:

■ Frequency up to 13.6 GHz / 20 GHz
■ 0.001 Hz frequency setting resolution
■ Level setting range: from -130 dBm to 25 dBm
■ Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
■ Level error ≤ 0.7 dB (typ.)
■ Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
■ Single pulse, double pulse and pulse train generator (option)
■ The power meter control kit can easily use the power meter to measure power, control power output and correct line loss
■ 5 inch TFT capacitive touch screen, mouse and keyboard supported
■ Web browser remote control on PC and mobile terminals
■ Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Models and Main index
