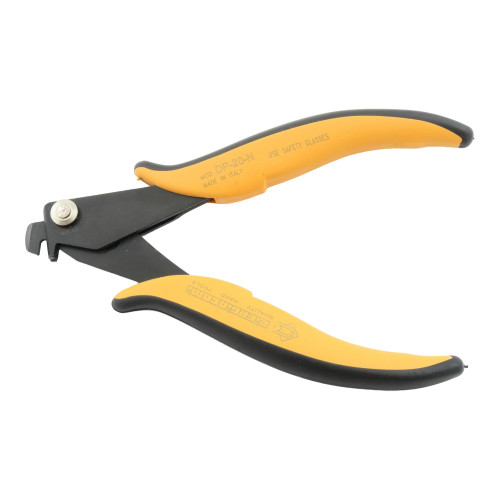

Piergiacomi DP 20 N D Hand depaneling tool 2mm, ESD version
A manual depaneling tool designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The maximum length of the isthmus (tab) should not exceed 3 mm. Grip model St.
Technical specifications:
- Maximum PCB thickness: 1.6 mm
- Minimum isthmus distance: 11 mm
- Maximum cutting force: 3 kg
- Blade thickness: 2 mm
Also available in NON ESD version: model DP 20 N.
| Order code | ESD Order Code | Maximum cutting force | Blade thickness | Weight | Length |
| DP 10 N | DP 10 N D | 1 kg | 1 mm (.039") | 90 gr | 147 mm |
| DP 15 N | DP 15 N D | 3 kg | 1.5 mm (.059") | 90 gr | 147 mm |
| DP 18 N | DP 18 N D | 3 kg | 1.8 mm (.070") | 90 gr | 147 mm |
| DP 20 N | DP 20 N D | 3 kg | 2 mm (.078") | 90 gr | 147 mm |
| DP 23 N | DP 23 N D | 7 kg | 2.3 mm (.090") | 90 gr | 147 mm |
| DP 24 N | DP 24 N D | 7 kg | 2.4 mm (.094") | 90 gr | 147 mm |
| DP 25 N | DP 25 N D | 7 kg | 2.5 mm (.098") | 90 gr | 147 mm |
