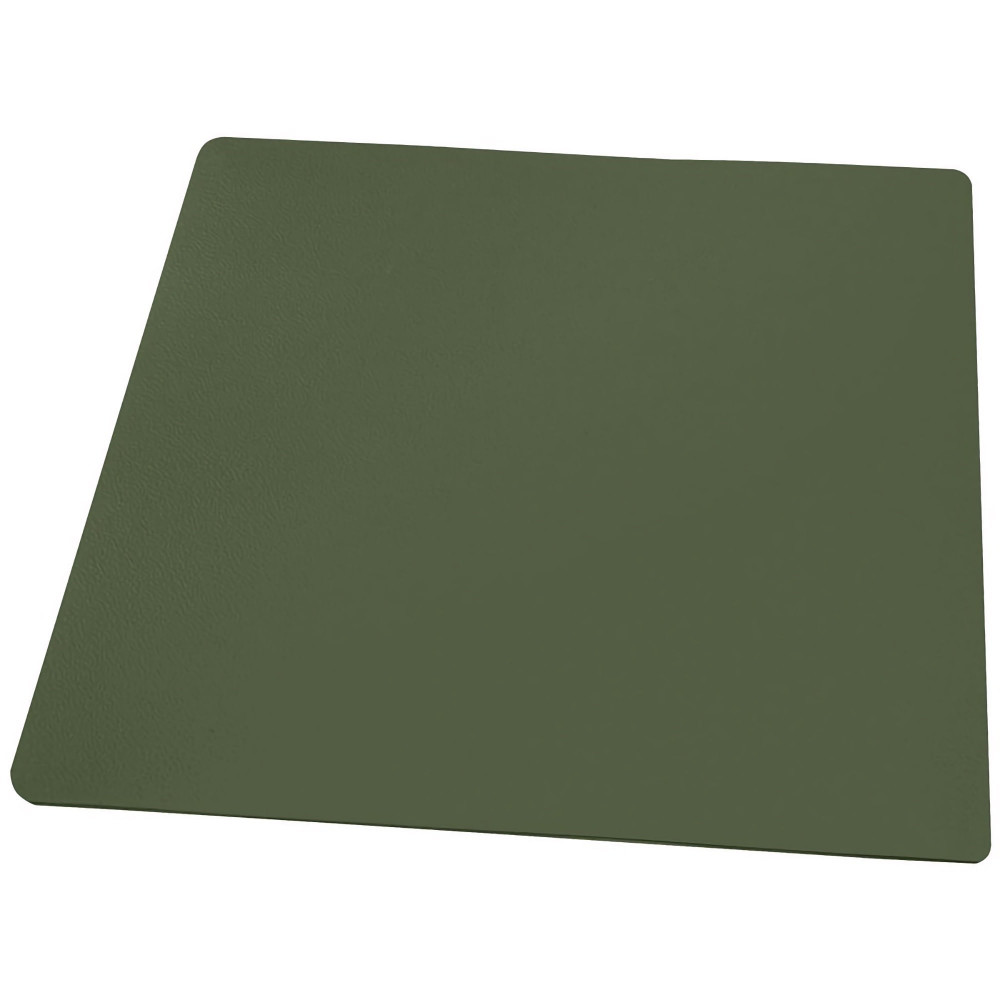

Desco Europe 228251 ROLL,STATFREE DLR,RUBBER GREEN, 2 LAYER, 2MM, 1.22MX10M
- Two-layer rubber, static dissipative coloured top and more conductive black bottom
- Solder iron resistant and withstands most chemicals
- Ground snap and ground cord not included – see Worksurface Grounding
- Easy to clean
- Low reflecting
- Ideal mat to use with constant monitors
- Rp-p Top Colour Layer: 1 x 106 to < 1 x 109 ohms meets EN 61340-5-1
Specifications:
Rp-p Top Colour Layer: 1 x 106 to < 1 x 109 ohms meets EN 61340-5-1
Rp-p Bottom Black Layer: < 1 x 106 ohms meets EN 61340-5-1
Rg: 1 x 106 to < 1 x 108 ohms meets EN 61340-5-1
Abrasion (ISO 4649, method A): less than 200E3 mm
Chemical (EN 423): resistant to chemical agents normally used for maintenance
Thickness: 2mm (±5%)Hardness (ISO 7619): 75 ± 5 shore A
Weight: 2.7 kg/m2
Colours: light blue, light grey, beige, green
Per EN 61340-5-1 Edition 1.0 2007-08 “Table 3 EPA requirements the limit for Working surfaces, storage racks and trolleys is <1x109 ohms tested per IEC 61340-2-3” and per NOTE 6 “In situations where charged device model (CDM) damage is a concern a lower point to point resistance limit of 1x104 ohms is recommended.”
“The most important functional consideration for work surfaces is the resistance from the top of the surface to the groundable point [Rgp]. This establishes the resistance of the primary path to ground for items placed on the surface. IEC 61340-5-1 has set a resistance to ground range for work surfaces of less than 1,0 x 109 ohms.” [CLC/TR 61340-5-2:2008 User guide clause 4.7.1.2.5 Electrical considerations – Work Surfaces]
Due to variations in computer monitor displays, color shown may not be exact. For true accurate color, please request an actual sample.
