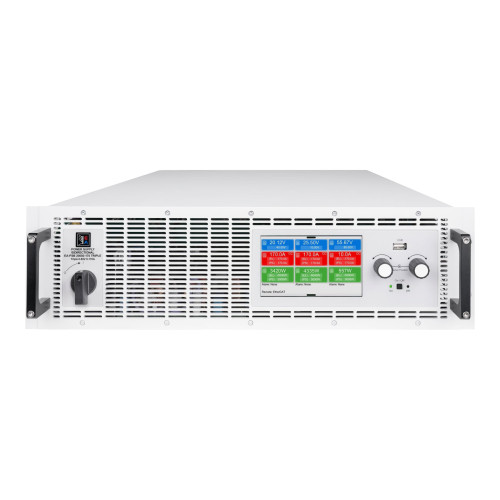

EA Elektro-Automatik PSB 20060-170 Triple 3U 3-Channel DC Power Supply 60V, 170A, 15000W

Klicken Sie auf das Bild für die Galerie

EA Elektro-Automatik PSB 20060-170 Triple is a 3-channel programmable bidirectional DC power supply with 60V voltage, 170A current per channel and 15000W total power.

Built-in interfaces: USB, Ethernet (1 Gbit/s), EtherCAT, CAN FD, Master-Auxiliary-Bus, Share-Bus, USB Host on front panel, Digital In/Out
Software: EA Power Control, EA Battery Simulator
Options: 208V US Version

Key features:

Worldwide Input Voltage: 208 V - 480 V, +/- 10%, 3ph AC
Active Power Factor Correction, typical 0.99
Very high efficiency of over 96% in regenerative with energy recovery back to the grid
Voltages from 0 - 60 V up to 0 - 920 V
High performance with up to 5 kW per channel
Currents from 0 - 20 A up to 0 - 170 A per channel
3 Independent, fully isolated and bidirectional DC output/input stages, with autoranging
Galvanically isolated Share-Bus for parallel operation
3 Built-in high speed control interfaces with 1 ms communication speed

Overview:

EA-PSB 20000 Triple series is the most compact multi-channel bidirectional high power DC source enabling multiple tests with a single device.
A triple-channel power supply reduces the need for additional equipment. This not only lowers capital expenditure but also simplifies the testing setup, allowing engineers to focus on critical tasks without managing multiple devices.
With three independent channels, customers can conduct parallel testing on different components or subsystems, such as motors, inverters, and on-board chargers, within the same test setup. This reduces the time needed to validate each component individually.
The occupation of rack space is reduced by more than 50% when using triple devices instead of single output devices.
By enabling more efficient testing and reducing the time required for validation and integration, a triple-channel power supply helps customers accelerate their development process. This is particularly important in fast-moving industries like automotive and renewable energy, where being first to market can be a significant competitive advantage.
Operational expenses are significantly lower due to high energy recovery (up to greater than 96%) when used in bidirectional mode. Both operational and HVAC energy cost savings are realized.

Model	Voltage	Current per channel	Power per channel	Total
EA-PSB 20000 Triple 3U
PSB 20060-170 Triple	0 - 60 V	0 - 170 A	0 - 5000 W	0 - 15000 W
PSB 20080-170 Triple	0 - 80 V	0 - 170 A	0 - 5000 W	0 - 15000 W
PSB 20200-70 Triple	0 - 200 V	0 - 70 A	0 - 5000 W	0 - 15000 W
PSB 20360-40 Triple	0 - 360 V	0 - 40 A	0 - 5000 W	0 - 15000 W
PSB 20500-30 Triple	0 - 500 V	0 - 30 A	0 - 5000 W	0 - 15000 W
PSB 20920-20 Triple	0 - 920 V	0 - 20 A	0 - 5000 W	0 - 15000 W
EA-PSB 20000 Triple 4U
PSB 20060-340 Triple	0 - 60 V	0 - 340 A	0 - 10000 W	0 - 30000 W
PSB 20080-340 Triple	0 - 80 V	0 - 340 A	0 - 10000 W	0 - 30000 W
PSB 20200-140 Triple	0 - 200 V	0 - 140 A	0 - 10000 W	0 - 30000 W
PSB 20360-80 Triple	0 - 360 V	0 - 80 A	0 - 10000 W	0 - 30000 W
PSB 20500-60 Triple	0 - 500 V	0 - 60 A	0 - 10000 W	0 - 30000 W
PSB 20920-40 Triple	0 - 920 V	0 - 40 A	0 - 10000 W	0 - 30000 W
