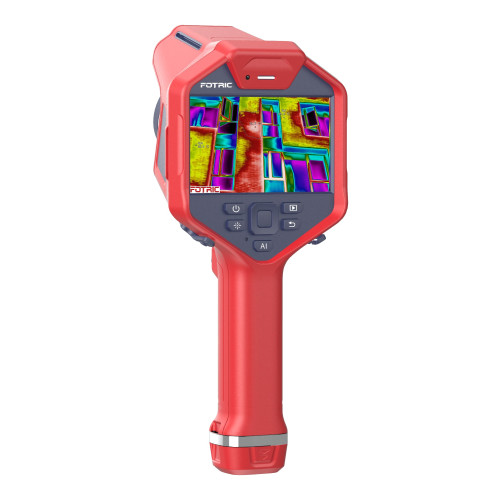

FOTRIC V7 Professional Thermal Camera 640×480 px, Laser Autofocus
FOTRIC V7 is a professional thermal camera designed to enhance maintenance efficiency in the electrical, oil & gas, and manufacturing sectors. Integrating high-resolution thermal imaging and advanced analysis functions, it guarantees professional-level performance for inspections and diagnostics. Featuring laser-assisted autofocus, interchangeable lenses, and AnalyzIR software for automated reporting, it offers versatility and precision even in complex environments.
- IR resolution: 640×480 px
- Thermal sensitivity (NETD): <0.03°C (30mK) at 30°C
- Field of view: 25°×19° (standard lens)
- TurboFocus® continuous, laser autofocus, and manual focus system
- Temperature range: -20°C~120°C / 0°C~650°C / 300°C~1550°C
- 128GB Micro SD card (expandable up to 1TB)
- 13MP digital camera
- Color palettes: 16 standard options
- Li-ion rechargeable battery (≥4h per battery)
- Weight: <1kg (without lens)
- Protection: IP54
- Drop resistance: 2 meters (with standard lens)
Included accessories:
- Thermal camera
- Standard lens
- Lens cap
- 3 rechargeable lithium-ion batteries
- Desktop battery charger and power adapter
- USB Type-C cable
- Micro HDMI cable
- SD card and SD card reader
- Accessory kit (wrist strap, mounts, lanyard, Allen key)
- Documentation (quick guide, calibration certificate, warranty card)
- Soft bag and hard case
| Specifications | V5 | V7 |
|---|---|---|
| IR Resolution | 384 × 288 px | 640 × 480 px |
| Super Resolution | 768 × 576 px | 1280 × 960 px |
| Sensor Pitch | 17 μm | |
| Thermal Sensitivity (NETD) | < 0.04°C (40 mK) | < 0.03°C (30 mK) |
| Temperature Range (depending on optics) |
-20°C ~ 120°C (-4°F ~ 248°F) 0°C ~ 700°C (32°F ~ 1292°F) 300°C ~ 1550°C (572°F ~ 2822°F) |
|
| Field of View (FOV) | 25° x 19° with standard lens | |
| Accuracy | ±2°C or ±2% | |
| Digital Zoom | 1-10x continuous | |
| SD Storage | 128GB (up to 1TB) | |
| Battery Life | ≥4h | |
| Weight (without lens) | ＜ 1.0kg | |
| Available Focal Lengths | 7°, 12°, 25°, 44°, OGI HR | |
| Advanced Features | NaviPdM, IREdge, TWB, MagicThermal | |
| Protection/IP Rating | IP54 | |
