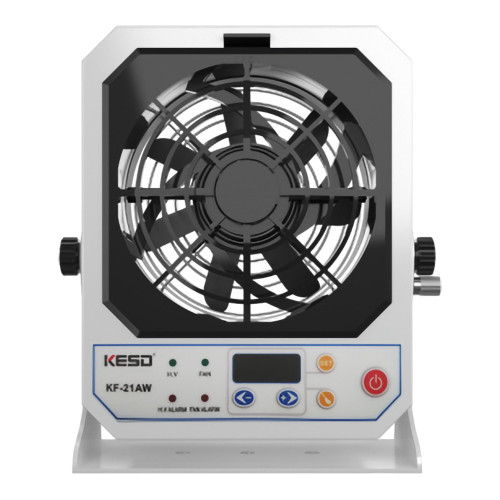

BF001447 KESD KF-21AW High-Frequency Benchtop Ionizer (0±20V)
KF21AW is a professional portable benchtop ionizer with 1 fan equipped with a programmable self-cleaning function, airflow speed control, LED indicators, and audible alarm for monitoring ongoing operations.
The airflow of ionized air generated by KF21AW ensures rapid static electricity dissipation, even in hard-to-reach areas with conventional equipment.
For optimal performance, ensure there are no air currents and that the airflow covers as much of the workspace as possible. The time required to neutralize electrostatic charges depends on the fan speed.
Key features:
- Power Supply Voltage: 24 Vdc
- Applied Voltage: High frequency, ±2200 Vac
- Automatic ion balance: 0 ± 20 V
- Test Results*:
- Distance 300 mm: Discharge time (+/-): 1.0 / 1.5 sec, Ion balance (+/-): 0 ± 5 V
- Distance 600 mm: Discharge time (+/-): 2.0 / 3.0 sec, Ion balance (+/-): 0 ± 10 V
- Distance 900 mm: Discharge time (+/-): 3.5 / 4.5 sec, Ion balance (+/-): 0 ± 20 V
- Airflow is adjustable on 7 levels
- Airflow rate: 2.56 - 4.07 m³/min
- Ozone concentration (distance 150mm): 0.03 ppm
- Programmable interval for emitter needle cleaning: from 0 to 999 hours
- Suitable for cleanrooms class 1000 +
- Housing material: ESD antistatic ABS
- Grounding provision (cable not included)
- Dimensions: 180 x 70 x 192H mm
- Operating Temperature (no condensation): 0 - 40°C, Relative Humidity: 30 - 70%
- Supplied with AC/DC power adapter
* Test conditions:
- Operating voltage: 24Vdc
- Test voltage: ±1000V / ±100V
- Temperature: 23°C ±2°C
Method:
- Charged plate monitor
- Test area: frontal
- Decay time: from ±1000V to ±100V, with airflow set to maximum power
