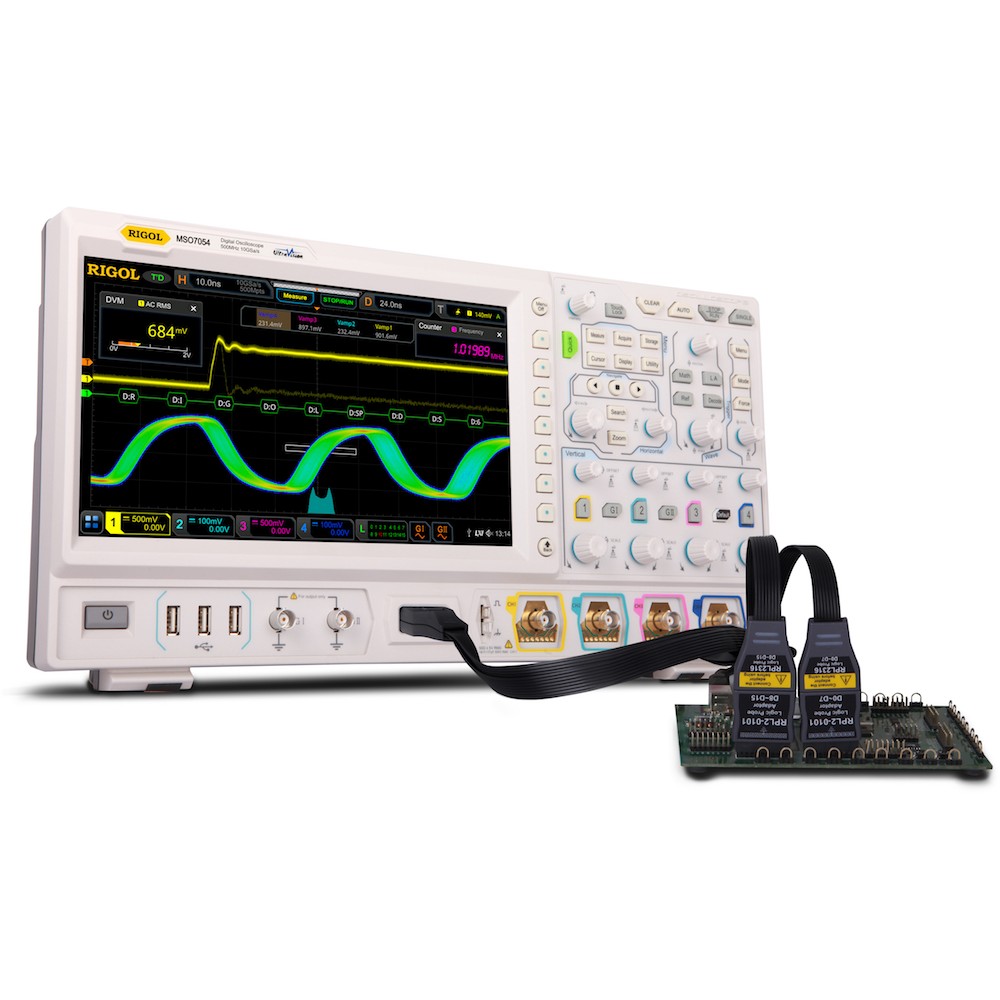

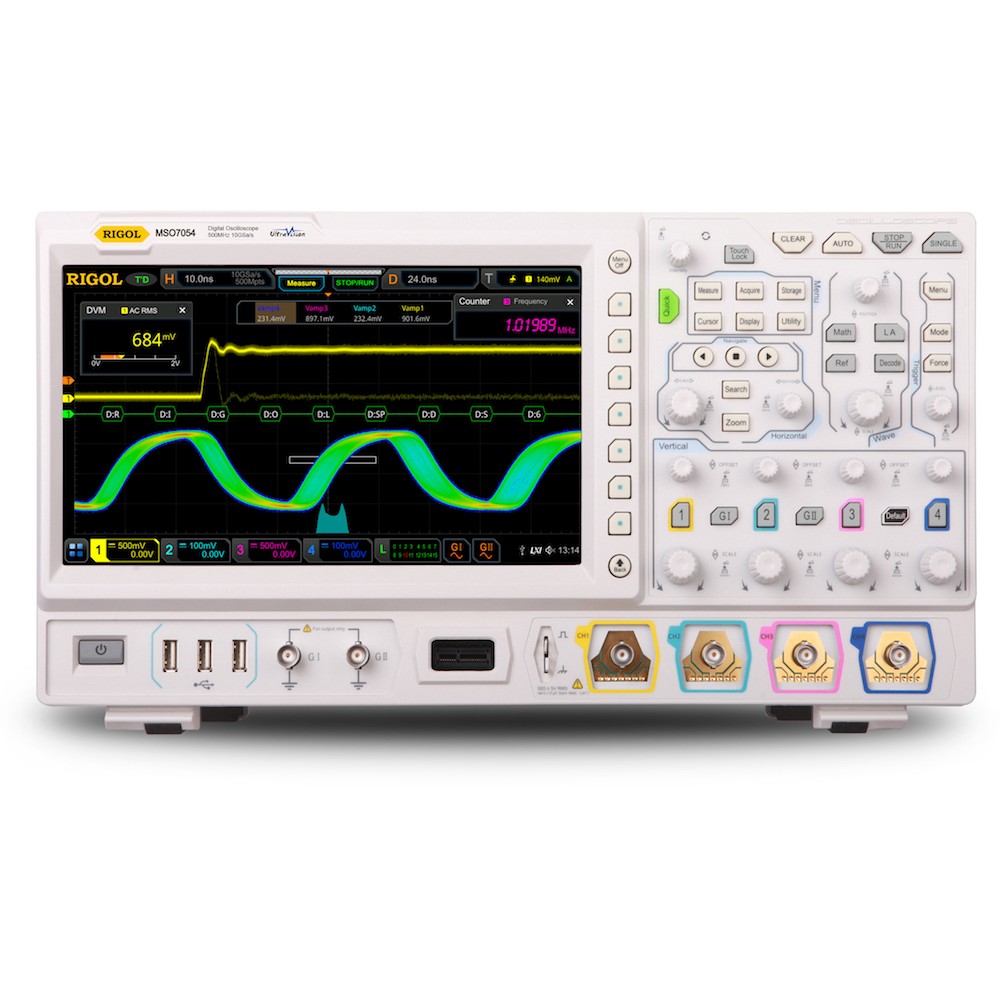

RIGOL MSO7024 200MHz, 4+16 channels, digital oscilloscope
The RIGOL MSO7024 is a high end mixed signal digital oscilloscope with 200MHz of bandwidth, 4+16 channels, 10GSa/sec sampling rate
RIGOL MSO7000/DS7000 Series Overview
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the unique Ultra Vision II technique developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super sample bandwidth ratio, extremely high memory depth, clear display, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. It provides sound solutions for mainframes, optional & accessories, and application software. It has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
Main Features:
- Analog bandwidth: 500 MHz, 350 MHz, 200 MHz, and 100 MHz; bandwidth upgrade option supported
- 4 analog channels, 1 EXT channel, and 16 optional digital channels (MSO models)
- Up to 10 GSa/s real-time sample rate
- Up to 500 Mpts memory depth (option)
- High waveform capture rate (over 600,000 wfm/s)
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playing functions
- A variety of serial protocol triggers and decodes
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of math operations, built-in enhanced FFT analysis and peak search function
- Waveform histogram analysis (standard)
- Independent search, navigation keys and event table
- Built-in advanced power analysis software (option)
- User-defined one-key quick operation
- 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

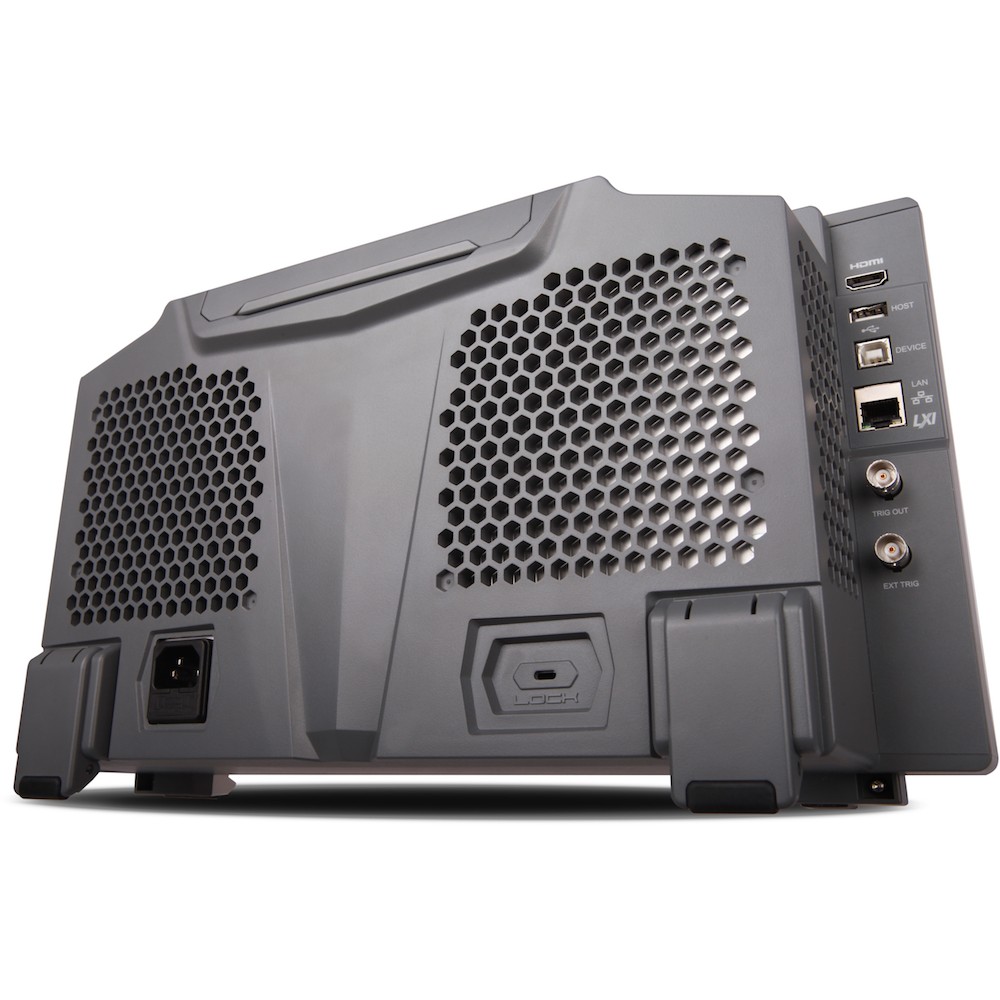

- Multiple interfaces available: USB HOST & DEVICE, LAN(LXI), HDMI, TRIG OUT and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
Integrates 6 independent instruments into 1, including:
- digital oscilloscope
- 16-channel logic analyzer (MSO models)
- dual-channel Function/Arbitrary Waveform Generator (MSO models)
- digital voltmeter
- 6-digit frequency counter and totalizer
- protocol analyzer
