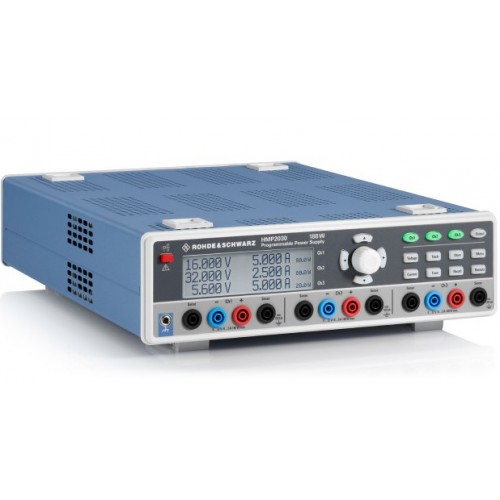

Rohde & Schwarz HMP2030 Triple Outputs Power Supply 188W
Rohde & Schwarz HMP2030 triple output programmable DC power supply 188W
Features:
- Maximum Voltage per channel 32V
- Maximum Current per channel 5A
- Maximum Power per channel 80W
- Maximum Power 188W
The HMP power supplies can optionally be equipped with a dual USB/LAN, a dual RS-232/USB interface or a GPIB (IEEE488) interface.
Key facts:
- HMP2020/HMP2030 with 2/3 channels and 188 W total output power
- HMP4030/HMP4040 with 3/4 channels and 384 W total output power
- Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
- High output currents up to 5 A/10 A (depending on the model); higher currents possible in parallel operation
- Linear post regulation for low residual ripple
- Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
- Dual USB/LAN, dual RS-232/USB or GPIB (IEEE488) interfaces optional
- Rear panel connections, including sense lines, for all channels
The HMP power supplies offer a variety of protection functions to prevent damage to the instrument and the DUT. You can separately set the maximum current (electronic fuse, over current protection/OCP) or the maximum voltage (over voltage protection/OVP) for each channel. The output channels switch off when either of their set limits is reached. Over temperature protection (OTP) prevents the instrument from overheating.
