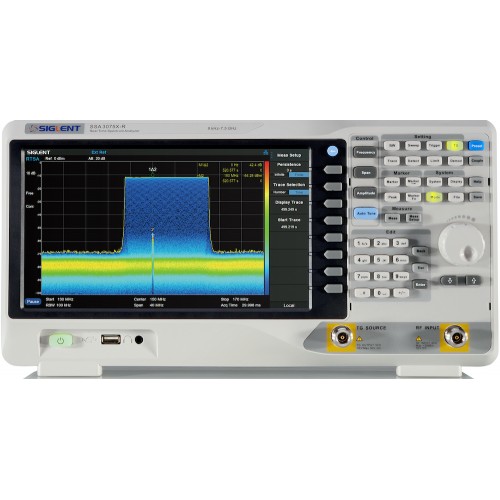

SIGLENT SSA3050X-R Real Time Spectrum Analyzer 9kHz to 5GHz with TG and VNA
SIGLENT SSA3050X-R is powerful and flexible tool for complex RF spectrum and signal analysis. With a standard capability of 20 MHz (40MHz optional) analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. It also provide standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance. The SIGLENT real time spectrum analyzers SSA3000X-R series includes VNA and DTF capabilities as standard.
SIGLENT SSA3050X-R Features and Benefits:
- Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typical)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typical)
- Level Measurement Uncertainty < 0.7 dB (Typical)
- 1 Hz Minimum Resolution Bandwidth (RBW) Preamplifier Standard
- Tracking Generator Standard
- Preamplifier Standard
- 20 MHz Real Time Analysis Bandwidth Standard
- Vector Network Analysis (VNA) Standard
- Distance to Fault (DTF) Standard
- Up to 40 MHz Real Time Analysis Bandwidth (Optional)
- 100% POI 7.20 μs, Dynamic Range 60 dB
- Multi-view for Density, Spectrogram, PvT and 3D
- Advanced Measurement Kit (Optional)
- Reflection Measurement Kit (Optional)
- Modulation Analysis Mode (Optional)
- EMI Measurement Mode (Optional)
- 10.1" Multi-Touch Screen, Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
| Model | SSA3032X-R | SSA3050X-R | SSA3075X-R |
| Frequency Range | from 9 kHz to 3.2 GHz | from 9 kHz to 5.0 GHz | from 9 kHz to 7.5 GHz |
| Resolution Bandwidth | from 1 Hz to 3 MHz | from 1 Hz to 3 MHz | from 1 Hz to 3 MHz |
| Displayed Average Noise Level | -165 dBm/Hz | -165 dBm/Hz | -165 dBm/Hz |
| SSB Phase Noise | <-98 dBc/Hz | <-98 dBc/Hz | <-98 dBc/Hz |
| Tracking Generator | from 100 kHz to 3.2 GHz | from 100 kHz to 5.0 GHz | from 100 kHz to 7.5 GHz |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | ||
| Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM | ||
| Reflection Measurement | VSWR measurement using Reflection Bridge | ||
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | ||
| Real Time Band Width | 25 MHz, 40 MHz (Option) | ||
| 100% POI | 7.20 μs | ||
| RTSA Measurement | Density, Spectrogram, 3D, PvT | ||
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) | ||
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | ||
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer | ||
