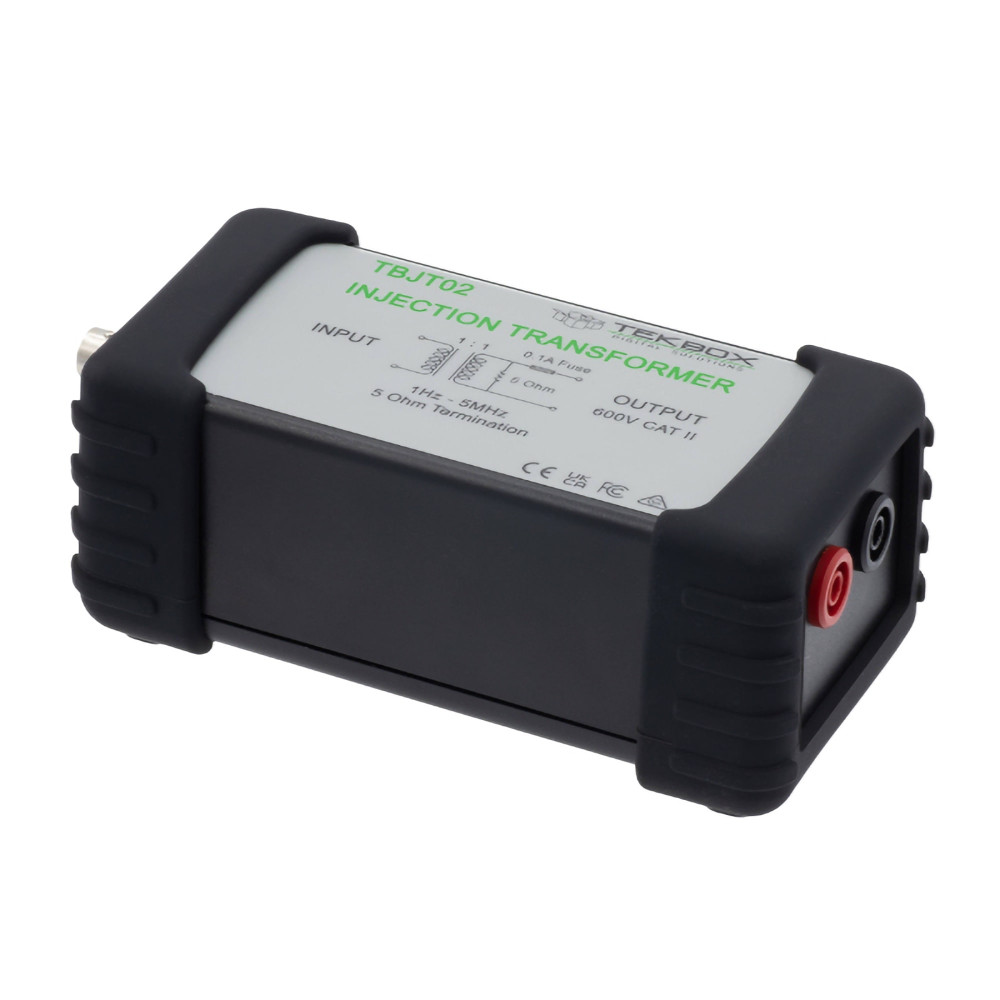

TekBox TBJT02 1Hz - 7MHz Wideband Injection Transformer
TEKBOX TBJT02 is a wideband injection transformer for control loop stability analysis where accurate low-frequency performance is needed. It guarantees galvanic isolation and reliable coupling for frequency response testing, making it perfect for laboratory characterization.
- Operating bandwidth: 1 Hz – 7 MHz
- Internal termination resistor: 5 Ω
- Protected by 100 mA fuse (output side)
- Turns ratio: 1:1
- Typical insertion loss: 16 dB
- Primary-secondary capacitance: 310 pF @ 1 kHz
- DC saturation current: 12 mA
- Maximum voltage: 600 V CAT II
- Connectors: 50 Ω BNC female input; 4 mm banana jacks output (20 mm spacing)
- Dimensions: 70 × 60 × 140 mm
- Weight: 300 g
