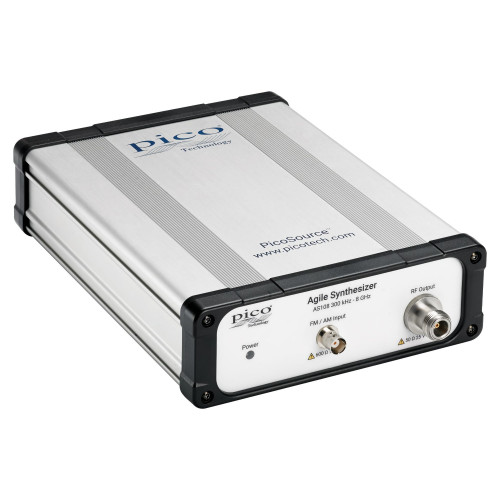

PicoSource AS108 Agile Synthesizer 8GHz
The PicoSource™ AS108 Agile Synthesiser is a full-function USB controlled vector (IQ) modulating signal synthesizer. It is supplied with a clean, easy and efficient user interface for controlling its amplitude, frequency and phase agility; including modulations, sweeps, hopping and list modes from Microsoft Windows
Specification highlights
• 300 kHz to 8 GHz operation
• -15 dBm to +15 dBm dynamic range
• Fast 55 μs frequency settling time to 10 ppm
• Fast amplitude settling: < 25 μs to 1 dB and < 200 μs to 0.1 dB
• Sweep, hop and list of frequency and level or list phase and level
• -100 dBc/Hz phase noise typical at 1 GHz and 10 kHz offset
Professional and portable performance at low cost
The PicoSource™ AS108 Agile Synthesizer generates signals to meet the needs of both benchtop and integrated module applications. Its broad 300 kHz to 8 GHz frequency range, fast settling and programmable phase, frequency and amplitude match it to a wide range of applications, with the added advantages of low cost, small footprint and 12 to 15 V power requirement.
The AS108 has professional-grade performance that is effective in both static and parameter-agile applications, making it a bench or field instrument for developers, scientists, educators, students, and service and installation technicians. Its speed, external clock referencing, trigger capabilities and user-programmable power-up mode all suit it to system integrations such as automated test, unmanned installations and multi-signal stimulus.
The AS108 is a full-function USB-controlled vector (IQ) modulating signal synthesizer. It is supplied with a clean, easy and efficient user interface for controlling its amplitude, frequency and phase agility; including modulations, sweeps, hopping and list modes from Microsoft Windows. Multiple synthesizers can be controlled from multiple instances of the software running on a single controlling PC or device. Remote control is also possible using the API included.
