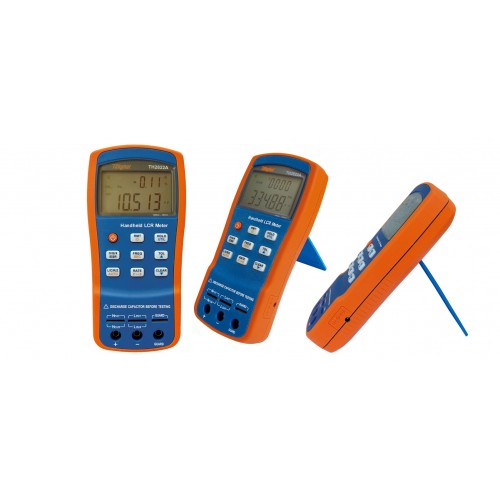

Tonghui TH2822A, LCR Meter, Basic accuracy: 0.25%, Frequency up to 10kHz
Tonghui TH2822A, Handheld LCR Meter, Basic accuracy: 0.25%, Frequency: 100Hz, 120Hz, 1kHz, 10kHz
Main Features:
- Freq: 100Hz, 120Hz, 1kHz, 10kHz
- BasicAccuracy: 0.25%
- Primary parameters: L, C, R, |Z|
- Secondary parameters: D, Q, R, θ, ESR
- Test Speed: Max. 250ms
- Selectable test signal level
- With DCR function
- Enhanced protection capability of input terminal impact
- 40000 counts for primary parameter, D/Q resolution 0.0001
- Typical ultra-low consumption: 25mA
- Innovatively compatible terminal configuration: 5-terminal test slot and 3-terminal rubber jack
- Intellectualized auto LCR function
- AC test speed up to 4 meas/sec (DCR: 3 meas/sec), fast automatic range switch design
- Constant 100Ω output impedance
- Percentage display and 4-tolerance comparator: 1/5/10/20%
- Battery charge in startup & shutdown
- Test terminal protection function
- Data-hold, Max./Min./Average value recording
- Real-time function configuration selection and working condition hold capacity
- Standard configuration Mini – USB communication interface and SCPI command set
- Free FastAccess PC communication software on our website
- Gorgeous dual-color cast shell
| Included accessories | |
| National standard adapter | TH26028(CCC) |
| Handheld meter test cable | TH26004F(JC-BBC03009) |
| Short circuit | TH26010B |
| Test Cable | TH26027AS |
| Test Report Certificate | See example |
| Optional accessories | |
| Test Cable | TH26029C |
