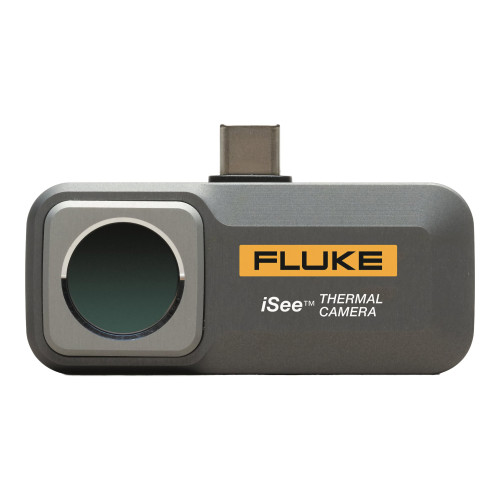

Fluke TC01A 25Hz iSee Caméra thermique mobile pour Android, 256x192px
La caméra thermique mobile Fluke iSee pour smartphones Android est adaptée pour diverses applications grâce à sa large plage de températures, jusqu´à 550 °C (1022 °F), notamment l´inspection des armoires électriques, l´identification des problèmes CVC et l´installation de chauffage au sol. Fluke iSee offre une qualité d´image de qualité professionnelle, comparable aux caméras thermiques haut de gamme, avec une résolution thermique de 256x192 pixels et un enregistrement vidéo fluide à une fréquence d´images de 25 Hz. Et le logiciel offre une analyse complète de la température des points, des lignes et des zones pour des diagnostics précis.
What's in the box:
1 x Fluke TC01A Mobile Thermal Camera
1 x Packaging Box
1 x User's Manual
Key features:
- 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
- Up to 550 °C (1022°F), suitable to use in many applications
- 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
- Customize image view with more than 10 standard or custom color palettes
- Compact design as light as 22 g
Experience fast and easy inspections on the go with Fluke iSee™ Mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics
| Model | TC01A | TC01B |
| Temperature range | -10°C to 550°C / 14°F to 1022°F | -20°C to 550°C / -4°F to 1022°F |
| Frame rate | 9 Hz or 25 Hz | 25 Hz |
| USB interface | Type-C | Lightning |
| Power consumption | 350 mW (Typical) | 200 mW (Typical) |
| Ingress protection | IEC 60529: IP54 (with the protective cover for Type C) |
IEC 60529: IP56 |
Smartphone not included
