GW Instek GPM-83x0 and GPM-83x0-60 Series, Advanced Digital Power Meters Introduction
The GW Instek GPM-8320/8330 series expands with the new GPM-8320-60 and GPM-8330-60 models, designed for three-phase power measurements up to 60A direct current. With a 5" TFT display, harmonic analysis up to 50 orders, and DC-100kHz bandwidth, they represent the ideal solution for testing motors, power supplies, and high-power devices.
- Complete series: GPM-8320 (2 channels), GPM-8330 (3 channels) and new -60 models (direct current up to 60A)

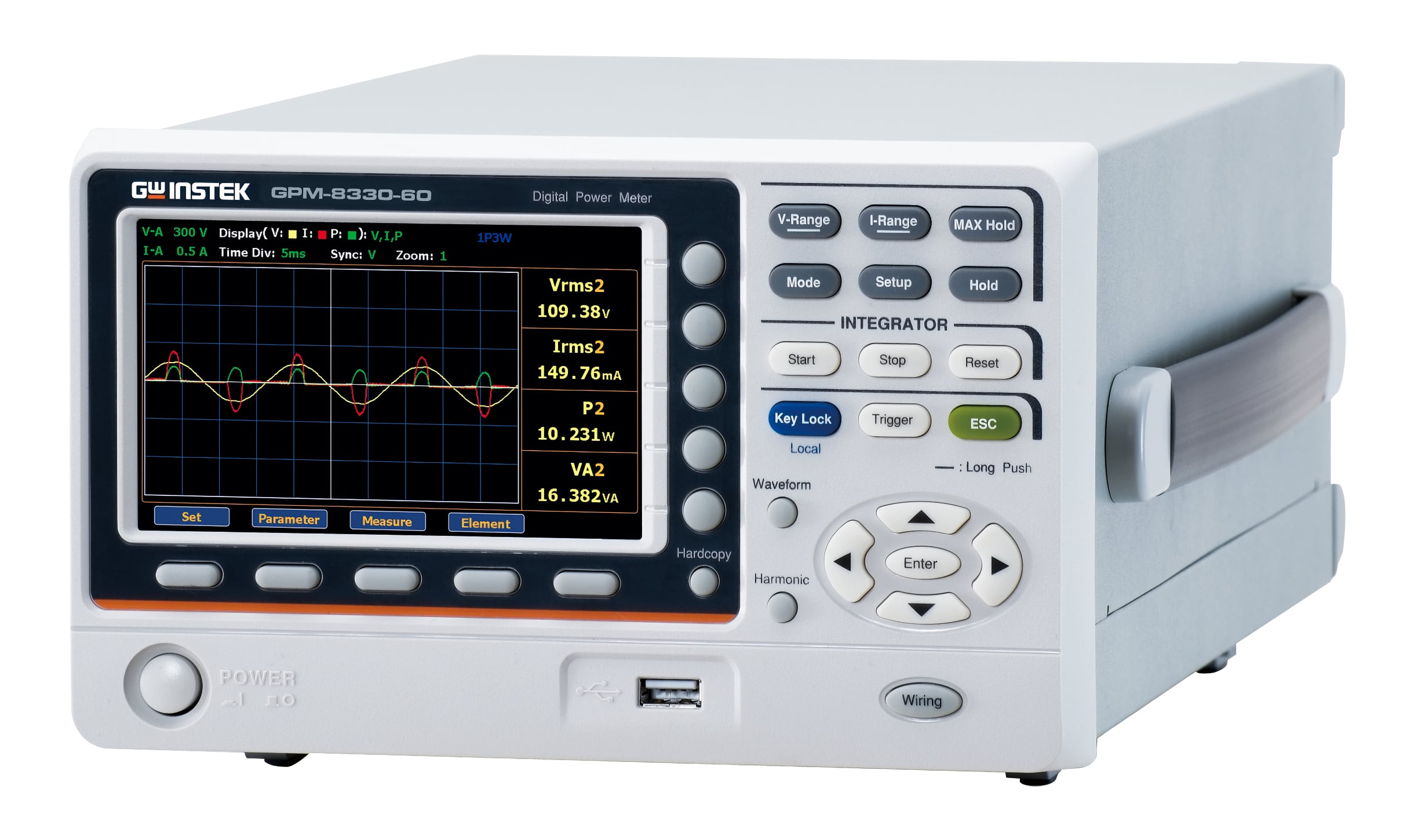

- 5" TFT LCD display (800×480) for simultaneous waveform and parameter visualization
- Bandwidth: DC, 0.1Hz ~ 100kHz with 300kHz sample rate
- Wiring configurations: 1P3W, 3P3W, 3P4W, 3V3A
- IEC 61000-4-7 compliant harmonic analysis (50/60Hz)

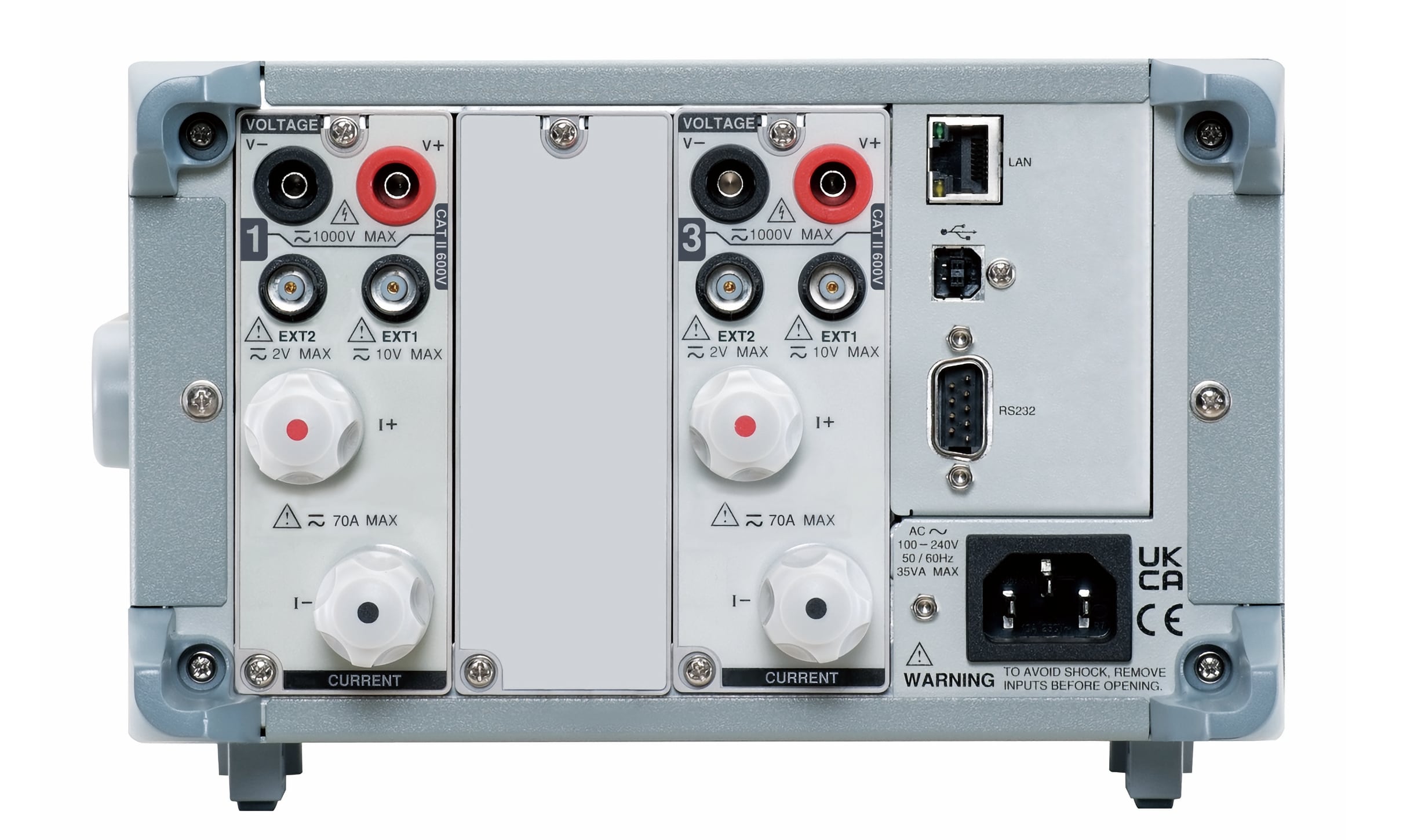

- Interfaces: RS-232C, USB device/host, LAN, optional GPIB and Digital I/O
Target Applications
- Production testing for power supplies, transformers, motors
- Energy efficiency measurements on electrical devices
- Power quality analysis and harmonic distortion
- Research and development laboratories, quality control
New: GPM-8320-60 and GPM-8330-60 Models
- Direct current up to 60A: Eliminate the need for external current transformers
- Extended range: From 1A to 60A with CF=3, from 0.5A to 30A with CF=6/6A
- Same form factor: Identical dimensions to standard models (132×220×402.5mm)
- Cost savings: Significant reduction in current transformer costs
| Specification |
GPM-8320 |
GPM-8320-60 |
GPM-8330 |
GPM-8330-60 |
GPM-8320+GPIB-DA12 |
GPM-8320-60+GPIB-DA12 |
GPM-8330+GPIB-DA12 |
GPM-8330-60+GPIB-DA12 |
| Channels |
2 |
2 |
3 |
3 |
2 |
2 |
3 |
3 |
| Max Voltage |
1000V |
| Max Direct Current |
5A |
60A |
5A |
60A |
5A |
60A |
5A |
60A |
| Current Range (CF=3) |
200mA - 5A |
1A - 60A |
200mA - 5A |
1A - 60A |
200mA - 5A |
1A - 60A |
200mA - 5A |
1A - 60A |
| Accuracy |
±(0.1% reading + 0.05% range) |
| Sample Rate |
300 kHz |
| Display |
5" TFT LCD (800×480) |
| Wiring Configurations |
1P3W, 3P3W, 3P4W, 3V3A |
| Harmonic Analysis |
Up to 50 orders (IEC 61000-4-7) |
| Standard Interfaces |
RS-232C, USB device/host, LAN |
RS-232C, USB device/host, LAN, (GPIB + Digital I/O) |
| DA12 Digital I/O |
No |
Yes (12 D/A outputs) |
| Remote Control |
Start/Stop integration |
Start/Stop + 12 analog outputs |
Advanced Functions

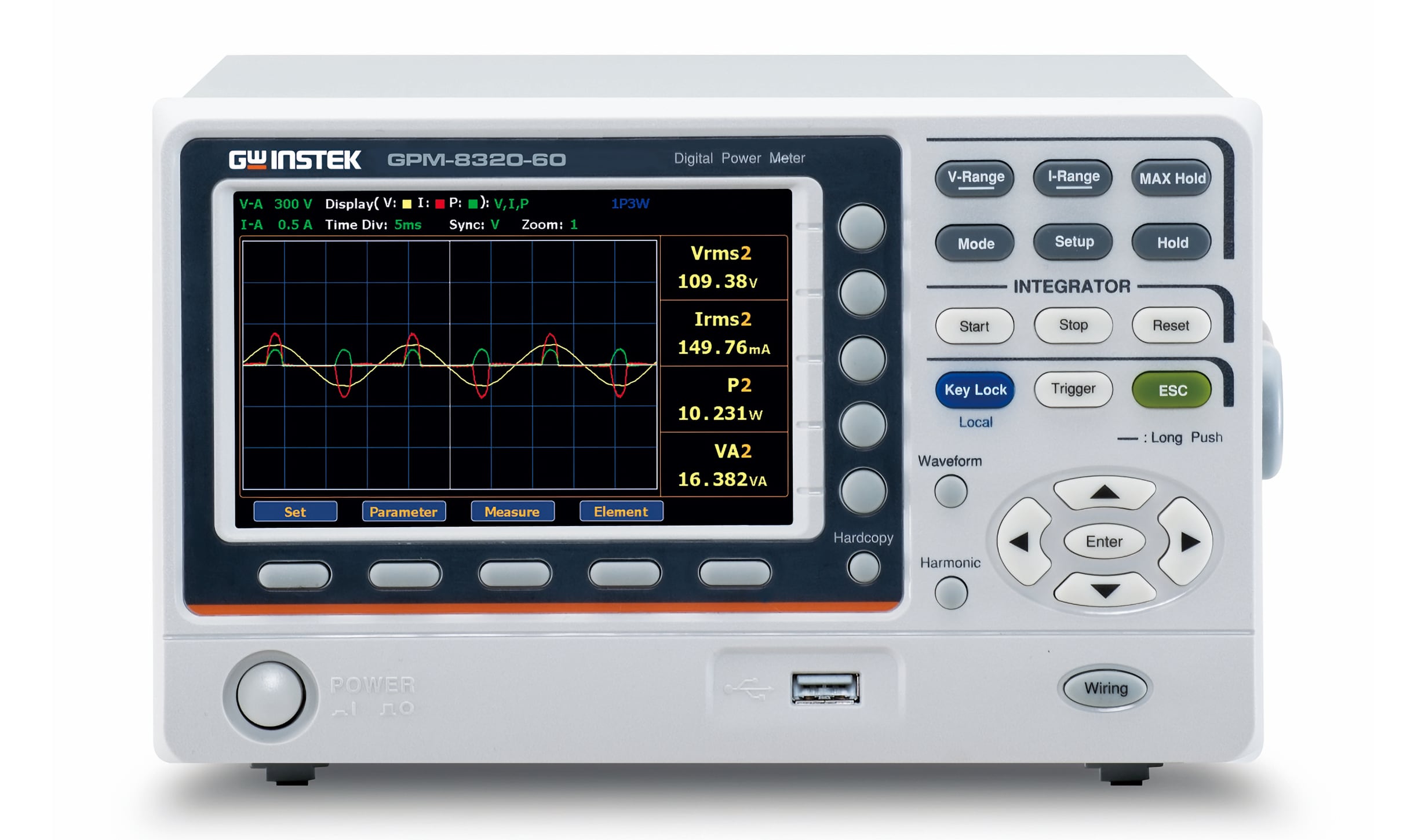

- Waveform display: Simultaneous V, I, P with 1x-3x zoom
- 25 measurement parameters: Vrms, Irms, P, VA, VAR, PF, THD, CF, frequency
- Integration mode: Wh, Ah with auto-range and programmable timer
- Internal memory: 10,000 data points with USB logging
- External transformers: VT/CT support with ratio configuration

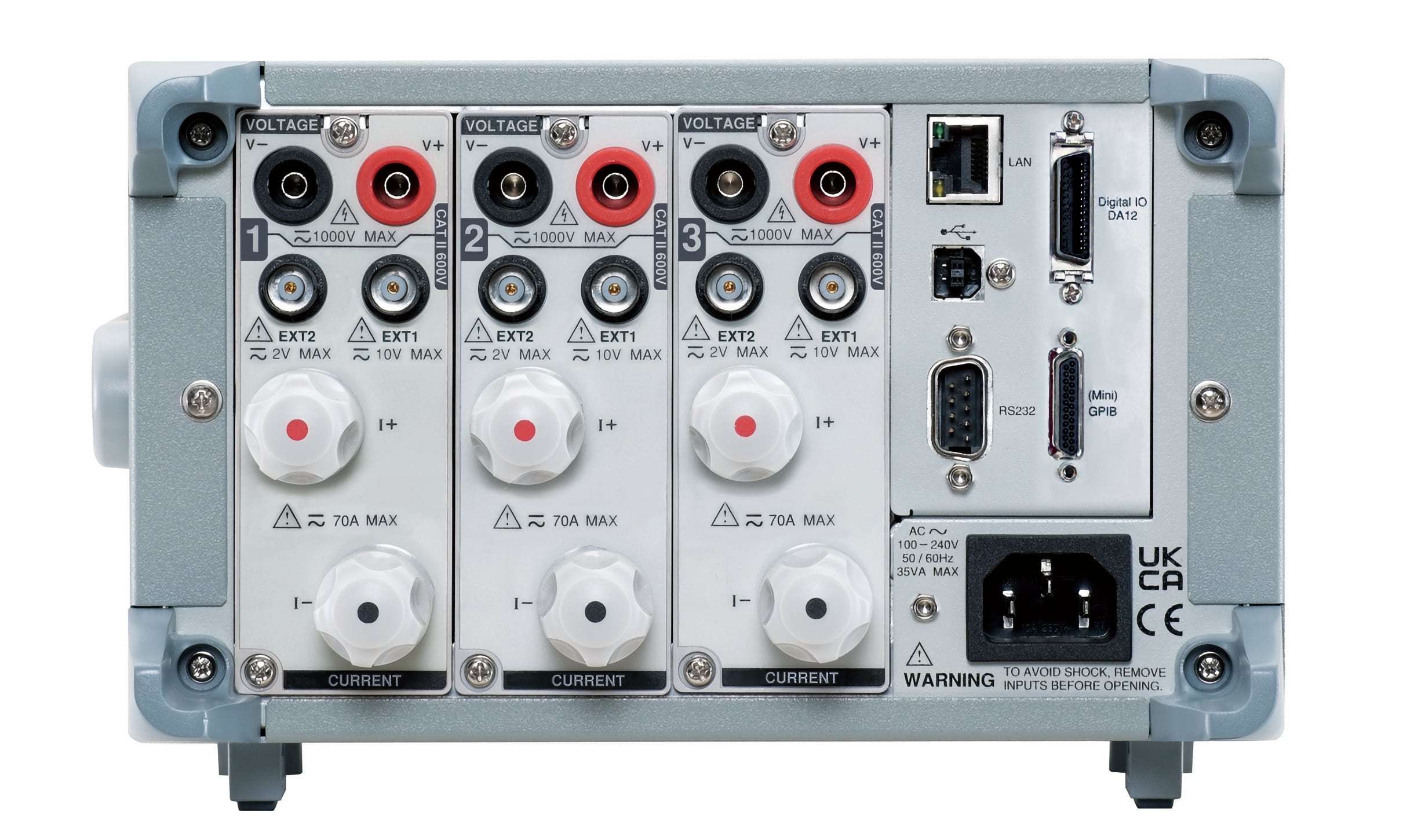

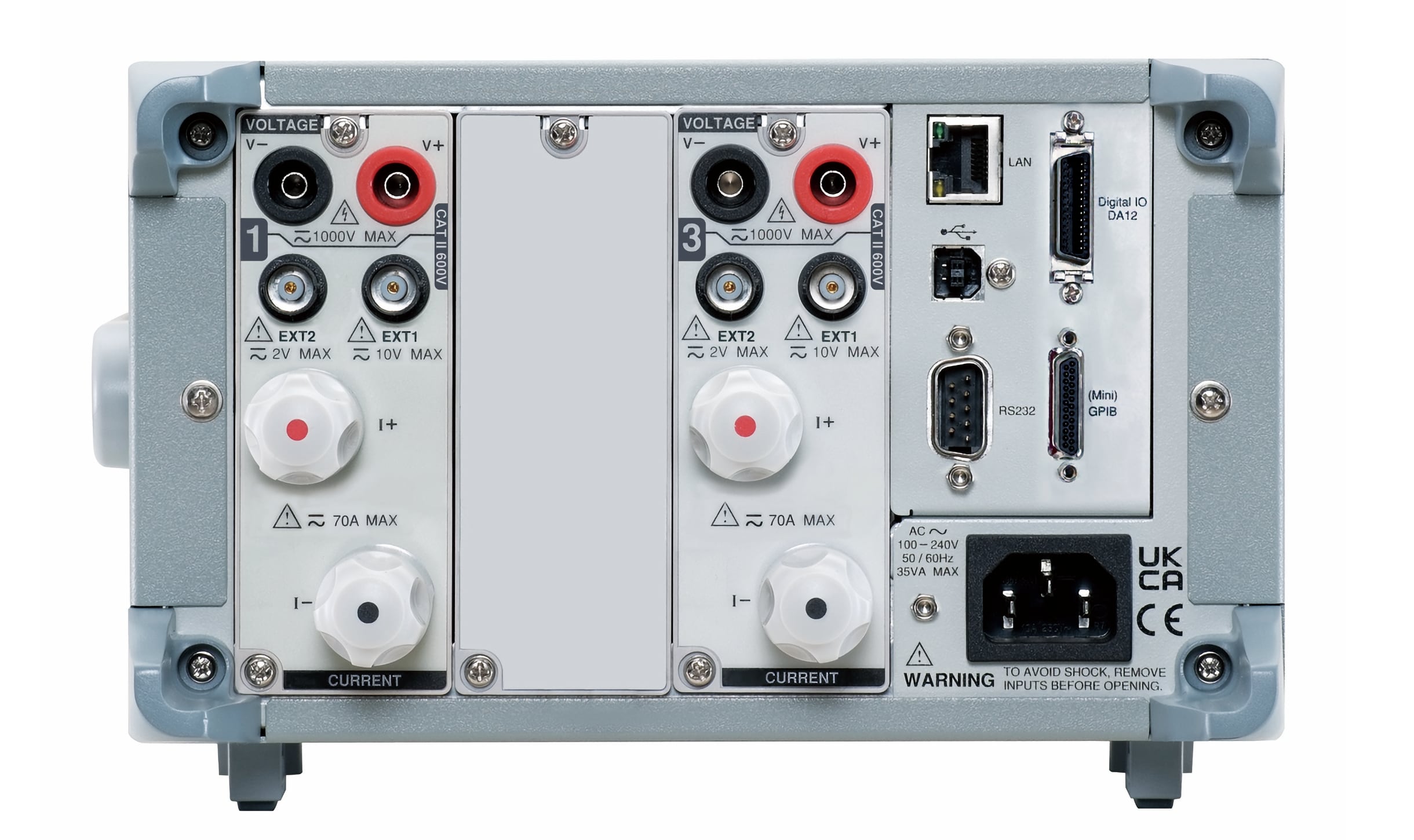

- Multiple interfaces: RS-232C, USB, LAN, optional GPIB+DA12
Key Technical Specifications
- Frequency bandwidth: DC, 0.1 Hz - 100 kHz
- Data update rate: 0.1s - 20s (selectable), Auto
- Crest Factor: 3 (full range), 6 or 6A (half range)
- Input impedance: 2 MΩ (voltage), 1.65 mΩ (current)

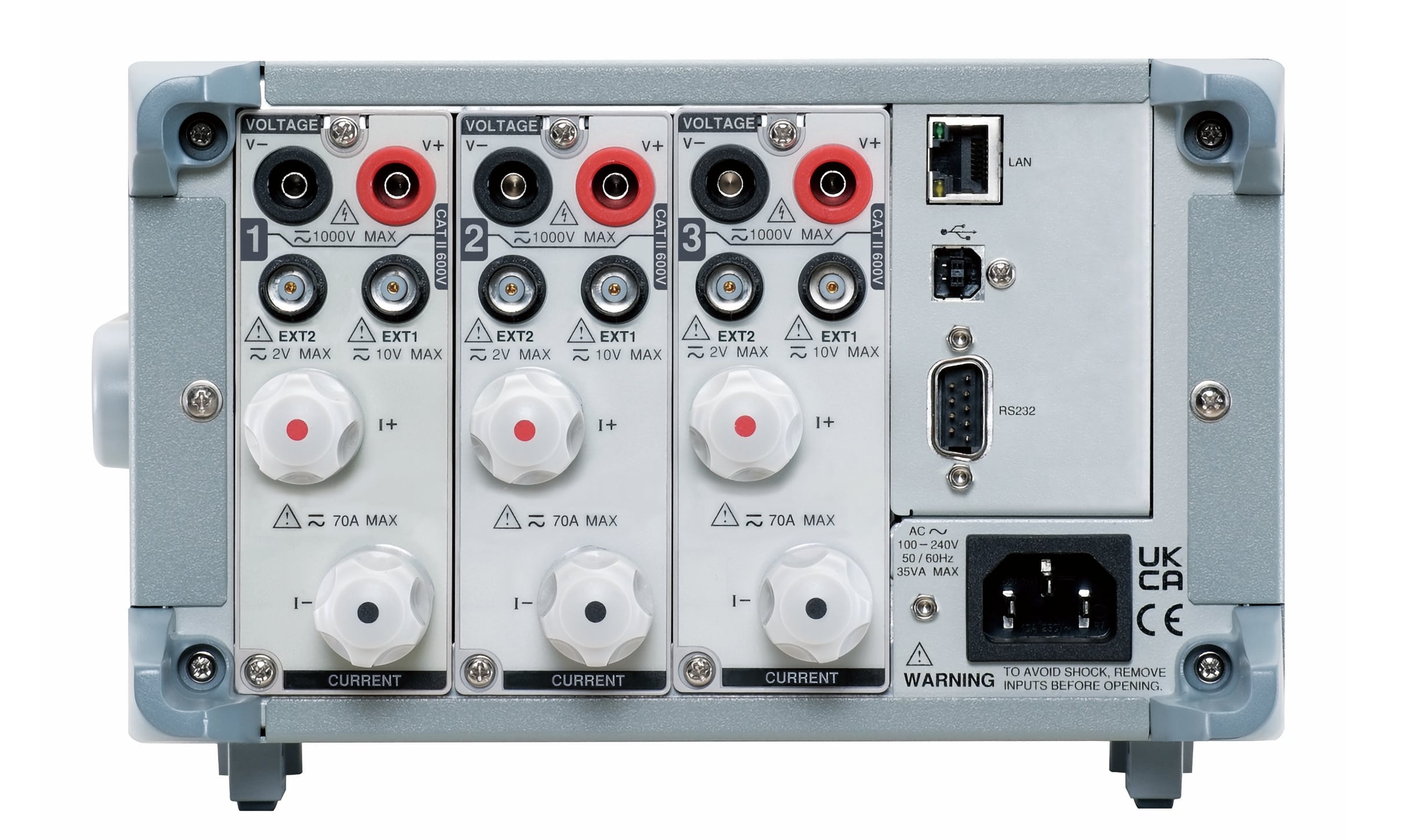

- External inputs: EXT1 (10V max), EXT2 (2V max)
Standard Equipment
- Included: Power cable, safety instruction sheet, CD with drivers
- Test leads:
- GPM-8320/8320-60: GTL-209 × 2, GTL-212A × 2
- GPM-8330/8330-60: GTL-209 × 3, GTL-212A × 3
- Terminal cover GPM-002 × 1
- DA12 cable GTL-214 (only models with GPIB+DA12)
Optional Accessories
- GTL-232: RS-232C cable (2m)
- GTL-246: USB A-B cable (1.2m)
- GTL-258: GPIB cable (1.9m)
- GRA-452: 19" 3U rack mount kit
