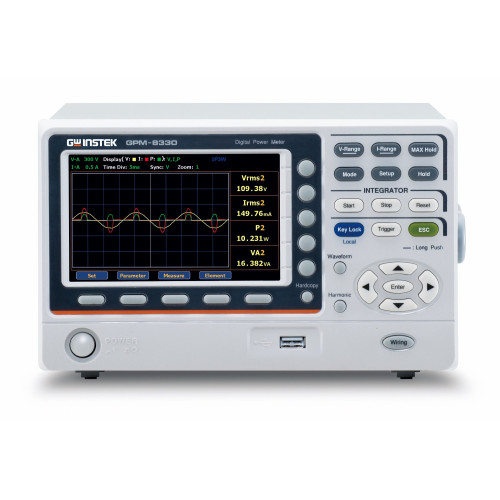

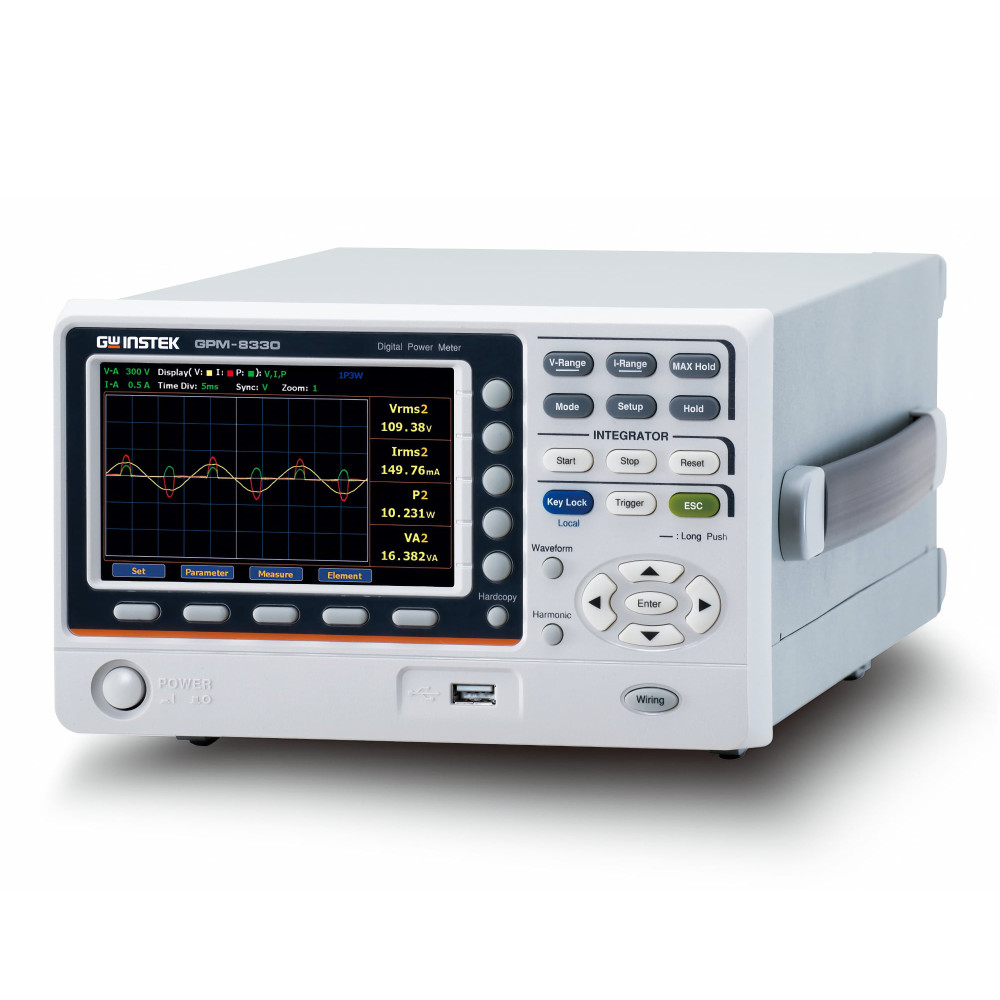

GW Instek GPM-8330 Digital Power Meter with RS-232C, USB, LAN and GPIB+DA14

Cliquez sur l'image pour la galerie

GW Instek GPM-8330 is a Digital Power Meter with RS-232C, USB device & host, LAN and GPIB+DA12.

Series features:

5" TFT LCD Display
Voltage and Current Test Frequency Bandwidth: DC, 0.1Hz ~ 100kHz
Waveform Display: V (Voltage), I (Current), P (Wattage)
Distorted wave Current and Voltage measurement: full range for CF=3, and half range for CF=6 (or 6A)
Meeting IEC 61000-4-7 harmonic measurement (50/60Hz)
Wiring selecting button (1P3W, 3P3W, 3P4W, 3V3A)
Harmonic measurement and analysis up to 50 orders
Auto ranging function for Integration mode
Screen Capture through USB host

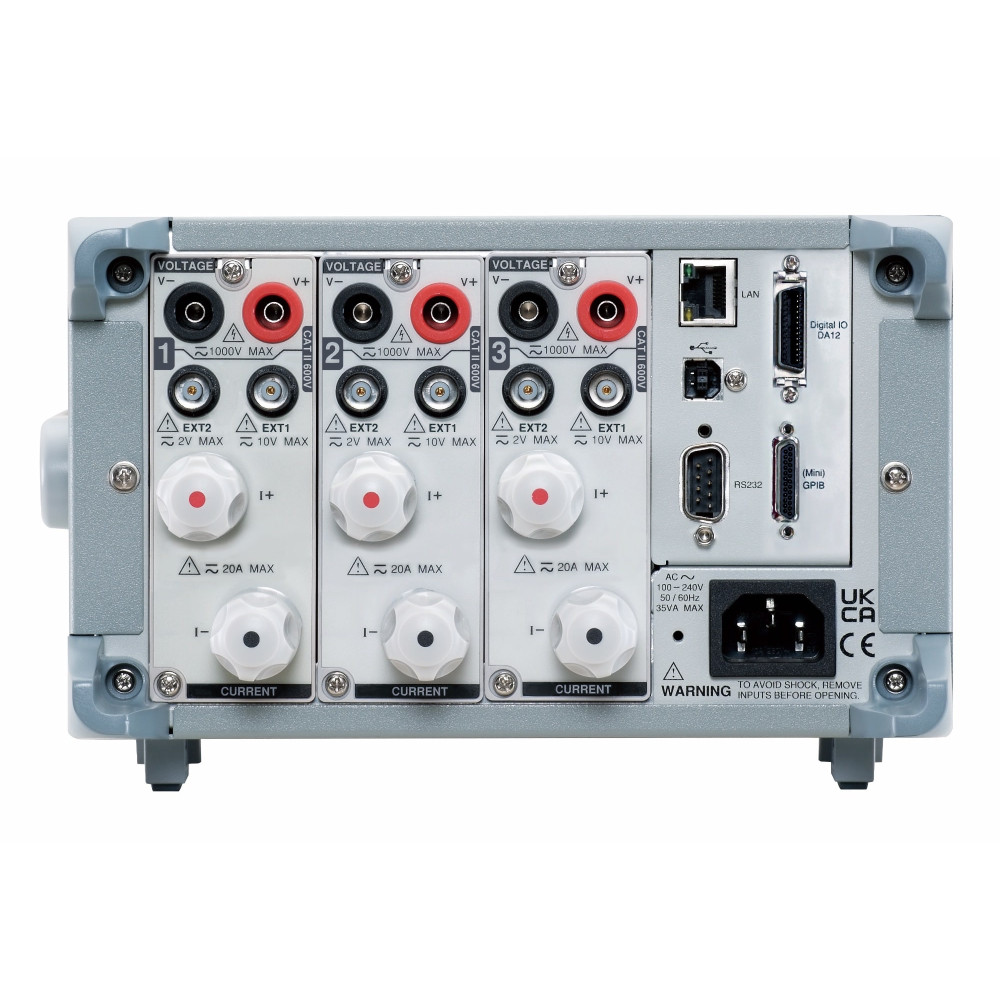

Provide external current sensor input (EXT1/EXT2)
Standard Interfaces: RS-232C, USB device/host, LAN and GPM-DA12 GPIB + Digital I/O

Standard Accessories:

1 x Safety Instruction Sheet and Power cord
3 x GTL-209 Test Lead
3 x GTL-212A Test Lead
1 x CD (including complete user manual and USB driver)
1 x GPM-002 Terminal Cover
1 x GTL-214 DA12 Cable

Specification	GPM-8320	GPM-8320-60	GPM-8330	GPM-8330-60	GPM-8320+GPIB-DA12	GPM-8320-60+GPIB-DA12	GPM-8330+GPIB-DA12	GPM-8330-60+GPIB-DA12
Channels	2	2	3	3	2	2	3	3
Max Voltage	1000V
Max Direct Current	5A	60A	5A	60A	5A	60A	5A	60A
Current Range (CF=3)	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A	200mA - 5A	1A - 60A
Accuracy	±(0.1% reading + 0.05% range)
Sample Rate	300 kHz
Display	5" TFT LCD (800×480)
Wiring Configurations	1P3W, 3P3W, 3P4W, 3V3A
Harmonic Analysis	Up to 50 orders (IEC 61000-4-7)
Standard Interfaces	RS-232C, USB device/host, LAN				RS-232C, USB device/host, LAN, (GPIB + Digital I/O)
DA12 Digital I/O	No				Yes (12 D/A outputs)
Remote Control	Start/Stop integration				Start/Stop + 12 analog outputs
