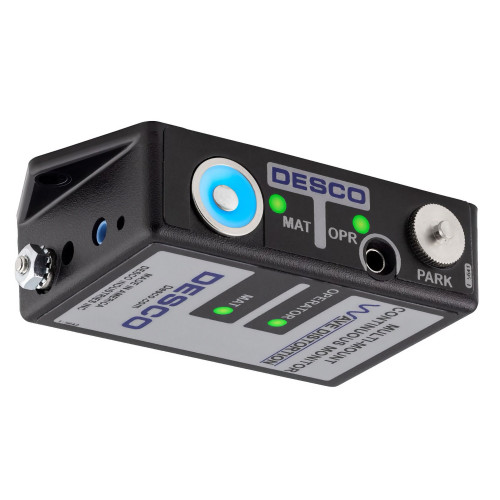

Desco Europe 19337 Continuous ESD Multi-Mount Monitor with Universal Power Supply
The Desco 19337 Multi-Mount Continuous Monitor provides real-time verification of the operator's path-to-ground and ESD worksurface integrity. Utilizing Wave Distortion Technology, it offers stable monitoring and includes advanced features such as a Park Delay Timer and compatibility with an external Light Tower.
- Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface - NEW Park Delay Timer and ParkSnap™
Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm - NEW Light Tower Jack
Connects with the 19332 Light Tower accessory - Wave Distortion Technology
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor - Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface - Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder - Enclosure with Mounting Tabs
Installs in workbench and equipment environments - Single-Wire Impedance Design
Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0 - 1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components - <50 Millisecond Alarm Response Time
Identifies failures and intermittencies - Calibration Verification
Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations - NIST Calibrated – Original Calibration Certificate can be Downloaded Online
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. - 100-240VAC Power Adapter with IEC C14 Style Inlet
Connects to a power cord with a IEC C13 outlet connector - Made in the United States of America
*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
