Inspectis HD-380 Compact XY-Travel Stand, Table-Top

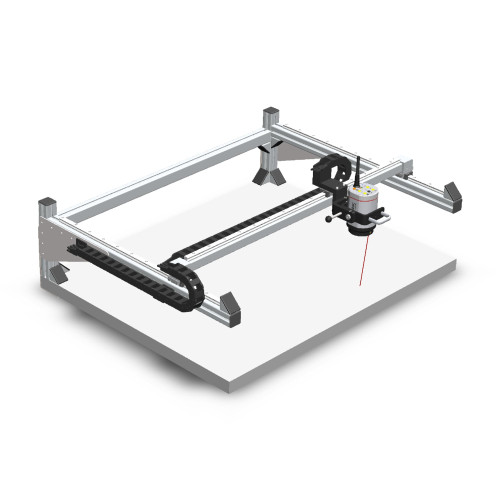

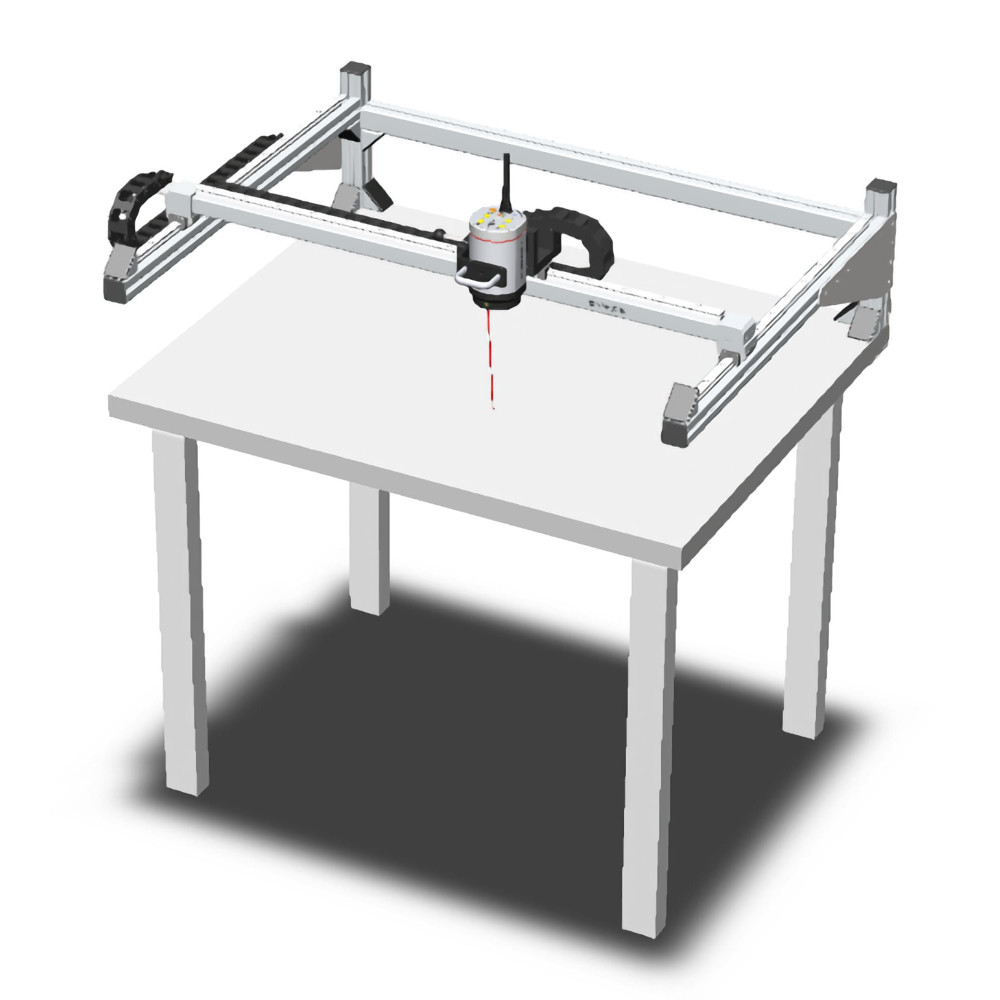

Inspectis HD-380 Industrial grade table-top XY-travel stand with cable carrier providing smooth lateral movement of the Digital Microscope over inspection object. Ideal for optical inspection of large objects or for processes where object handling is undesirable. Especially suitable for constrained working space constricted.
Comprised of custom cut linear guiding system mounted on high density aluminium profile for smooth and stable XY-travel of digital camera. The height of the linear guide can be adjusted and set for desired working distance of the Digital Microscope. 4-direction tilt unit, Camera grip handle, and Z-extender brackets are available for XY-travel Stand as extra accessories
Made of high-quality anodised aluminium and Stainless-Steel parts.
| Specifications | |

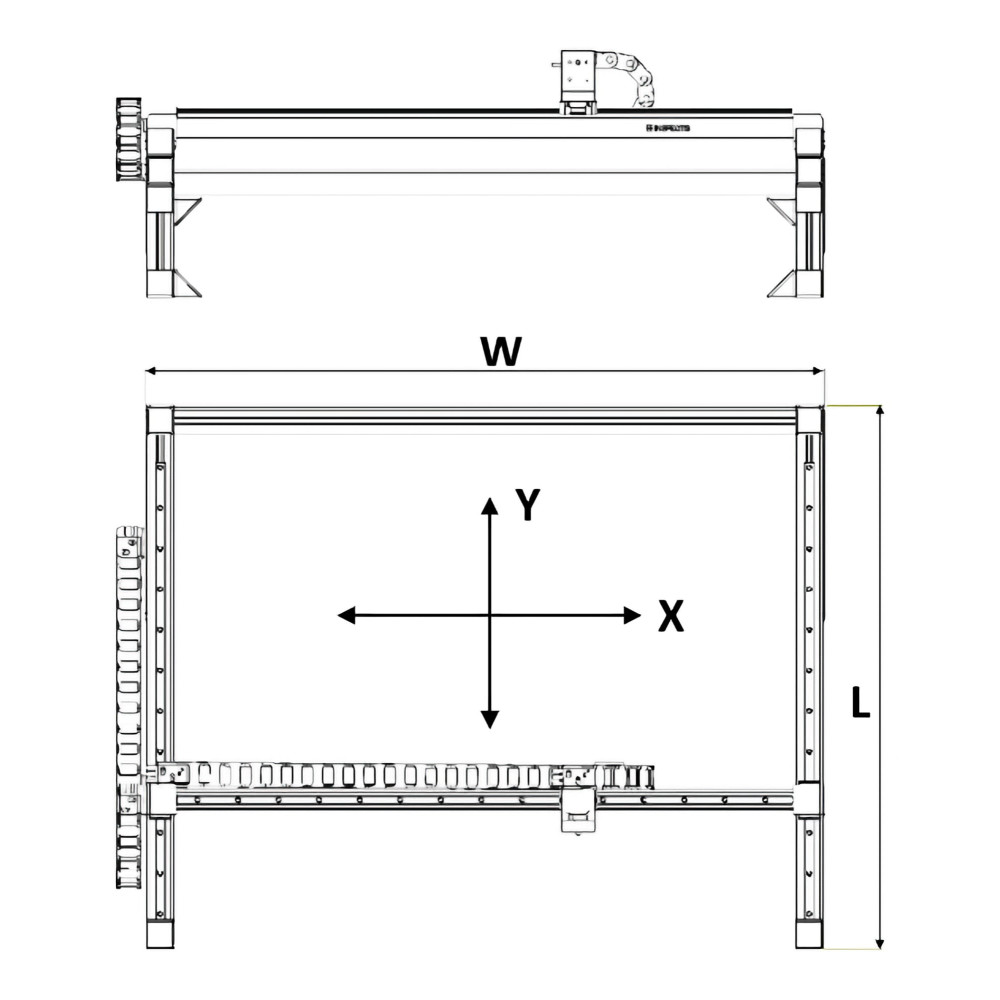

| X-travel range* | Custom made 100 to 750 mm. X = W-145 mm |
| Y-travel range* | Custom made 100 to 750 mm. Y = L-120 mm |
| Working Distance range** | From 115 to 340 mm (up to 500mm with extended vertical posts) |
| Weight | ~ 7 to 12 kg depending on W and L lengths |
| Fastener to table | Rear bracket and angle-mounts with M 6 mounting holes |
| * Long XY-travel versions are available ** WD is adjusted by changing height of the entire XY-stand or by using HD-181 Extended vertical posts can be supplied on request for extra large working distance |
|
| Model | Part Number | Resolution | Optical zoom | Type | Antistatic (ESD) | Laser Pointer |
|---|---|---|---|---|---|---|
| C12 | HD-010 | HD 720p | 12:1 | Integrated Stand | ||
| C12 | HD-010-E | HD 720p | 12:1 | Integrated Stand | ✓ | |
| C12 | HD-010-L | HD 720p | 12:1 | Integrated Stand | ✓ | |
| C12 | HD-010-E-L | HD 720p | 12:1 | Integrated Stand | ✓ | ✓ |
| C12 SD | HD-010-C | HD 720p | 12:1 | Integrated Stand / SD | ||
| C12 SD | HD-010-C-E | HD 720p | 12:1 | Integrated Stand / SD | ✓ | |
| C12 SD | HD-010-C-L | HD 720p | 12:1 | Integrated Stand / SD | ✓ | |
| C12 SD | HD-010-C-E-L | HD 720p | 12:1 | Integrated Stand / SD | ✓ | ✓ |
| C12s | HD-011 | HD 720p | 12:1 | Free Head | ||
| C12s | HD-011-E | HD 720p | 12:1 | Free Head | ✓ | |
| C12s | HD-011-L | HD 720p | 12:1 | Free Head | ✓ | |
| C12s | HD-011-E-L | HD 720p | 12:1 | Free Head | ✓ | ✓ |
| F35 | HD-112 | Full HD 1080p | 30:1 | Integrated Stand | ||
| F35 | HD-112-E | Full HD 1080p | 30:1 | Integrated Stand | ✓ | |
| F35 | HD-112-L | Full HD 1080p | 30:1 | Integrated Stand | ✓ | |
| F35 | HD-112-E-L | Full HD 1080p | 30:1 | Integrated Stand | ✓ | ✓ |
| F35s | HD-113 | Full HD 1080p | 35:1 | Integrated Stand | ||
| F35s | HD-113-E | Full HD 1080p | 35:1 | Integrated Stand | ✓ | |
| F35s | HD-113-L | Full HD 1080p | 35:1 | Integrated Stand | ✓ | |
| F35s | HD-113-E-L | Full HD 1080p | 35:1 | Integrated Stand | ✓ | ✓ |
| F35s LWD | HD-113-WD500 | Full HD 1080p | 35:1 | Integrated Stand 500mm | ||
| F35s LWD | HD-113-WD500-E | Full HD 1080p | 35:1 | Integrated Stand 500mm | ✓ | |
| F35s LWD | HD-113-WD500-L | Full HD 1080p | 35:1 | Integrated Stand 500mm | ✓ | |
| F35s LWD | HD-113-WD500-E-L | Full HD 1080p | 35:1 | Integrated Stand 500mm | ✓ | ✓ |
| F35s LWD | HD-113-WD1000 | Full HD 1080p | 35:1 | Integrated Stand 1000mm | ||
| F35s LWD | HD-113-WD1000-E | Full HD 1080p | 35:1 | Integrated Stand 1000mm | ✓ | |
| F35s LWD | HD-113-WD1000-L | Full HD 1080p | 35:1 | Integrated Stand 1000mm | ✓ | |
| F35s LWD | HD-113-WD1000-E-L | Full HD 1080p | 35:1 | Integrated Stand 1000mm | ✓ | ✓ |
| F40 | HD-114 | Full HD 1080p | 40:1 | Integrated Stand | ||
| F40 | HD-114-E | Full HD 1080p | 40:1 | Integrated Stand | ✓ | |
| F40 | HD-114-L | Full HD 1080p | 40:1 | Integrated Stand | ✓ | |
| F40 | HD-114-E-L | Full HD 1080p | 40:1 | Integrated Stand | ✓ | ✓ |
| F40s | HD-115 | Full HD 1080p | 40:1 | Free Head | ||
| F40s | HD-115-E | Full HD 1080p | 40:1 | Free Head | ✓ | |
| F40s | HD-115-L | Full HD 1080p | 40:1 | Free Head | ✓ | |
| F40s | HD-115-E-L | Full HD 1080p | 40:1 | Free Head | ✓ | ✓ |
| F40s LWD | HD-115-WD500 | Full HD 1080p | 40:1 | Free Head 500mm | ||
| F40s LWD | HD-115-WD500-E | Full HD 1080p | 40:1 | Free Head 500mm | ✓ | |
| F40s LWD | HD-115-WD500-L | Full HD 1080p | 40:1 | Free Head 500mm | ✓ | |
| F40s LWD | HD-115-WD500-E-L | Full HD 1080p | 40:1 | Free Head 500mm | ✓ | ✓ |
| F40s LWD | HD-115-WD1000 | Full HD 1080p | 40:1 | Free Head 1000mm | ||
| F40s LWD | HD-115-WD1000-E | Full HD 1080p | 40:1 | Free Head 1000mm | ✓ | |
| F40s LWD | HD-115-WD1000-L | Full HD 1080p | 40:1 | Free Head 1000mm | ✓ | |
| F40s LWD | HD-115-WD1000-E-L | Full HD 1080p | 40:1 | Free Head 1000mm | ✓ | ✓ |
| U30 | HD-015 | Ultra HD 4K | 30:1 | Integrated Stand | ||
| U30 | HD-015-E | Ultra HD 4K | 30:1 | Integrated Stand | ✓ | |
| U30 | HD-015-L | Ultra HD 4K | 30:1 | Integrated Stand | ✓ | |
| U30 | HD-015-E-L | Ultra HD 4K | 30:1 | Integrated Stand | ✓ | ✓ |
| U30s | HD-016 | Ultra HD 4K | 30:1 | Free Head | ||
| U30s | HD-016-E | Ultra HD 4K | 30:1 | Free Head | ✓ | |
| U30s | HD-016-L | Ultra HD 4K | 30:1 | Free Head | ✓ | |
| U30s | HD-016-E-L | Ultra HD 4K | 30:1 | Free Head | ✓ | ✓ |
| U30s LWD | HD-016-WD500 | Ultra HD 4K | 30:1 | Free Head 500mm | ||
| U30s LWD | HD-016-WD500-E | Ultra HD 4K | 30:1 | Free Head 500mm | ✓ | |
| U30s LWD | HD-016-WD500-L | Ultra HD 4K | 30:1 | Free Head 500mm | ✓ | |
| U30s LWD | HD-016-WD500-E-L | Ultra HD 4K | 30:1 | Free Head 500mm | ✓ | ✓ |
| U30s LWD | HD-016-WD1000 | Ultra HD 4K | 30:1 | Free Head 1000mm | ||
| U30s LWD | HD-016-WD1000-E | Ultra HD 4K | 30:1 | Free Head 1000mm | ✓ | |
| U30s LWD | HD-016-WD1000-L | Ultra HD 4K | 30:1 | Free Head 1000mm | ✓ | |
| U30s LWD | HD-016-WD1000-E-L | Ultra HD 4K | 30:1 | Free Head 1000mm | ✓ | ✓ |
| U50s | HD-116 | Ultra HD 4K | 50:1 | Free Head | ||
| U50s | HD-116-E | Ultra HD 4K | 50:1 | Free Head | ✓ | |
| U50s | HD-116-L | Ultra HD 4K | 50:1 | Free Head | ✓ | |
| U50s | HD-116-E-L | Ultra HD 4K | 50:1 | Free Head | ✓ | ✓ |
| U50s LWD | HD-116-WD500 | Ultra HD 4K | 50:1 | Free Head 500mm | ||
| U50s LWD | HD-116-WD500-E | Ultra HD 4K | 50:1 | Free Head 500mm | ✓ | |
| U50s LWD | HD-116-WD500-L | Ultra HD 4K | 50:1 | Free Head 500mm | ✓ | |
| U50s LWD | HD-116-WD500-E-L | Ultra HD 4K | 50:1 | Free Head 500mm | ✓ | ✓ |
| U50s LWD | HD-116-WD1000 | Ultra HD 4K | 50:1 | Free Head 1000mm | ||
| U50s LWD | HD-116-WD1000-E | Ultra HD 4K | 50:1 | Free Head 1000mm | ✓ | |
| U50s LWD | HD-116-WD1000-L | Ultra HD 4K | 50:1 | Free Head 1000mm | ✓ | |
| U50s LWD | HD-116-WD1000-E-L | Ultra HD 4K | 50:1 | Free Head 1000mm | ✓ | ✓ |
