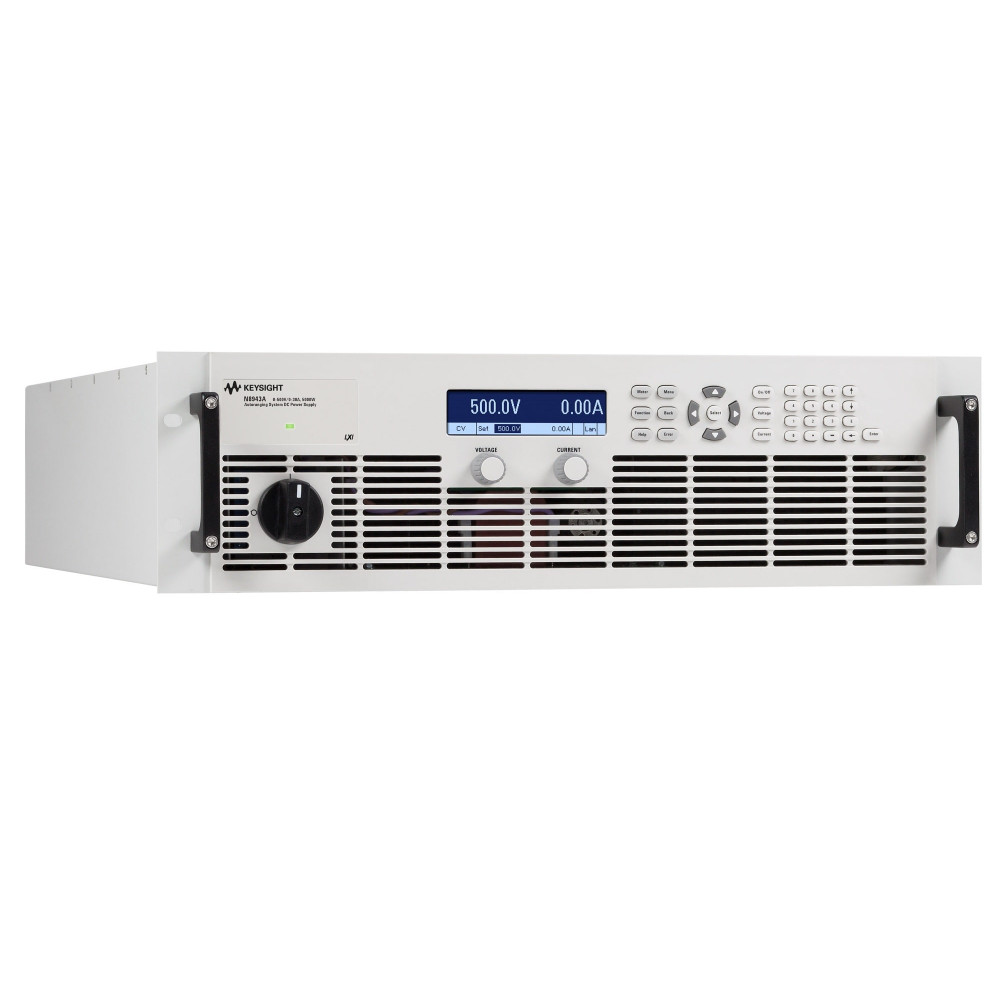

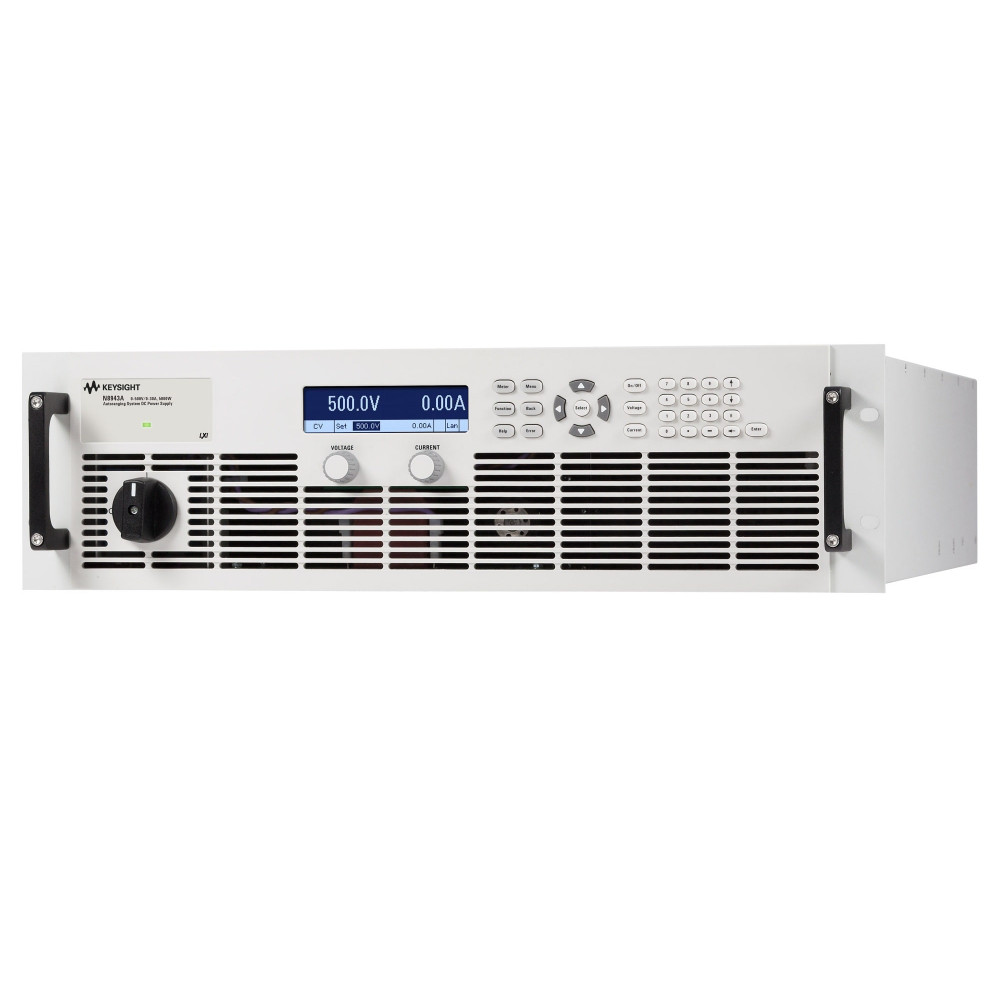

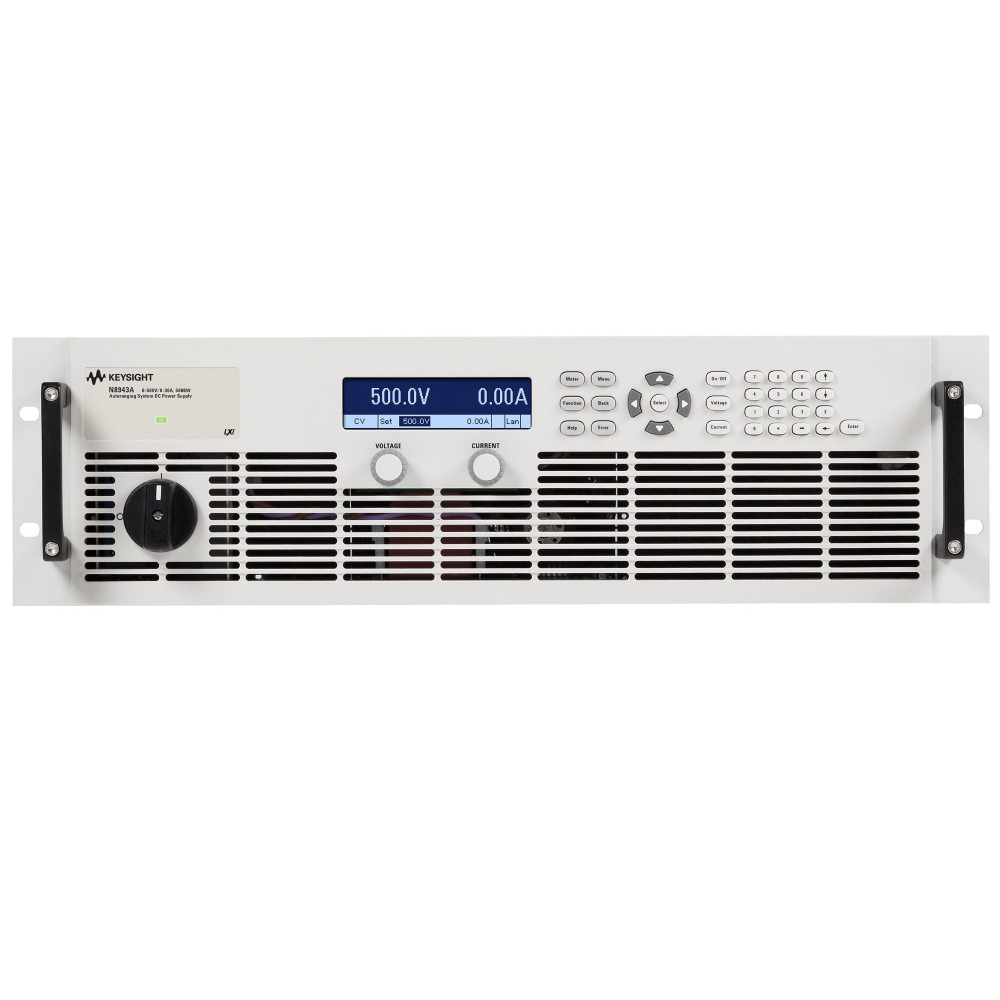

KEYSIGHT N8943A Autoranging System DC Power Supply, 500V, 30A, 5000W, 400VAC
The Keysight N8900 Series is a single output autoranging power supply with 5, 10, or 15 kW outputs. Connect multiple units to act as a single supply with up to 100 kW output power. Many energy solutions are moving to higher voltages, and these supplies can deliver up to 1500 V. At lower voltages they can output up to 510 A. Configurations for 208 and 400 VAC allows you to use existing AC wiring.
Features:
- Output voltages up to 1500 V
- Source current as high as 510 A
- Linked power supplies act as a single larger supply up to 100 kW
- Protection from overvoltage, overcurrent, and overtemperature
- LAN (LXI Core), USB, GPIB, and analog interfaces
- Use existing power distribution with 208 and 400 VAC input
PathWave BenchVue Power Supply Software
Provides easy control of your power supplies to set parameters and visualize I/V data on a trend chart.
- Track and record your power supply output to understand the impact of the power draw for specific events.
- Connect and control your power supplies through the cloud.
- Export data to popular tools, such as MATLAB, Microsoft Excel, or Word for further analysis.
- Create automated test sequences quickly with minimal instrument knowledge.
- Receive KeysightCare software support subscription and license with each new instrument purchase.
Autoranging Provides Higher Current
Autoranging provides higher current at more voltages when compared to a standard power supply with a rectangular output. For higher current, connect multiple power supplies in parallel and control them through a single unit as a single output.
Key Specifications:
- Number of Outputs: 1
- Total Power: 5, 10, or 15 kW
- Rack Units: 3
- Ripple and Noise: 16 mVrms
- Connectivity: LAN, USB, GPIB
