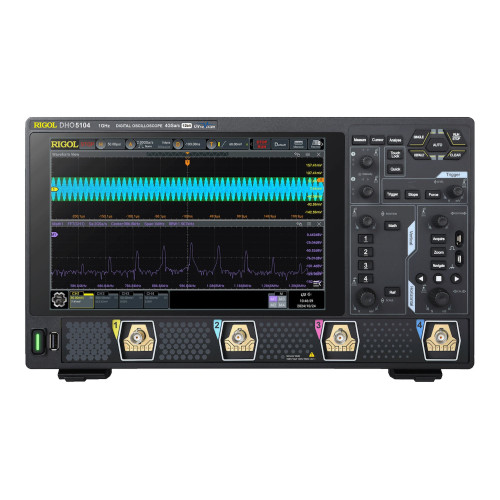

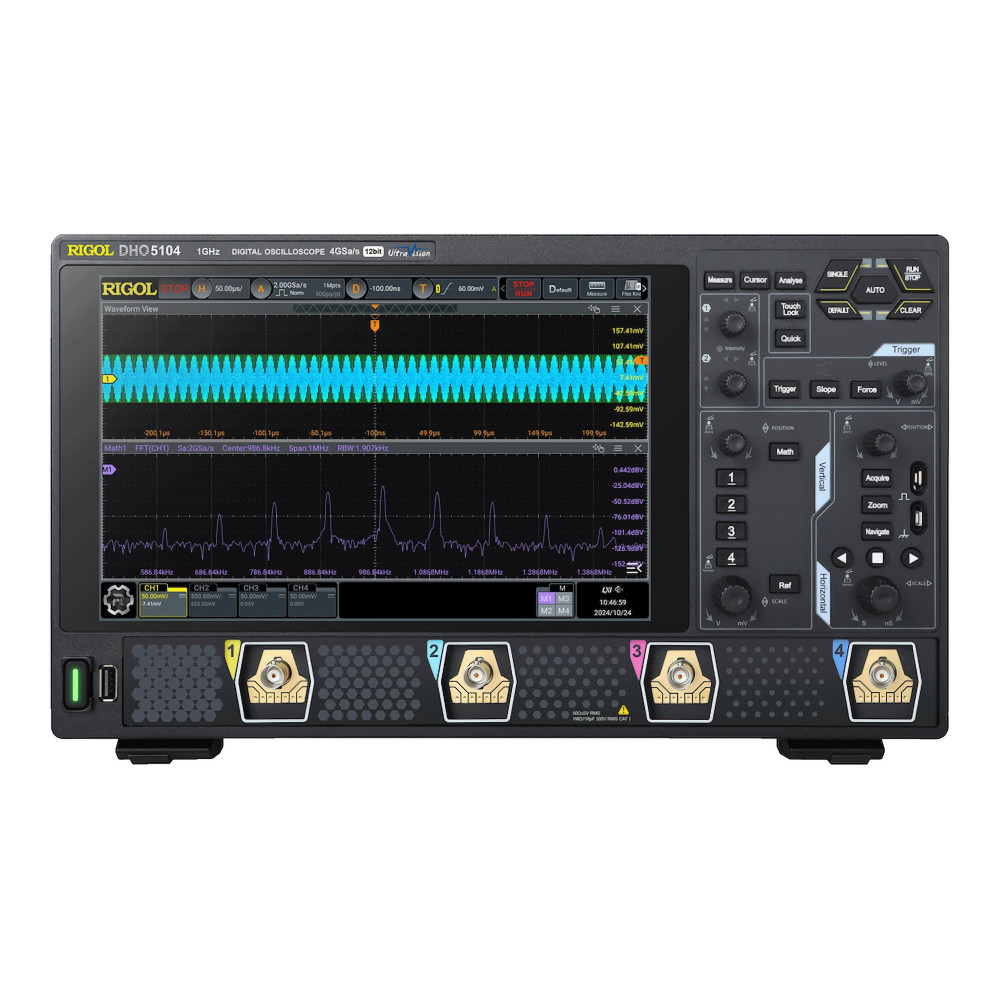

RIGOL DHO5104 12-bit Oscilloscope 1GHz, 4 Channels, 4GSa/s
RIGOL DHO5104 is a 12-bit digital oscilloscope with 1 GHz bandwidth, 4 analog channels and 4 GSa/s sample rate.
To use the full 1 GHz bandwidth, the RP6150A passive probe is recommended, which has a 50 Ω input and a frequency of 1.5 GHz.
Included accessories:
1 x Power cord
1 x USB cable
4 x RP3500A Passive high-impedance probes (500 MHz)
RIGOL MHO/DHO5000 Series features:
- Based on RIGOL's brand new self-developed Centaurus technical platform
- 12-bit resolution for all the series (up to 16-bit in high resolution mode)
- Maximum 1 GHz bandwidth, 8 analog channels and 1 external trigger channel
- 16 digital channels for the MHO models (logic analyzer probe required)
- Real-time sample rate: up to 4 GSa/s
- Maximum memory depth 500 Mpts
- Vertical sensitivity up to 100 μV/div
- Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode
- Arbitrary Waveform Generator and Bode plot for MHO5054 and MHO5104 models
- Power analysis, histogram, digital signal analysis and protocol decodings
- Search and navigation function helps users quickly search for the signals with exceptions and locate them accurately
- 256-level intensity grading display, with digital real-time fluorescence technology
- 10.1" 1280 x 800 pixels high-definition touch screen
- Brand new Flex knob brings friendly user experience
- Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series
- Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility for measurement (available in the future)
- Online upgrade
- Standard configuration of the photoelectric encoder operating knob for all the series to improve the service life of the instrument
| Model | DHO5058 | DHO5054 | DHO5108 | DHO5104 | MHO5056 | MHO5054 | MHO5106 | MHO5104 |
| Bandwidth | 500 MHz | 500 MHz | 1 GHz | 1 GHz | 500 MHz | 500 MHz | 1 GHz | 1 GHz |
| Channels | 8 analog channels + 1 EXT channel | 4 analog channels + 1 EXT channel | 8 analog channels + 1 EXT channel | 4 analog channels + 1 EXT channel | 6 analog channels + 16 digital channels + 1 EXT channel | 4 analog channels + 16 digital channels + 1 EXT channel | 6 analog channels + 16 digital channels + 1 EXT channel | 4 analog channels + 16 digital channels + 1 EXT channel |
| Sample rate | 4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) | 4 GSa/s | 4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) | 4 GSa/s | 4 GSa/s (single-channel & half-channel), 2 GSa/s (full-channel) | |||
| Rise time | ≤750 ps | ≤350 ps (single-channel & half-channel), ≤440 ps (full-channel) | ≤750 ps | ≤350 ps (single-channel & half-channel), ≤440 ps (full-channel) | ||||
