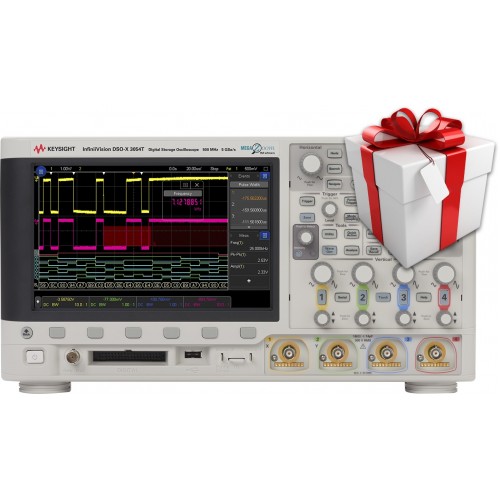

KEYSIGHT DSO3054GAUT Automotive Better Bundle
This bundle of products and options (DSO3054GAUT), built around the four-channel, 500-MHz bandwidth InfiniiVision 3000G X-Series digital storage oscilloscope (DSO), includes a built-in function / arbitrary waveform generator. It also includes an automotive software option.
The automotive software package offers the broadest support for triggering on and decoding common automotive serial protocols, including CAN, CAN FD, LIN, FlexRay, SENT, PSI5, and CXPI. Also supported are signal charting and eye-diagram mask testing of CAN, CAN FD, and FlexRay differential buses. Additionally, the automotive software package offers symbolic decoding of the CAN, CAN FD, and LIN buses based on importing DBC and LDF files.
The bundle includes Keysight’s N2818A 200-MHz differential active probe for probing automotive differential buses such as CAN, CAN FD, and FlexRay.
The InfiniiVision X-Series oscilloscope Automotive Better Bundle includes the following:
- DSOX3054G 4-channel, 500-MHz oscilloscope with embedded analysis software and function / arbitrary waveform generator
- D3000AUTB Automotive software option
- DP0010A 250-MHz differential active probe
- DP0021A-009 Automotive accessory kit for DP001xA probes
The bundle is shipped as a single box with scope, probe and software certificate. Customers need to redeem the certificate and download the software, it is not pre-installed.
