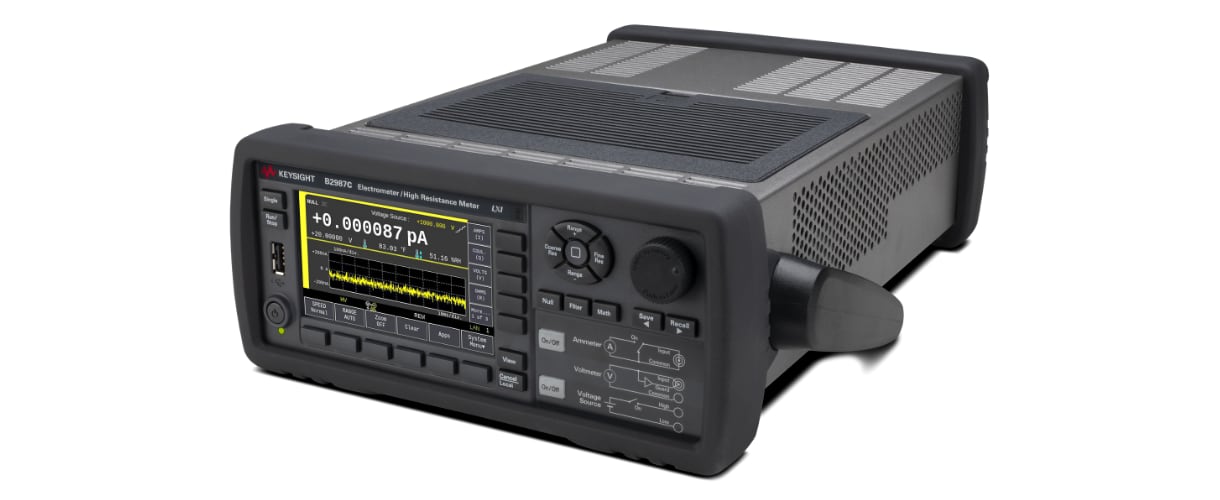

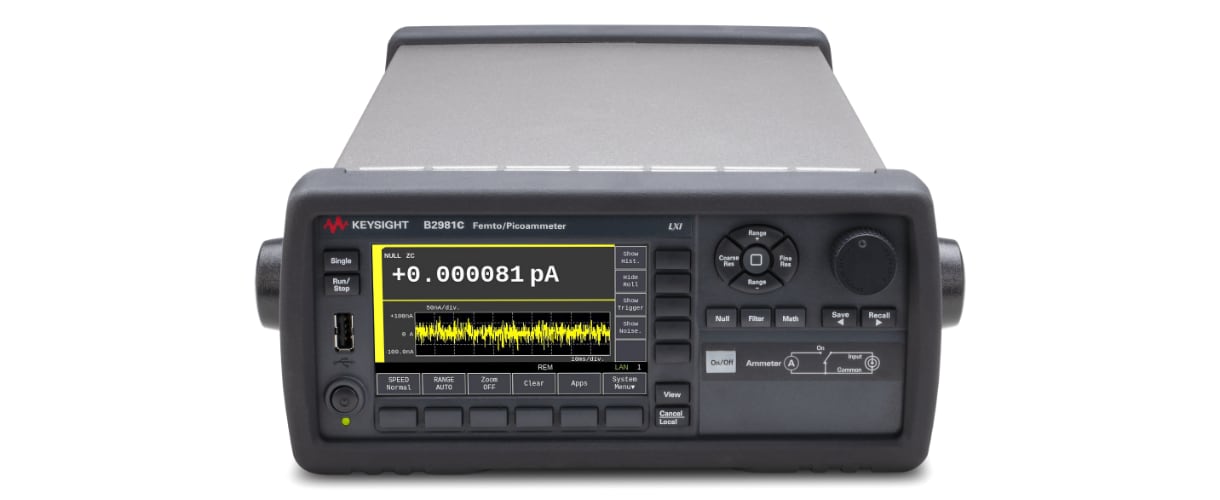

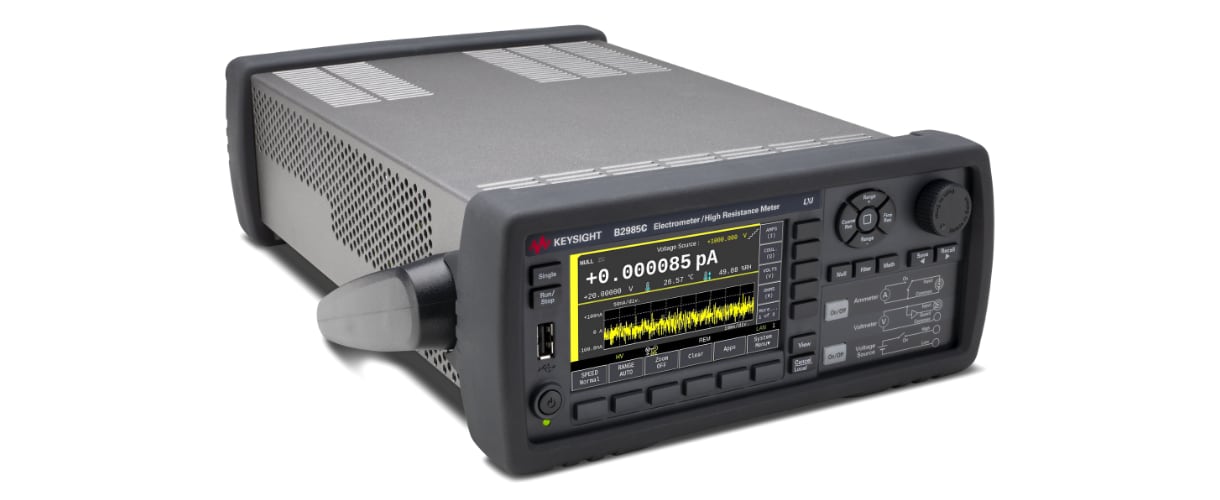

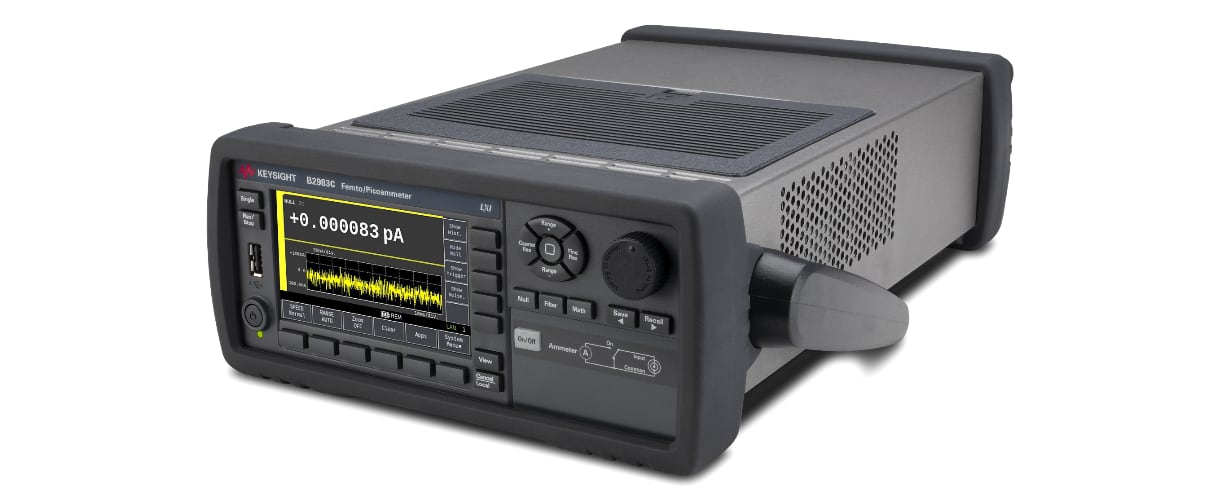

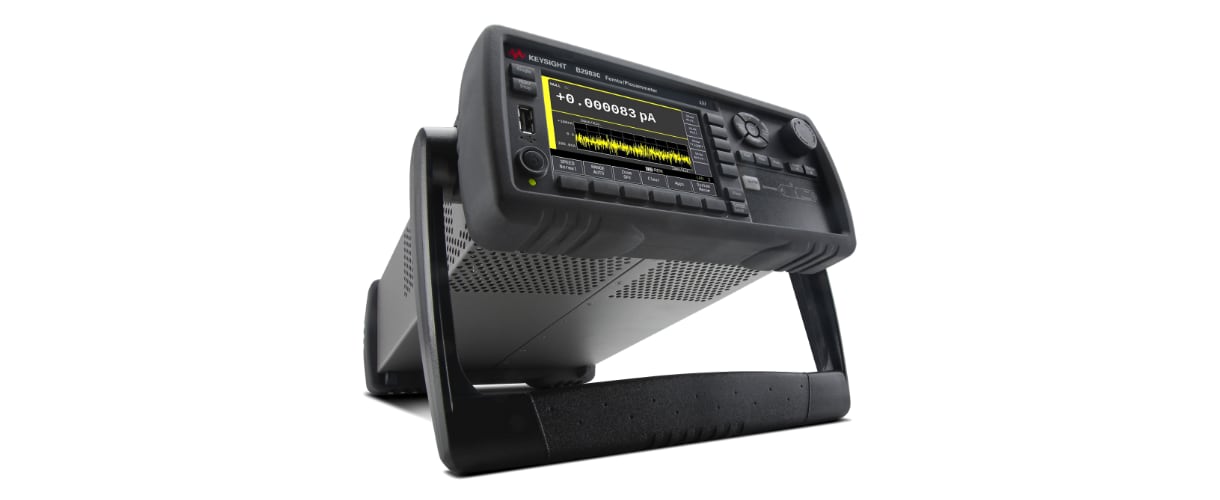

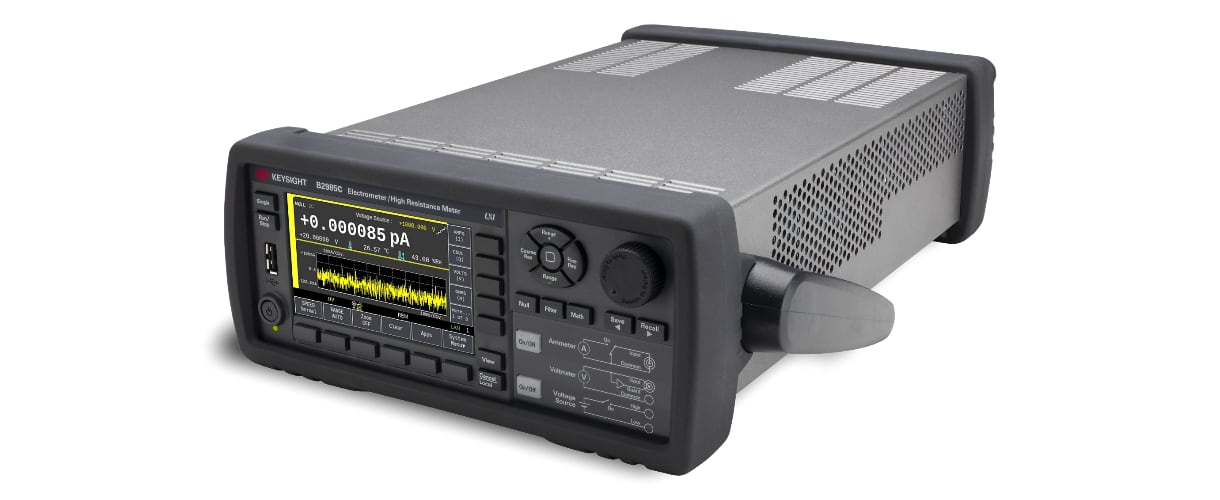

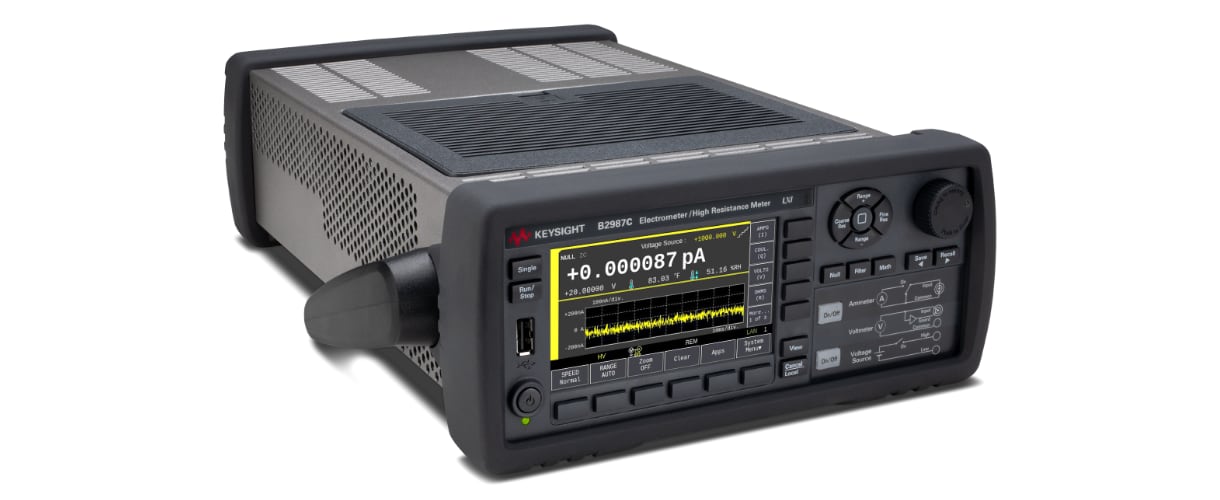

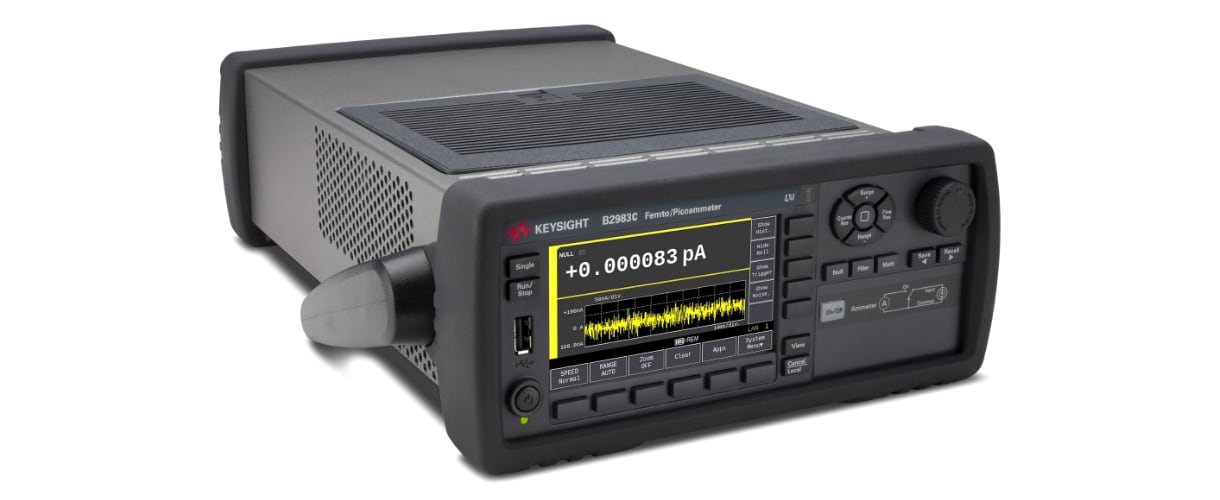

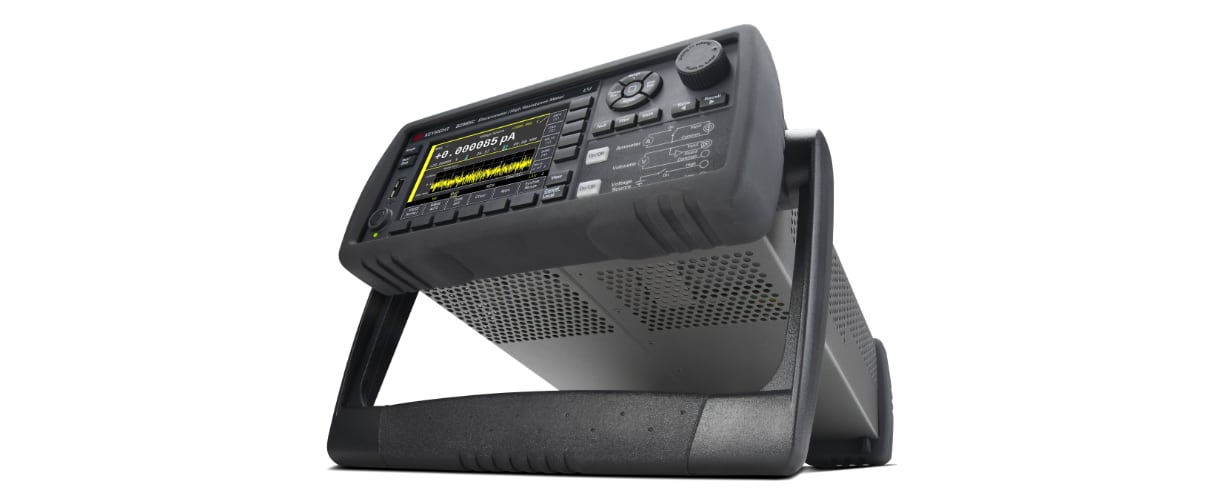

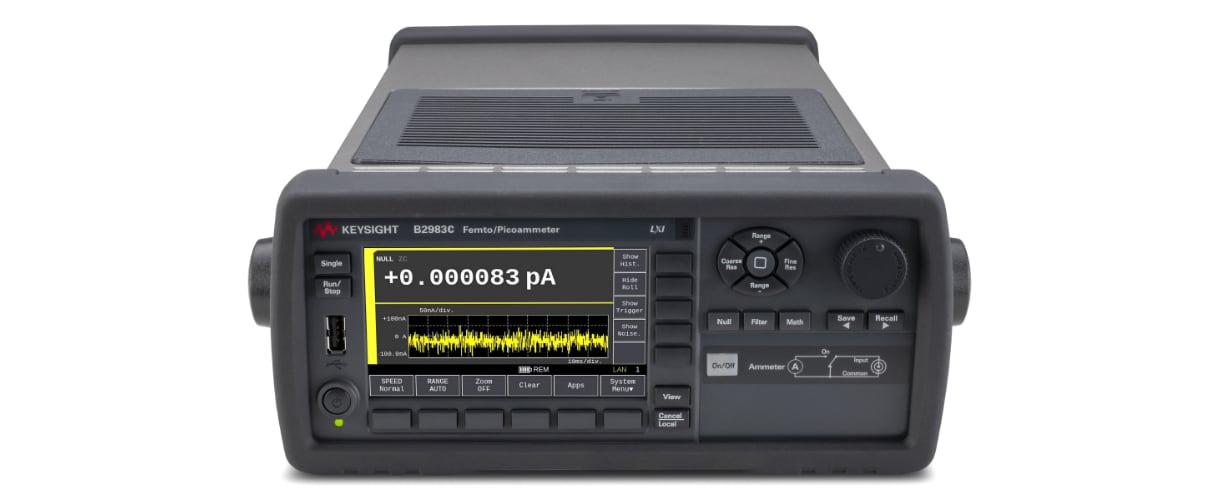

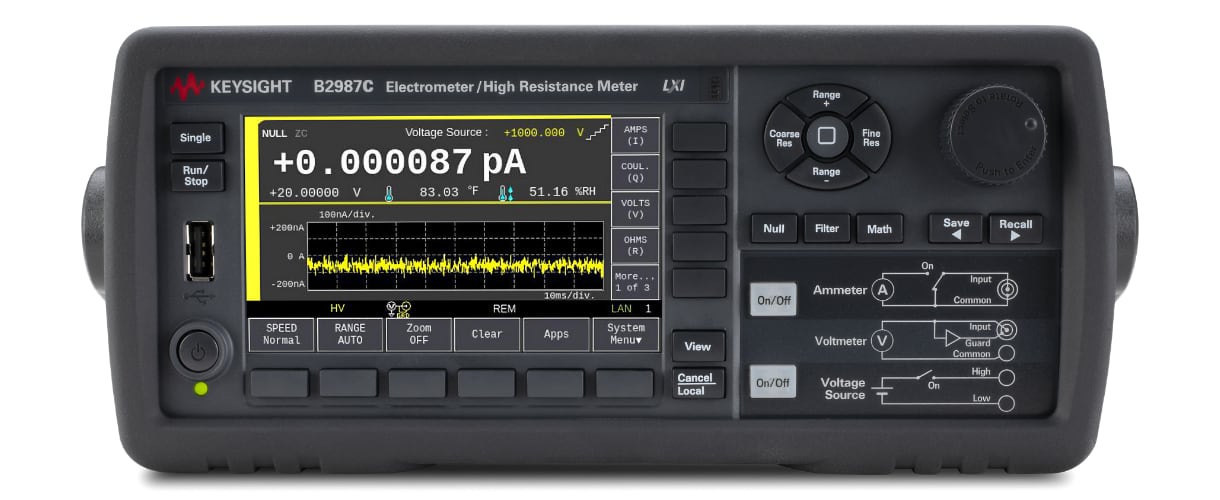

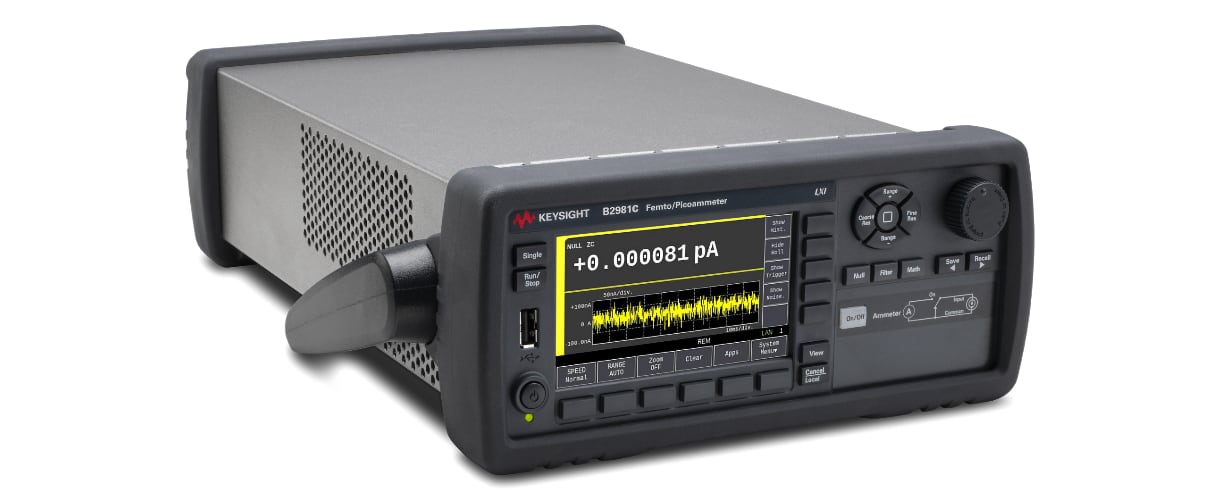

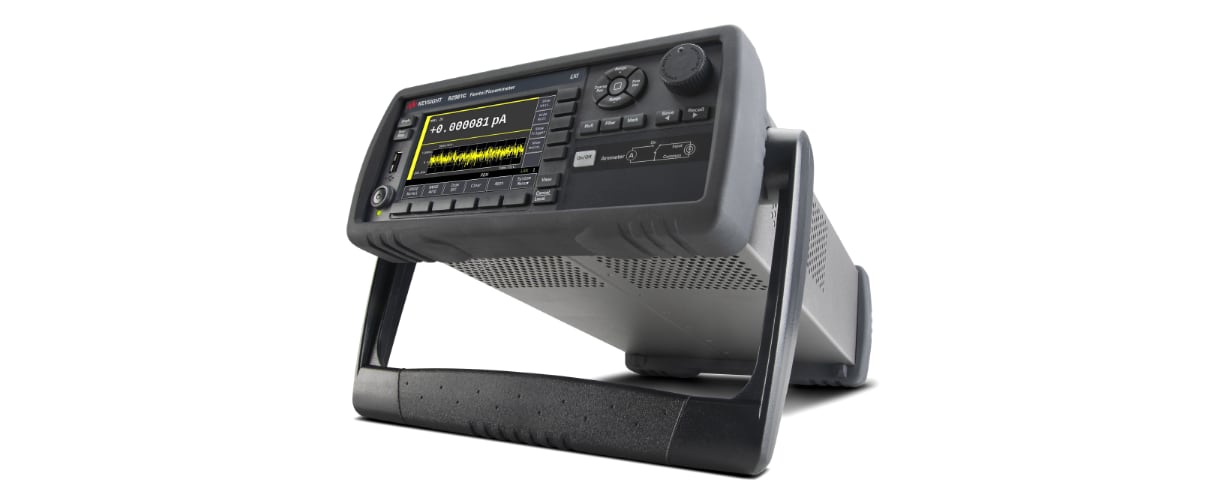

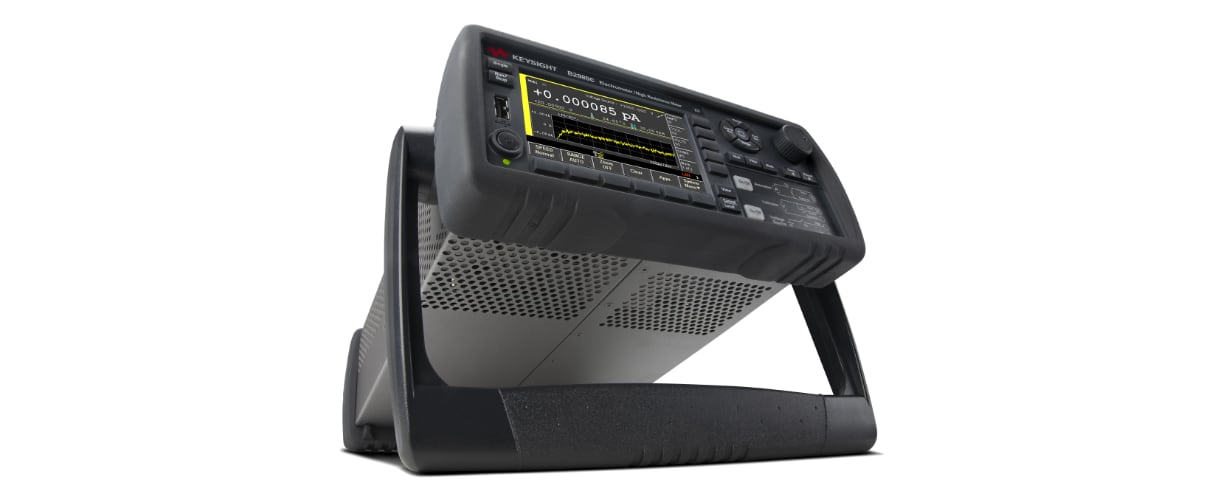

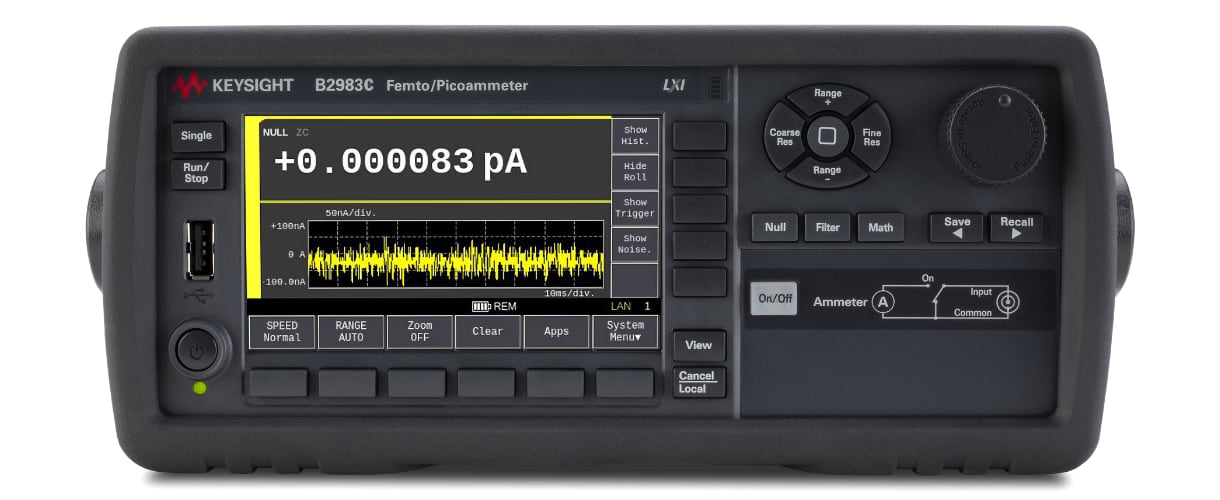

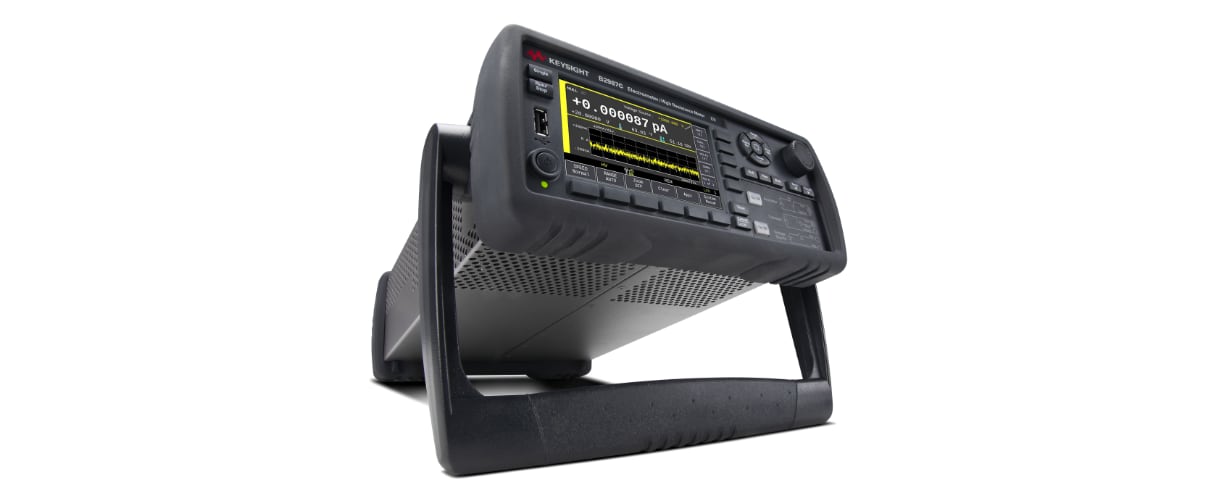

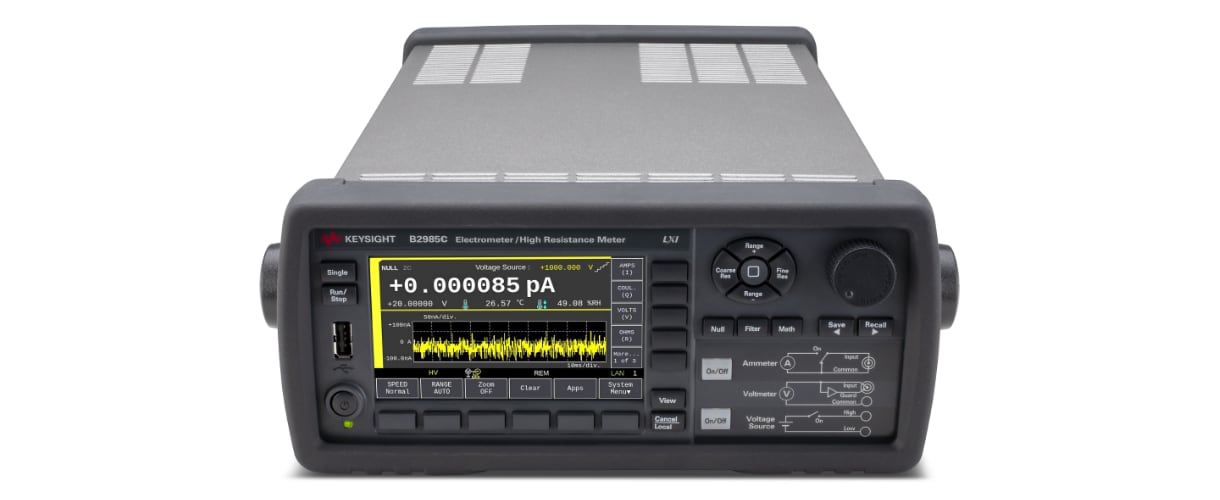

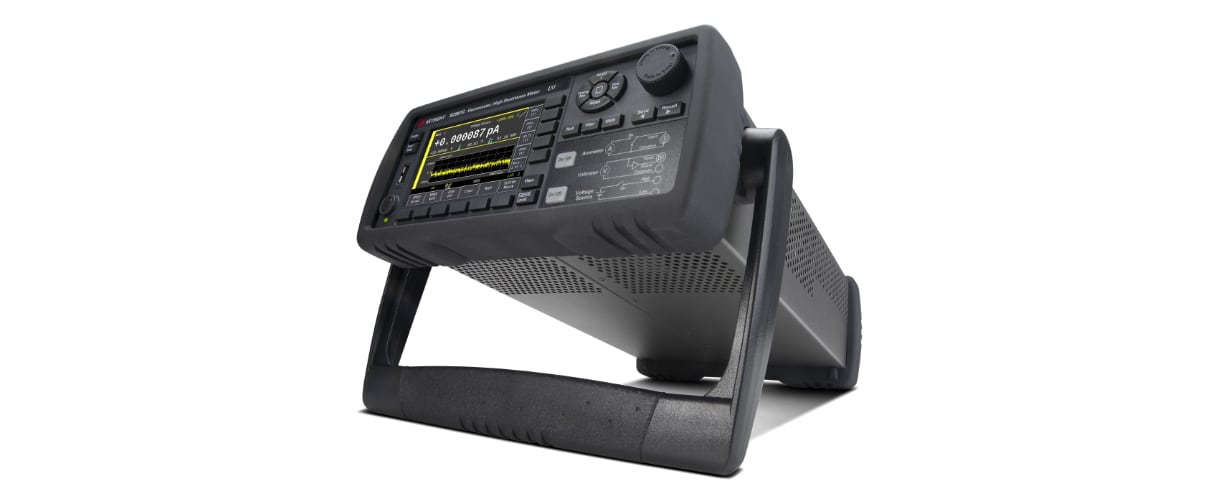

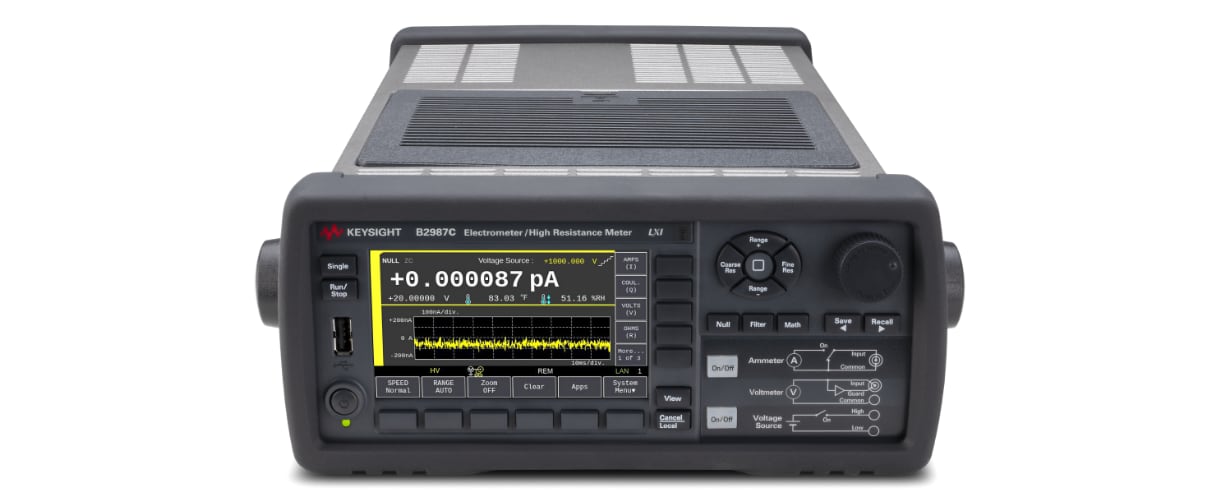

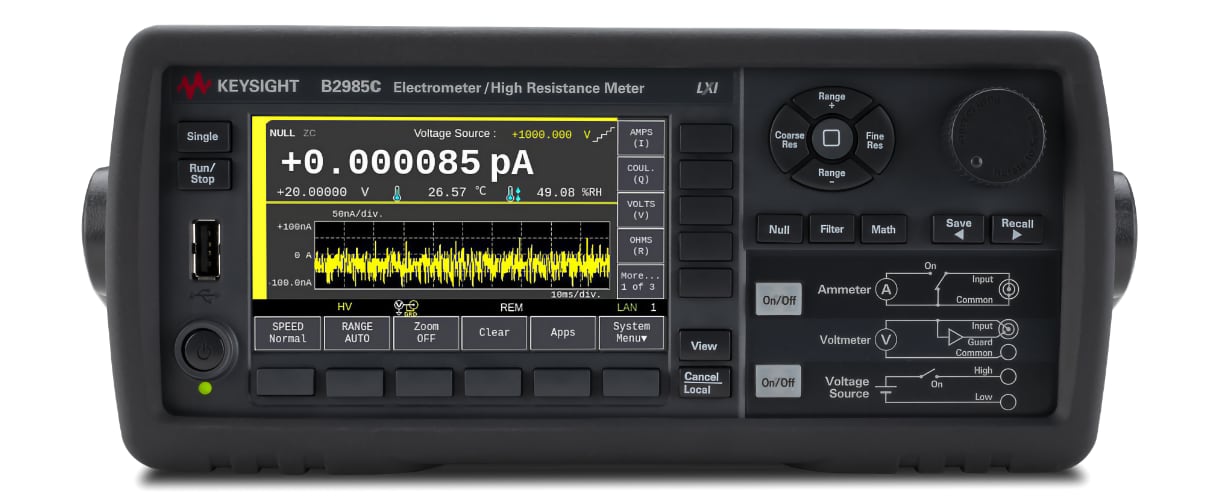

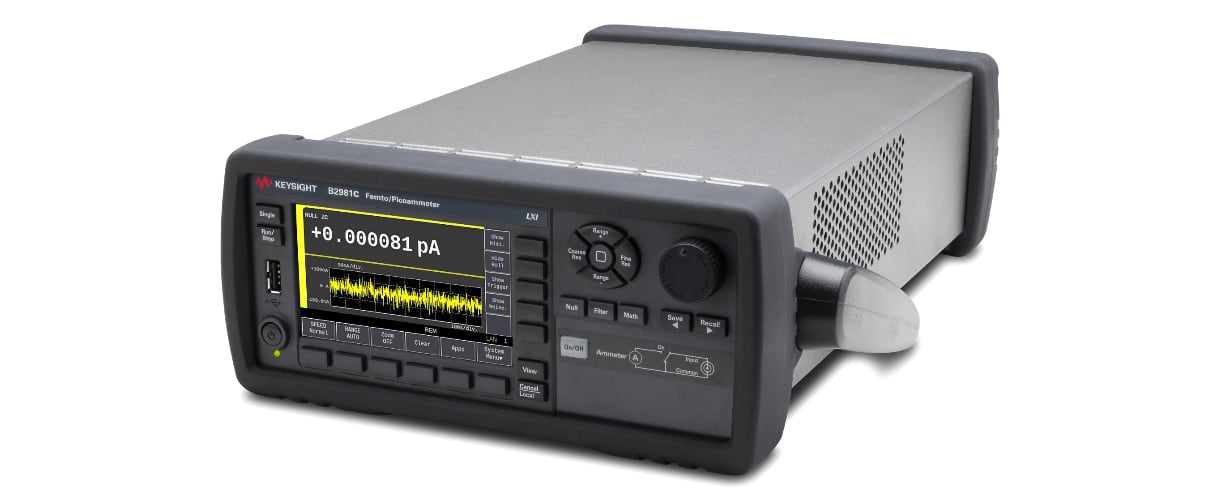

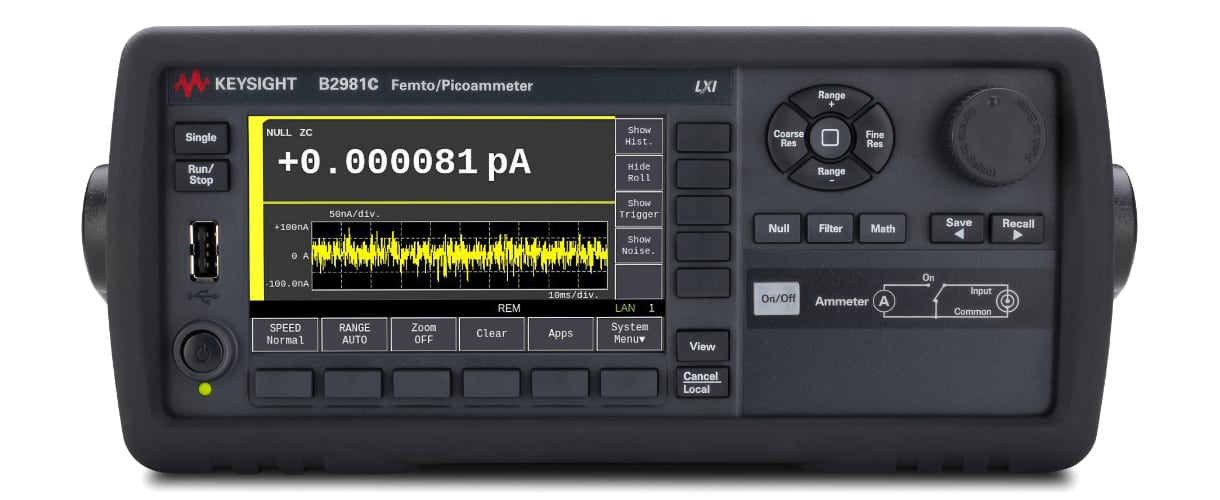

KEYSIGHT B2980C – Femto-Picoammeter and Electrometer-High Resistance Meter Series
The KEYSIGHT B2980C series sets a new standard in ultra-low current and resistance measurements, offering resolution down to 0.01 fA and the capability to test up to 10 PΩ and ±1000V. The graphical interface and optional battery operation (on selected models) enable reliable measurements even in the most demanding laboratories or portable setups.
Main Applications
0.01 fA resolution, for ultra-low current measurements on advanced materials and devices.

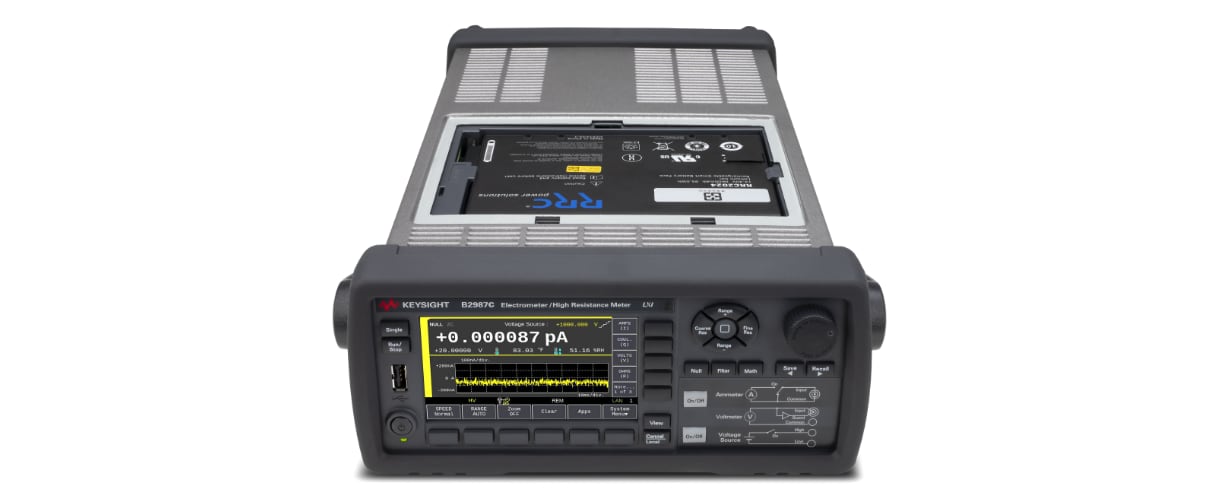

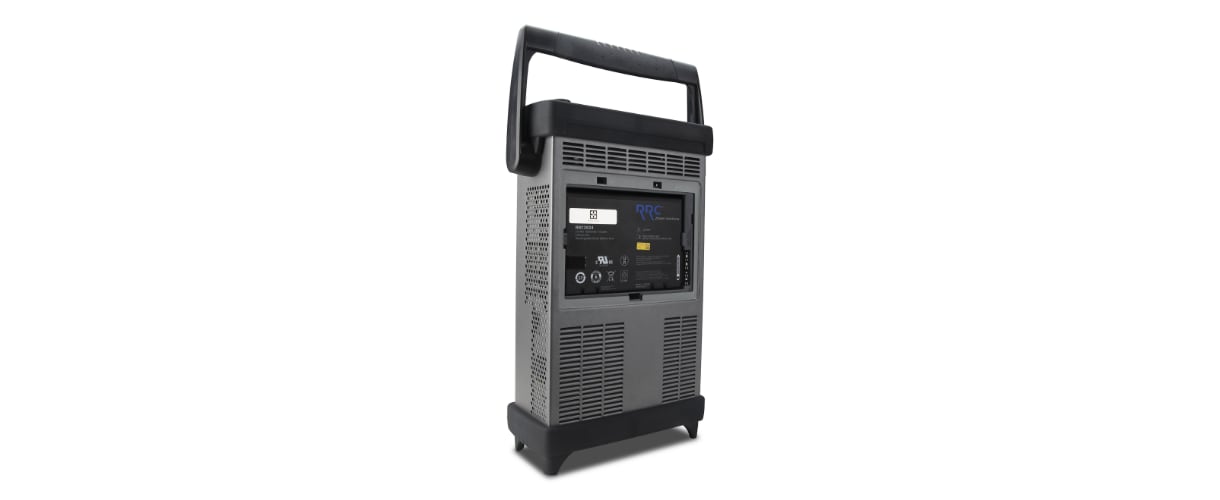

All the functions of the B2981C, but with battery operation to eliminate line noise (<7h).
| Features | B2981C | B2983C | B2985C | B2987C |
|---|---|---|---|---|
| Type | Femto/Picoammeter (AC Line) |
Femto/Picoammeter (Battery) |
Electrometer/HRM (AC Line) |
Electrometer/HRM (Battery) |
| Min/Max Current | 0.01 fA – 20 mA | |||
| Max Resistance | - | - | 10 PΩ | 10 PΩ |
| Max Voltage/Source | - | - | ±1000 V | ±1000 V |
| Display Resolution | 0.01 fA / 1 μV / 6.5 digits / 100k points | |||
| Battery Operation | No | ✔ (7h) | No | ✔ (5h) |
| Humidity/Temperature Probe | - | - | ✔ | ✔ |
| Graph/Roll/Histogram Modes | ✔ | ✔ | ✔ | ✔ |

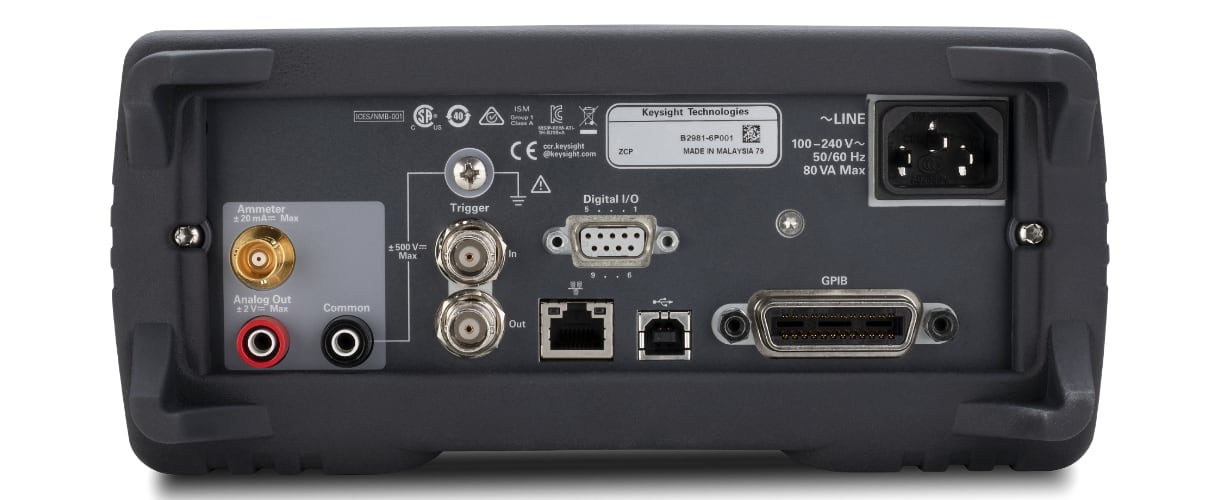

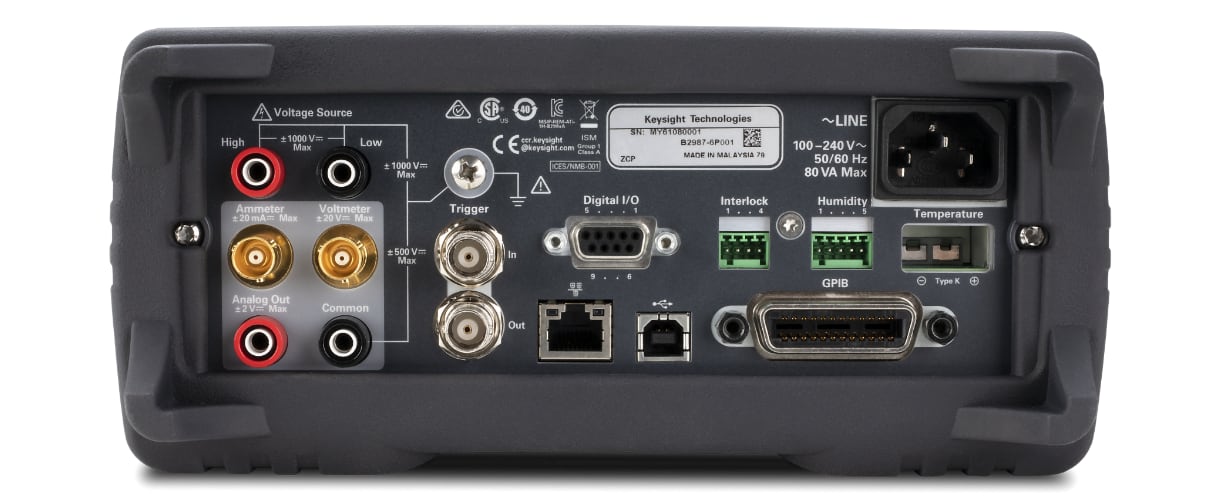

| Interfaces | USB, LAN, GPIB (LXI Core) | |||

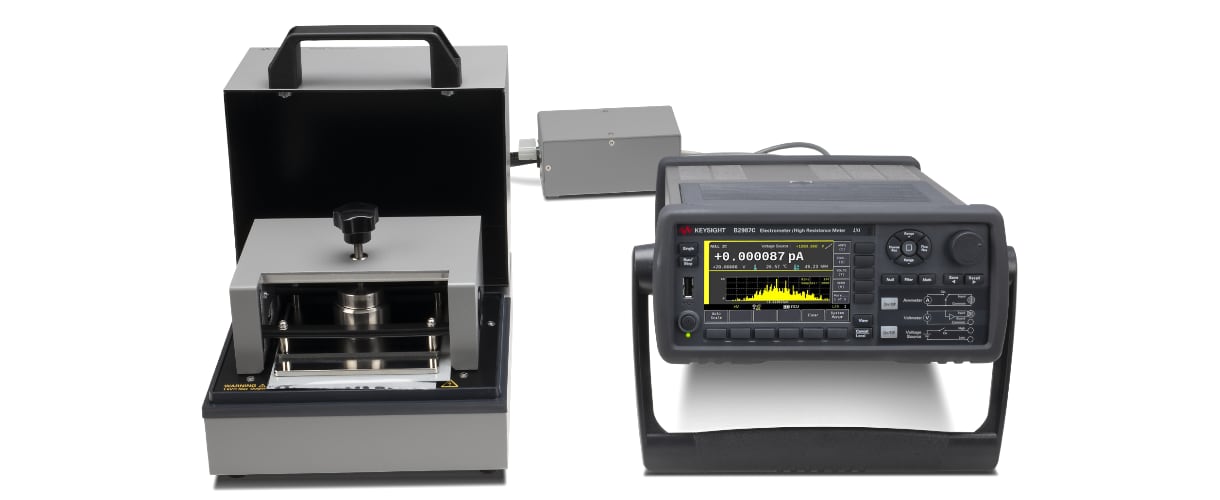

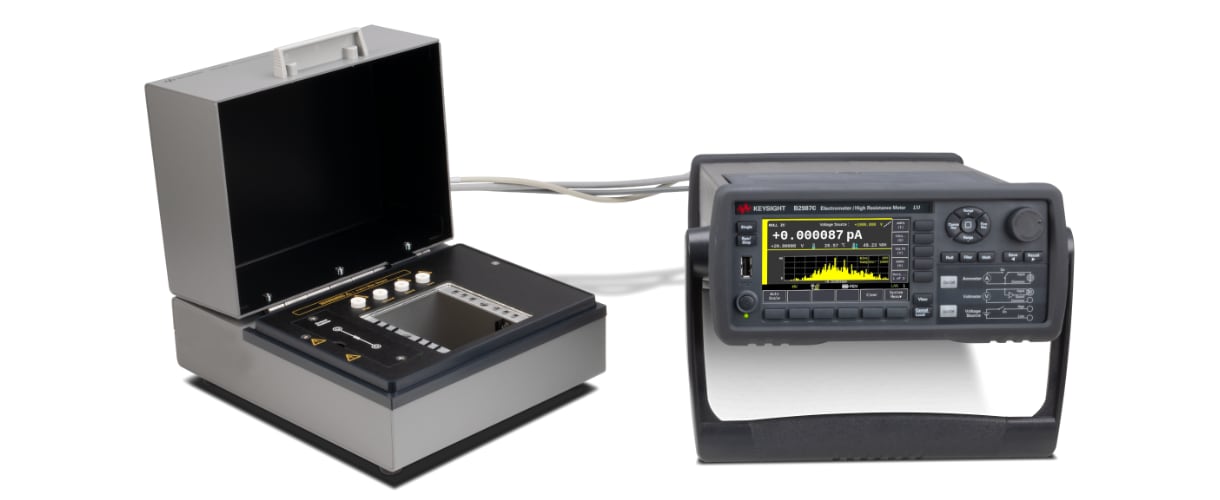

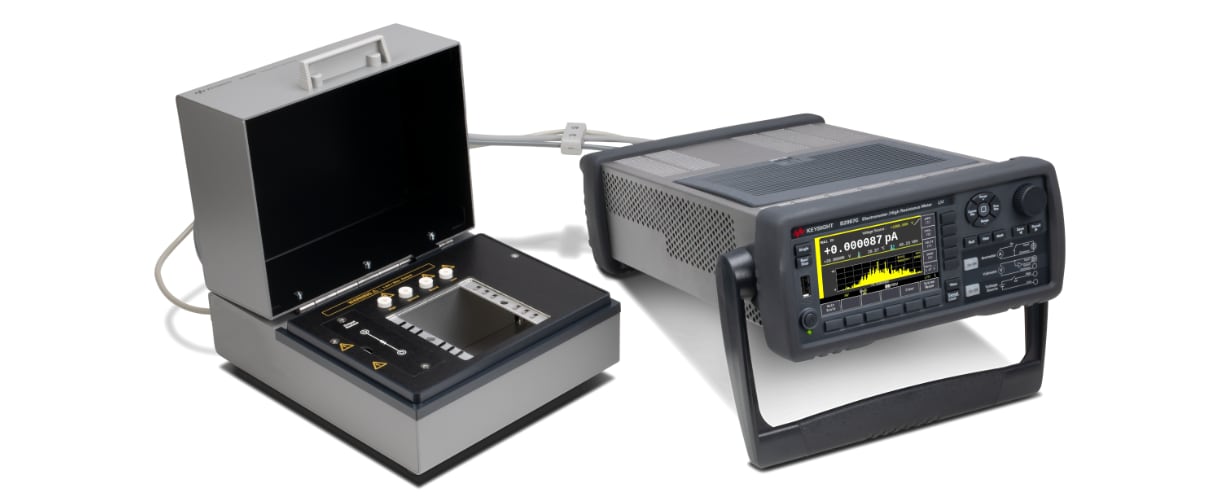

Recommended Accessories
