Frequency Response Analyzer
Available on Moku:Delta, Moku:Pro, Moku:Lab and Moku:Go hardware
Key Features
Stimulate the device under test
Quickly and easily measure the frequency response of a device under test in ranges from mHz to MHz, with linear or logarithmic swept sine output.
Configurable math channel
Add, subtract, multiply, or divide response functions as they are acquired.
Rapid phase, amplitude vs. frequency measurements
Use cursors and markers to measure exact values on the plots.
Wide range of settling and averaging times
Configure settling and averaging times independently to measure resonant or nonlinear systems accurately.
One touch normalization
Save a normalization trace to compare systems or remove spurious cable shifts.
Rapid data sharing
Easily save data and upload to the cloud or Dropbox in common formats.
Multiple, independently-configurable outputs and inputs
Probe multiple (2-8) systems simultaneously, or one system at multiple points depending on hardware platform.

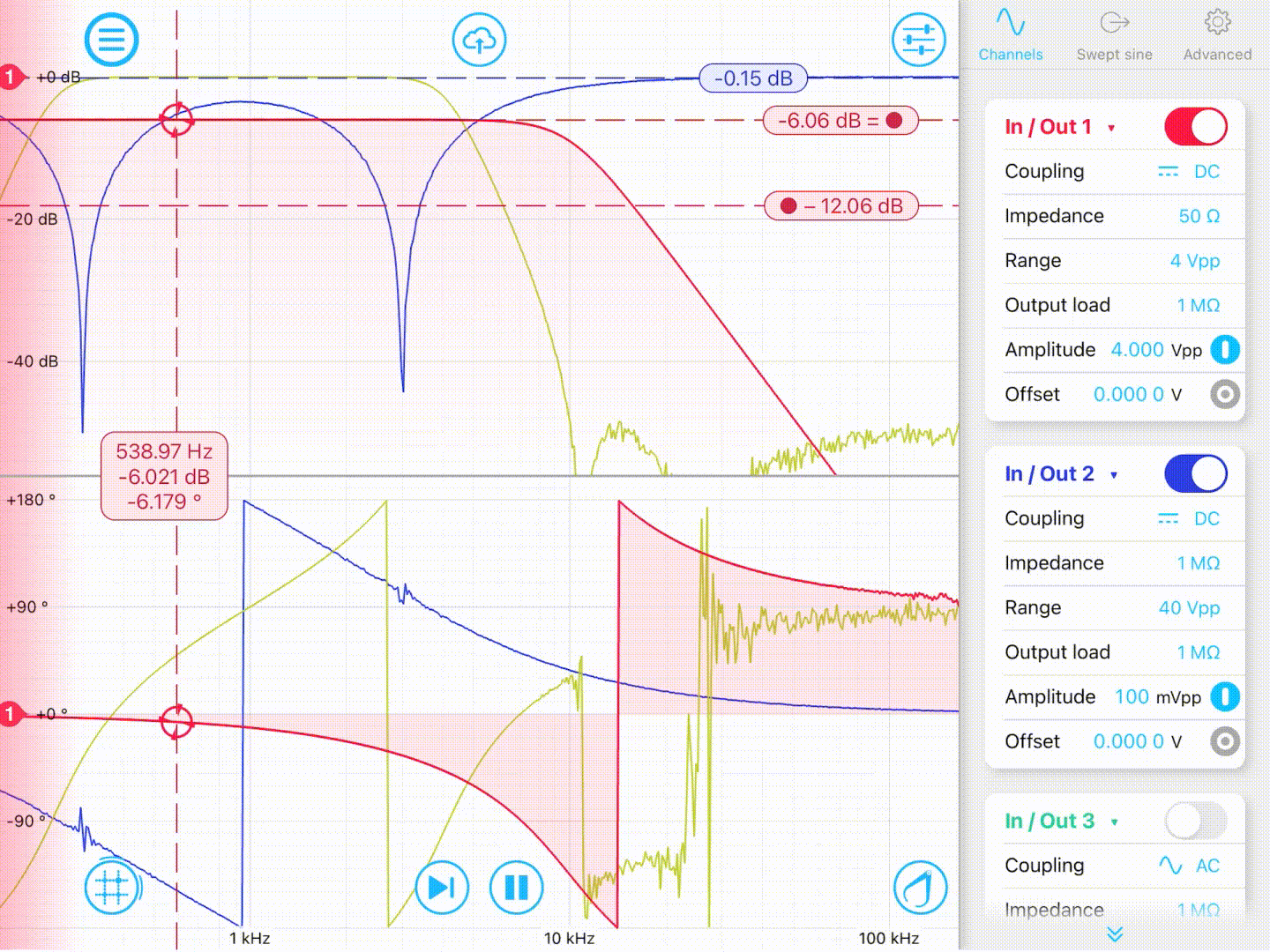

Live Bode plot updates, or pause for analysis
Monitor the magnitude and phase on the interactive Bode plot.
Applications
• Impedance measurement
• Capacitance/inductance measurement
• Stability analysis
• Power supply analysis
• EMI filter characterization
Compare hardware platforms
The Frequency Response Analyzer runs on Moku:Delta, Moku:Pro, Moku:Lab and Moku:Go. Compare the platform specs to choose the right system for your application.
