RIGOL DG5000 Pro Series Arbitrary Waveform Generator Introduction

Posted by Batter Fly 08-07-2025 0 Comment(s) 1844 Testen en Meten,

The RIGOL DG5000 Pro Series is a new generation of high-performance arbitrary waveform generators designed for advanced R&D, production, and teaching environments. With a robust hardware platform, intuitive user interface, and a wide range of output capabilities, the DG5000 Pro delivers precision, flexibility, and reliability for demanding signal generation tasks.

Output Frequency: Up to 500 MHz
Sample Rate: 2 GSa/s with 16-bit vertical resolution
Waveform Memory: Up to 128 Mpts per channel

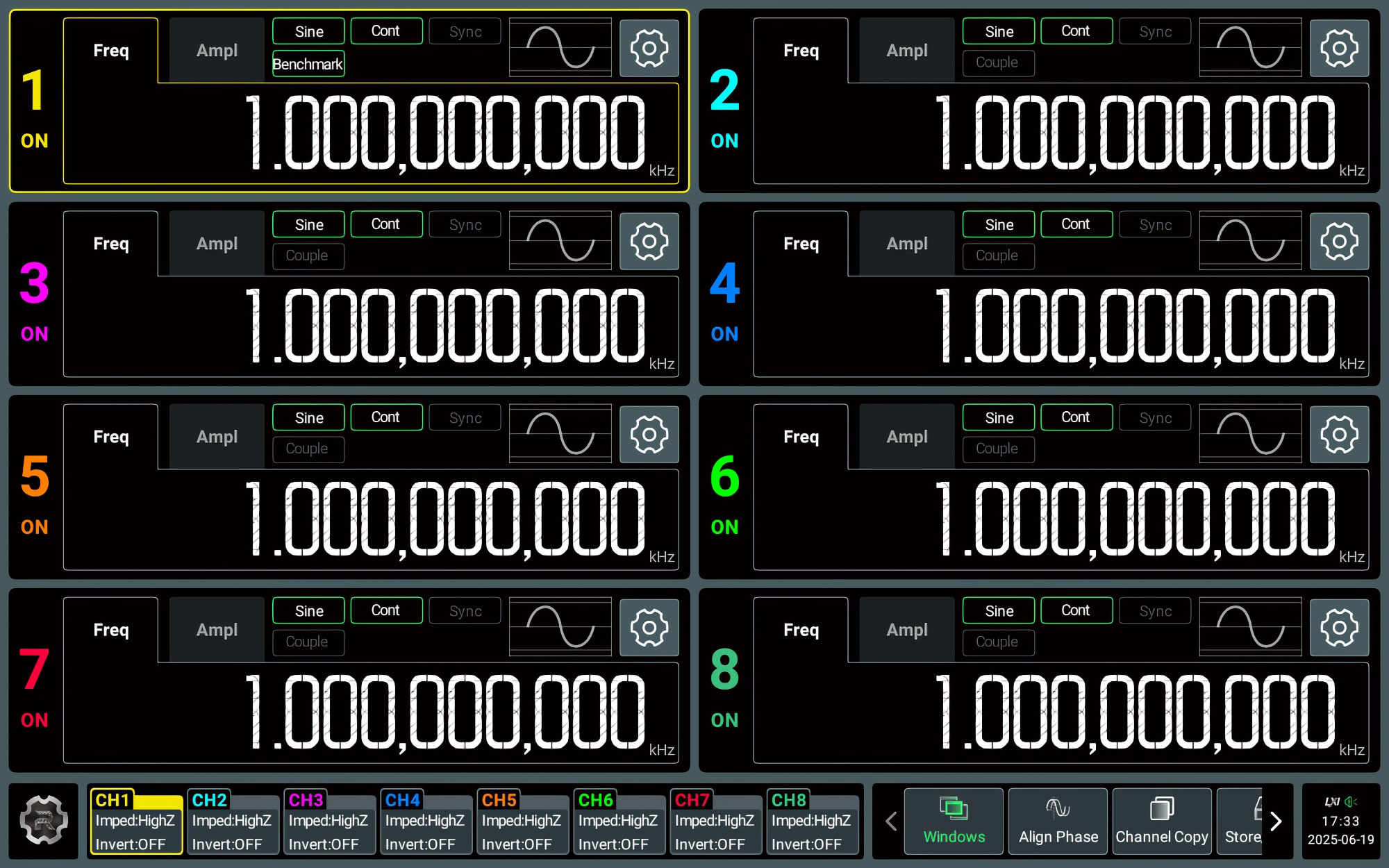

Channels: Up to 8 fully independent outputs

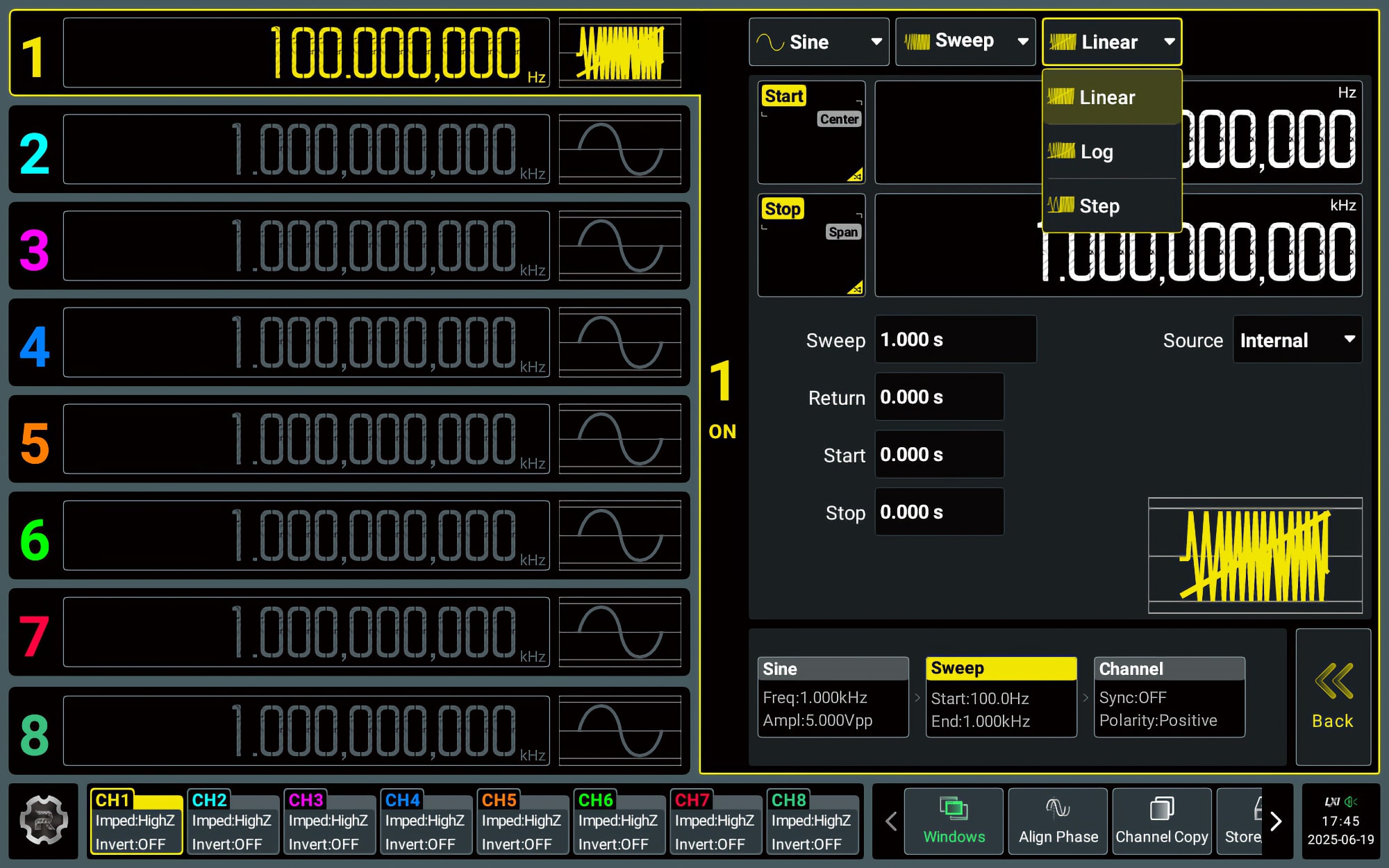

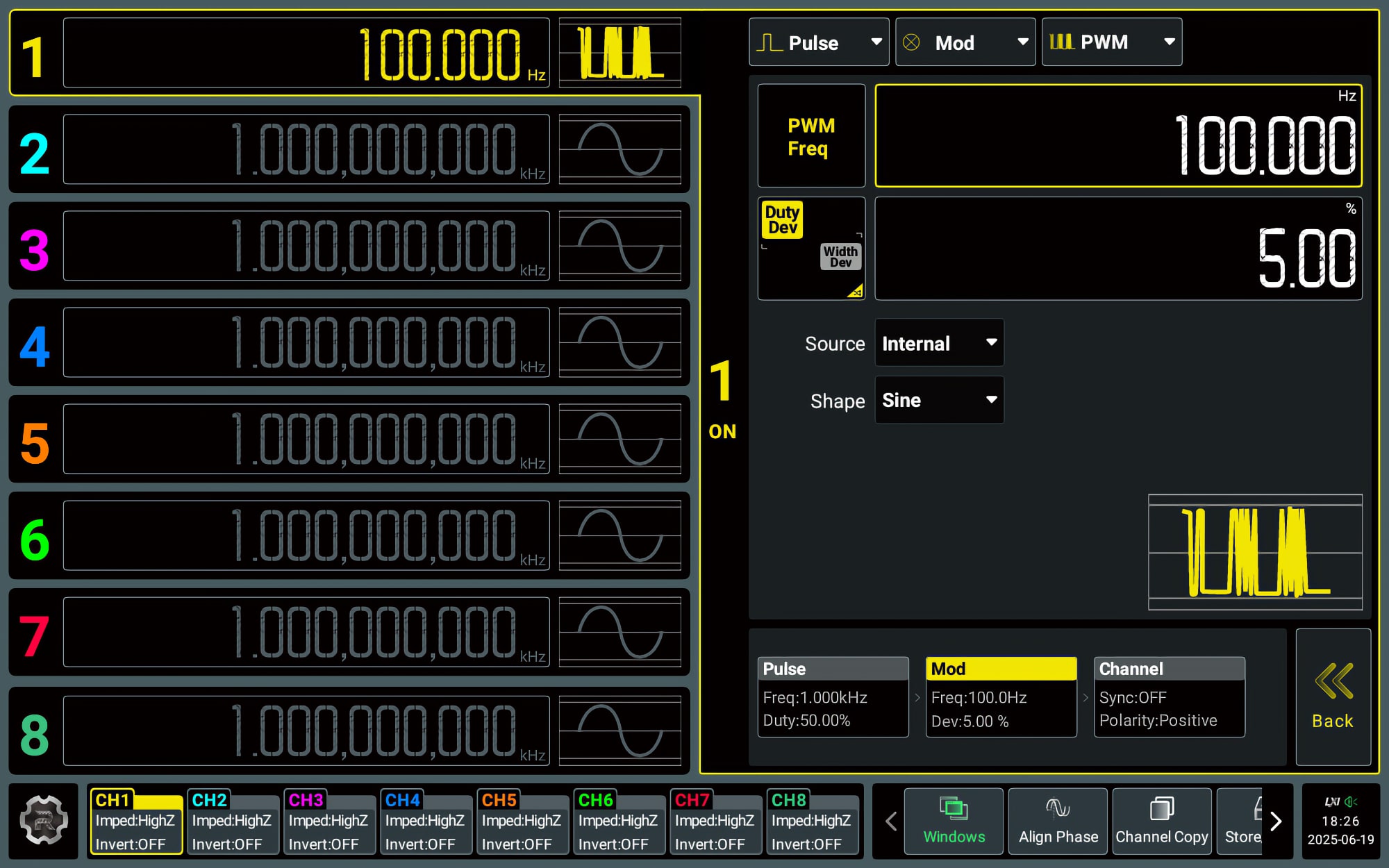

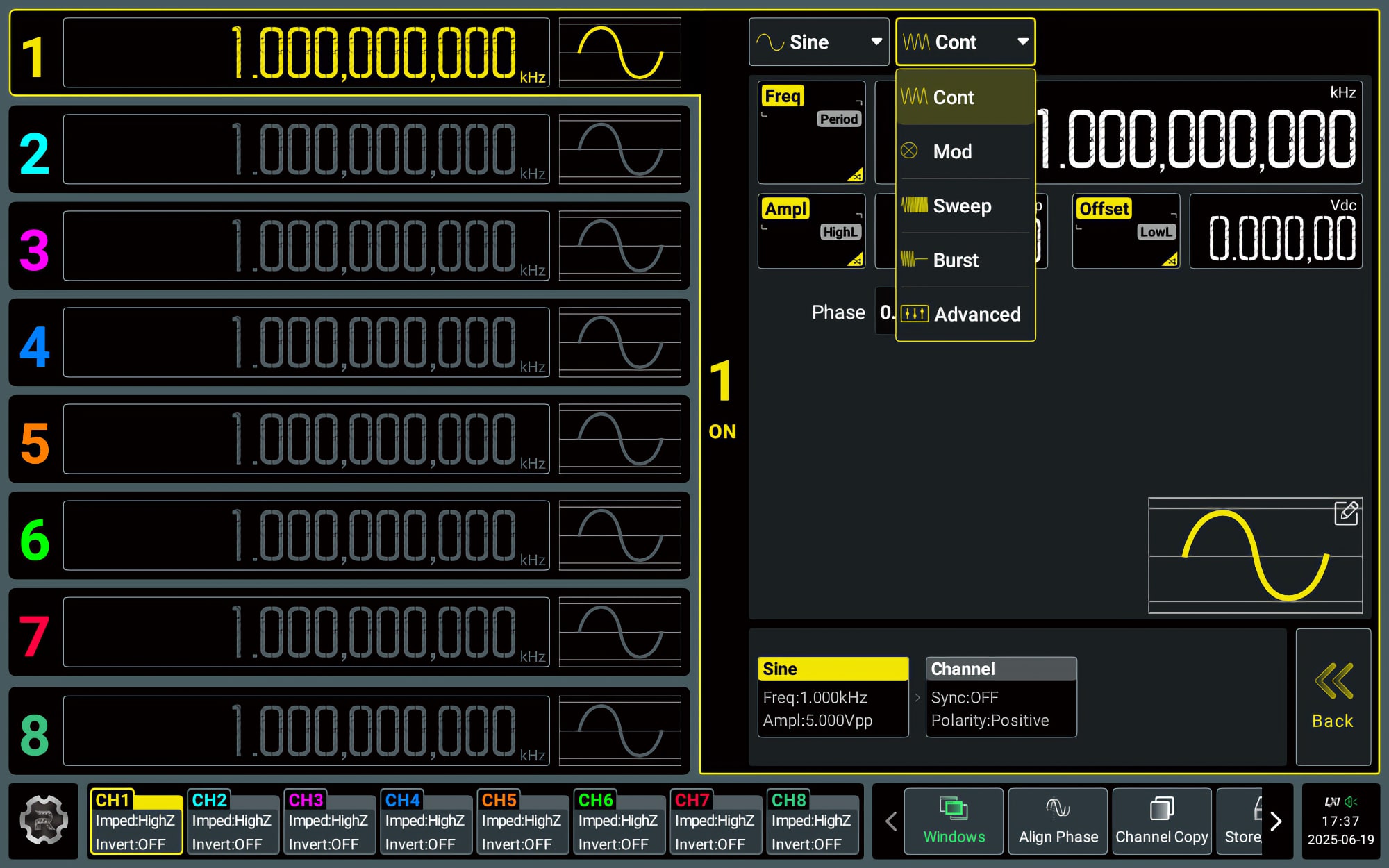

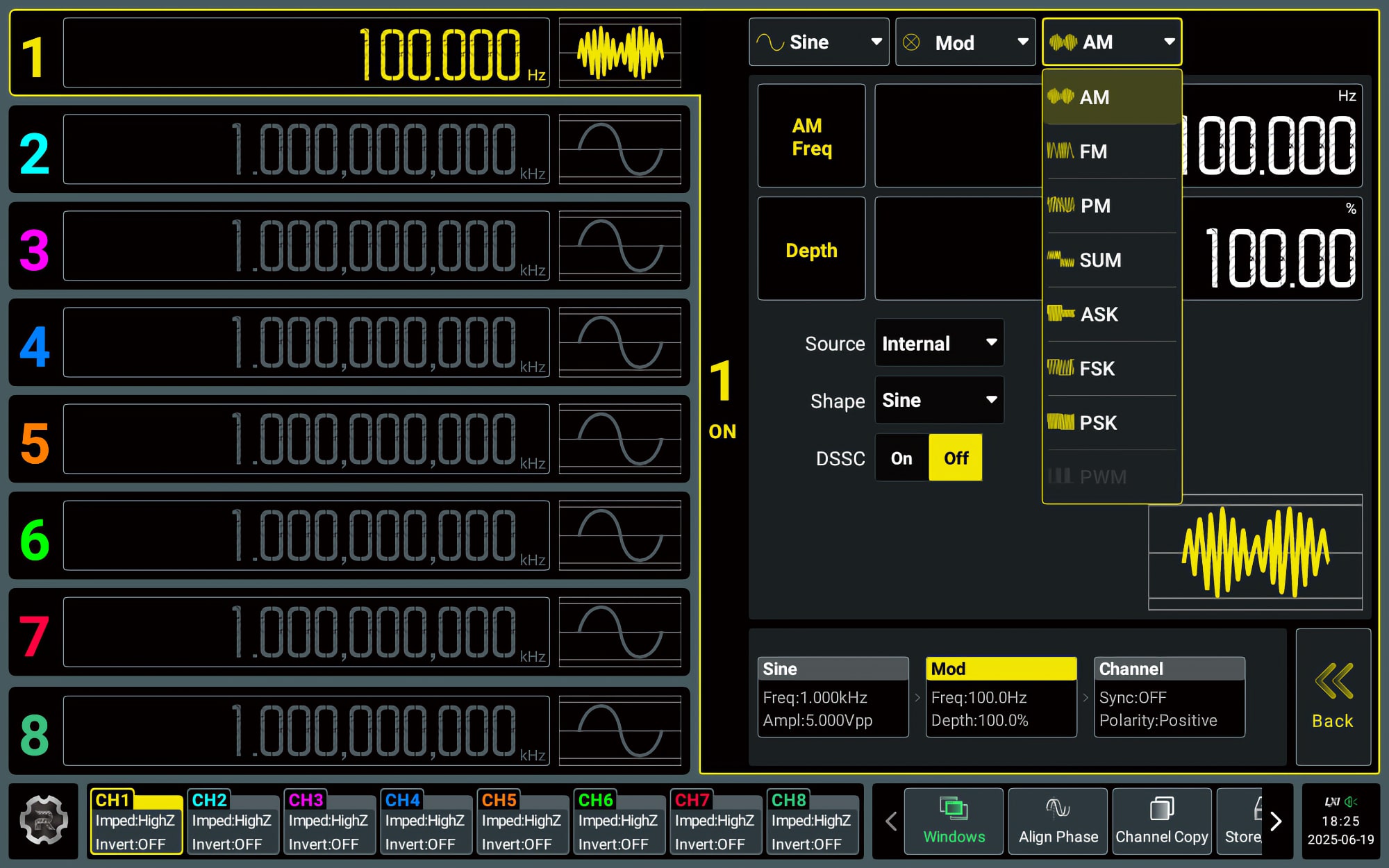

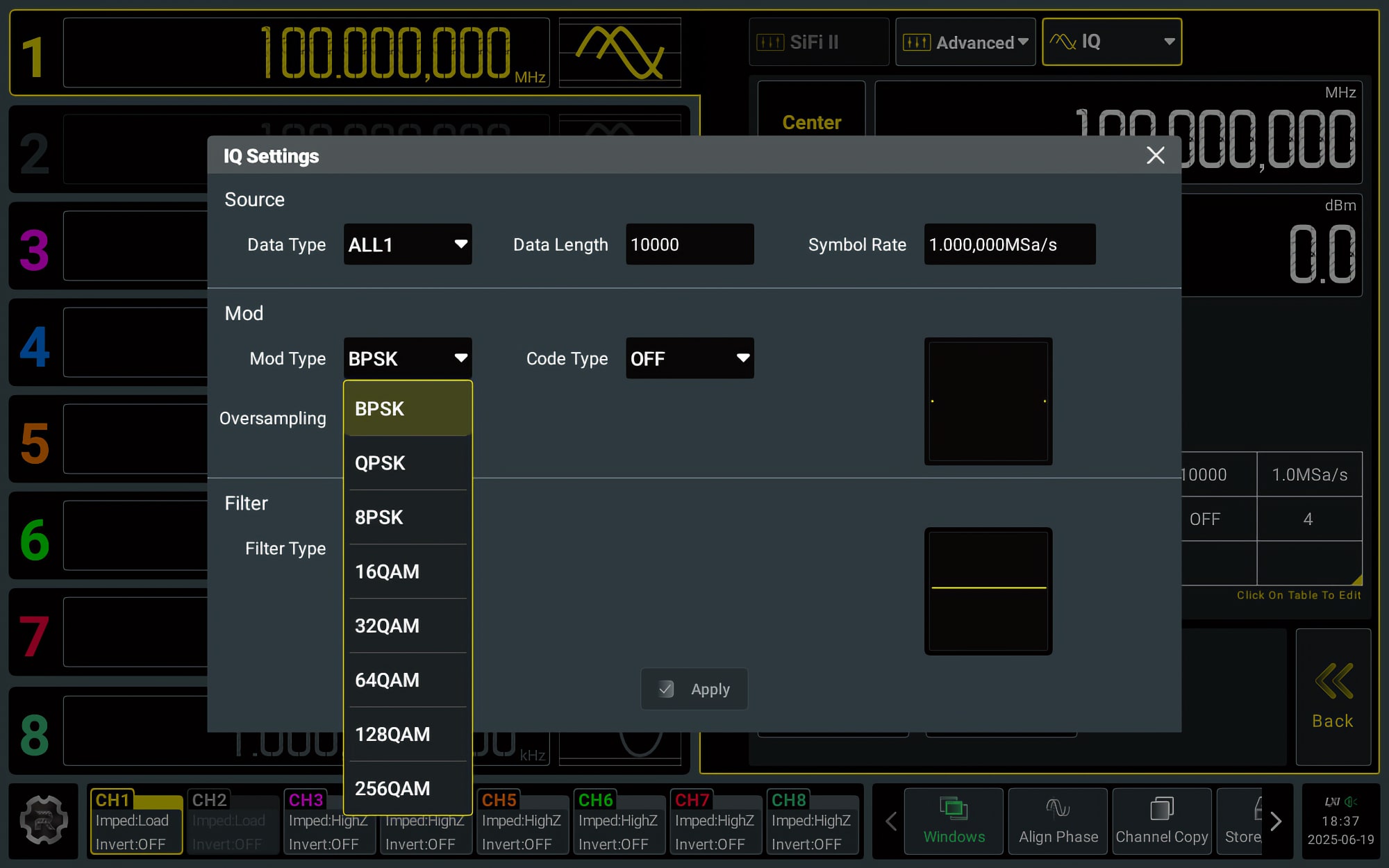

Modulation: AM, FM, PM, FSK, ASK, PWM, Sweep, Burst, and more

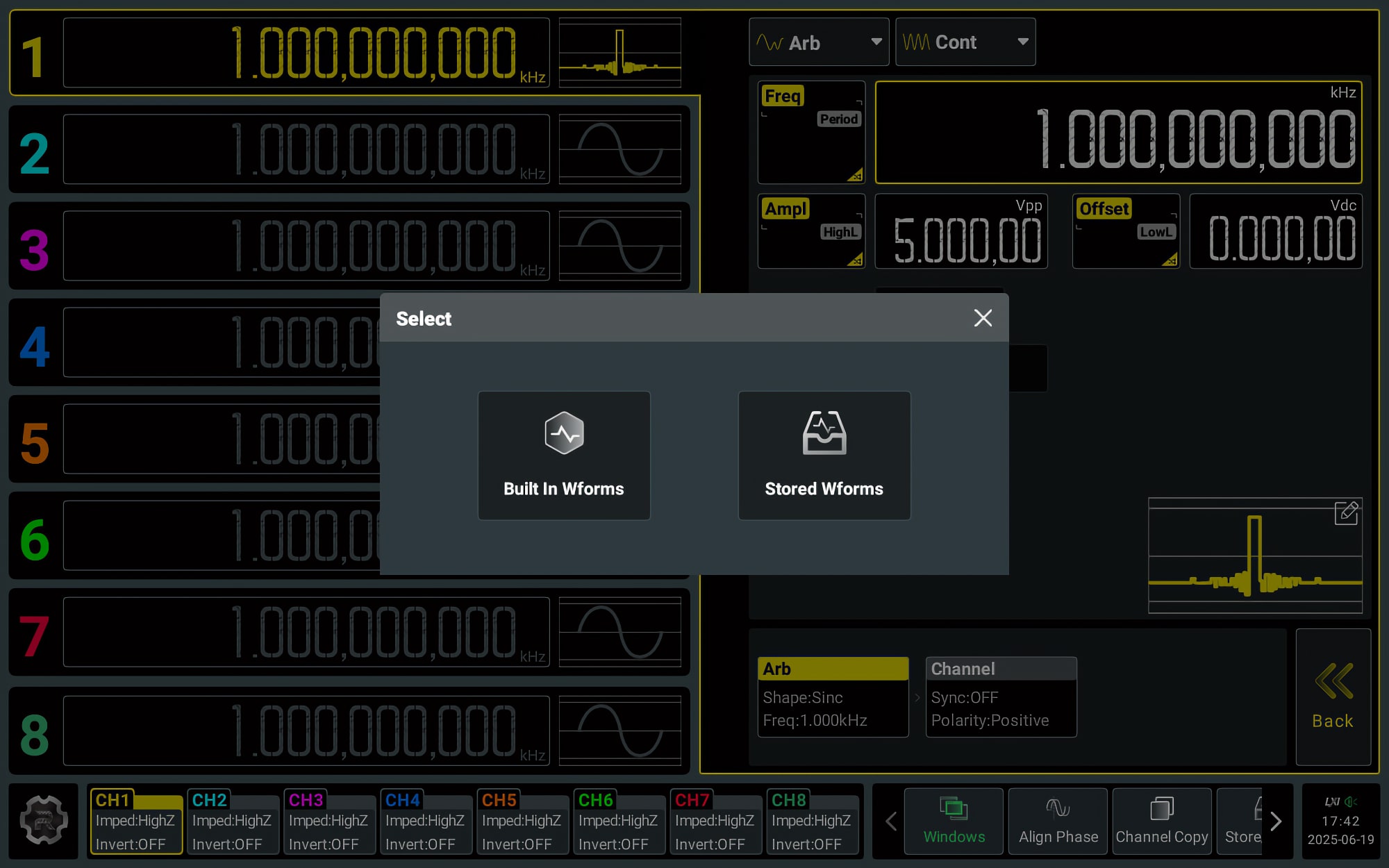

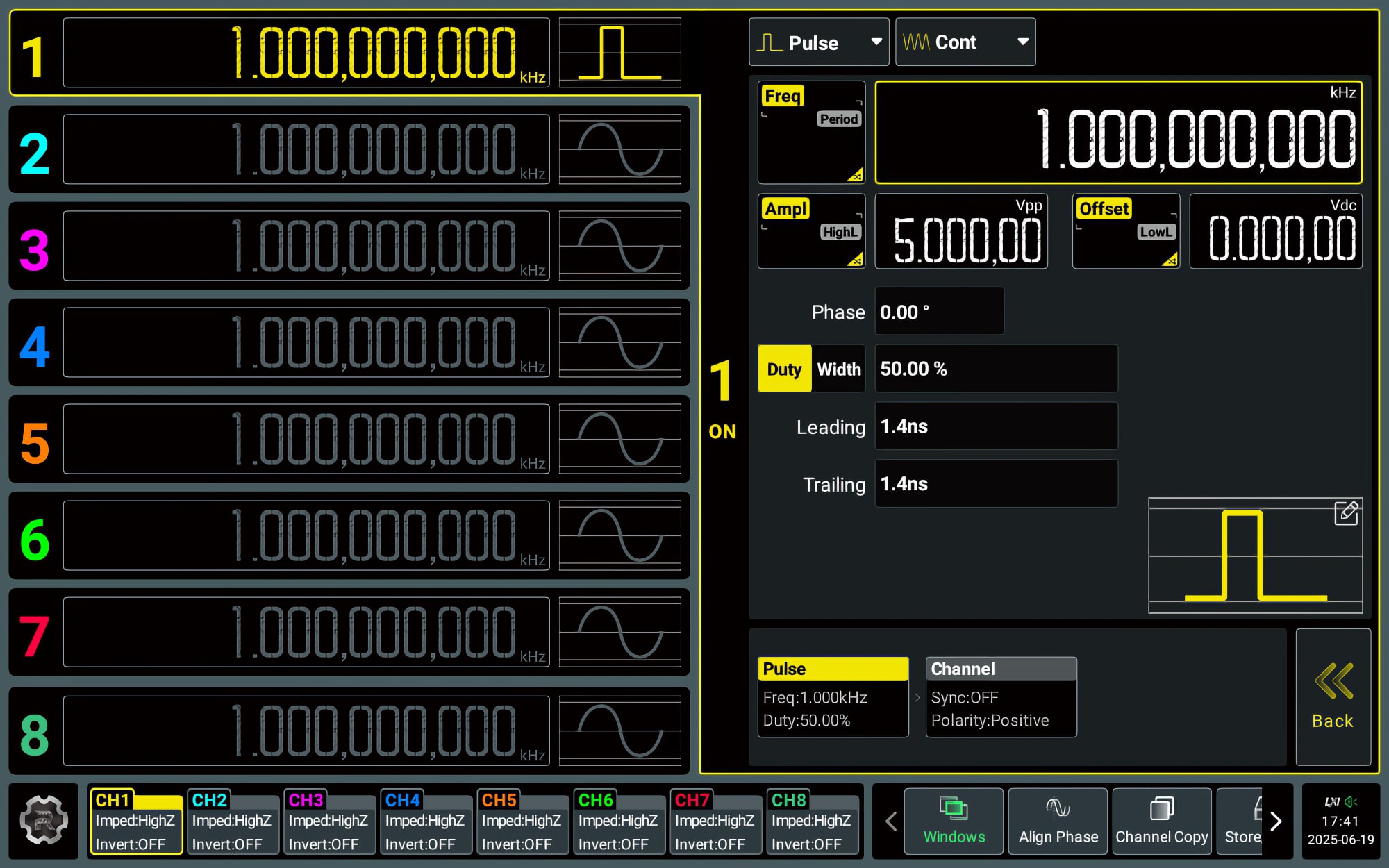

Output Types: Arbitrary, Sine, Square, Pulse, Ramp, Noise, and complex custom signals

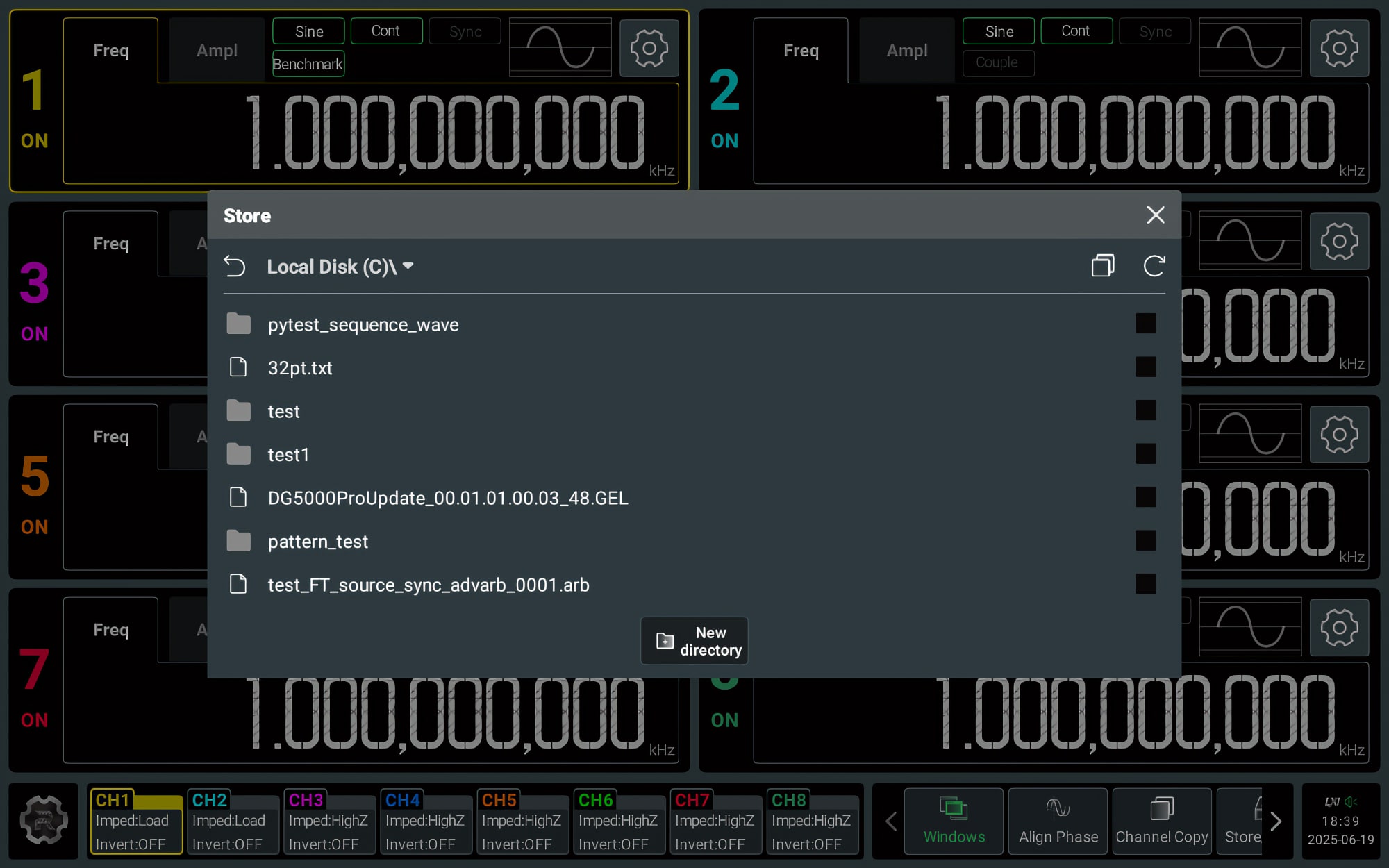

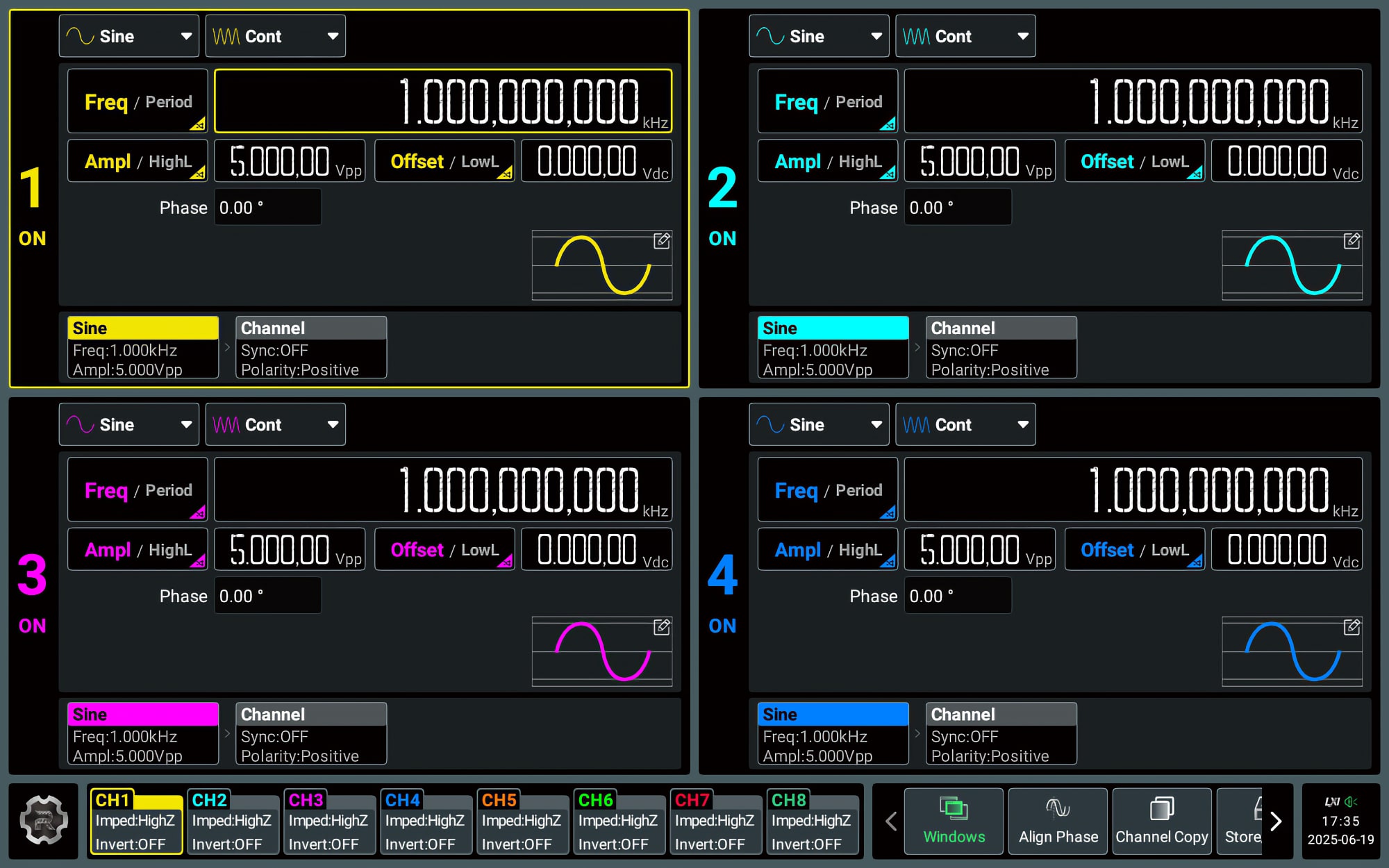

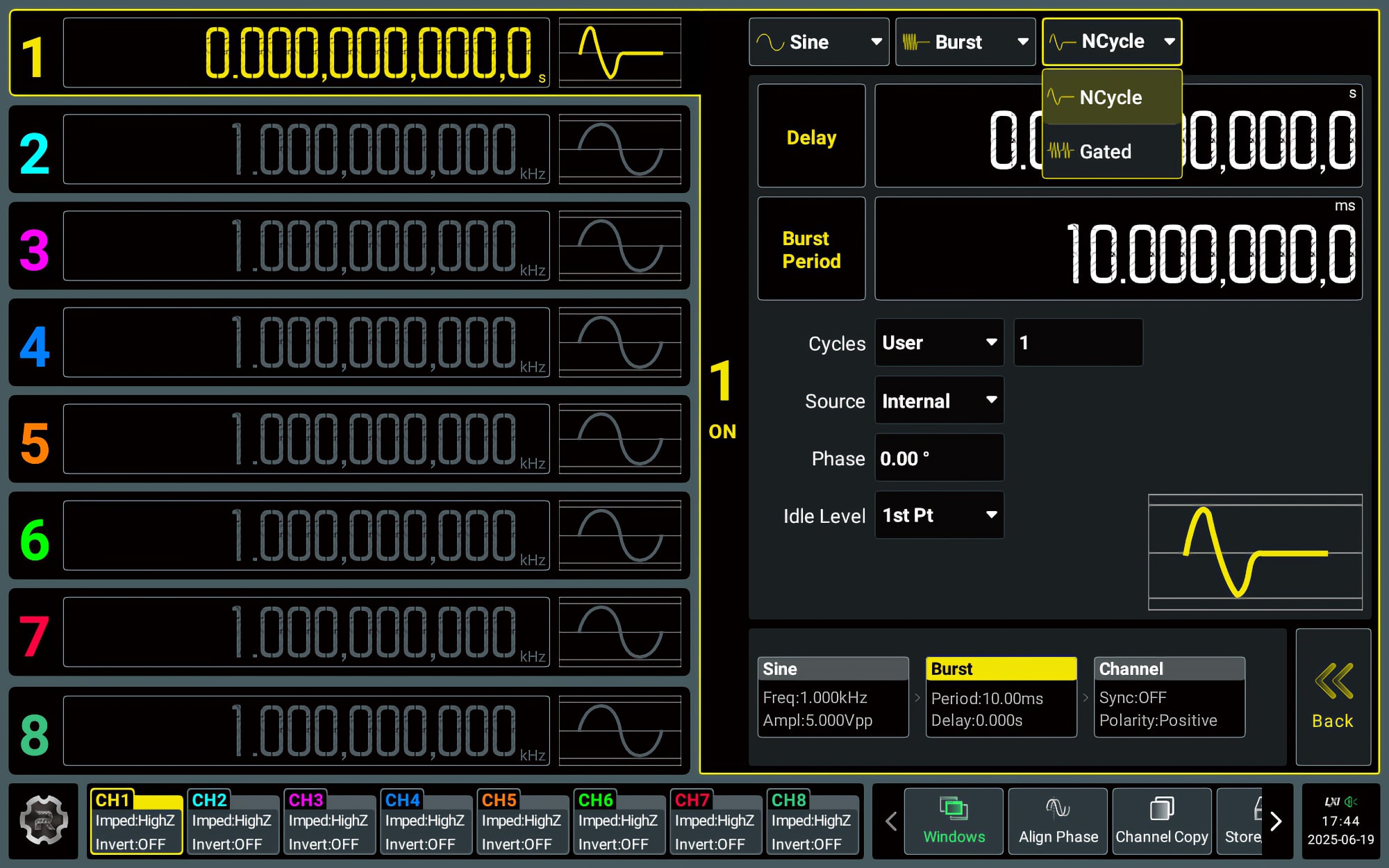

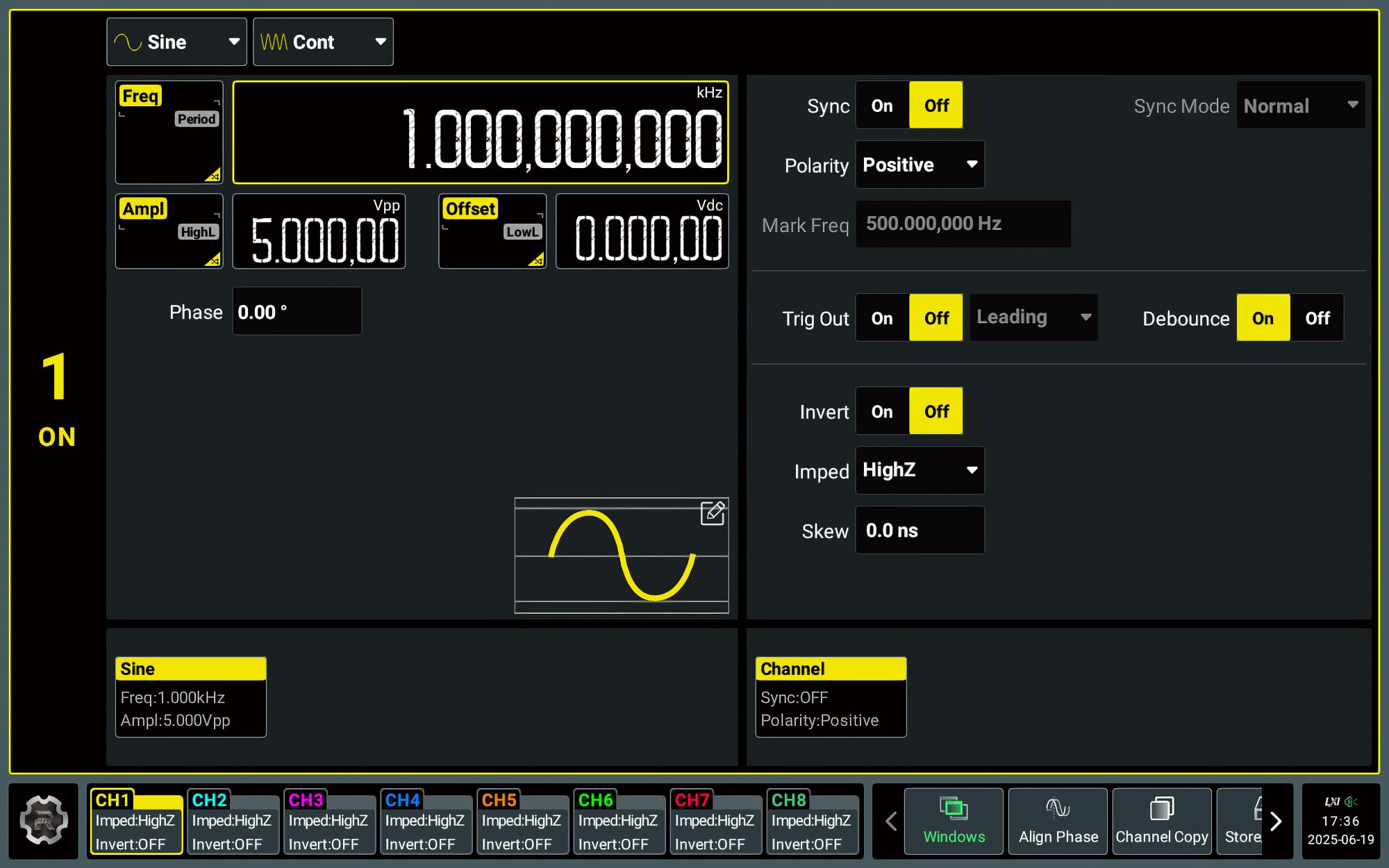

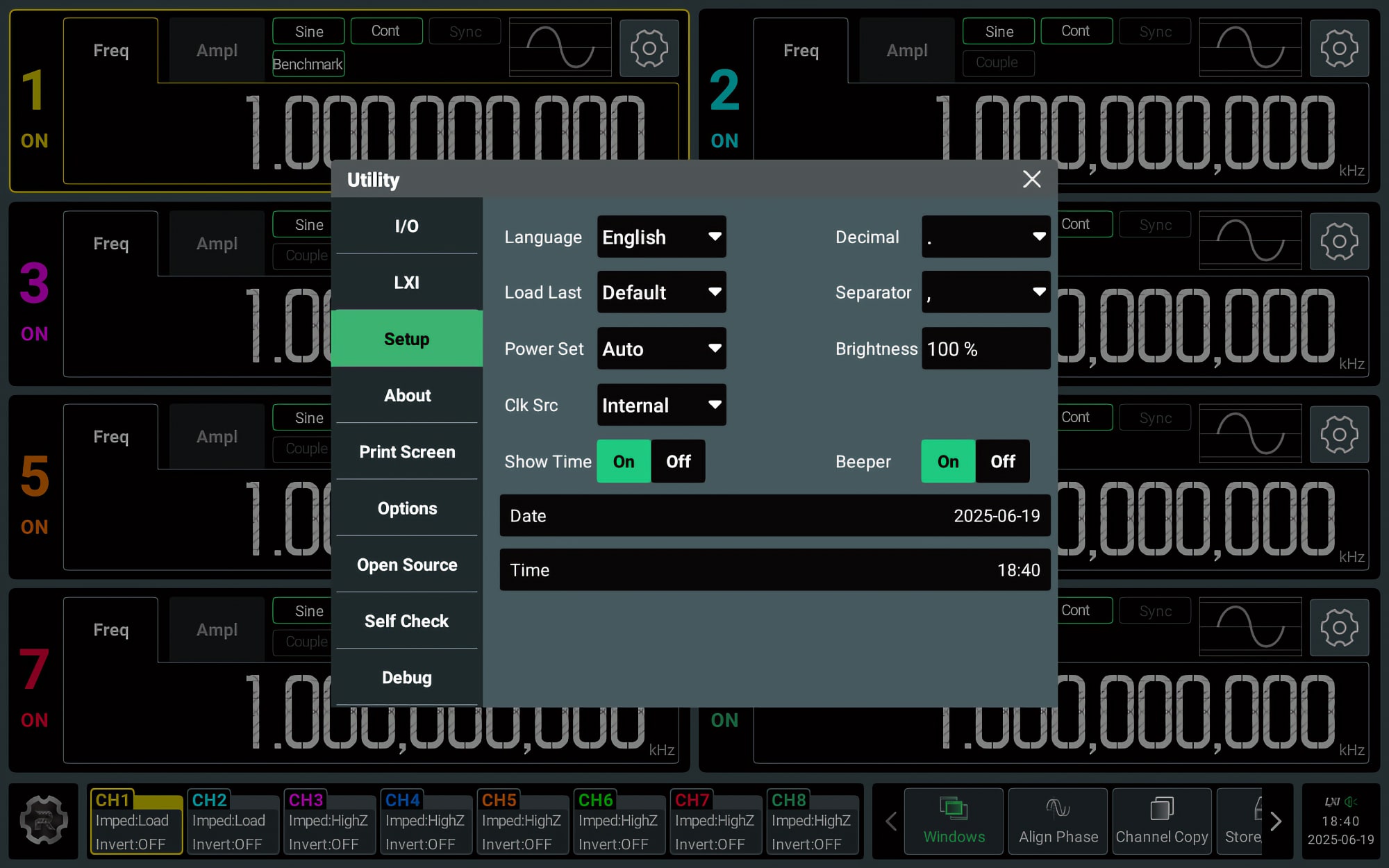

Display: Large capacitive touchscreen for intuitive operation
Connectivity: USB, LAN, and GPIB for remote control and data transfer

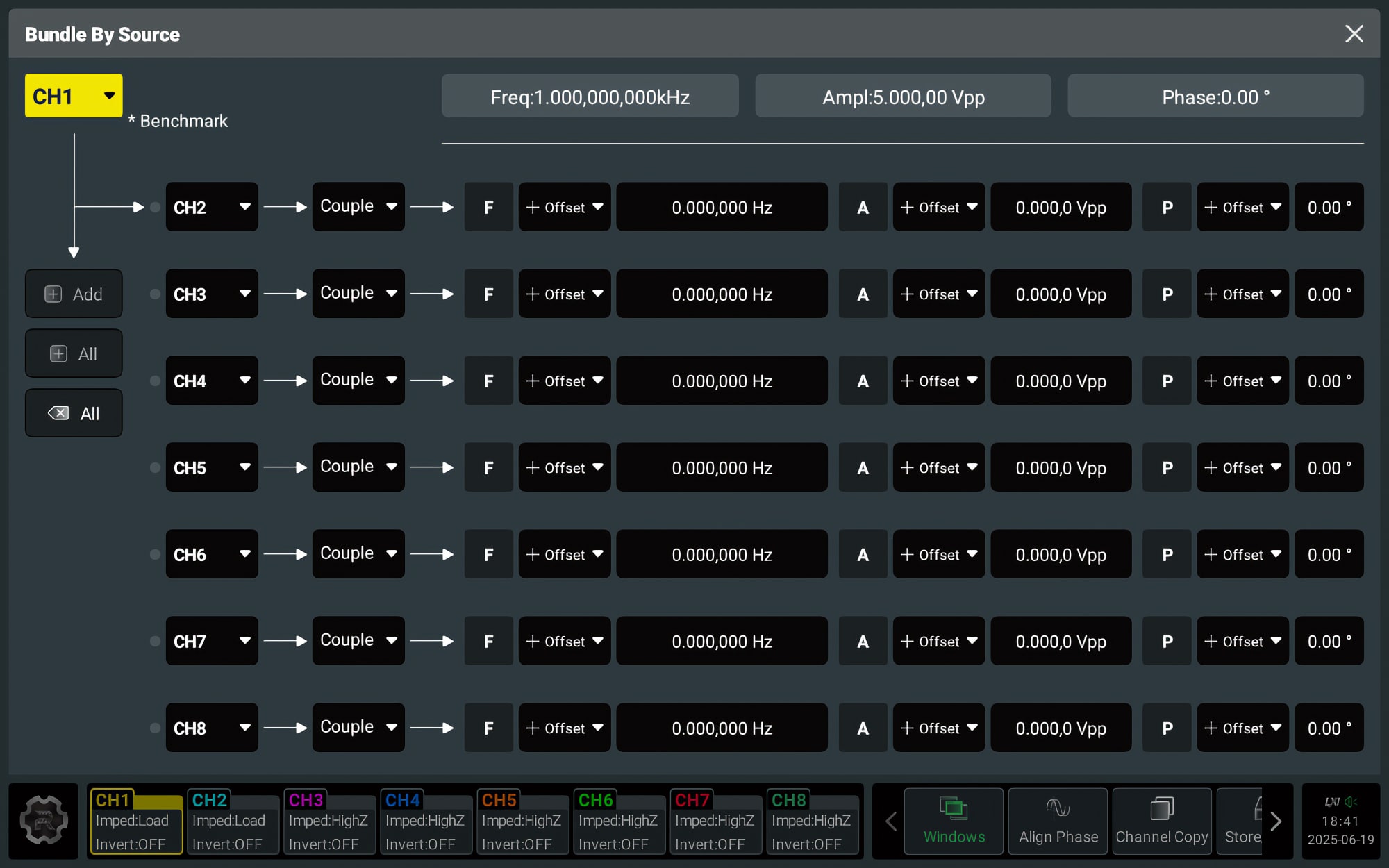

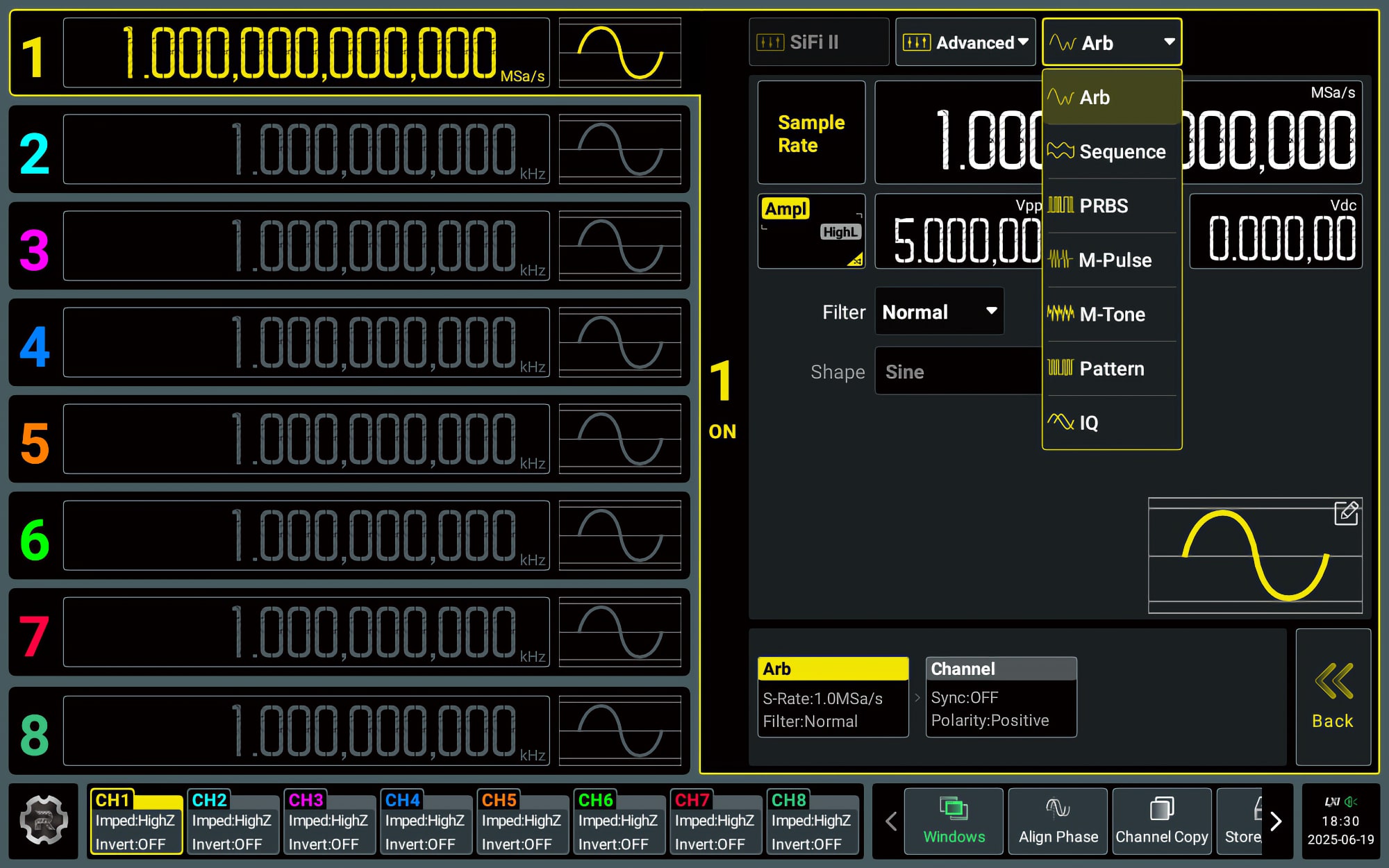

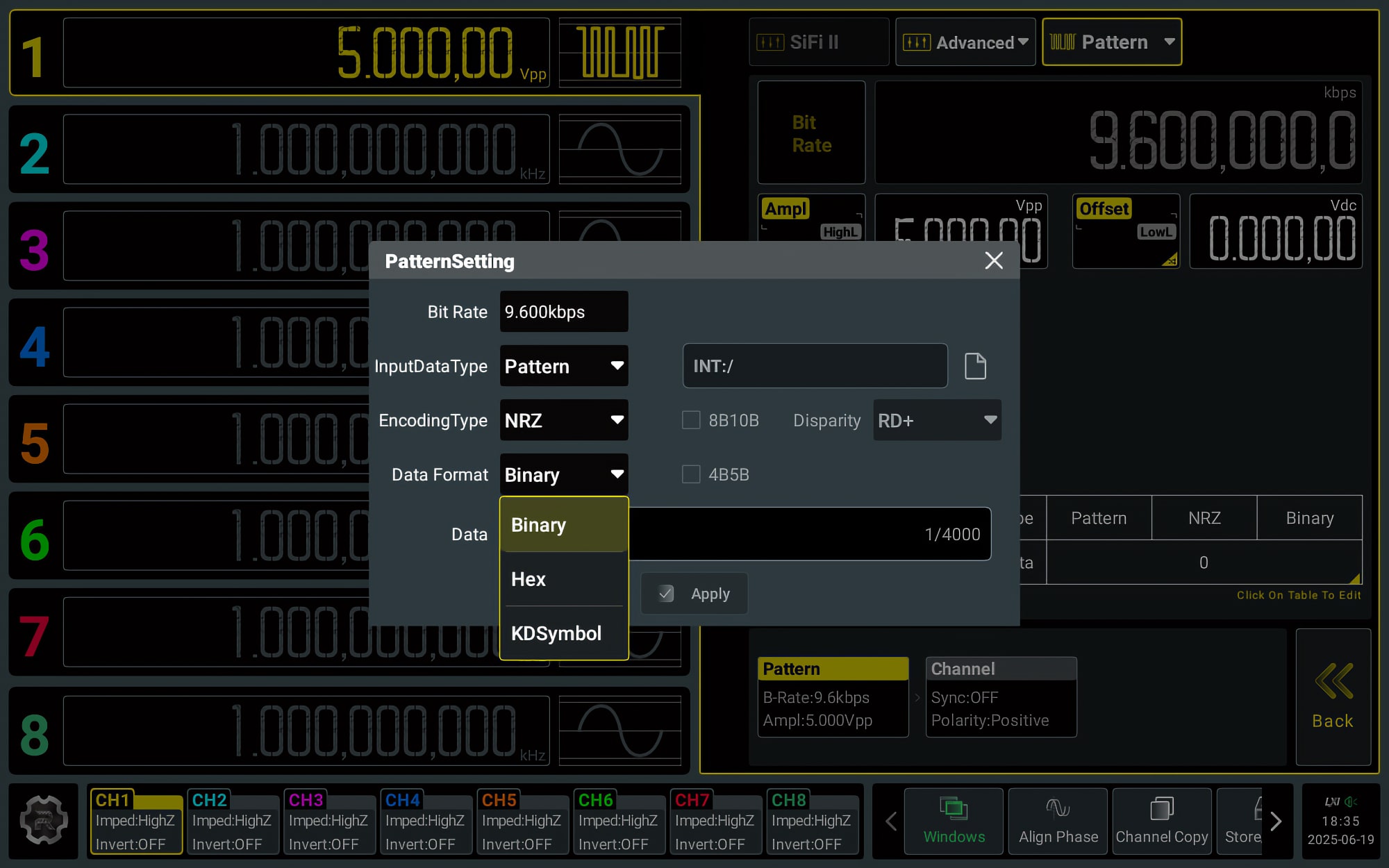

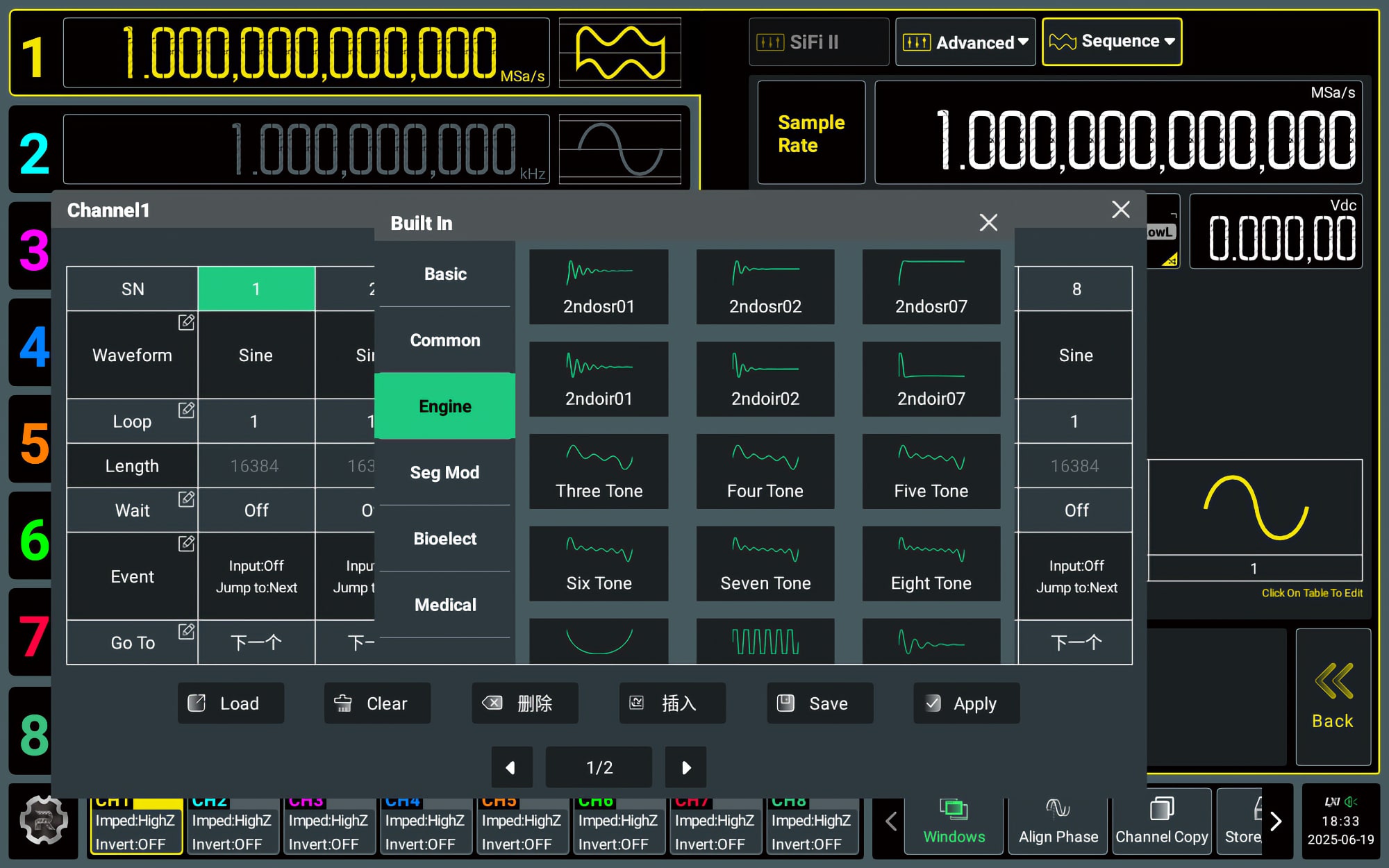

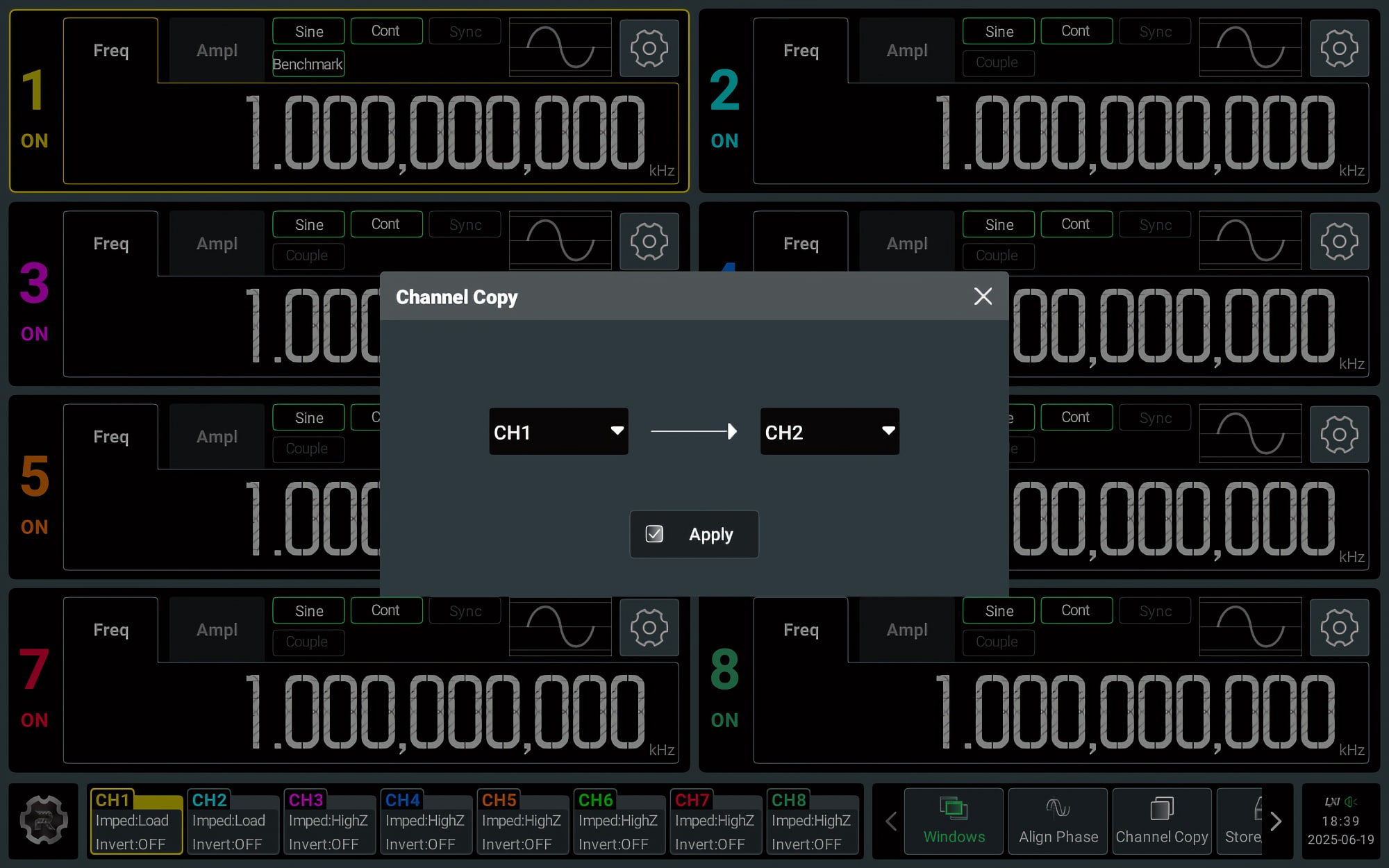

Advanced Features: Sequence output, dual-channel coupling, and digital pattern output

❮ ❯

VIEW ALL RIGOL DG5000 PRO MODELS

❮ ❯

CONTACT ME FOR A DEMO

Applications

Circuit Design & Testing

Ideal for validating embedded systems and electronic circuits with custom signal generation.

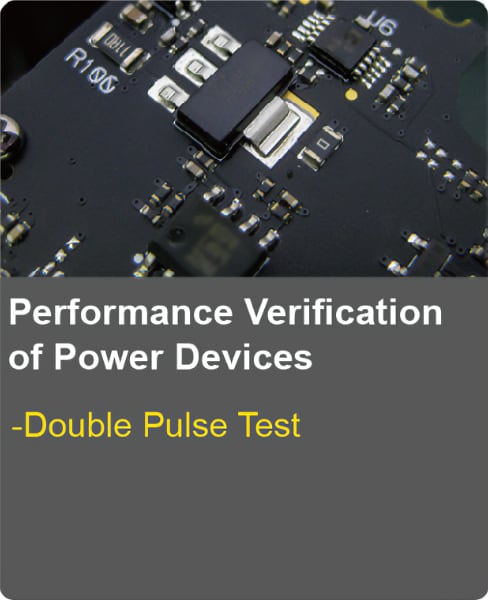

Performance Verification / Power Devices

Power Device Verification

Effortlessly test and analyze the performance of power devices and switching circuits.

Automotive Electronics

Simulate automotive signals for ECU development, sensor testing, and EMC compliance.

Consumer Electronics

Accelerate design and verification of audio, video, and smart device products.

Medical & Industrial

Support for medical device prototyping and industrial automation system validation.

Model	DG5252 Pro	DG5352 Pro	DG5502 Pro	DG5254 Pro	DG5354 Pro	DG5504 Pro	DG5258 Pro	DG5358 Pro	DG5508 Pro
Maximum Frequency	250 MHz	350 MHz	500 MHz	250 MHz	350 MHz	500 MHz	250 MHz	350 MHz	500 MHz
Number of Channels	2	2	2	4	4	4	8	8	8
Maximum Sample Rate	2.5 GSa/s
Vertical Resolution	16 bit
Channel Skew	from -200 ns to +200 ns
Waveform Memory Depth	64 Mpts per channel (standard), 128 Mpts per channel (optional)
