RIGOL DS70000 Station Max Introduction

N-in-1
Integrated Digital Oscilloscope

In today's integrated design field, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The DS70000 series digital oscilloscope launched by RIGOL this time integrates 5 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one digital voltmeter, one high-precision frequency counter and totalizer, and one protocol analyzer. The DS70000 series offers you an optimal choice to address your actual needs.

⬣ Digital Oscilloscope

• Bandwidth model: 3 GHz, 5 GHZ
• Up to 20 GSa/s real-time sample rate
• 4 analog channels and 1 EXT channel
• Up to 2 Gpts memory depth
• Maximum waveform capture rate of 1,000,000 wfms/s

⬣ Digital Voltmeter

• 3-digit DC/AC rms voltage measurement
• Sound an alarm for reaching or exceeding the limits

⬣ High-precision Frequency Counter and Totalizer

• 3 to 8-digit (selectable) high-precision frequency counter
• Support the statistics on the maximum and minimun values of the frequency
• 48-bit totalizer (standard)

⬣ Real-Time Spectrum Analyzer (Option)

• Standard configuration of enhanced FFT, real-time operation for max. 16 Mpts waveform data
• Max. frequency range: oscilloscope analog bandwidth
• Up to 4 groups of operations can be displayed at the same time
• Independent FFT color persistence view supported
• Up to 15 peaks available for the peak search function;
event table available to be exported

⬣ Protocol Analyzer (Option)

• Support RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial bus
• Support analog channel trigger and decode
• Work with waveform recording, pass/all

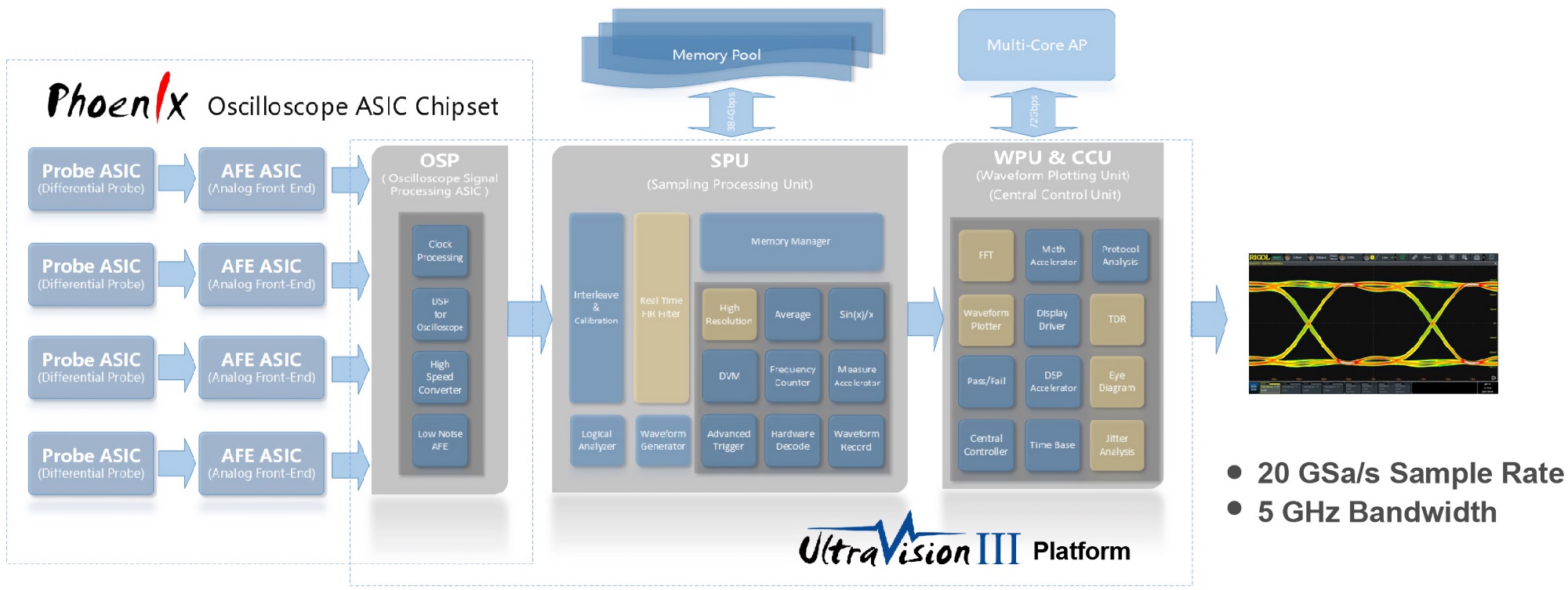

Unique UltraVision III Platform Delivers Industry-leading Performance

With the brand new unique UltraVision III platform, DS70000 series digital oscilloscope delivers industry-leading performance for its key specifications such as memory depth, waveform capture rate, and vertical resolution. It can support computer, embedded, automotive electronics, and other serial bus analysis; meet the test analysis for power integrity; improve the efficiency for time-domain and frequency-domain joint analysis. With its excellent specification performance, DS70000 series is bound to exercise its important role in the test and measurement industry in various fields such as industry and R&D.

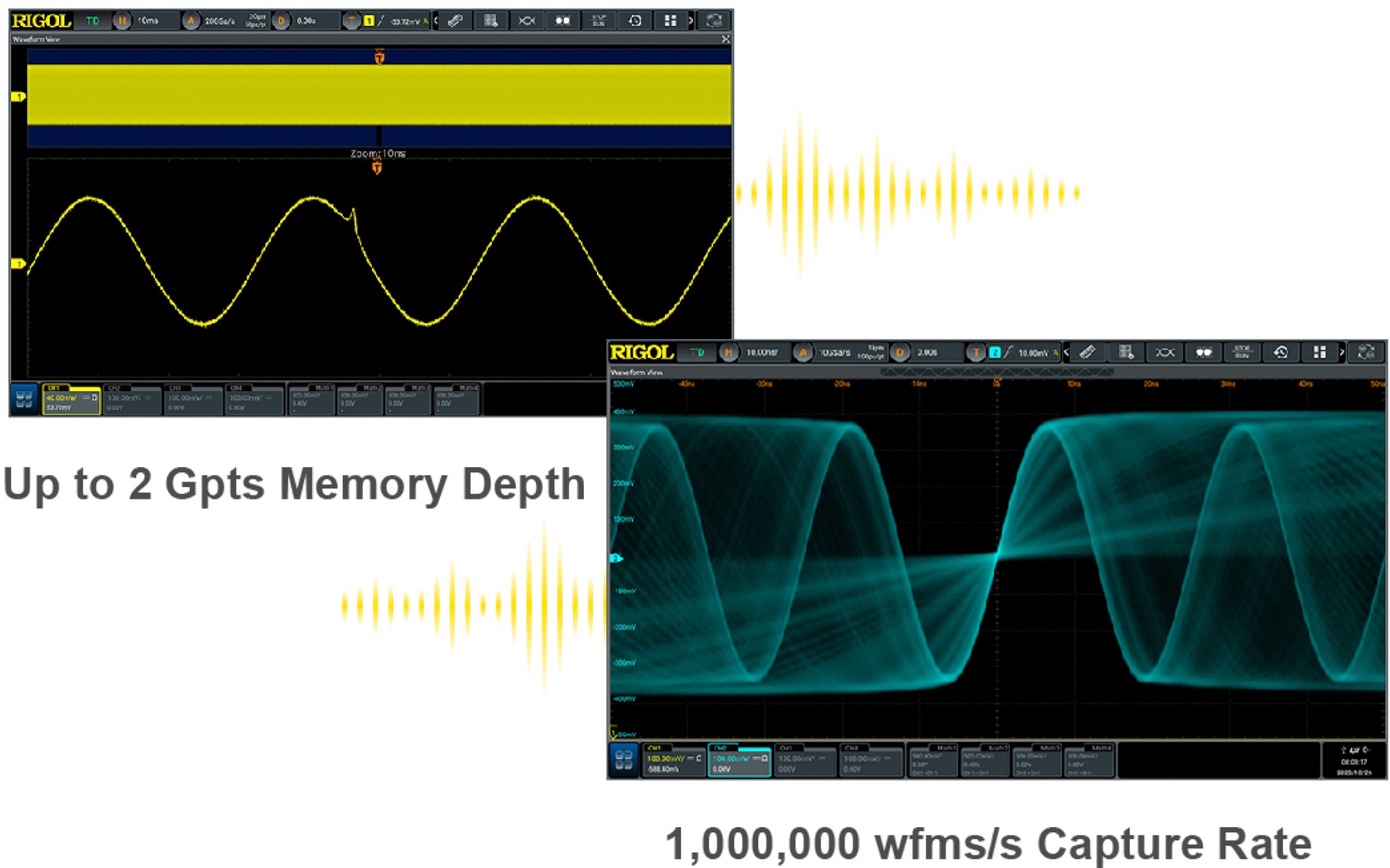

• 1 million wfms/s update rates capable of capturing all the signals, making occasional signals nowhere to hide.
• Up to 2 Gpts memory depth capable of capturing waveforms in a long period of time under the high sample rate to cater to application scenarios where to observe waveforms for a long time.

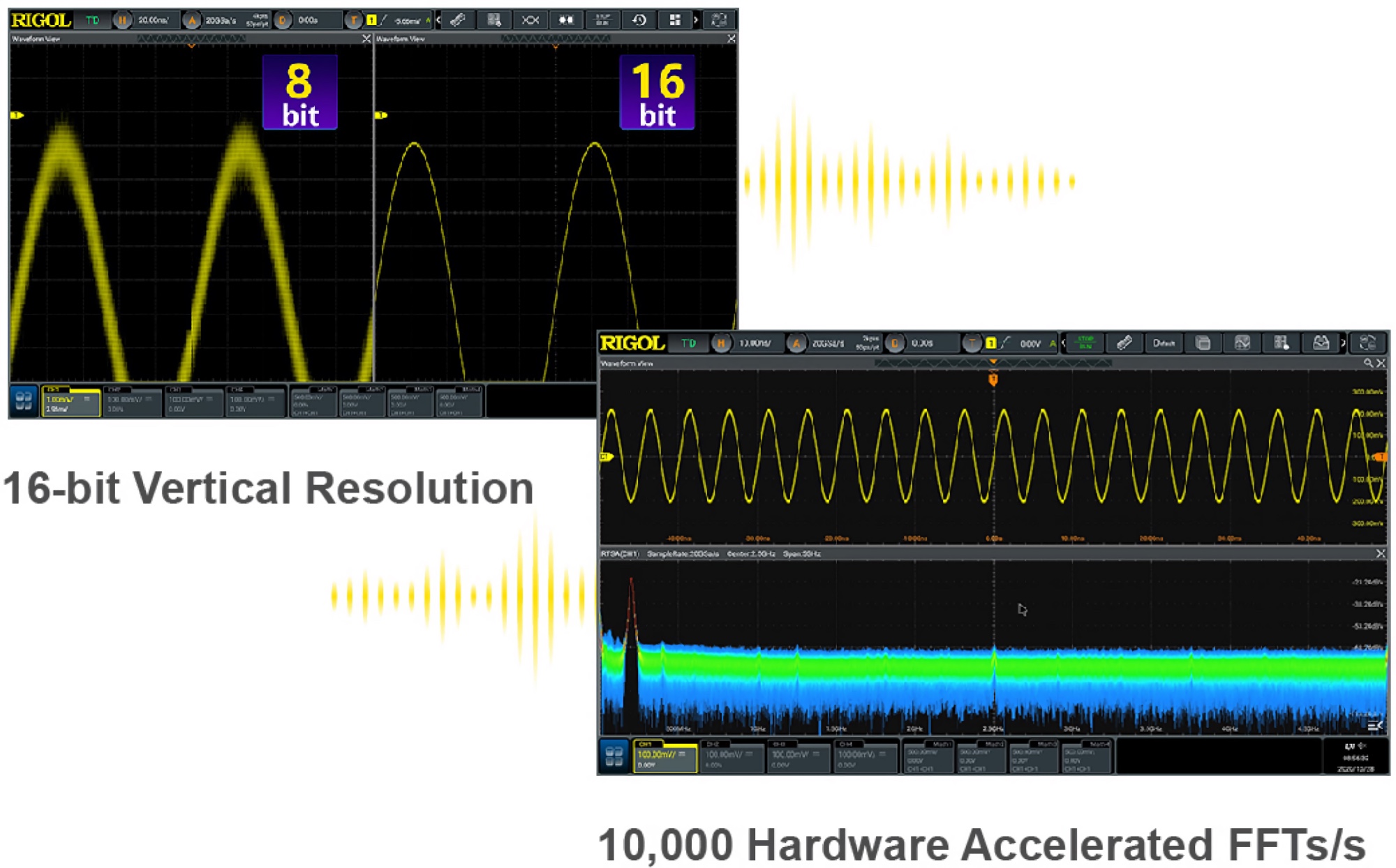

• 8 to 16-bit adustable vertical resolution capable of accurately measuring even the tiny signals.
• Hardware acceleration capable of processing 10,000 FFTs/s, offering real-time spectrum measurement experience.

Unique UltraVision III Platform Delivers Industry-leading Performance

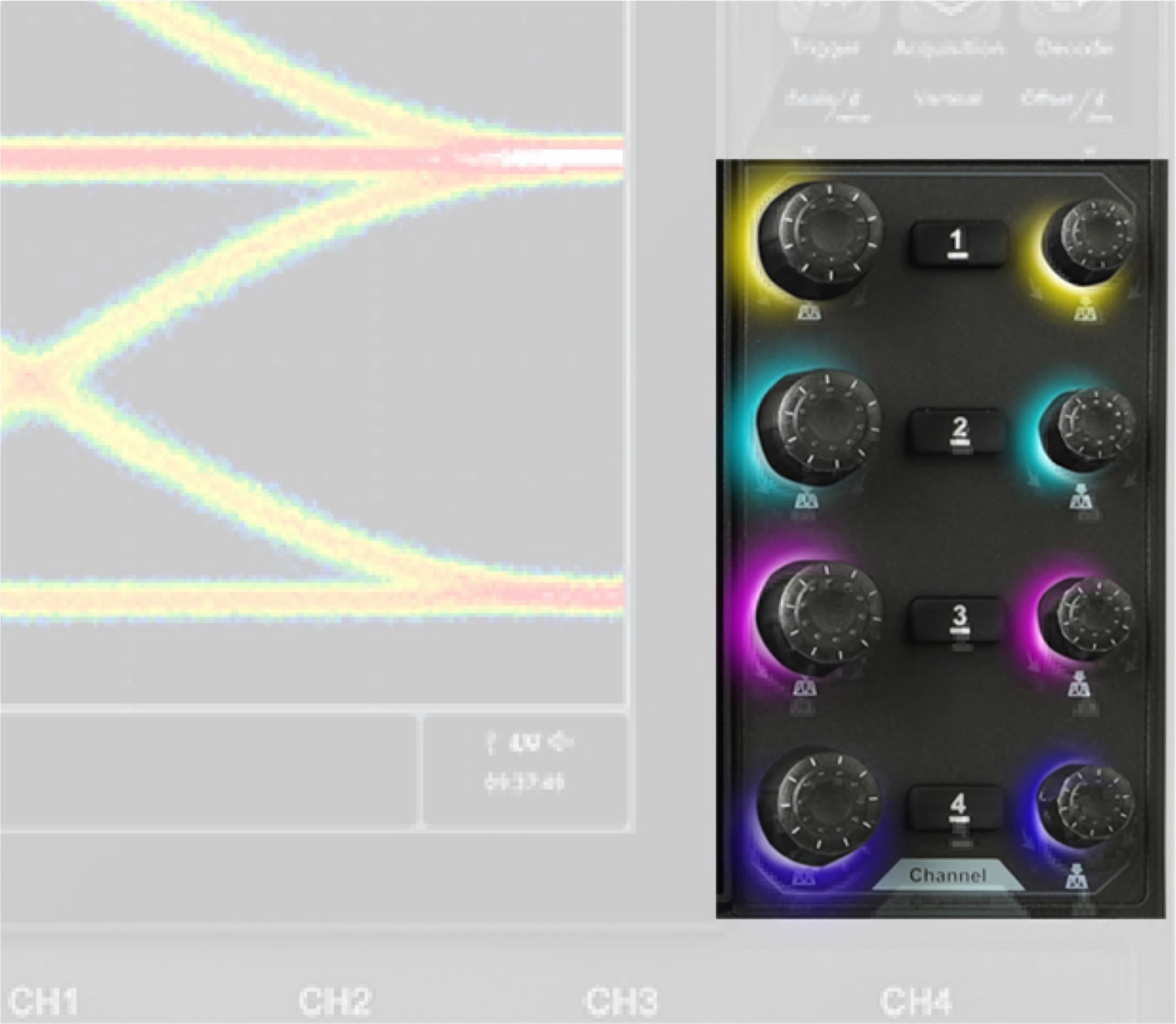

Knob with Photoelectric Encoder Enables Long Service Life

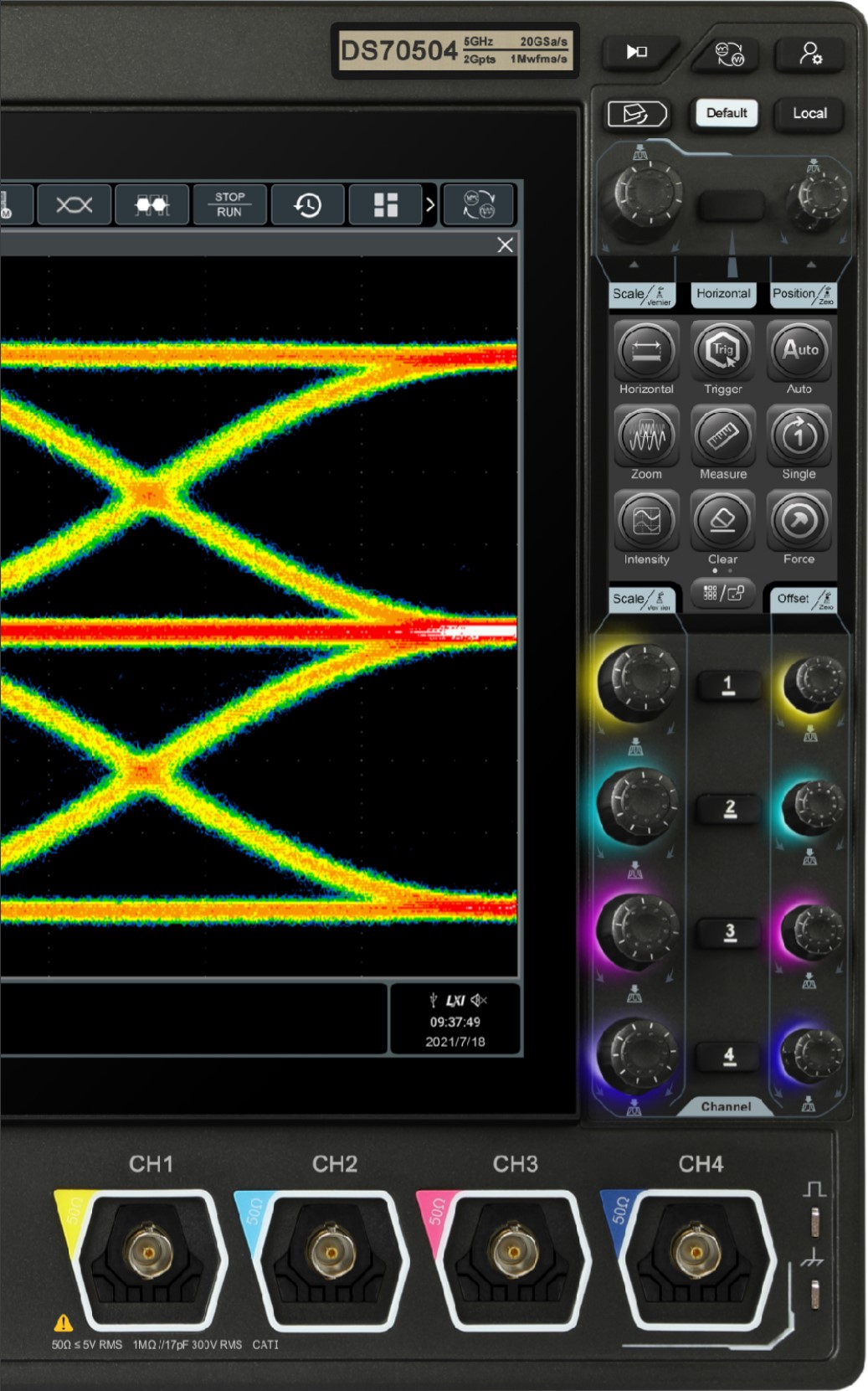

The photoelectric encoder operating knob guarantees more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving the service life of the knob. As a frequently used component, the knob for adjustment is made based on the photoelectric encoder, making it endurable to use. You no longer have to worry about wear, ensuring reliable operation during the entire life cycle of the instrument.

Multiple External Interfaces

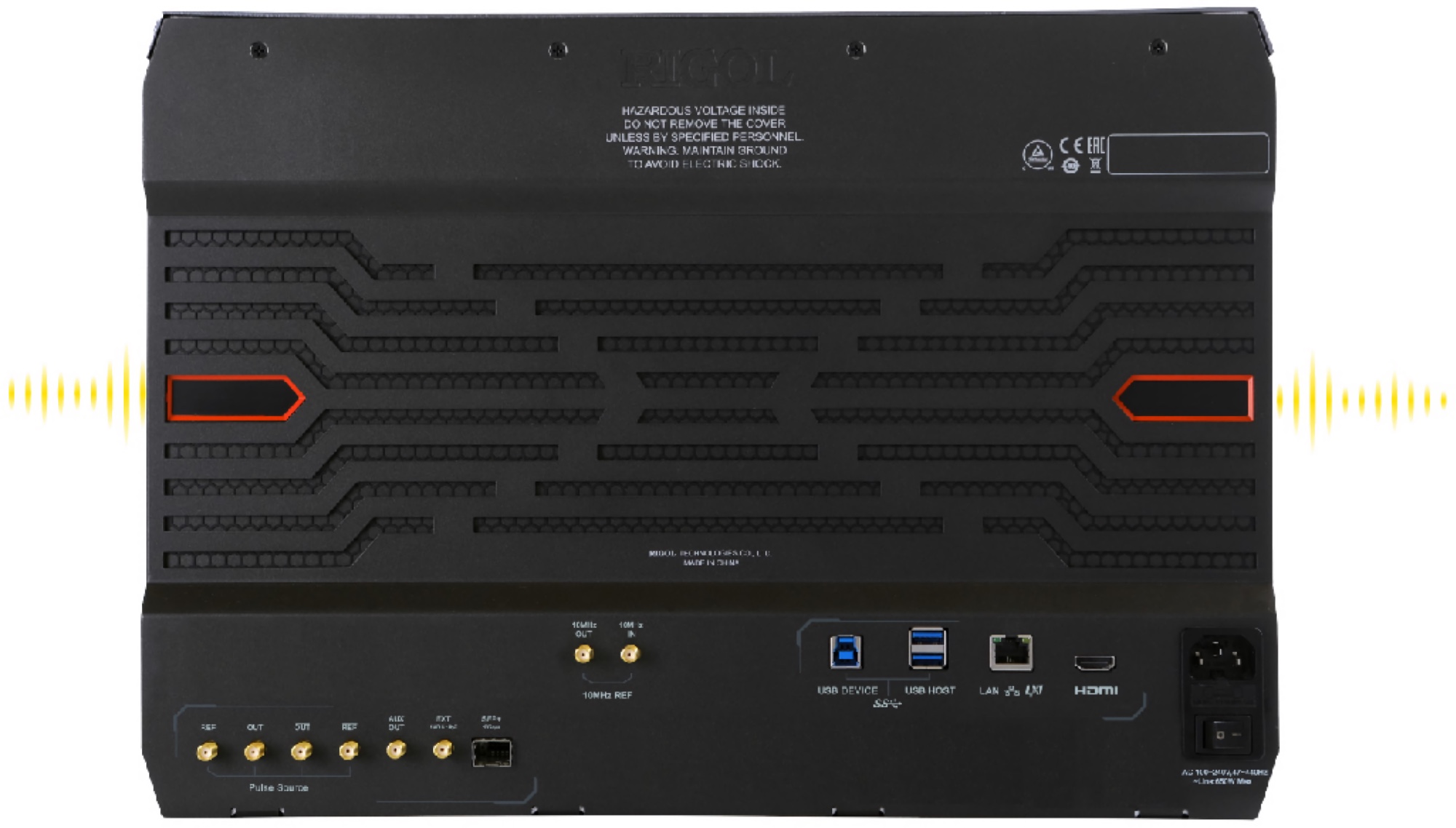

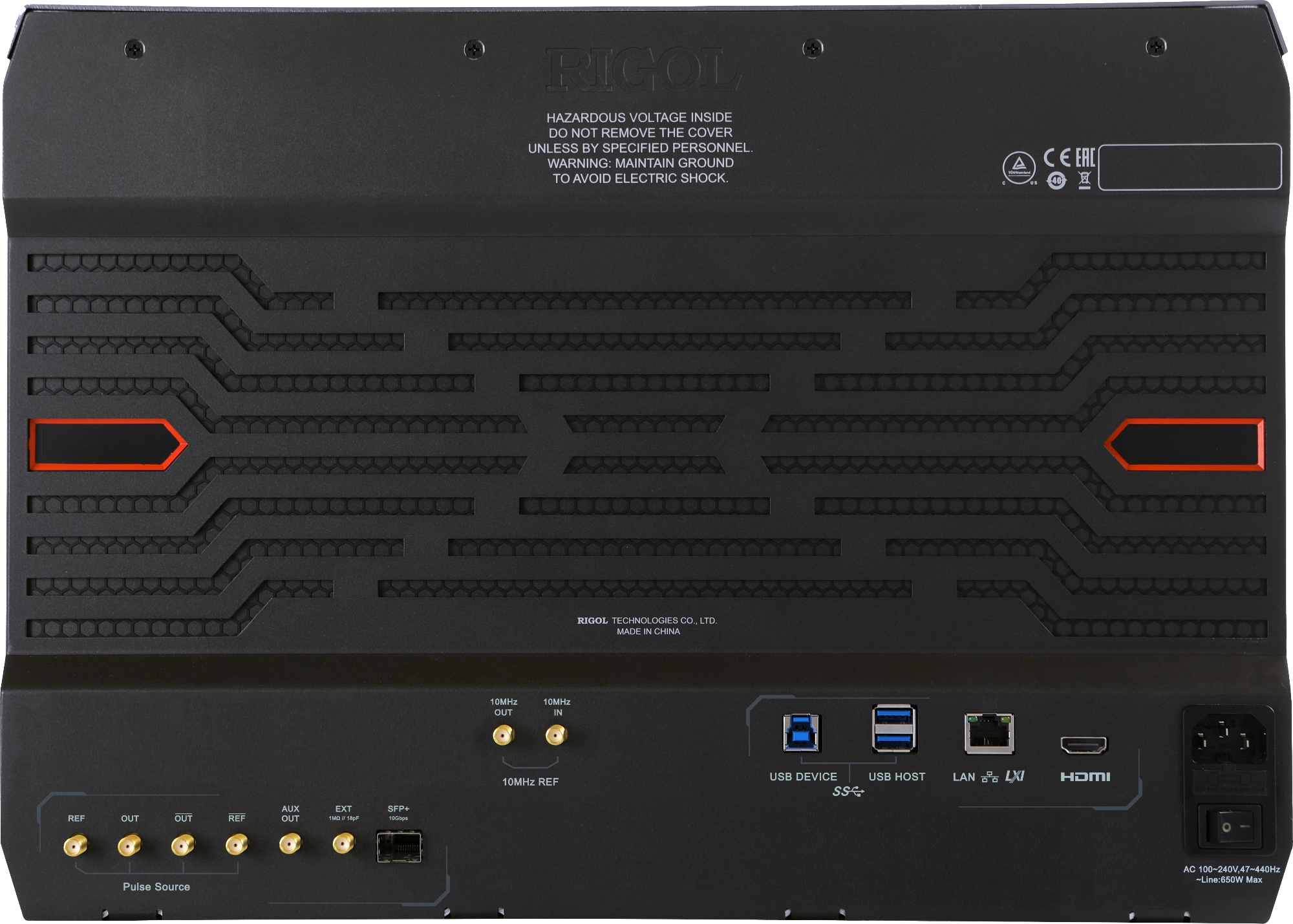

The DS70000 series provides a variety of external interfaces, including USB3.0 HOST&DEVICE, LAN(LXI), HDMI, AUX OUT, 10 MHz In, 10 MHz Out, and USB-GPIB (option). The oscilloscope is in compliance with the standards specified in LXI Device Specification 2011. It can access to the LXI webpage via the LAN interface. You can purchase the USB-GPIB interface converter from RIGOL to enjoy the reliable GPIB communication service. It also provides HDMI video outout intertace.

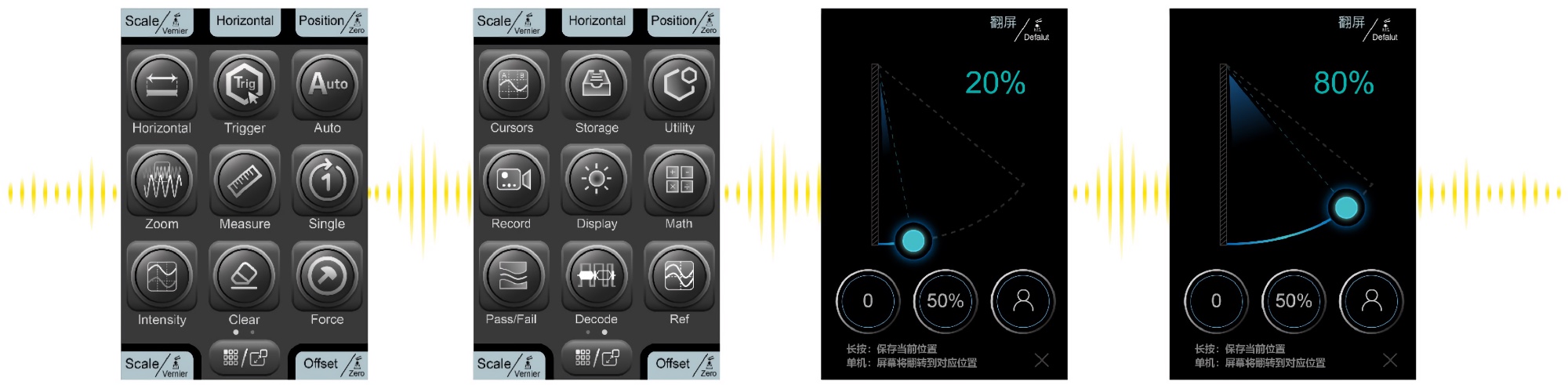

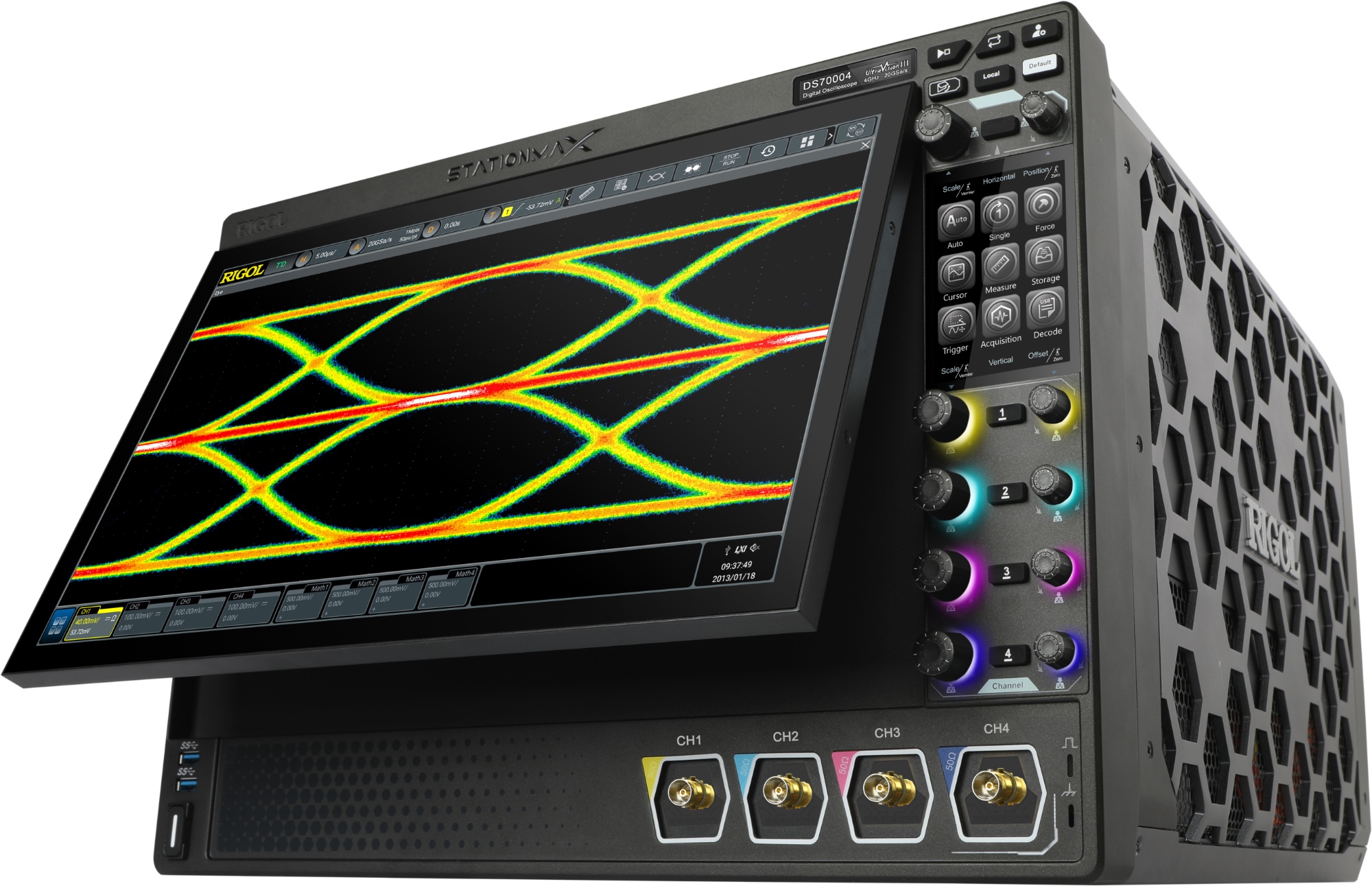

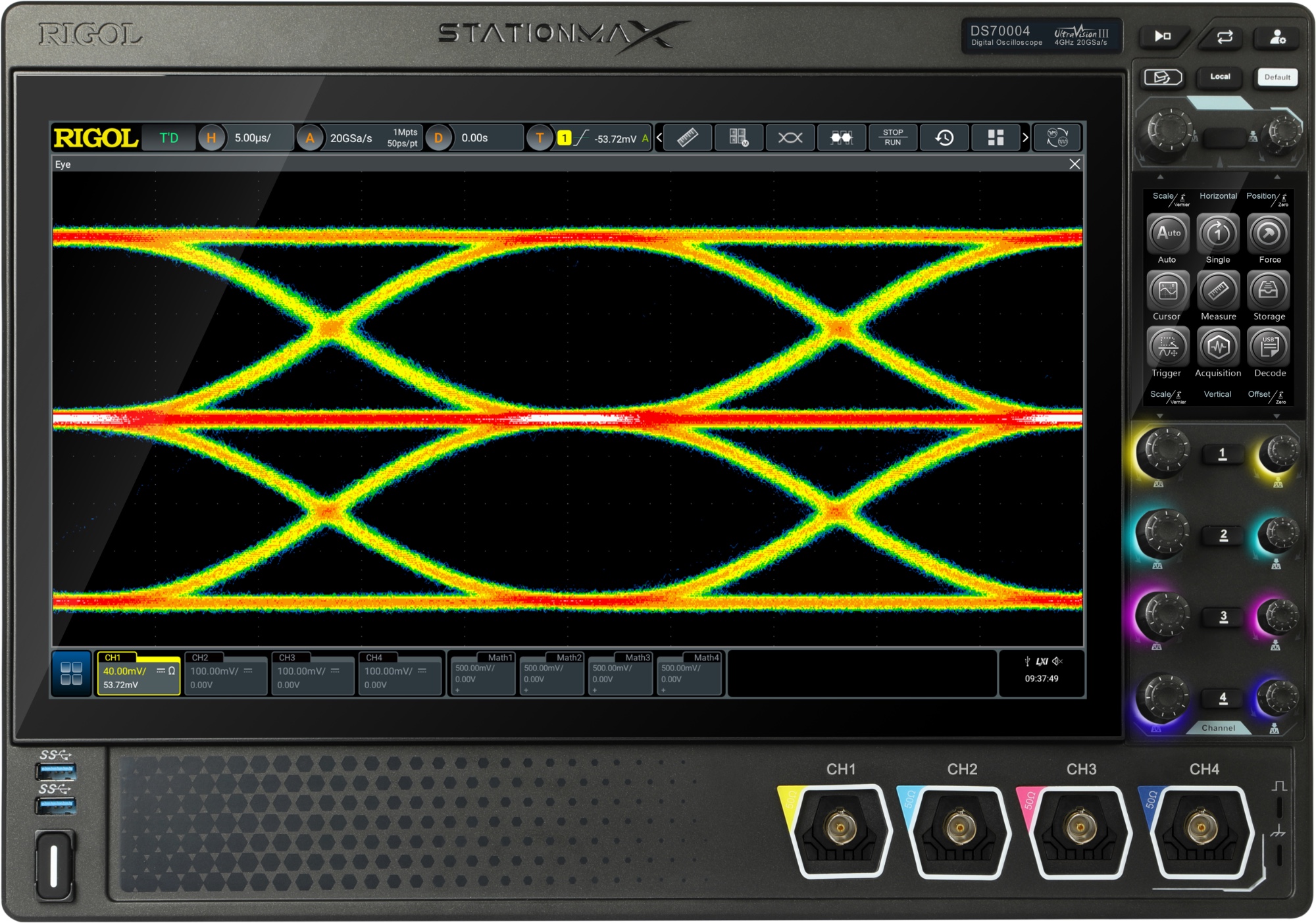

DS70000 series oscilloscope has a 7U full-rack structure and delicate industry design, and it supports two touch screens. The main touch screen is a 15.6-inch capacitive inclination adjustable high definition touch screen. It supports displaying various types of information in different windows. The split-screen display mode enables users to observe the signals efficiently and get better view effects. The 3.5-inch minor touch screen can be served as a customized high-definition smart and quick-responsive keyboard, enabling users to customize the shortcut menu according to their own habits and open the desired menu quickly.

⬣ Eye Diagram

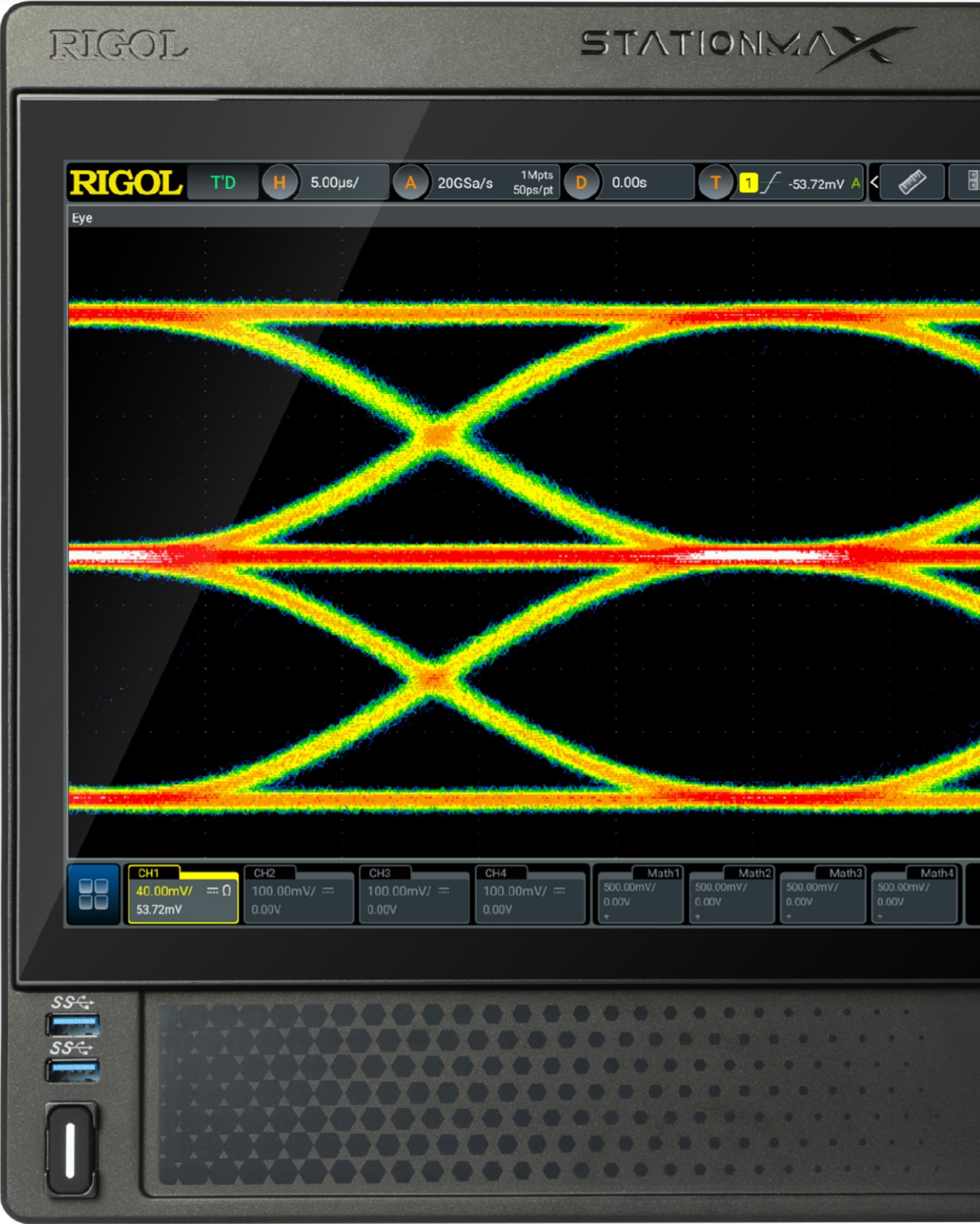

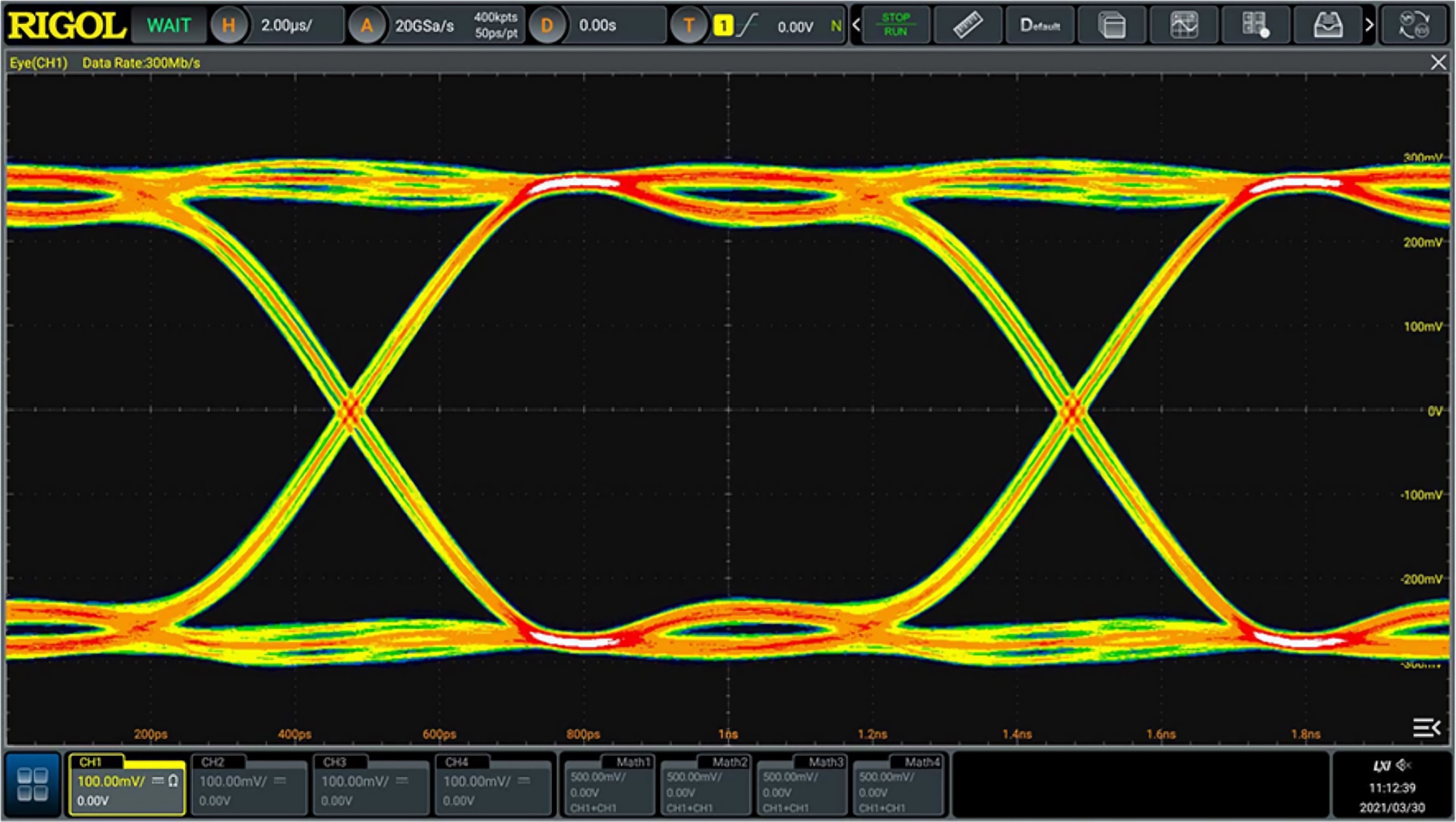

Based on the excellent bandwidth and sample rate, DS70000 series oscilloscope provides the real-time eye plot and measurement with the clock recovery function, which can be applied to protocol conformance analysis.
After the DS70000-JITTER option has been purchased and activated, DS70000 series supports the eye measurement for all the analog channels, and also provides measurement for several parameters of the eye diagram: eye height, eye width, eye amplitude, crossing percentage, and Q Factor. It also supports various clock recovery methods, such as Constant (automatic, semi-automatic, and manual), First-order PLL, Second-order PLL, and Explicit, to meet the demands of customers for different application scenarios.

⬣ Jitter

DS70000 series oscilloscope provides flexible and convenient jitter measurement and analysis. After purchasing and activating the DS70000-JITTER option, you can accurately and quickly make deterministic jitter measurements for serial clock signals or parallel bus signals.


Support various clock recovery methods, including:
• Constant: Fully automatic, semi automatic, and manual
• First-order PLL
• Second-order PLL
• Explicit

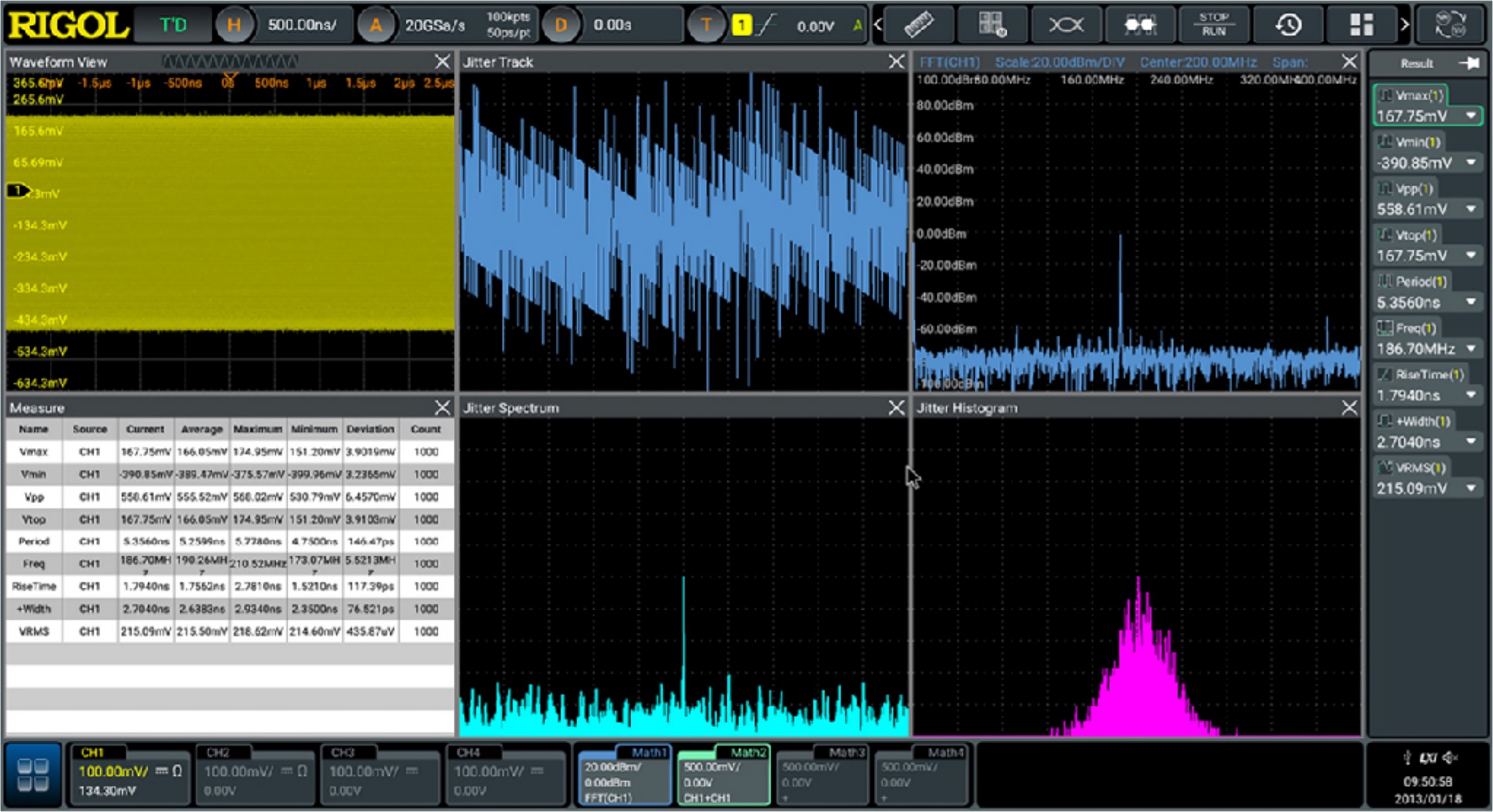

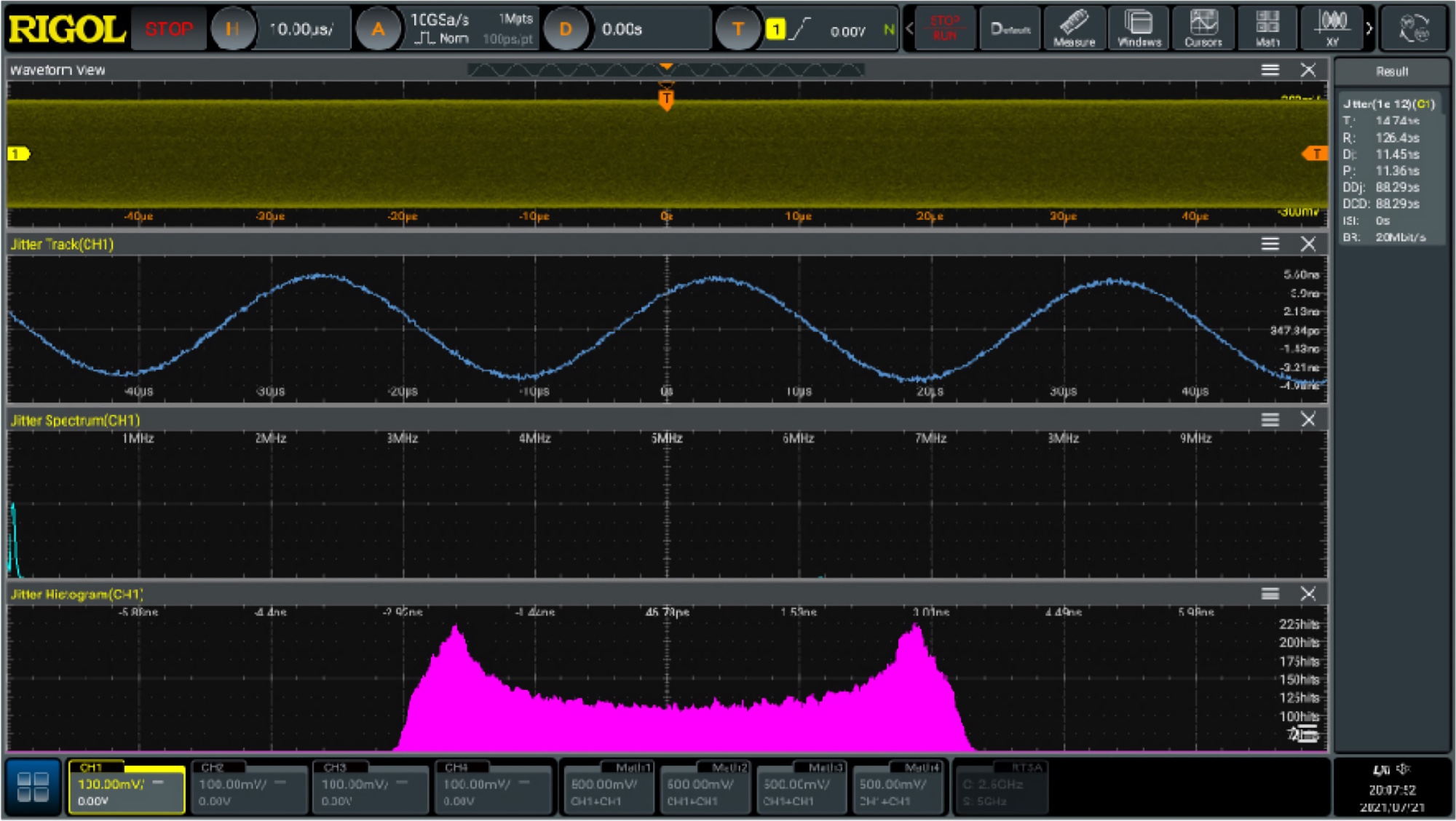

To help engineers easily and conveniently find out the jitter components from the signal, the jitter measurement results can be visualized in various format: trend graph, spectrum graph, histogram, and bathtub curve. The jitter analysis function enables you to measure several uninterrupted bits at one time and make statistics, efficiently accomplishing the jitter analysis for the large quantity of data. From the jitter trend graph and histogram, you can get a quick view of the jitter nature and source, greatly improving the work efficiency of the engineers.

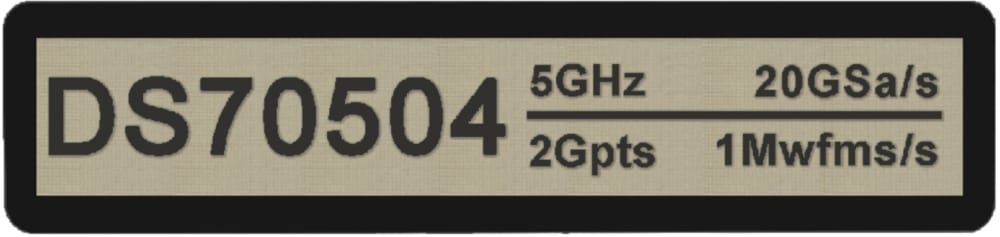

Electronic Label

The product model and its main parameters are displayed on the electronic label, sustaining its contents up to 20 years even at power-off state. The parameters will be updated automatically after upgrade to keep the information displayed on the electronic label consistent with that of the current instrument. Users can get the updated product information in a timely manner through the electronic label.

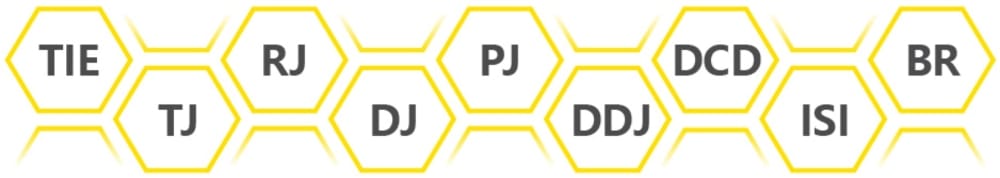

The jitter analysis is mainly used to measure and analyze the clock jitter. The DS70000 series can accomplish the following jitter analysis items. Among the items, TIE is the most commonly used jitter specification.

Perform TIE measurement on the clock signal with the jitter and analyze the results through the trend graph and histogram.
