RIGOL SUA8000 Series Introduction: Multi-channel Digital Transceiver

Posted by Batter Fly 11-07-2025 0 Comment(s) 789 Testen en Meten,

The RIGOL SUA8000 Series is a modular, high-speed, multi-channel signal acquisition and generation platform designed for advanced research, industrial, and commercial applications. Supporting scalable, synchronized operation of over 100 devices with sub-picosecond precision, the SUA8000 family is ideal for large-scale distributed transceiver systems, AI-driven test benches, and multi-industry solutions. The series features up to 8 channels per unit, advanced timing coherence, flexible control options, and a compact, highly integrated design.

❮❯

VIEW ALL RIGOl SUA8000 series MODELS

❮❯

DOWNLOAD DATASHEET

Long-Time Synchronous Operation of Multiple Devices
The SUA8000 Series supports synchronized operation of more than 100 instruments with exceptional long-term stability: intra-device channel-to-channel delay stays within 1 ps, while inter-device channel synchronization holds within 10 ps—reliable enough for 24/7 array transceiver systems. Such outstanding timing performance sharply boosts system coherence, delivering robust technical support for large-scale distributed transceiver applications.

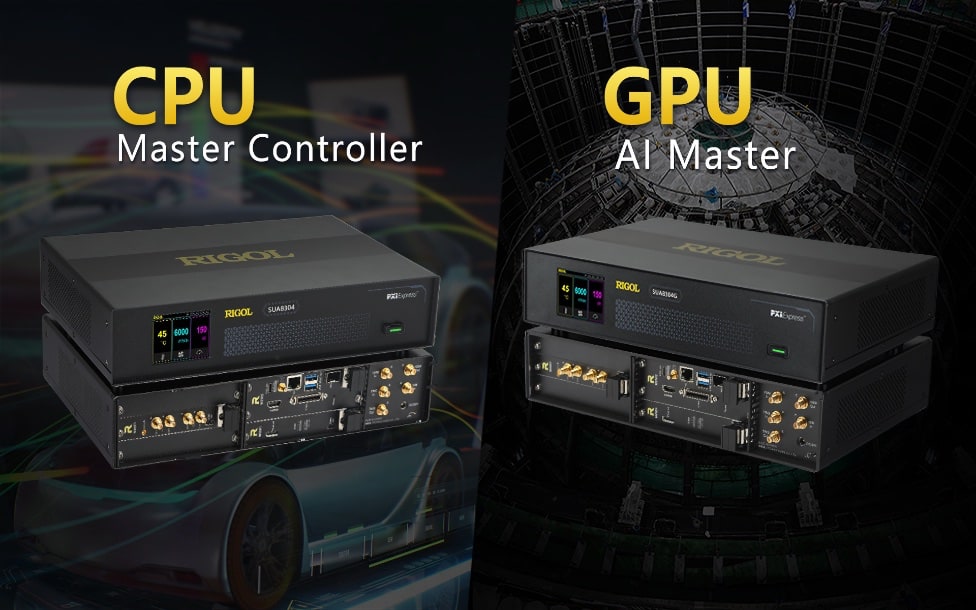

Master Control Dual Options
The SUA8000 Series offers two master-control options to suit different application needs: a CPU control module built around a high-performance V2000 processor for superior computation and task scheduling, and a GPU-AI control module based on the powerful Orin AGX platform, optimized for AI and deep-learning workloads to handle complex data analytics and intelligent processing.

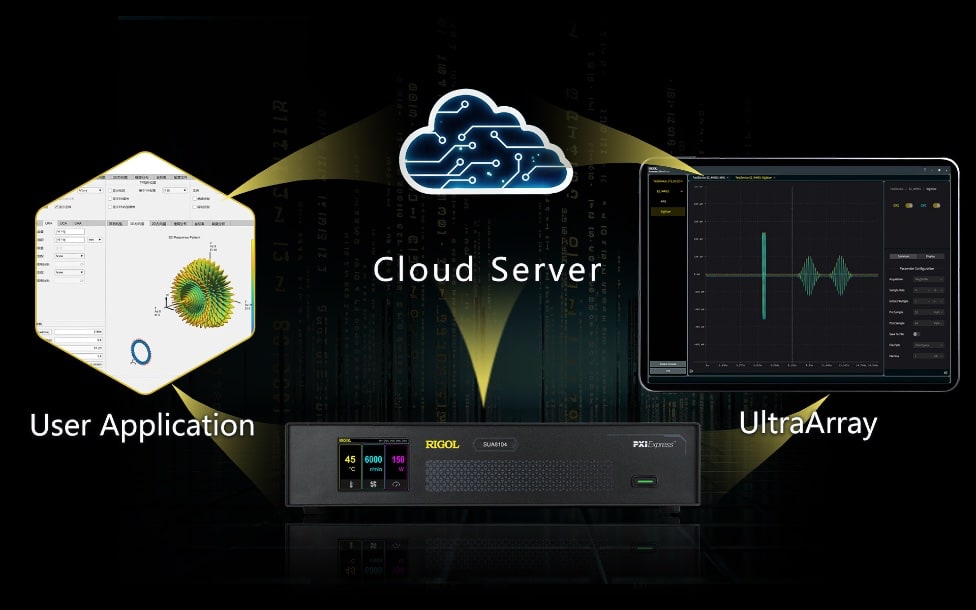

Arrayed Console

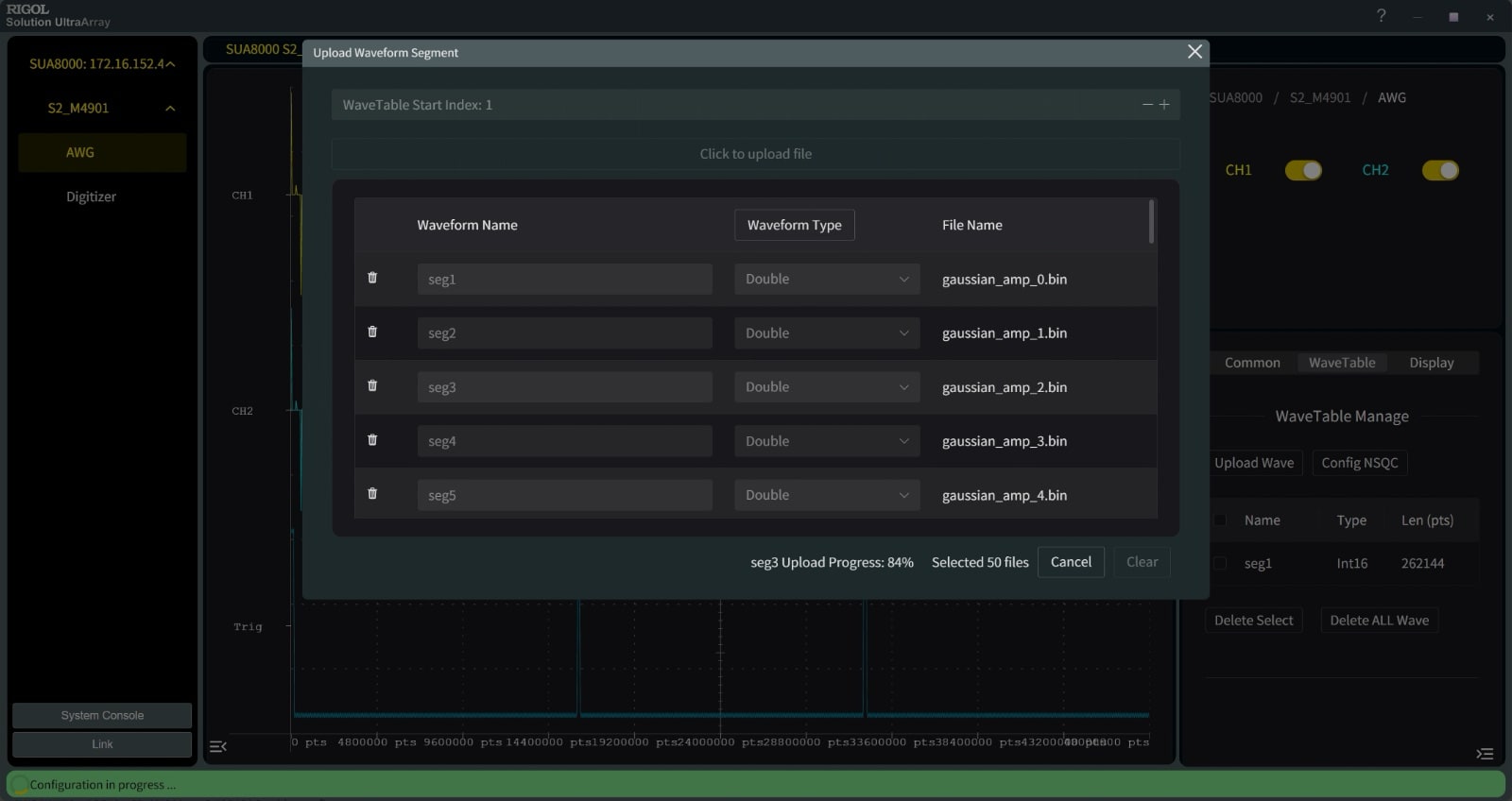

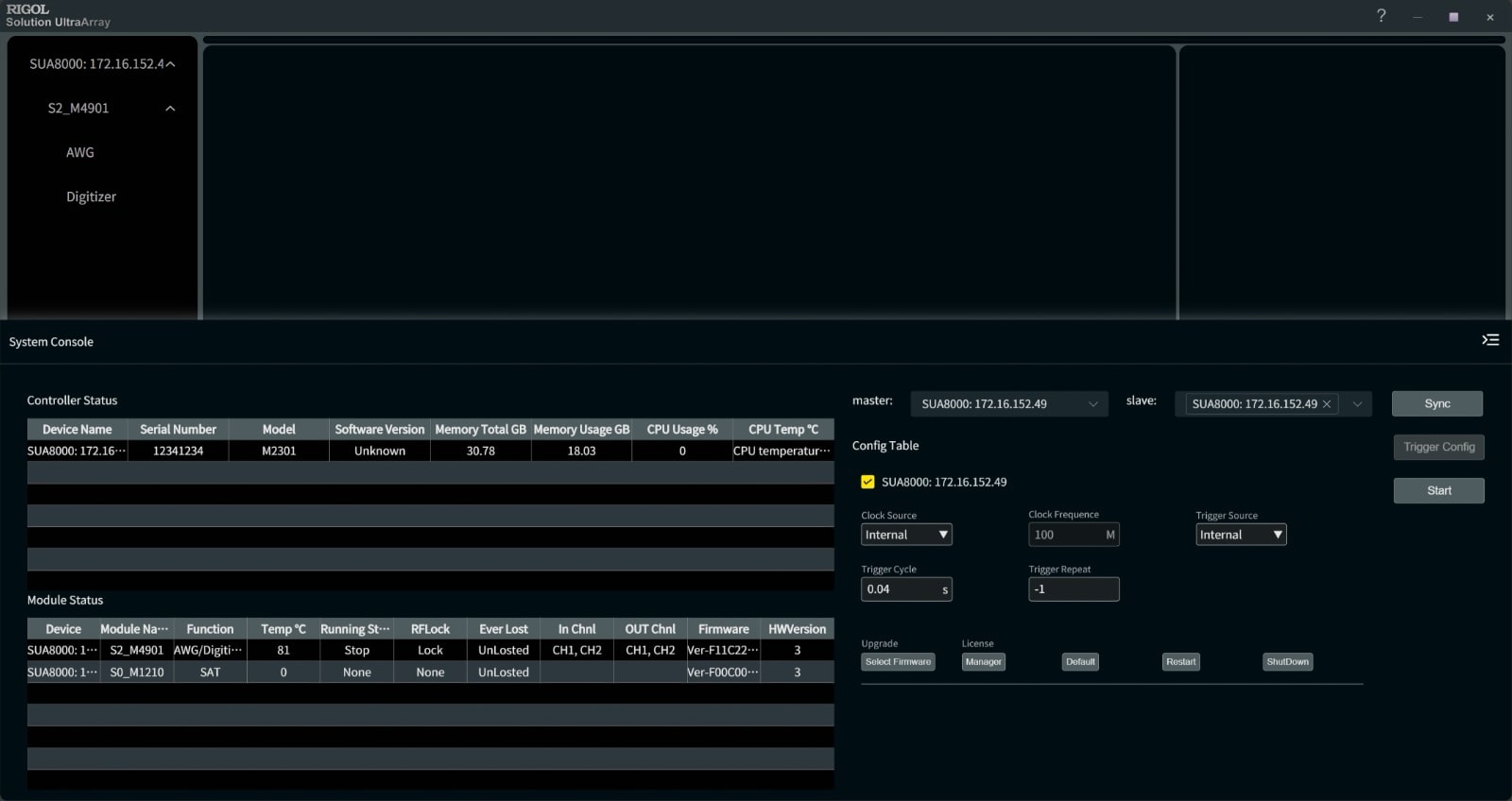

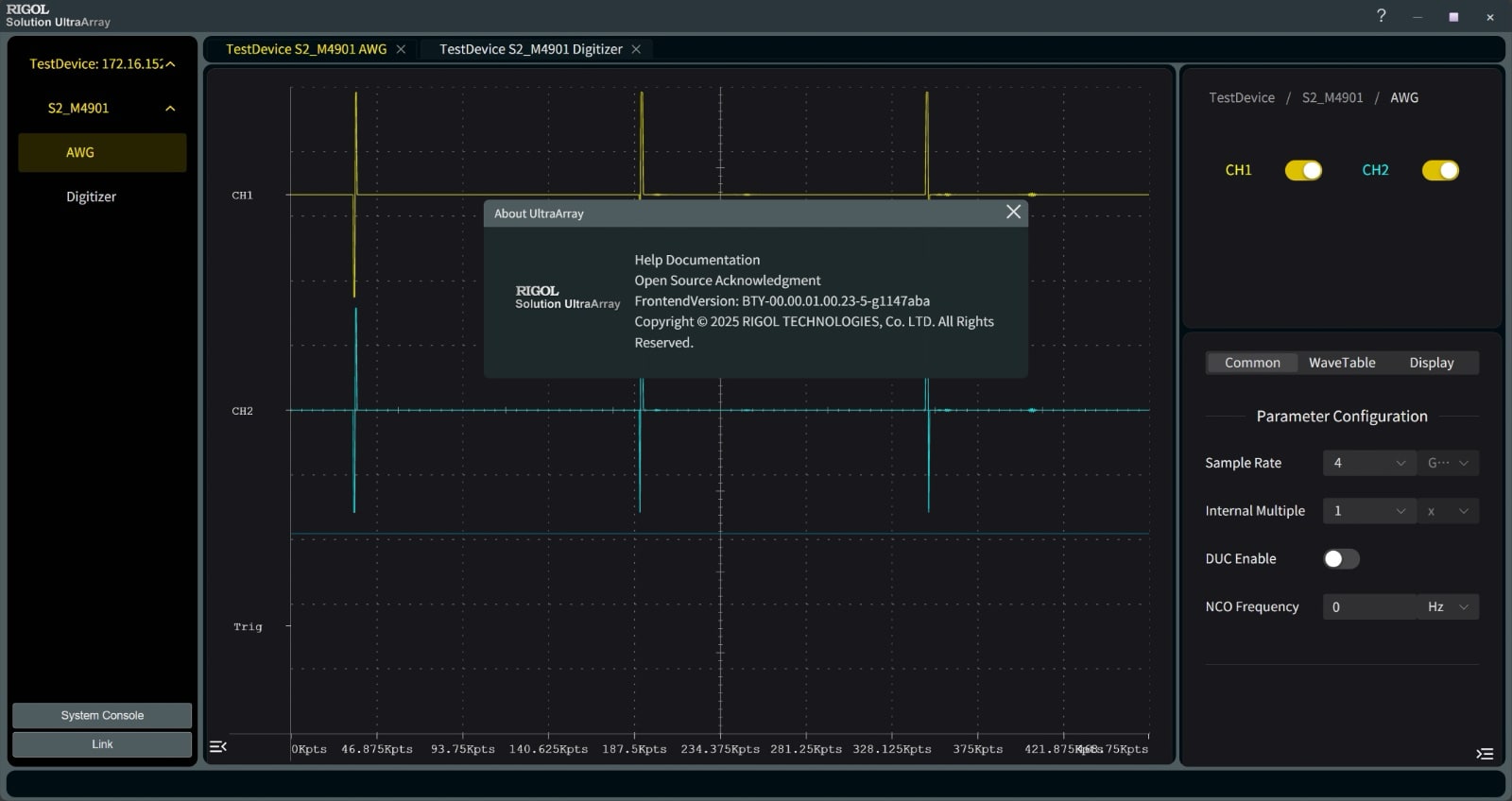

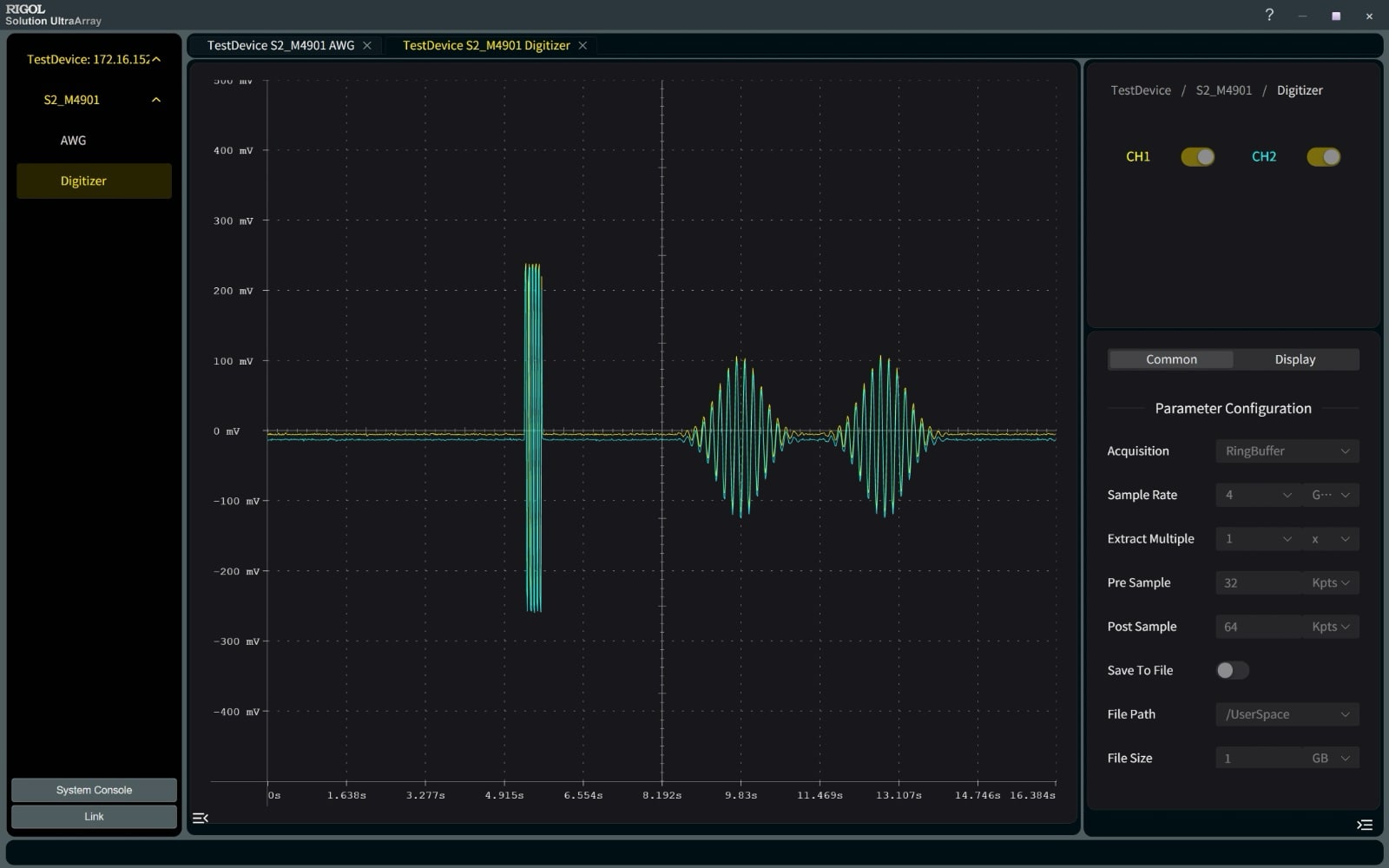

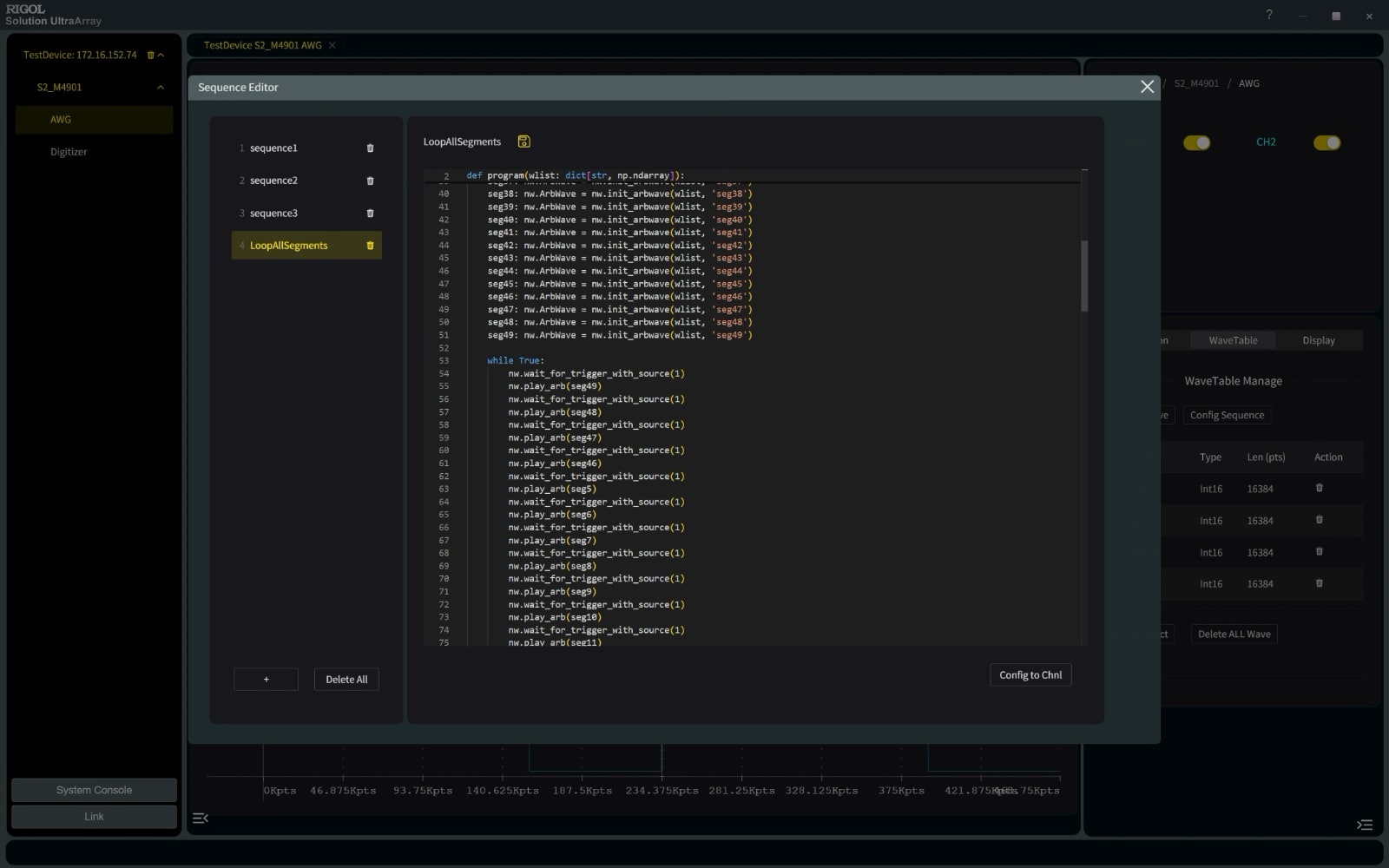

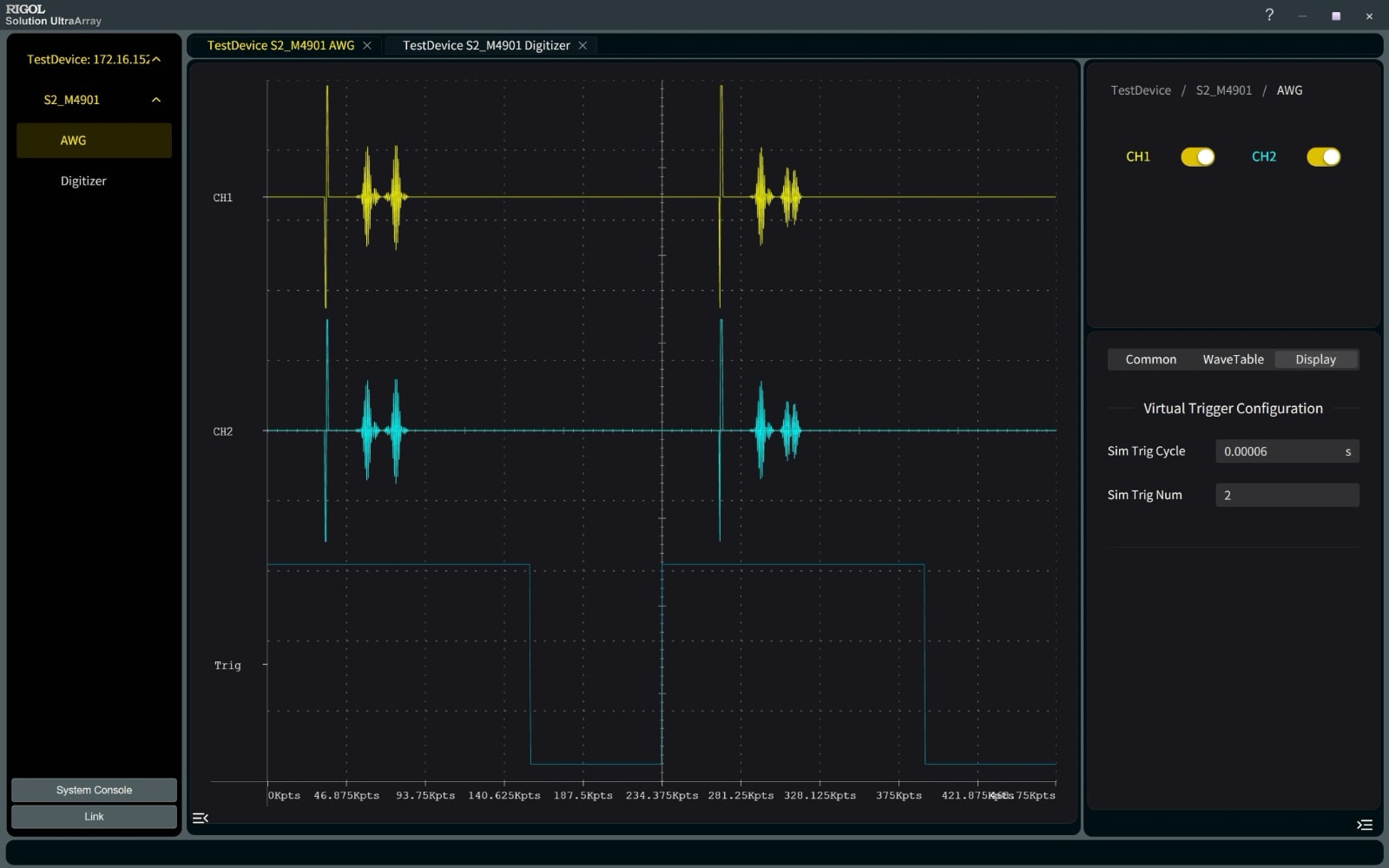

The SUA8000 Series adopts the web-based UltraArray control platform, enabling local and remote device management with true plug-and-play convenience. A comprehensive library of built-in APIs simplifies secondary development: users may operate the instruments directly through the interface or tap the APIs to quickly build and deploy customized systems, execute complex tasks, and meet diverse application needs.

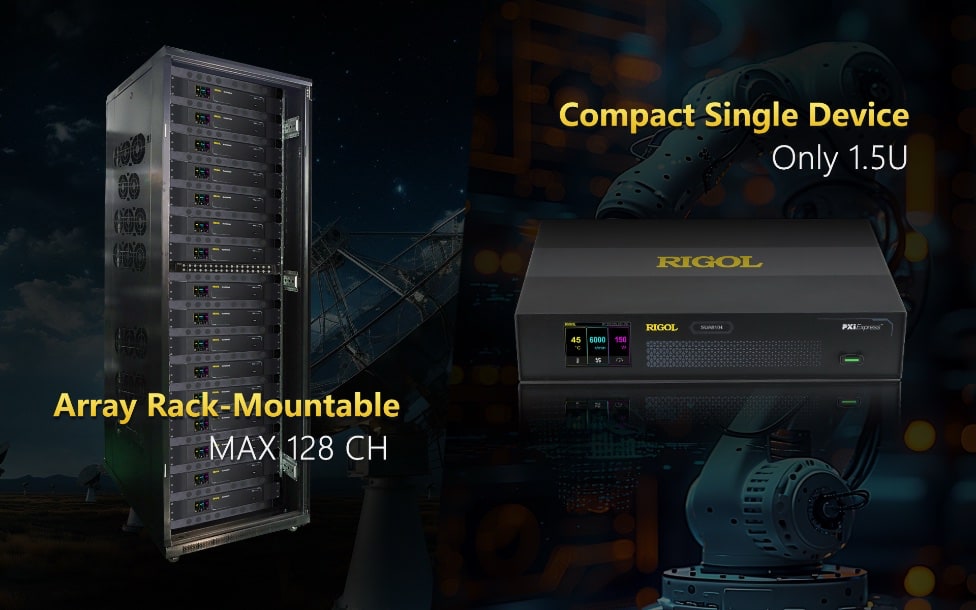

Highly Integrated and Compact Body
Compact SUA8000 units slip easily into existing systems, custom benches, or tight nested setups. A 1.5-U chassis holds up to eight channels, so a 32-U rack can host 128—maximizing space and simplifying layouts in labs, production lines, and other centralized test sites.

Multi-industry Solution Applications
From radio-astronomy asteroid hunts and power-grid partial-discharge monitoring to automotive-radar IF tests, engineers rely on the SUA8000. Its precise generate/capture paths and smart processing yield accurate, efficient results across demanding research, industrial, and commercial tasks.

Model	Analog Channels T\|R	Sample Rate T\|R	Analog Bandwidth	Max. Memory Depth	Master Control
SUA8104	4 \| 0	8 GSa/s \| -	3.5 GHz	1 Gpts	CPU
SUA8204	0 \| 4	- \| 4 GSa/s	1.5 GHz	1 Gpts	CPU
SUA8208	0 \| 8	- \| 4 GSa/s	1.5 GHz	512 Mpts	CPU
SUA8304	2 \| 2	4 GSa/s \| 4 GSa/s	1.5 GHz	1 Gpts	CPU
SUA8104G	4 \| 0	8 GSa/s \| -	3.5 GHz	1 Gpts	GPU AI
SUA8204G	0 \| 4	- \| 4 GSa/s	1.5 GHz	1 Gpts	GPU AI
SUA8208G	0 \| 8	- \| 4 GSa/s	1.5 GHz	512 Mpts	GPU AI
SUA8304G	2 \| 2	4 GSa/s \| 4 GSa/s	1.5 GHz	1 Gpts	GPU AI
