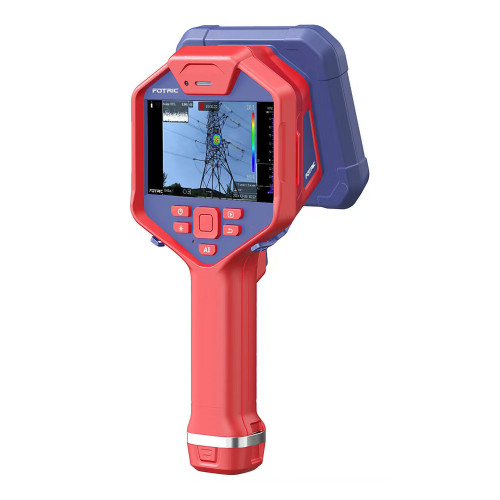

FOTRIC H7 Acoustic Imaging Camera (345 microphones)
The FOTRIC H7 is a professional acoustic imaging camera designed for long-range industrial inspections. Featuring an array of 345 MEMS microphones, it provides highly detailed acoustic mapping to precisely locate gas and compressed air leaks, and to detect partial discharges (PD) in high-voltage systems. With the NaviPdM® Venus software, it digitizes the entire workflow, from data acquisition to generating reports directly on the device, enhancing operational efficiency and safety.
- Microphone Channels: 345 digital MEMS
- Working Distance: 0.3–300 m
- Frequency Range: 2–100 kHz
- Acoustic FOV: 66°×52°
- Digital Camera: 13 MP
- Display: 5" LCD touchscreen 1280×720 with Gorilla Anti-Explosion glass
- Battery Life: > 6 hours (with two battery packs)
- Storage: Hot-swappable SD card (up to 1TB)
- Protection: IP54
Advanced Features
- NaviPdM® Venus: An acoustic data management system that digitizes the entire process, from acquisition to reporting.
- AI Diagnosis for Partial Discharges: Automatically identifies surface, floating, and corona discharges, assessing their severity.
- Leak Cost Evaluation: Calculates the economic impact of detected leaks for a quick ROI assessment.
- On-Device Reporting: Generates reports in Word or PDF format directly on the camera.
- Acoustic Image Focus: Noise reduction algorithms for targeted localization of sound sources in complex environments.
