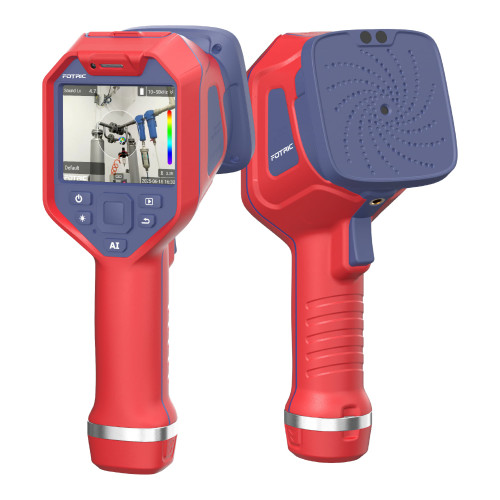

FOTRIC H4Mini Handheld Ultrasonic Acoustic Camera with 112 MEMS Microphones
FOTRIC H4Mini is an extremely compact and lightweight (only 770g) industrial acoustic camera designed to quickly locate gas leaks, vacuum leaks, and mechanical anomalies. Thanks to its array of 112 high-sensitivity digital MEMS microphones, it can detect ultrasonic signals imperceptible to the human ear (from 2 kHz to 100 kHz), visualizing the sound source as a heatmap overlaid on the real image on the 3.5-inch touch display.
This tool is ideal for predictive maintenance in complex facilities: it allows for the detection of leaks in compressed air systems, bearing defects, or abnormal vibrations without interrupting operations. Equipped with advanced features such as T-FFTD® technology (to capture transient sound events) and acoustic focusing, the H4Mini ensures precise inspections even in noisy environments. It includes an integrated reporting system to generate Word or PDF documents directly on the device.
Key Features:
- Acoustic Sensor: 112 MEMS digital microphones for precise localization.
- Frequency Range: 2 kHz – 100 kHz (detects audible and ultrasonic).
- Camera: 13 Megapixel industrial visual camera.
- Display: 3.5" IPS LCD Touchscreen (640x480).
- Advanced Technologies: T-FFTD® (acoustic image delay) and Acoustic Focus.
- Imaging Modes: Single source, multiple sources, holography.
- Reporting: On-device report generation (PDF/Word) and voice/text annotations.
- Ruggedness: IP54 protection rating and 2-meter drop resistance.
- Autonomy: Rechargeable and replaceable lithium battery (≥ 4 hours of use).
Included Standard Accessories:
- FOTRIC H4Mini acoustic camera
- Rechargeable lithium battery
- Charging dock
- Power adapter
- USB Type-C to USB cable
- 32 GB SD card
- Wrist strap
- Quick guide and Packing list
