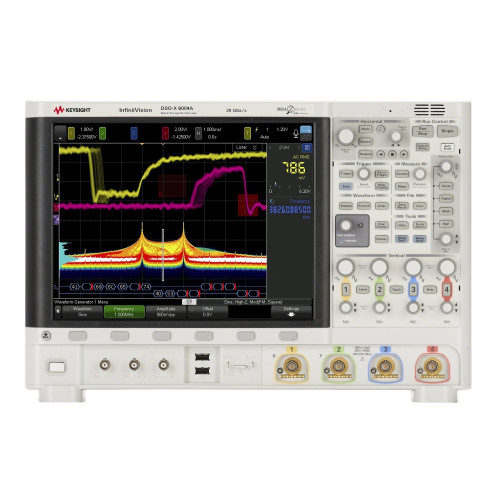

KEYSIGHT DSOX6004A Digital Storage Oscilloscope, 1GHz, upgradeable to 6GHz, 20GS/s, 4 Channels
KEYSIGHT DSOX6004A is an InfiniiVision 6000 X-Series 1 GHz base (upgradeable to 6 GHz) oscilloscope that provides 4 analog channels, 20 GS/s of maximum sample rate and a 12.1" capacitive touch gesture enabled display.
Features:
- Bandwidth 1 GHz - 6 GHz
- 4 analog channels
- Easily view and isolate signals on the 12.1" capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate
- Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
- Get performance measurements anywhere with the portable 6-in deep size
- Quickly see analysis details with standard histogram and color grade
- View signal integrity with jitter and eye diagram analysis options
- Expand capabilities with full upgradeability
What's included:
- Factory warranty 3-year warranty (90 days for unserialized accessories such as passive probes)
- Certificate of calibration, 2-year calibration interval
- One N2894A 700-MHz passive probe (10:1 attenuation) per channel
- Localized interface front panel overlay and built-in help system in help English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
- Voice control support in English, Chinese Simplified, Chinese Traditional, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish (Latin America) and Spanish (Castilian)
- Localized power cord
- Front-panel cover
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
KEYSIGHT 6000 X-Series offers a 12.1" capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 7 instruments in 1.
| Model | Analog channels | Digital channels | Bandwidth | Rise time |
| DSOX6002A | 2 | - | 1 GHz (upgradeable to 6 GHz) |
≤ 350 ps |
| MSOX6002A | 16 | |||
| DSOX6004A | 4 | - | ||
| MSOX6004A | 16 |
