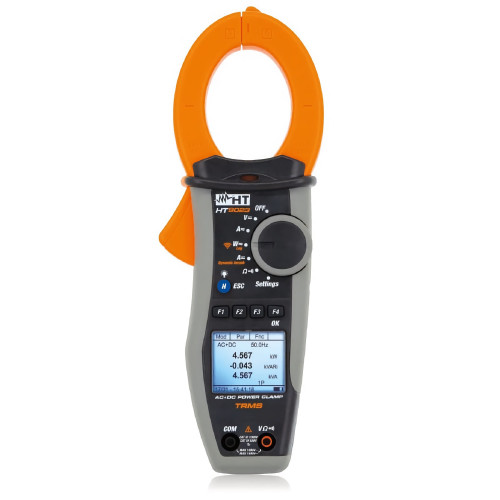

HT Instruments HT9023 TRMS AC/DC clamp-on power quality analyzer with wi-fi connection
HT Instruments HT9023 TRMS AC/DC clamp-on power quality analyzer with wi-fi connection
HT9023 has been designed to measure AC, DC AC+DC current up to 1000A in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp also measures DC voltage up to 1500V, AC, AC+DC voltage up to 1000V, Active, Reactive and Apparent Power, Power Factor, Energy, voltage/current harmonic analysis up to the 25th with THD% calculation in balanced single-phase or three-phase systems. It is also possible to carry out the phase sequence test with 1-terminal. The instrument also detects the events linked to motor starting currents (Dynamic INRUSH) and allows recording each measured electric parameter over time, with the possibility of transferring data via WiFi to Android/iOS devices through the HTAnalysis App (available from late 2020) or onto PC through the TOPVIEW software. The clamp is provided with a wide graphic dot-matrix screen (128x128pxl) with backlight, in order to allow reading data even in poorly lit environments, and it is provided with an auto power off function to preserve its internal battery.
Standard accessories:
1 x Batteries
1 x Calibration report
1 x User manual on CD-ROM and quick guide
1 x YABRS0000NN0
1 x YAAMK0001HT0
1 x TOPVIEWS
1 x 4324-2
