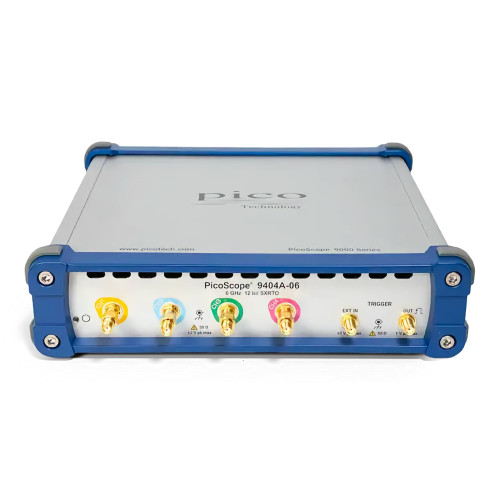

PicoScope 9404A-06 Oscilloscope 6 GHz, 4 Channels
The PicoScope 9404A-06 is a 4-channel SXRTO (Sampler-Extended Real-Time Oscilloscope) with 6 GHz bandwidth, designed for advanced testing of high-speed analog and digital signals. Thanks to equivalent-time random sampling up to 1 TS/s (1 ps resolution) and a 12-bit ADC, it delivers excellent performance for eye diagram, jitter, mask, and statistical measurements on repetitive signals. The PicoSample 4 software enables advanced analysis, histograms, automatic measurements, and multi-window visualization.
Main features:
- 4 channels 50 Ω, simultaneous digitization
- Bandwidth: 6 GHz (–3 dB)
- Transition time: ≤58 ps
- Random sampling: up to 1 TS/s (1 ps resolution)
- 12-bit ADC, sensitivity 10 mV/div – 250 mV/div
- Internal trigger up to 2.5 GHz
- Shared memory: up to 250 kS
- Advanced analysis: eye diagram, masks, histograms, automatic measurements, FFT
- USB 2.0 and LAN connectivity
- PicoSample 4 software included
Included accessories:
- PicoScope 9404A-06
- 12 V DC power supply
- 4 localized IEC power cords
- 1.8 m USB 2.0 cable
- 4 SMA/K connector savers
- Combined PicoWrench N/SMA/PC3.5/K
- Hard carrying case
- 1 m LAN cable
- Quick start guide
- PicoSample 4 software on USB stick
