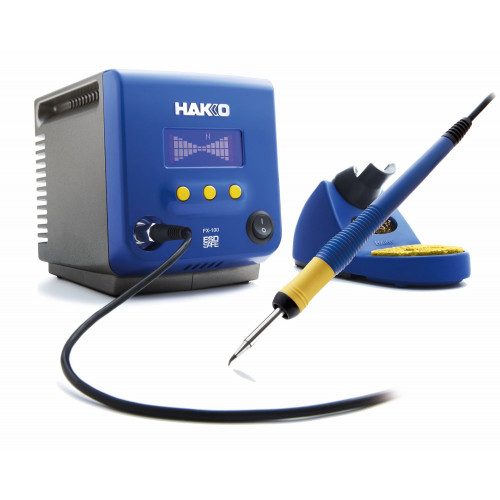

HAKKO FX-100 Stazione saldante IH (Induzione di calore)
HAKKO FX-100 Stazione saldante IH (Induzione di calore)
IH technology delivers the ultimate in soldering iron
Excellent heat supply. Ideal for the most challenging soldering jobs.
The HAKKO FX-100 features IH (induction heater) that continuously powers the soldering iron and maintains the set temperature by automatically detecting even minute drops in temperature, plus HAKKO's proprietary Power Assist function.
The FX-100 achieves powerful thermal recovery even with fine-shaped tips.
It provides excellent thermal responsiveness that conventional IH and sensor feedback systems systems cannot offer.
Suited to a range of applications from micro-soldering to high-volume soldering

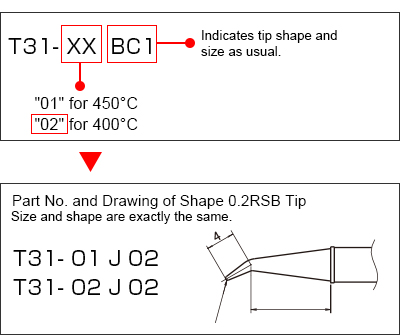

Unlike conventional temperature setting systems, every tip in the lineup is fixed at either 400°C or 450°C.
This makes managing the set temperature of the soldring iron easier than ever.
Large LCD display for easy operation
Like the HAKKO FM-206, the HAKKO FX-100 features an LCD display for easy operation with no need for an instruction manual.

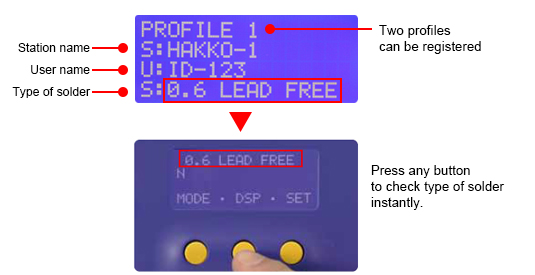

In profile setting, solder type and diameter can be registered as well as station ID and user name.
Packing list
1.Soldering station (HAKKO FX-100)
2.Soldering iron (HAKKO FX-1001)
3.Power cord
4.Iron holder (with cleaning sponge and wire)
5.Heat resistant pad
6.Heat insulation covers (green and yellow)
7.Instruction manual
Specifications
Power consumption: 25W (85W)
Temperature range: T31-01 Series: 400ºC, T31-02 Series: 450ºC
Temperature stability: ±1.1ºC at idle temperature
Station
Output power: 50W
Output frequency: 13.56V
Dimensions: 127(W)×150(H)×167(D)mm
Weight: 3kg
Soldering Iron
Heating element: IH (Induction heating)
Cord length: 1.3m
Total length: 190mm with 2.4D tip for 400ºC / 193mm with 2.4D tip for 450ºC
Weight: 31g (with 2.4D tip for 400ºC)
For the HAKKO FX-100, soldering iron tips are not supplied as accessories.
Please separately purchase "T31 Series" soldering iron tips for FX-1001 IH soldering iron
Please separately purchase "T35 Series" soldering iron tips for FX-1002 micro IH solderin iron
