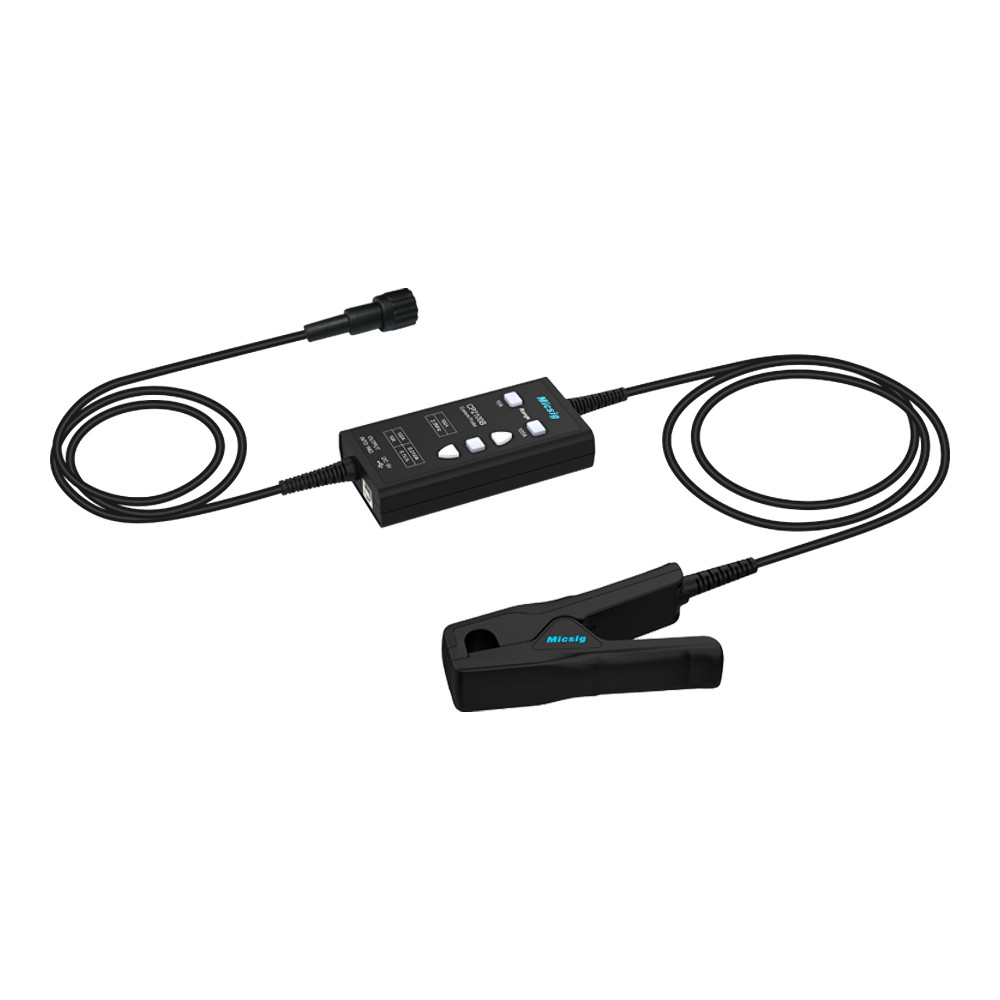

Micsig CP2100B Current Probe 100A, DC-2MHz
Micsig CP2100B is a low frequency AC and DC current probe with 100A current and DC - 2MHz bandwidth.
Features:
- Compact and reliable design
- USB powered, easy to use
- Standard BNC interface
Applications:
- Motor driver
- Inverters
- Power supplies
- Avionics and other fields

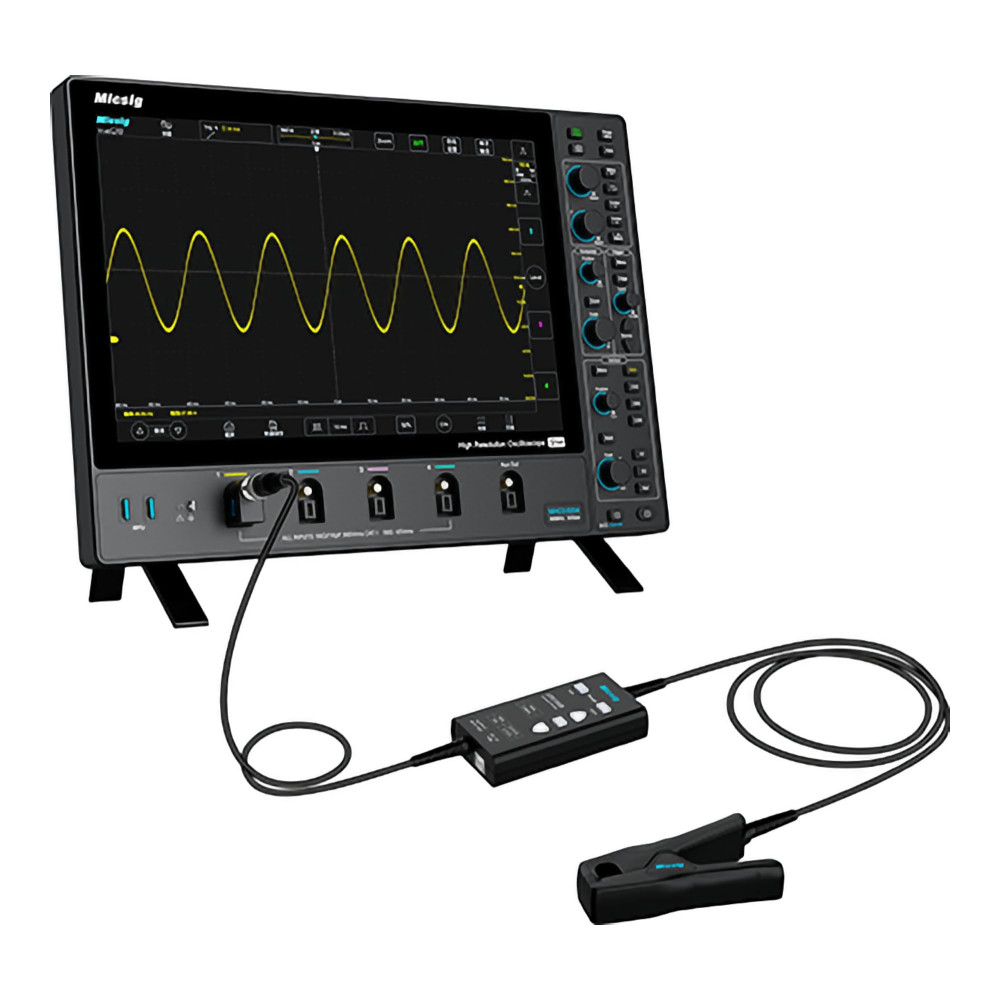

Micsig CP2100 series is a current probe that can measure both DC and AC. It adopts split design and has small and beautiful appearance. It uses a standard BNC interface and is suitable for oscilloscopes. It can also be used for multimeters via connector.
The maximum current can be measured to 100Apk (70Arms), it has 2 models: CP2100A and CP2100B.
Micsig CP2100A can measure bandwidth to DC 800KHz, CP2100B can measure bandwidth to DC 2MHz; 2 optional measuring ranges: 10A and 100A. Automatic and manual zero adjustment, powered by USB, no additional power supply, making measurement more convenient.
| Model | CP2100A | CP2100B |
| Bandwidth | DC ~ 800KHz | DC ~ 2MHz |
| Rise Time | ≤ 437.5ns | ≤ 140ns |
| Ranges | 10A / 100A | 10A / 100A |
| Outp sensitivity | 0.1V/A (10A) 0.01V/A (100A) |
0.1V/A (10A) 0.01V/A (100A) |
| DC accuracy (typical) |
3% ± 50mA (10A) 4% ± 50mA (100A, 500mA~40Apk) 15% (100A, 40Apk~100Apk) |
3% ± 50mA (10A) 4% ± 50mA (100A, 500mA~40Apk) 15% (100A, 40Apk~100Apk) |
| Singnal delay |
＜150ns (10A) ＜200ns (100A) |
＜150ns (10A) ＜200ns (100A) |
| Current measurement range |
50mA~10Apk (10A) 1A~100Apk (100A) |
50mA~10Apk (10A) 1A~100Apk (100A) |
| Maximum measurable current | 100Apk, 70.7Arms (DC+ACpk) 200Apk-pk, 70.7Arms (AC) |
100Apk, 70.7Arms (DC+ACpk) 200Apk-pk, 70.7Arms (AC) |
| Maximum working voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
| Maximum float voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
| Maximum conductor Diameter | 13mm | 13mm |
| Overload indication | The buzzer beeping, the button light flashing | The buzzer beeping, the button light flashing |
| Power supply | DC5V | DC5V |
