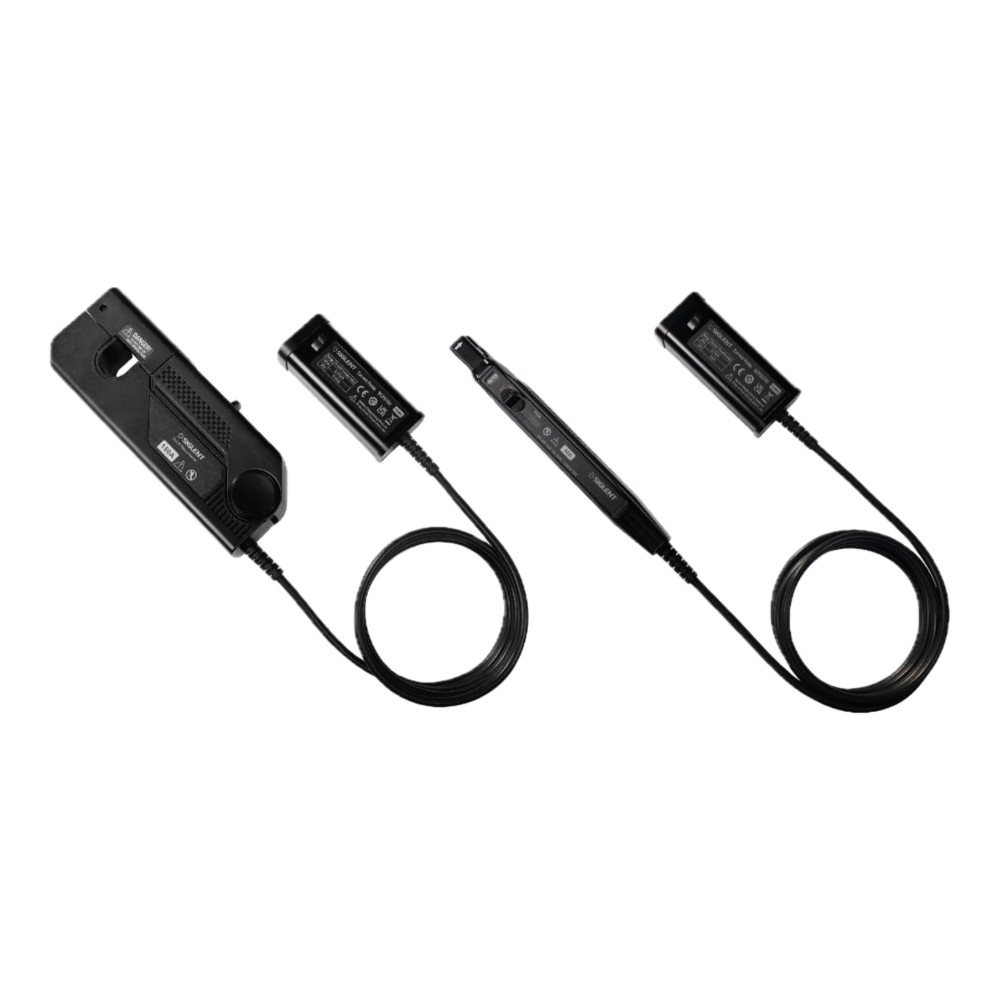

SIGLENT SCP5150 Current Probe 12MHz, 300A
SIGLENT SCP5150 is a current probe with 12 MHz bandwith, ≤ 29nS rise time and 300 A maximum current.
| Model | SCP5030 | SCP5030A | SCP5150 | SCP5500 |
| Bandwidth | DC - 50 MHz | DC - 100 MHz | DC - 12 MHz | DC - 2 MHz |
| Rise Time | ≤ 7nS | ≤ 3.5nS | ≤ 29nS | ≤ 175nS |
| Maximum effective Value of AC | 30 Arms | 30 Arms | 150 Arms | 500 Arms |
| Peak-Peak Value | 50 A | 50 A | 300 A | 750 A |
| Range | 5A (1X) / 30A (10X) | 5A (1X) / 30A (10X) | 30A (10X) / 150A (100X) | 75A (10X) / 500A (100X) |
| Overload Value | 5A (≥5A) 30A (≥50A) |
5A (≥5A) 30A (≥50A) |
30A (≥30A) 150A (≥300A) |
75A (≥75A) 500A (≥750A) |
| Current Transfer Ratio | 5A (1V/A) 30A (0.1V/A) |
5A (1V/A) 30A (0.1V/A) |
30A (0.1V/A) 150A (0.01V/A) |
75A (0.1V/A) 500A (0.01V/A) |
| Measurement Resolution | 5A (1mA) 30A (10mA) |
5A (1mA) 30A (10mA) |
30A (10mA) 150A (100mA) |
75A (10mA) 500A (100mA) |
| DC Accuracy | 5A (±1%±1mA) 30A (±1%±10mA) |
5A (±1%±1mA) 30A (±1%±10mA) |
30A (±1%±10mA) 150A (±1%±100mA) |
75A (±1%±10mA) 500A (±1%±100mA) |
| Maximum rated Voltage to earth | 300V CAT I | 300V CAT III 600V CAT II | ||
| Conductor Diameter Maximum | 5 mm | 20 mm | ||
| Power Supply | Directly powered by the oscilloscope through SAPBUS | |||
| Weight | 270 g | 475 g | ||
