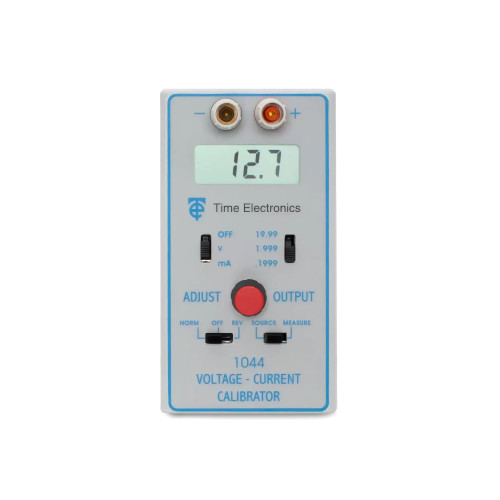

Time Electronics 1044 DC Voltage and Current Calibrator
Time Electronics 1044 is a precision handheld calibrator that can be used as a general purpose current and voltage source. High performance and simple operation make it suitable for test engineers, R&D, service, and calibration technicians.
Offering both versatility and practicality the 1044 can source and measure voltage and current. The 0.05 % accuracy makes the instrument suitable for simulation and calibration in various engineering applications, where a compact solution is required.
In the source mode, voltage up to 20 V and current up to 20 mA are generated in three ranges. When in current source mode the 1044 has a high 24 V compliance voltage which is ideal for powering process loops.
In the measurement mode, the range and function can be easily selected, with the measured input accurately shown on the LCD display.
Features:
- Measure voltage and current
- Source voltage and current
- 3 voltage ranges 0 to 20 V
- 3 current ranges 0 to 20 mA
- Accuracy 0.05%
- 3.5 digit LCD display
- Portable with 28 hours typical battery life
- Supplied with carry case
- Optional mains power supply
Portable Operation
The 1044 voltage and current calibrator is housed in a pocket sized, ABS case and comes with a leather carry case containing a compartment for storing test leads.
A single 9 V battery powers the unit or an external 12 V DC power supply may be used which disconnects the internal battery.
Safety Terminals
The 1044 connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Optionals:
7643 Mains power supply (230 V)
7652 Mains power supply (110 V)
C156 Traceable calibration certificate (Factory)
C133 Accredited calibration certificate (ISO 17025)
