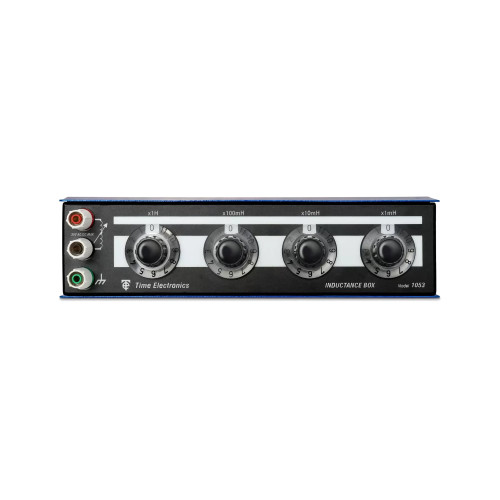

Time Electronics 1053 Inductance Decade Box (1 mH - 10 H)
Time Electronics 1053 is a precision decade inductance box suitable for filter design, general purpose substitution, DC to DC converter design and calibration of measuring instruments.
Time Electronics 1053 is housed in a fully screened robust metal case making it durable and compact. It is a practical instrument that is simple operation, suitable for use in electronics, production, R&D, or as a calibration tool in the lab or field.
Inductance is set by four easy-to-read dials that are divided into 4 decades. These provide 1 mH, 10 mH, 100 mH, and 1 H steps. The maximum setting is 11.11 H.
The unit features custom wound, high permeability ferrite core inductors that ensure insignificant influence from external magnetic fields and maximum stability.
Features:
- 1 mH to 10 H
- In-line readout
- 3 % accuracy
- High stability
- Safety terminals
- Fully screened
- Robust and portable
In-line Readout
Inductance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values.
Safety Terminals
The 1053 connections are via safety terminals that are compatible with standard plugs, 4 mm shrouded plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Optionals:
C170 Traceable Calibration Certificate (factory)
C114 UKAS Calibration Certificate (ISO 17025)
| Decade | 1 mH | 10 mH | 100 mH | 1 H |
| Accuracy at 1 kHz | 3 % | 3 % | 3 % | 3 % |
| Max Current per decade | 30 mA | 70 mA | 100 mA | 150 mA |
| Average resistance per step | 0.1 Ω | 0.5 Ω | 3.4 Ω | 20.5 Ω |
| Typical Q Factor at 1 kHz | 75 | 175 | 280 | 250 |
