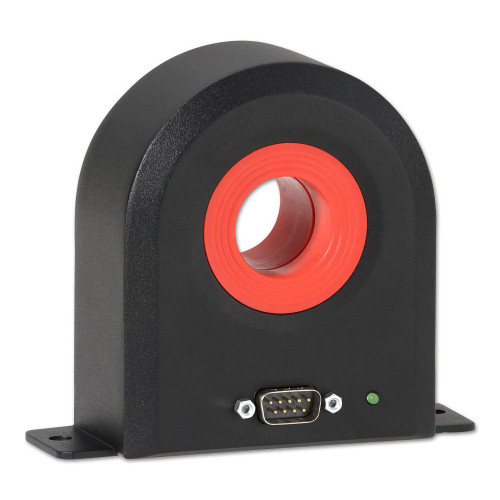

ZES ZIMMER PCT Precision Current Transducer
ZES ZIMMER PCT Precision current transducer with built-in electronics
A closed loop, flux gate technology based current transducer for non-intrusive, isolated DC and AC current measurements, developed to offer extreme linearity and full industrial temperature range. The sensor has an aluminium body for shielding against EMI. The PCT sensors provide connection to LMG power analyzers via Plug ’n‘ Measure. This allows for all of the important parameters, such as the precise scaling factor, the delay compensation variable, the last calibration date, and the sensor type, to be read and used automatically by the power analyzer. Moreover, the sensors are actively supplied with power by the LMG power analyzer or its sensor supply unit.
| Max. Accuracy | 0,01% | |
| Temperature range | -40°C - +85°C | PCT200/600/1200 |
| -40°C - +45°C | PCT2000 | |
| Power supply | Internally for LMG95/LMG500/LMG600 series Externally from PCTSIU4 for LMG450 |
PCT200/600 |
| Solely externally from PCTSIU4 for LMG95/LMG450/LMG500 Internally for LMG600 series (check the sensor datasheets) |
PCT1200/2000 |
Versions:
| PCT200 | Precision current transducer, max 200Arms (300A peak), Ratio 500:1, Range DC - 1 MHz |
| PCT600 | Precision current transducer, max 600Arms (900A peak), Ratio 1500:1, Range DC - 500 kHz |
| PCT1200 | Precision current transducer, max 1200Arms (1800A peak), Ratio 1500:1, Range DC - 400 kHz |
| PCT2000 | Precision current transducer, max 2000Arms (3000A peak), Ratio 1500:1, Range DC - 300 kHz |
Optional Accessories:
| L60-X-ADSE | Adaptor for LMG600 series to connect sensors and current clamps |
| PCTSIU4 | Four Channel Sensor Supply Unit |
| PCTSIU4-1U | Four Channel Sensor Supply Unit, compact 19" rack mount 1U height |
| L50-Z14 | Adapter for LMG500 to connect sensors and current clamps terminating with HD15-plug |
| PCTx-K-L45 | Connecting cable from PCT200/600 to LMG450 and supply unit PCTSIU4 |
| PCTx-K-L50 | Connecting cable from PCT200/600 to LMG500, supply by LMG500 |
| PCTx-K-L6 | Connecting cable from PCT200/600/1200/2000 to LMG600 series, supply by LMG600 (check the sensor datasheets) |
