KEYSIGHT DP003xA Series of high-voltage, differential active probes provide superior general-purpose differential signal measurements required for high-speed power measurements such as measuring characteristics of switching power devices, DC-DC converters or class D amplifiers, automotive bus measurements, and high-speed digital system designs.
As designs become more complex and the need for floating measurements grows, these differential probes enable floating measurements between any two points on a board and can also function as single-ended probes with one terminal connected to ground.
The DP003xA Series differential active probes are available in bandwidth models ranging from 25 MHz to 200 MHz with a wide input dynamic range of up to ± 7000 V.
The DP003xA series probes are equipped with either KEYSIGHT Technologies' AutoProbe1 interface or a standard BNC interface. Probe models DP0031A / 32A / 33A / 34A are designed with KEYSIGHT's AutoProbe1 interface, which provides power, offset calibration, and auto-configuration including attenuation settings without having to remove the probe from the scope or DUT.

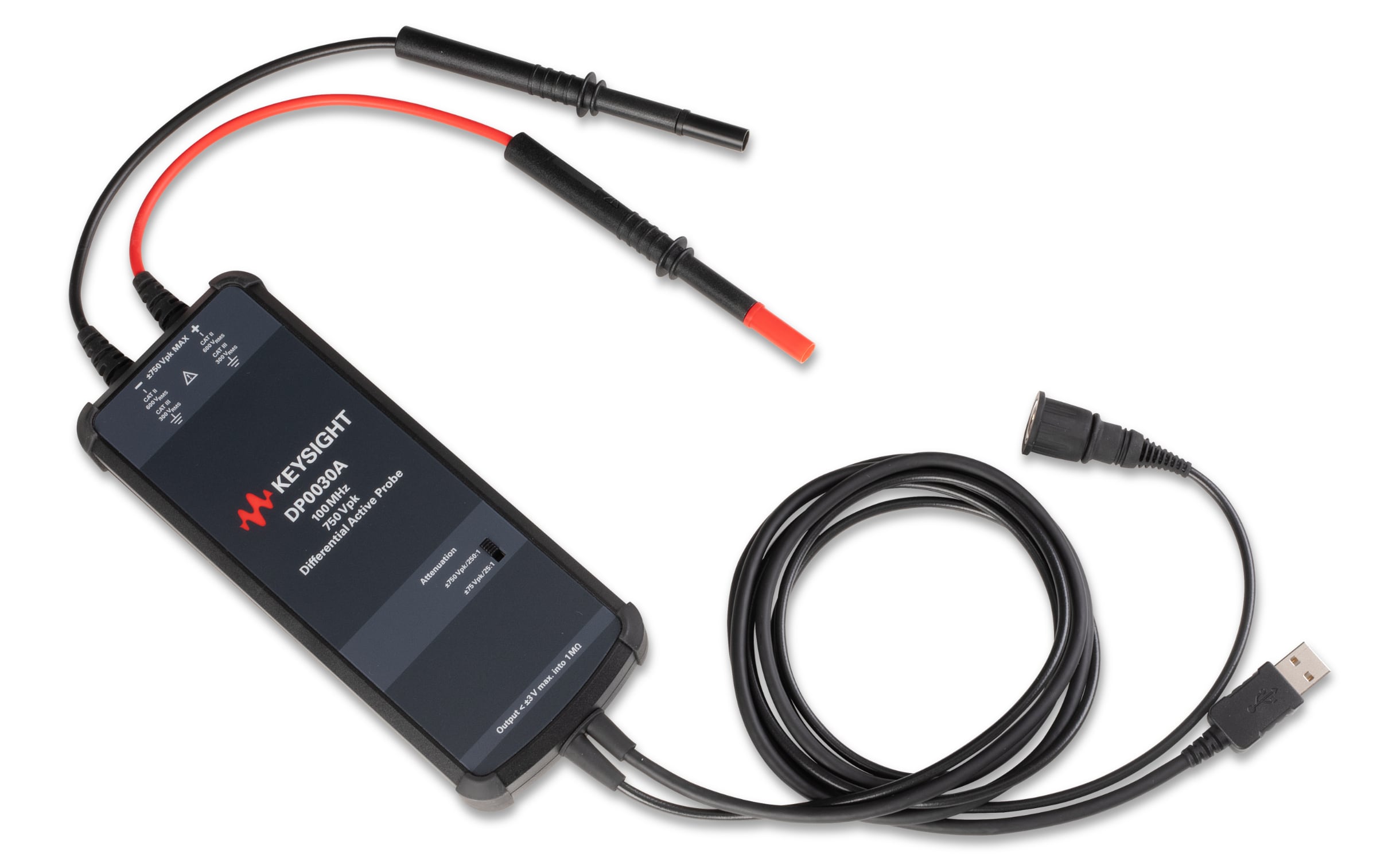

Model DP0030A contains a universal BNC interface and uses USB type A for power delivery to the probe which means it is compatible with any oscilloscope with 1 MΩ input impedance. It has a physical button to achieve switchable attenuation.
The DP003xA series of probes are compatible with most of KEYSIGHT's InfiniiVision and Infiniium oscilloscopes that provide 1-MΩ input terminations with the AutoProbe1 interface.
| Model |
DP0030A |
DP0031A |
DP0032A |

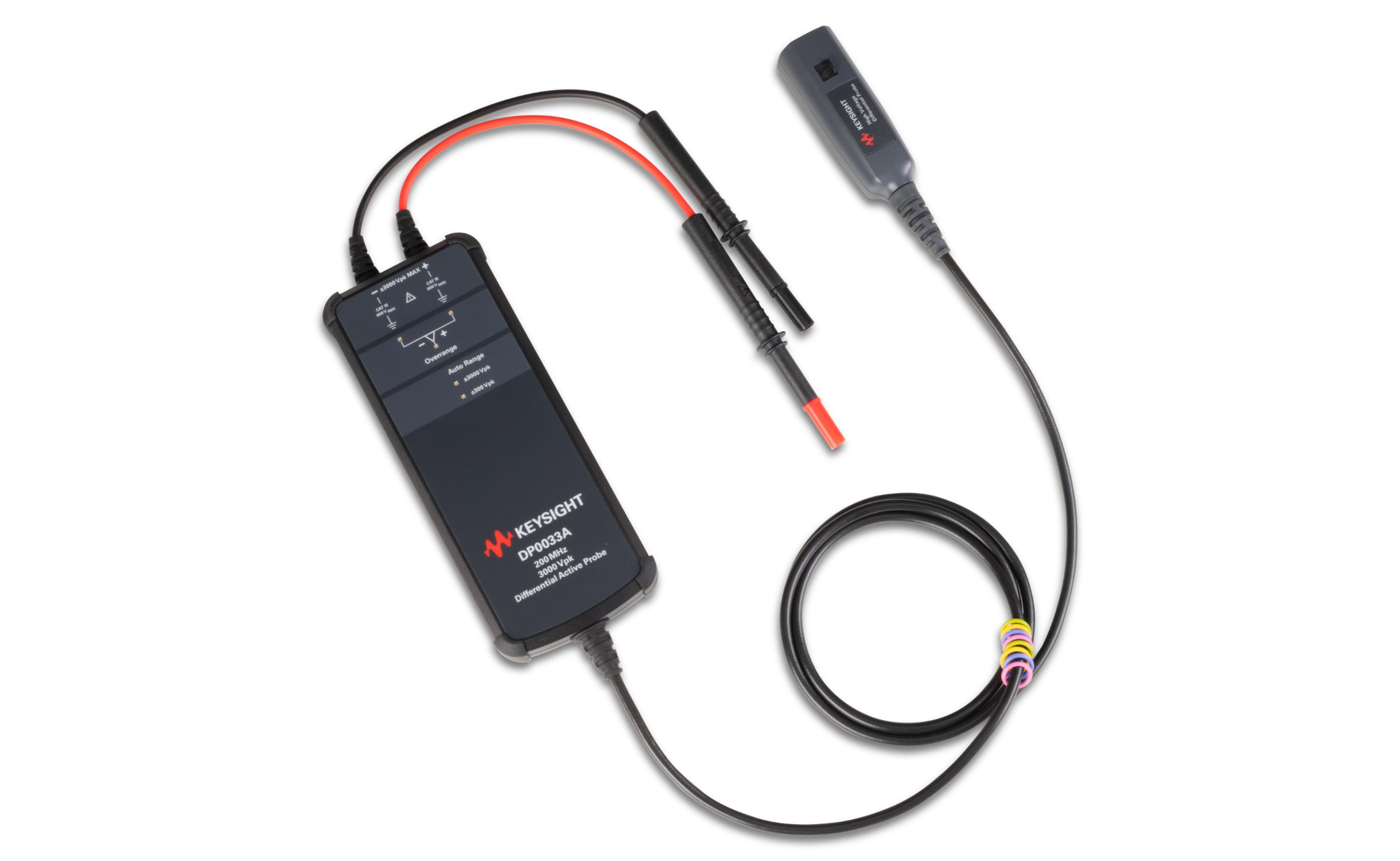

DP0033A |

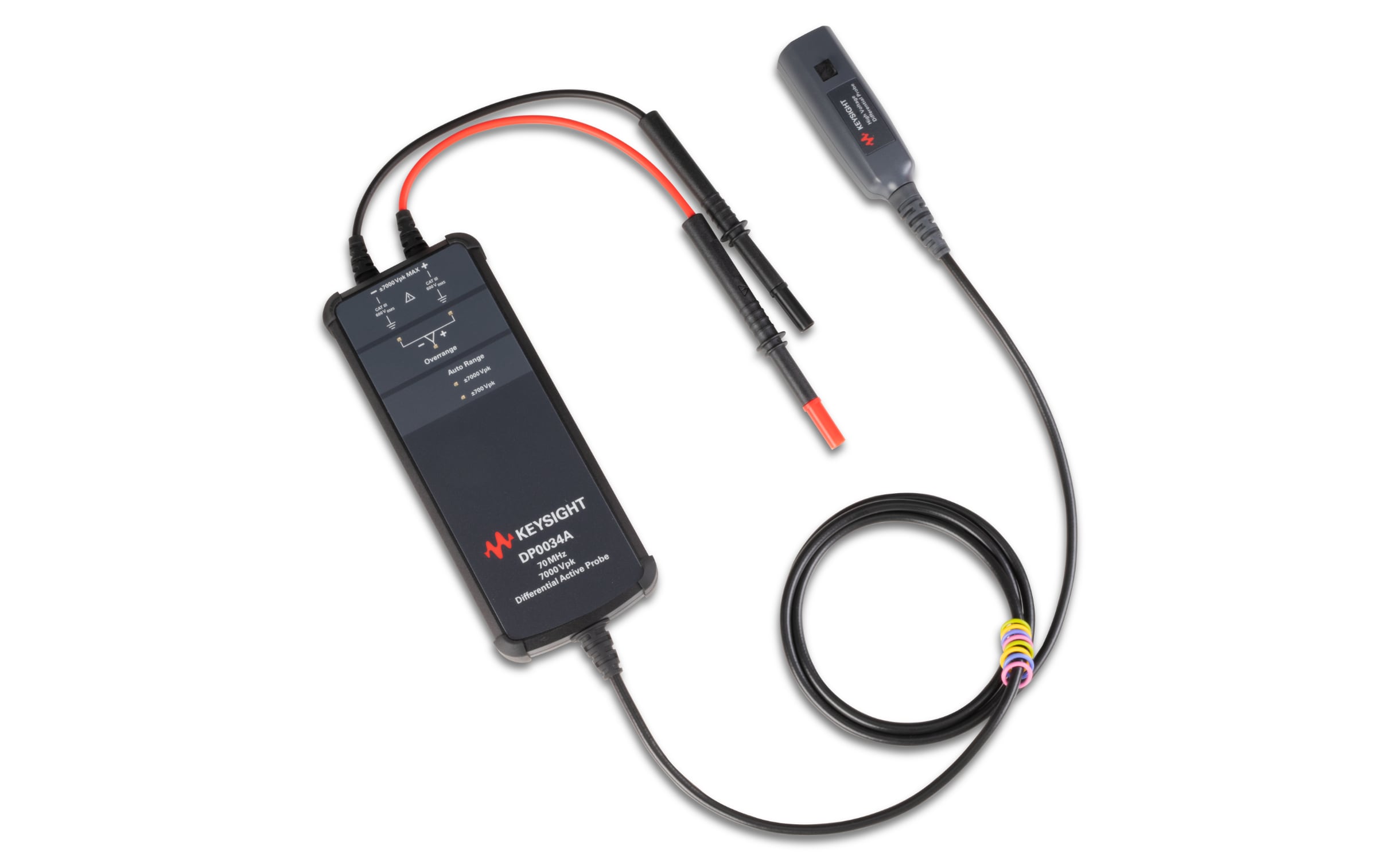

DP0034A |
| Bandwidth |
100 MHz |
200 MHz |
200 MHz |
200 MHz |
70 MHz |
| Attenuation (high/low) |
250/25:1 |
250/25:1 |
500/50:1 |
1000/100:1 |
2500/250:1 |
| Maximum differential measurement range (DC + AC peak) |
±750 / ±75 V |
±750 / ±75 V |
±1500 / ±150V |
±3000 / ±300V |
±7000 / ±700V |
| Oscilloscope interface |
BNC + USB |
AutoProbe1 |
Probing Accessories
KEYSIGHT Technologies' DP003xA Series differential active probes come in a hard plastic carrying case and are supplied with the following standard accessories:

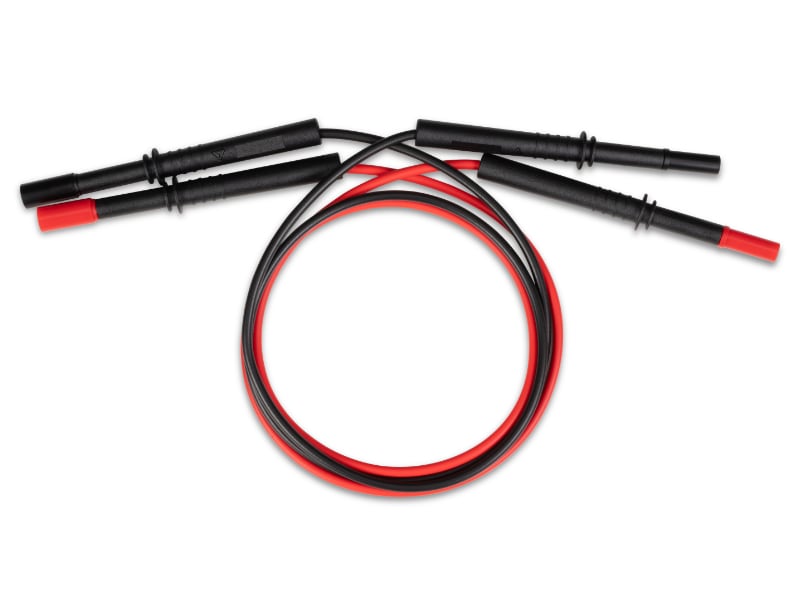

DP0040-68702
Extension lead set, 1m

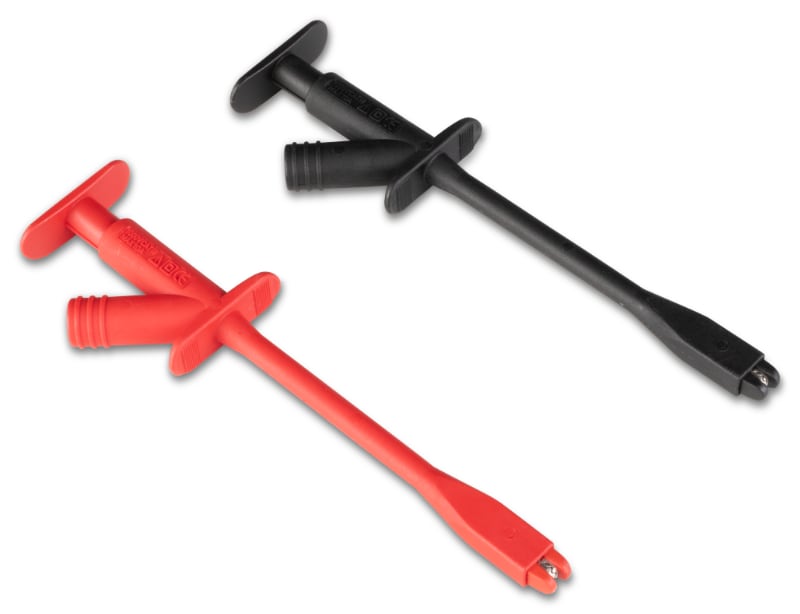

DP0040-68703
Jaws test clip set
(not included with DP0030A)

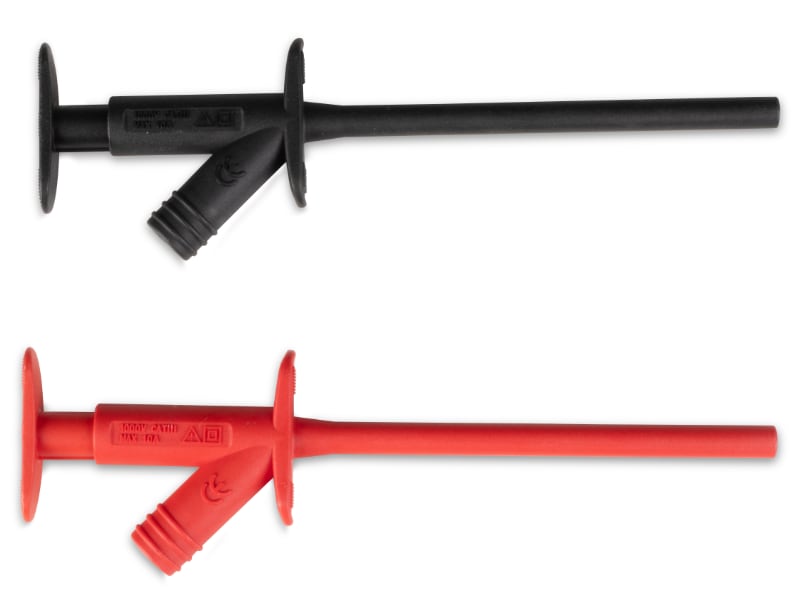

DP0040-68704
Hook test clip set

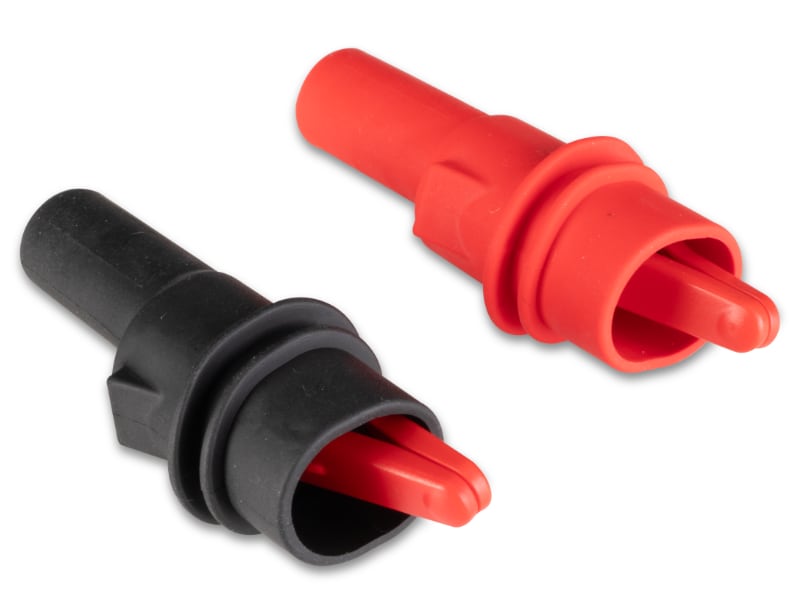

DP0040-68705
Alligator test clip set, 3000V
(not included with DP0034A)

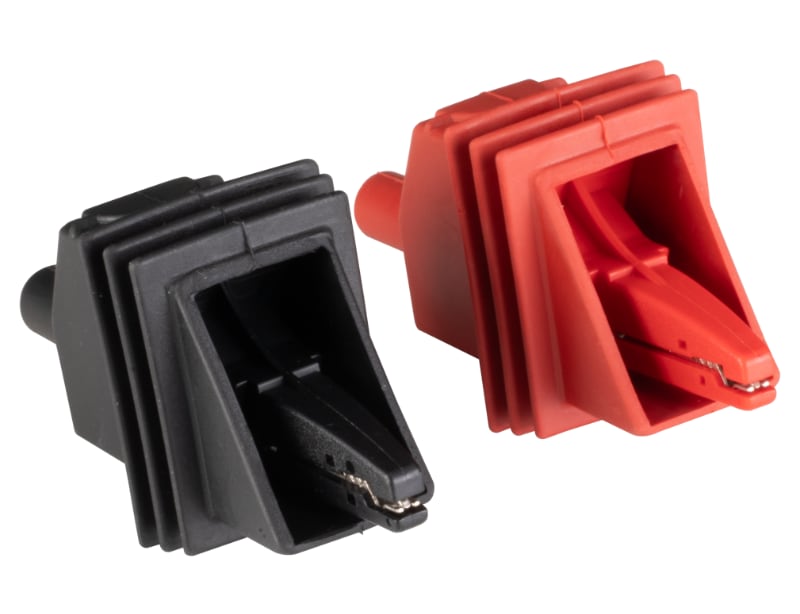

DP0040-68706
Alligator test clip set, 7000V
(included with DP0034A only)
Two standalone kits that provide additional quantities of the above accessories are available for the DP0003xA probes. The table below shows the accessories included in each kit:
| Part Number |
Description |
Qty. |
DP0040A
Advanced Accessory Kit |
DP0041A
Basic Accessory Kit |
| DP0040-68702 |
Extension lead set, 1 m |
1 |
✔ |
✔ |
| DP0040-68703 |
Jaws test clip set |
1 |
✔ |
– |
| DP0040-68704 |
Hook test clip set |
1 |
✔ |
✔ |
| DP0040-68705 |
Alligator test clip set, 3000V |
1 |
✔ |
✔ |
| DP0040-68706 |
Alligator test clip set, 7000V |
1 |
✔ |
– |
