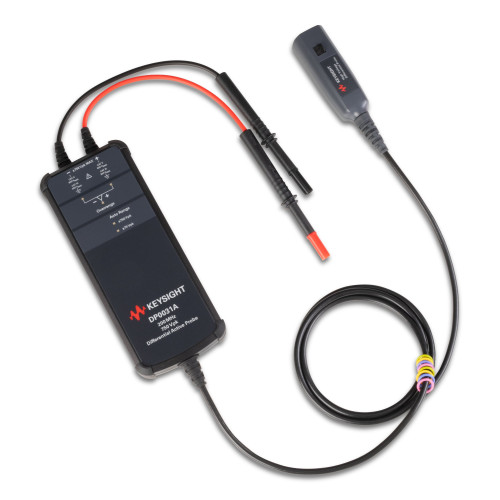

KEYSIGHT DP0031A 200MHz, 750V High-Voltage Differential Probe
KEYSIGHT DP0031A is a 200 MHz high voltage differential probe with 300 Vrms CAT III / 600 Vrms CAT II ratings. Make safe and accurate differential voltage measurements up to ±750 V in fast-switching environments with high common-mode voltages.
Included accessories:
1 x DP0040-68702 Extension lead set, 1m
1 x DP0040-68703 Jaws test clip set
1 x DP0040-68704 Hook test clip set
1 x DP0040-68705 Alligator test clip set, 3000V
Key features:
- 200 MHz bandwidth, ±750 V differential (DC + AC peak)
- attenuation ratios: 250 / 25:1, auto-switchable
- differential input impedance: 5 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- AutoProbe interface, 1 MΩ input
The DP0031A is compatible with KEYSIGHT oscilloscopes with 1 MΩ AutoProbe interfaces, including InfiniiVision 3000X, 4000X, 6000X, and HD3 Series, and Infiniium EXR and MXR-Series.
| Model | DP0030A | DP0031A | DP0032A | DP0033A | DP0034A |
| Bandwidth | 100 MHz | 200 MHz | 200 MHz | 200 MHz | 70 MHz |
| Attenuation (high/low) | 250/25:1 | 250/25:1 | 500/50:1 | 1000/100:1 | 2500/250:1 |
| Maximum differential measurement range (DC + AC peak) |
±750 / ±75 V | ±750 / ±75 V | ±1500 / ±150V | ±3000 / ±300V | ±7000 / ±700V |
| Oscilloscope interface | BNC + USB | AutoProbe1 | |||
