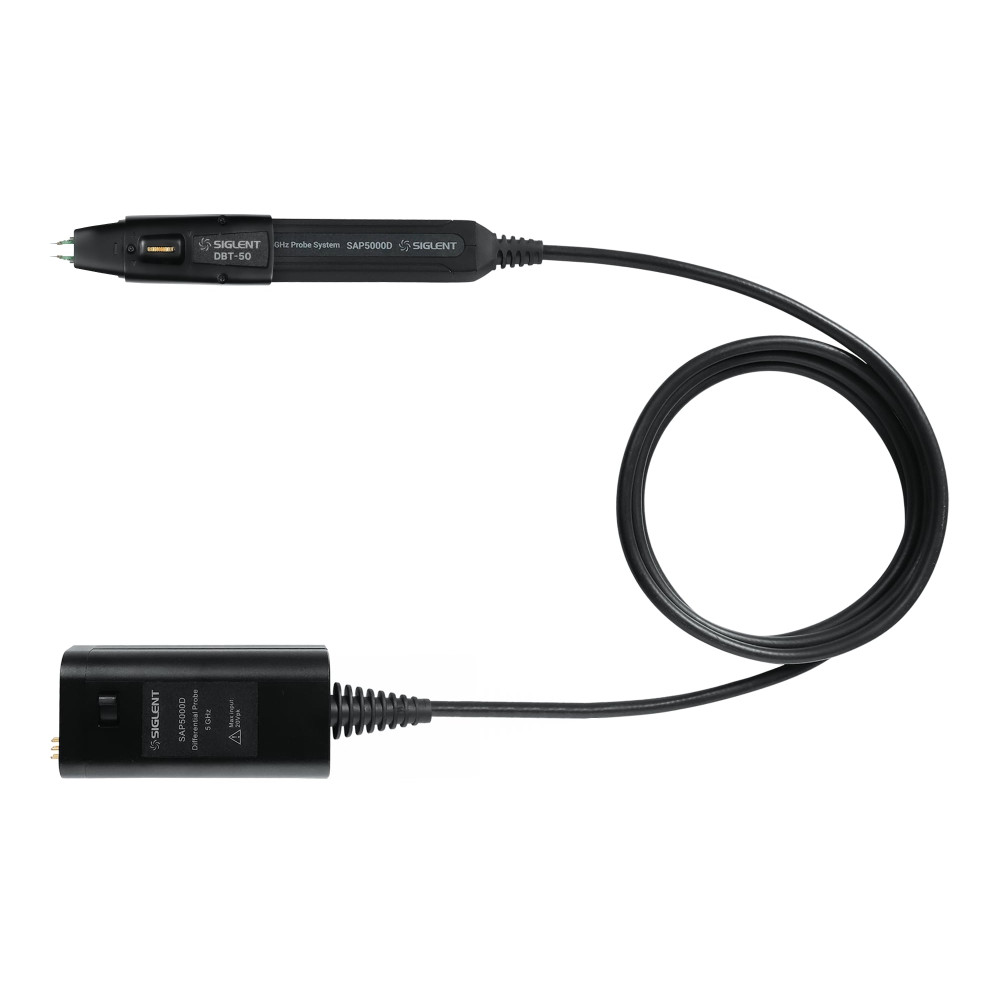

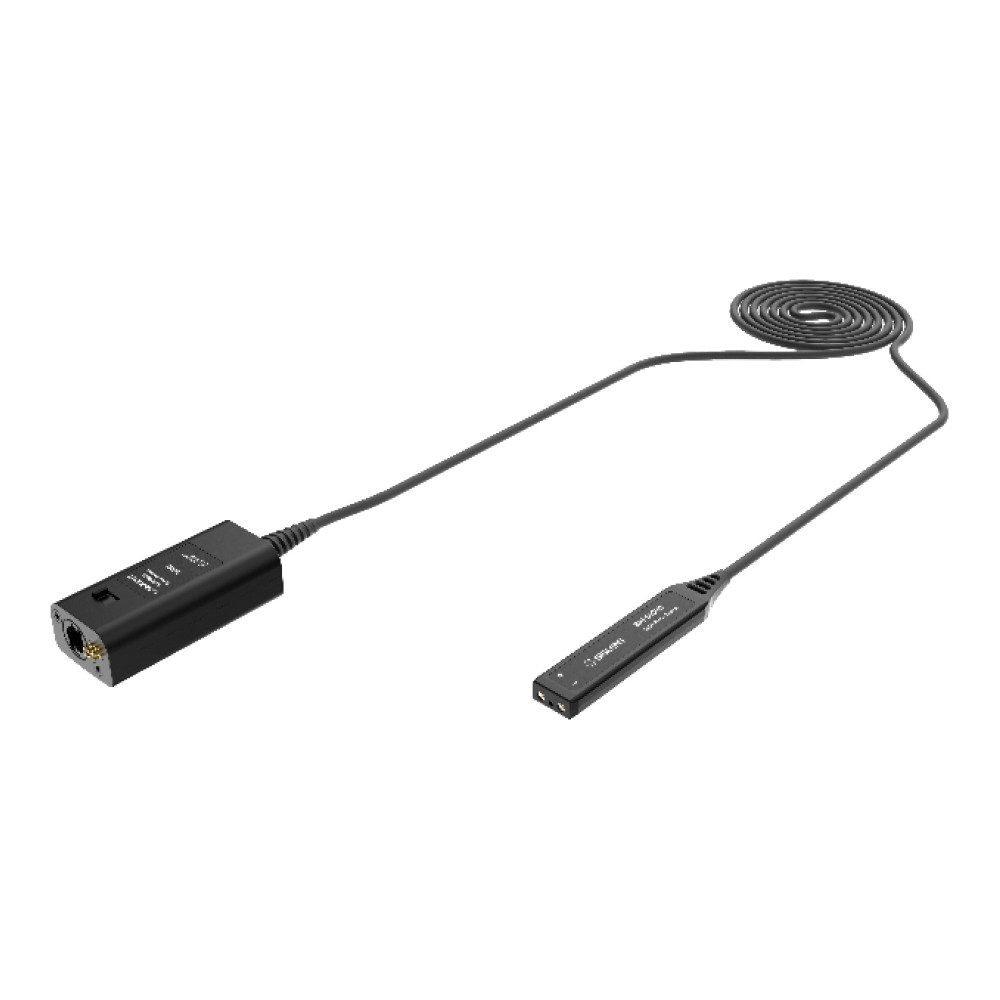

SIGLENT SAP5000D Differential Active Probe, 5 GHz
SIGLENT SAP5000D is a high-bandwidth differential active probe known for its features such as high bandwidth, low noise, and high input impedance, making it suitable for measuring high-speed signals. Its high input resistance and low input capacitance characteristics ensure minimal load introduced to the measurement system.
Key features:
- Probe Bandwidth: DC to > 5 GHz
- Single-ended input resistance: 10 kΩ
- Differential input resistance: 20 kΩ
- Probe gain: ÷ 10
- Differential input capacitance: 400 fF
- ± 2.5 V input dynamic range
- ± 12 V offset voltage setting range
- SAPBus interface
The SAP5000D active probe utilizes the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS3000X HD, SDS5000X, SDS6000 Pro and SDS7000A series oscilloscopes. The SAP series active probes do not require external power sources as the oscilloscope provides power and communication interface to the active probe through the SAPBus interface. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope's interface.
| Specifications | |
| Bandwidth (Probe only) | > 5 GHz |
| Bandwidth (with Oscilloscope) | 4 GHz (SDS7404A) |
| Differential input capacitance | 400fF |
| Differential input resistance | 20 kΩ |
| Single-ended input resistance | 10 kΩ |
| Offset range | ± 12 V |
| Attenuation ratio (DC) | ÷ 10 |
| Offset accuracy | < 3% |
| DC gain accuracy | < 3% |
| Input dynamic range | ± 2.5 V |
| Damage voltage | 20 V |
| Cable length | 130 cm |
