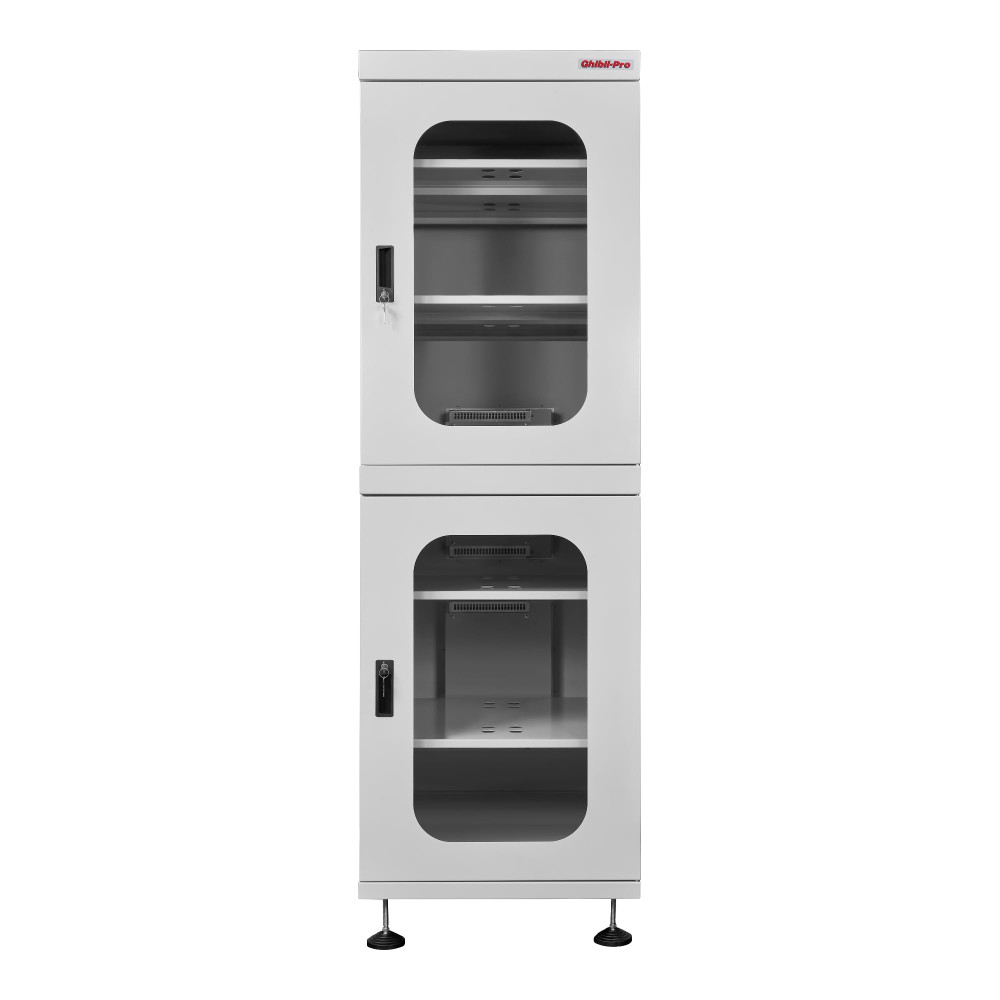

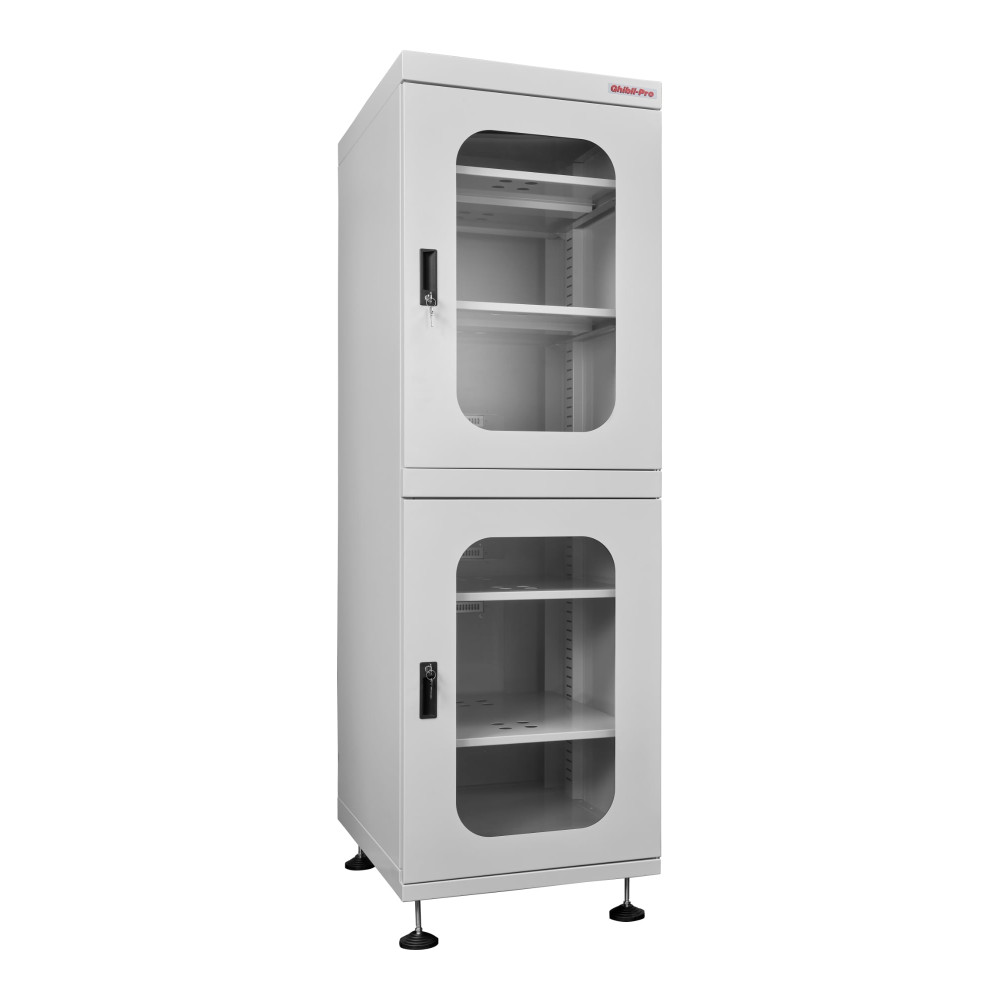

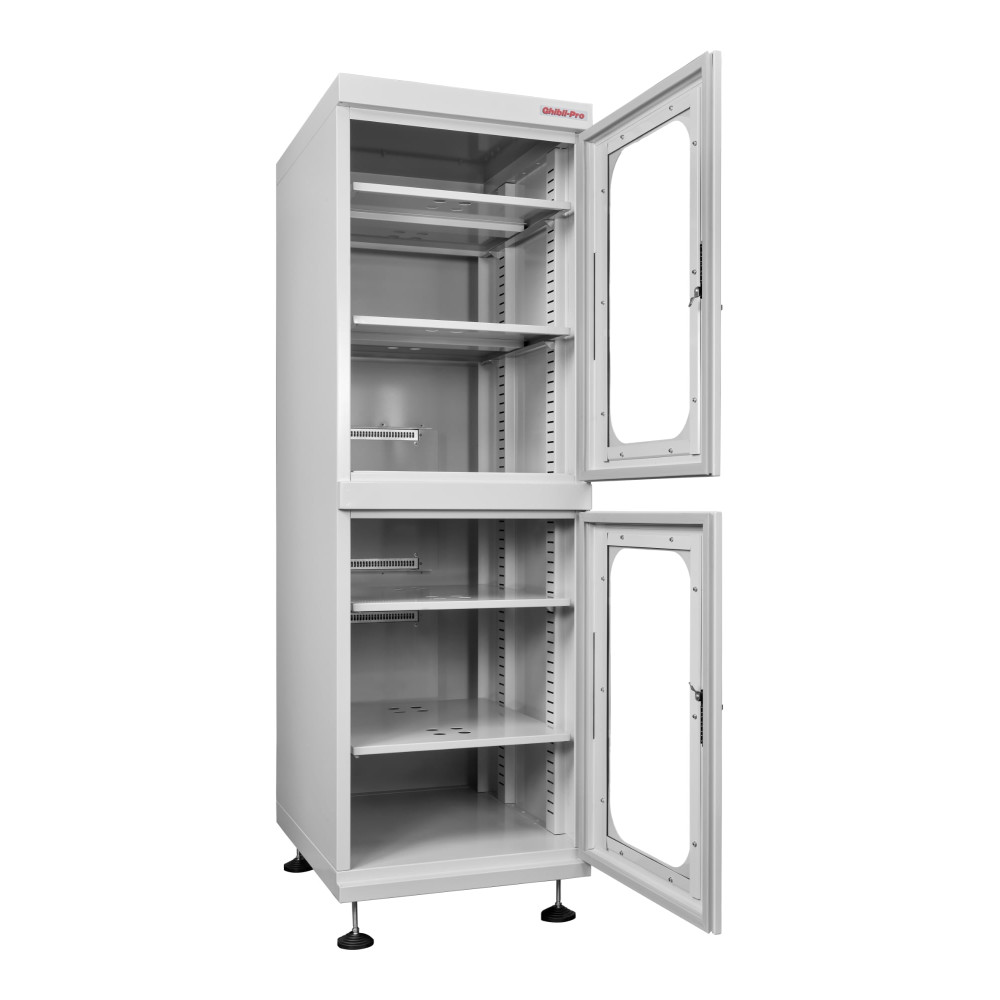

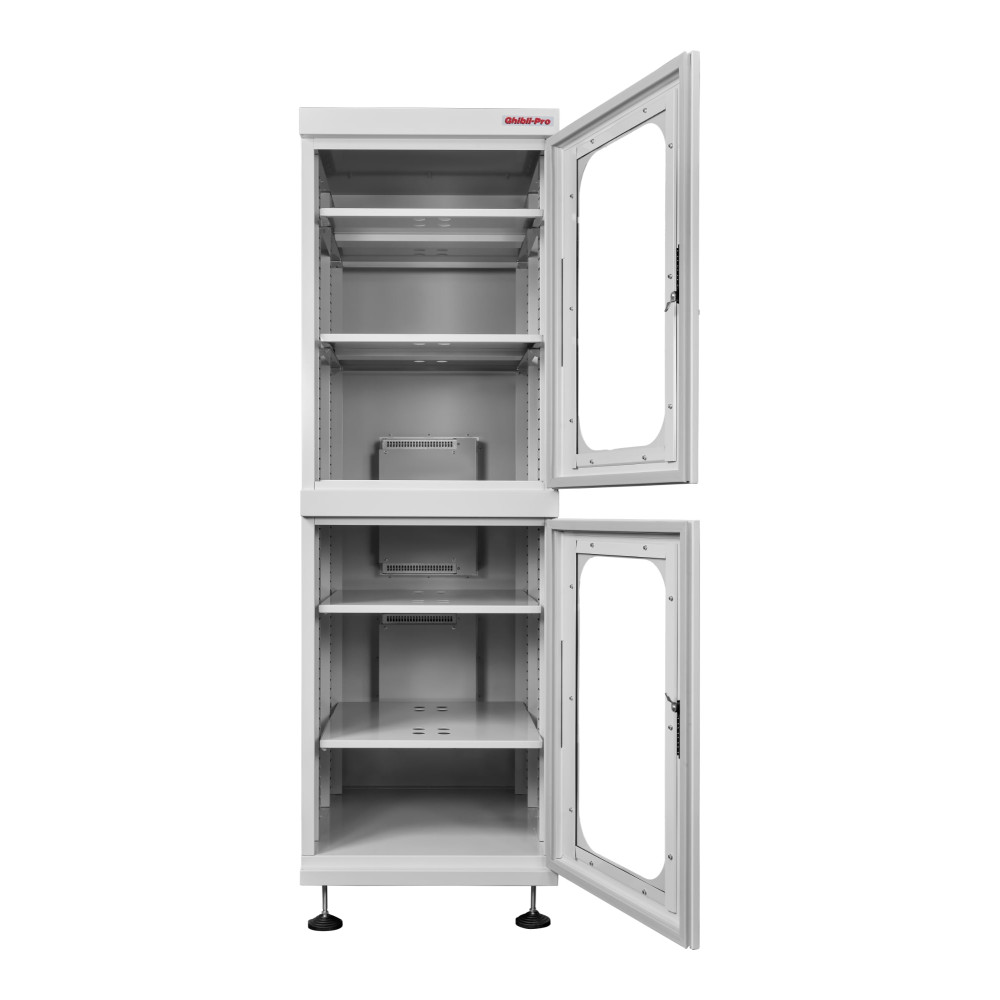

Iteco 8106.807 Ghibli PRO 700L Dehumidifier Cabinet
The Iteco Ghibli PRO 700L (8106.807) dehumidifying cabinet is the professional "plug-and-play" solution for the safe storage of moisture-sensitive electronic components (MSD). With a capacity of 700 liters, it offers an excellent balance between footprint and storage volume, ideal for production lines managing a constant flow of critical components (BGAs, LEDs, PCBs).
Compliant with the J-STD-033 standard, this cabinet guarantees a stable environment with relative humidity below 5% RH (typical value 2%). This resets the "Floor Life" of the components, allowing for safe and indefinite storage of material removed from its protective packaging (Dry Pack).
Main Advantages
- Maximum Reliability (Always Active): The zeolite dehumidifying modules (TekDry) operate continuously and are not controlled by hygrometric sensors. This completely eliminates the risk of machine downtime due to sensor malfunctions or drift, ensuring constant 24/7 protection.
- Ease of Use (Plug & Play): No settings required. Simply connect the cabinet to the power supply to automatically reach safe humidity levels.
- Simplified Maintenance and Long Life: The modular structure allows for the removal and replacement of dehumidifying modules in just a few minutes, ensuring an operational life of over 20 years.
- Simple Monitoring and Calibration: Includes the DryLogger (p/n 9265.302) portable instrument, a precise Datalogger that measures humidity and temperature. It can be easily removed and sent for calibration without ever stopping the cabinet's operation.
- ESD Protection: Robust steel structure (1.2 mm) with dissipative paint (10³-10⁹ Ω) and ground cable, for safe use in EPA areas.
Technical Specifications
- Code: 8106.807
- Model: Ghibli PRO 700L
- Humidity Range: < 5% RH (guaranteed), 2% RH (typical)
- Capacity: 700L
- External dimensions (mm): 580x767x1755
- Trays included: 5
- Tray dimensions (mm): 510x606x18
- Average consumption: 40W
- Maximum consumption: 500W
- Weight: 118Kg
- Included: Portable Datalogger DryLogger (9265.302)
Ghibli PRO Line Model Comparison
| Feature | 8106.803 Ghibli PRO 350L | 8106.807 (Current) Ghibli PRO 700L | 8106.814 Ghibli PRO 1400L |
|---|---|---|---|
| Capacity | 350L | 700L | 1400L |
| External dimensions (mm) | 580x767x895 | 580x767x1755 | 1160x767x1720 |
| Trays | 2 | 5 | 5 |
| Tray dimensions (mm) | 510x606 | 510x606 | 1094x606 |
| Average consumption | 40W | 40W | 80W |
| Maximum consumption | 250W | 500W | 500W |
| Weight | 56Kg | 118Kg | 178Kg |
