Fluke iSee Mobile Thermal Cameras Introduction

Posted by Batter Fly 01/12/2025 0 Comment(s) 3267 Test & Measurement,

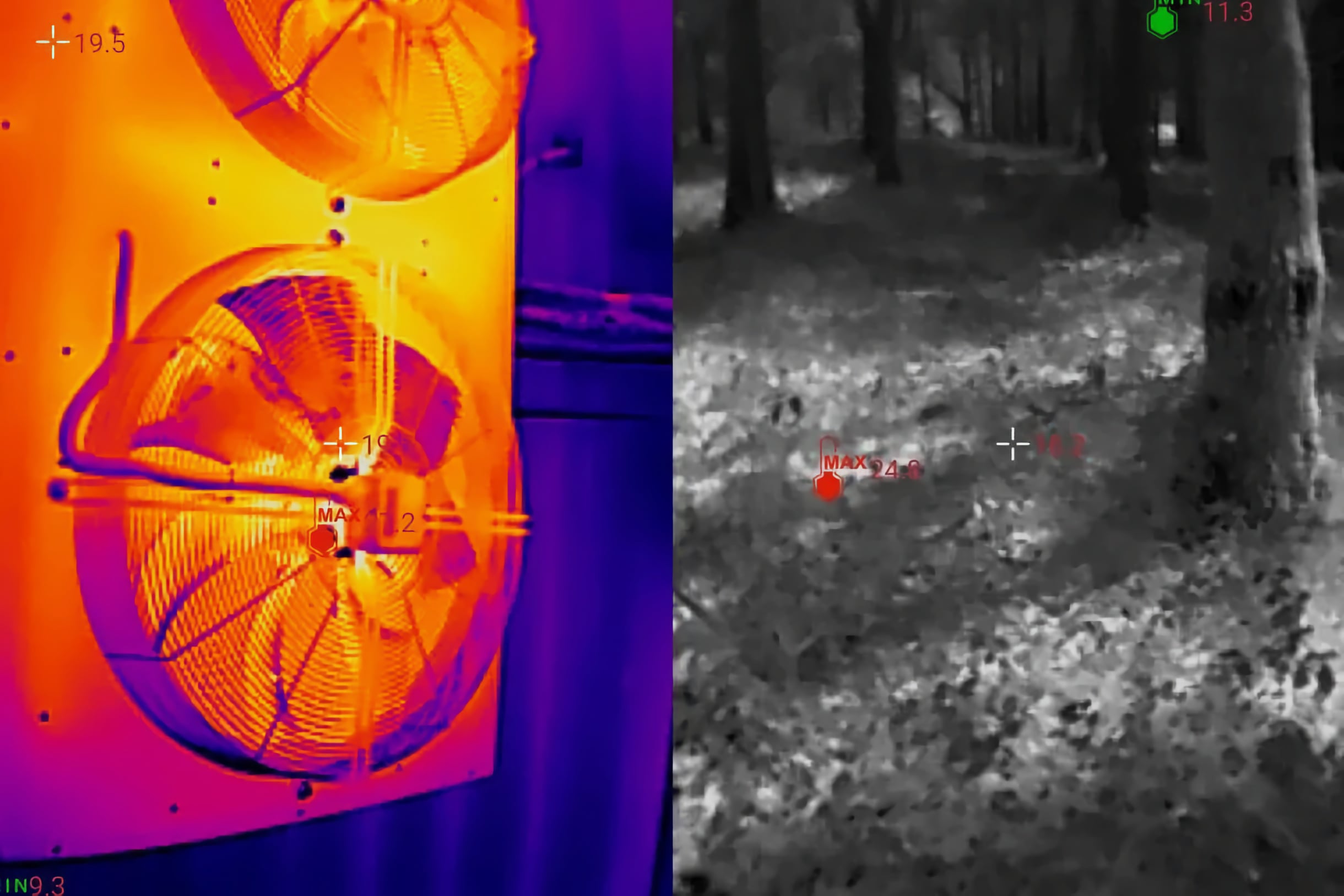

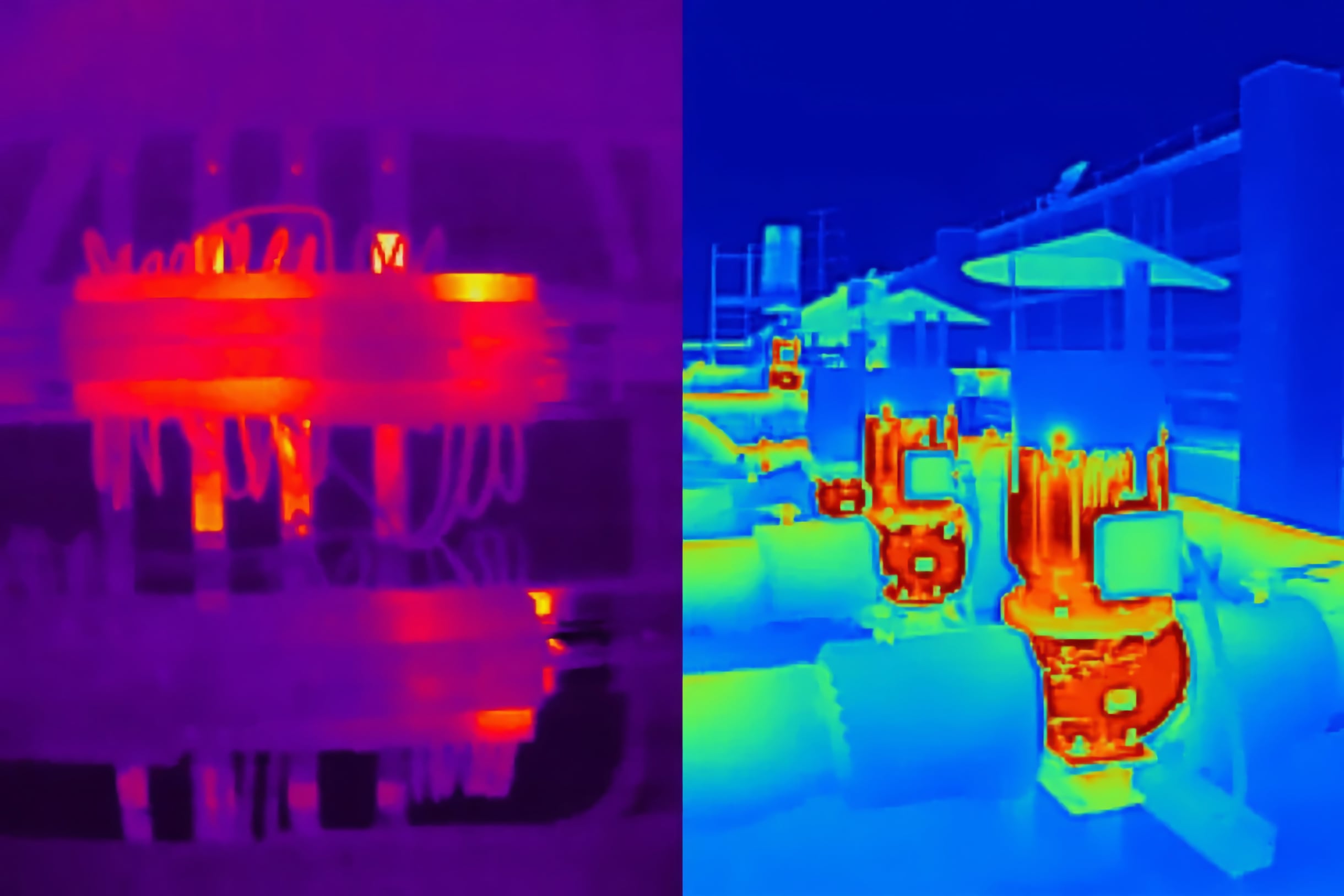

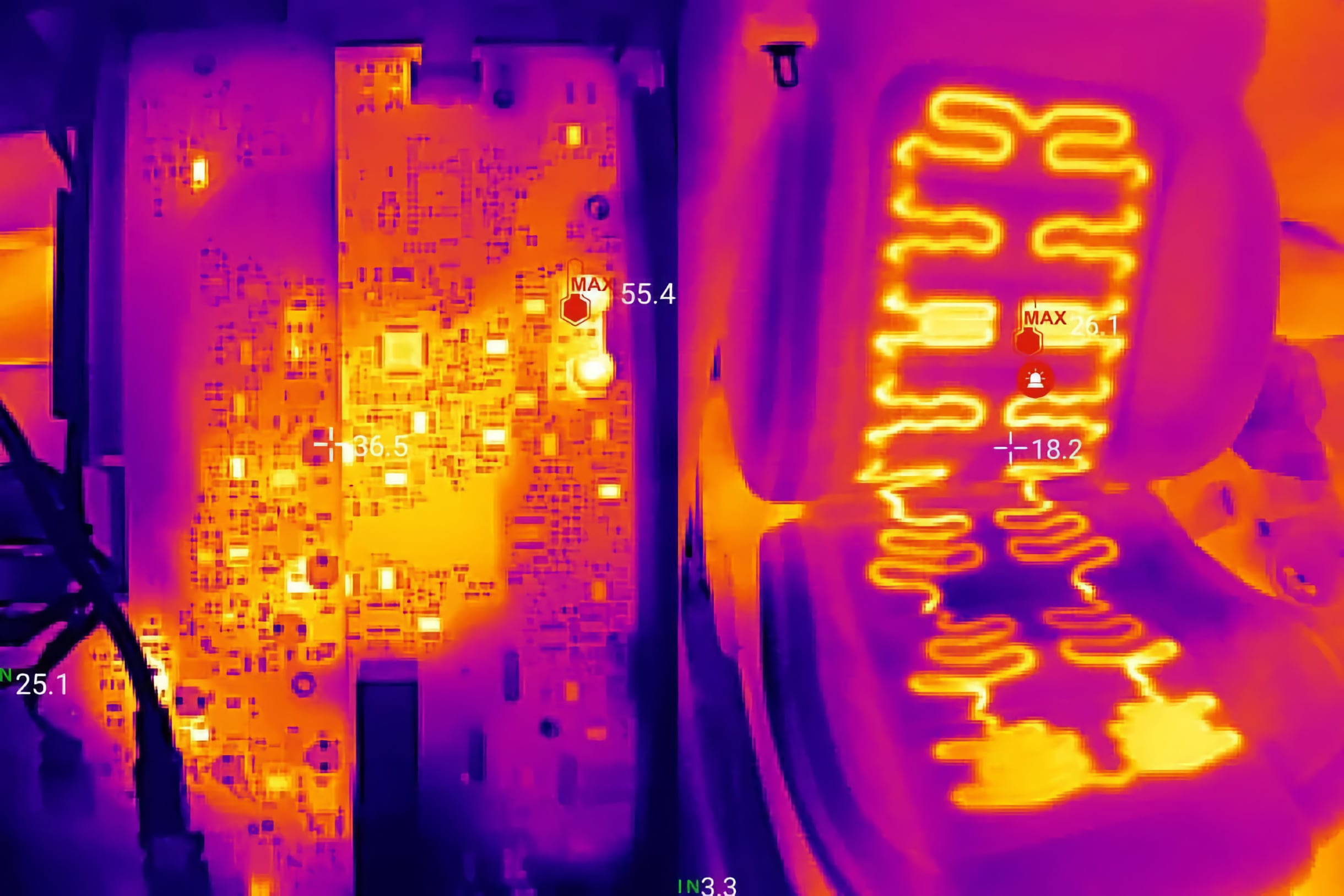

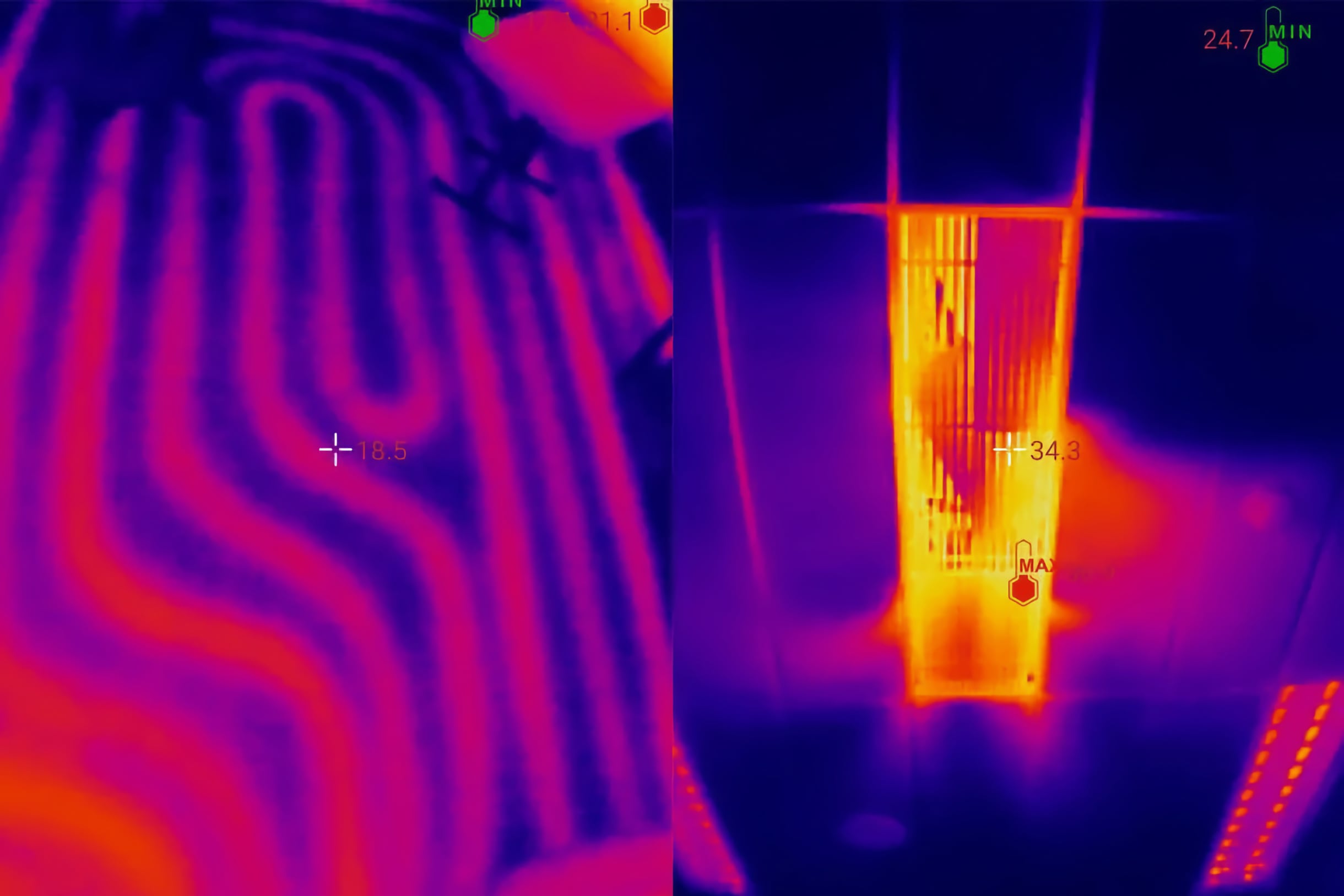

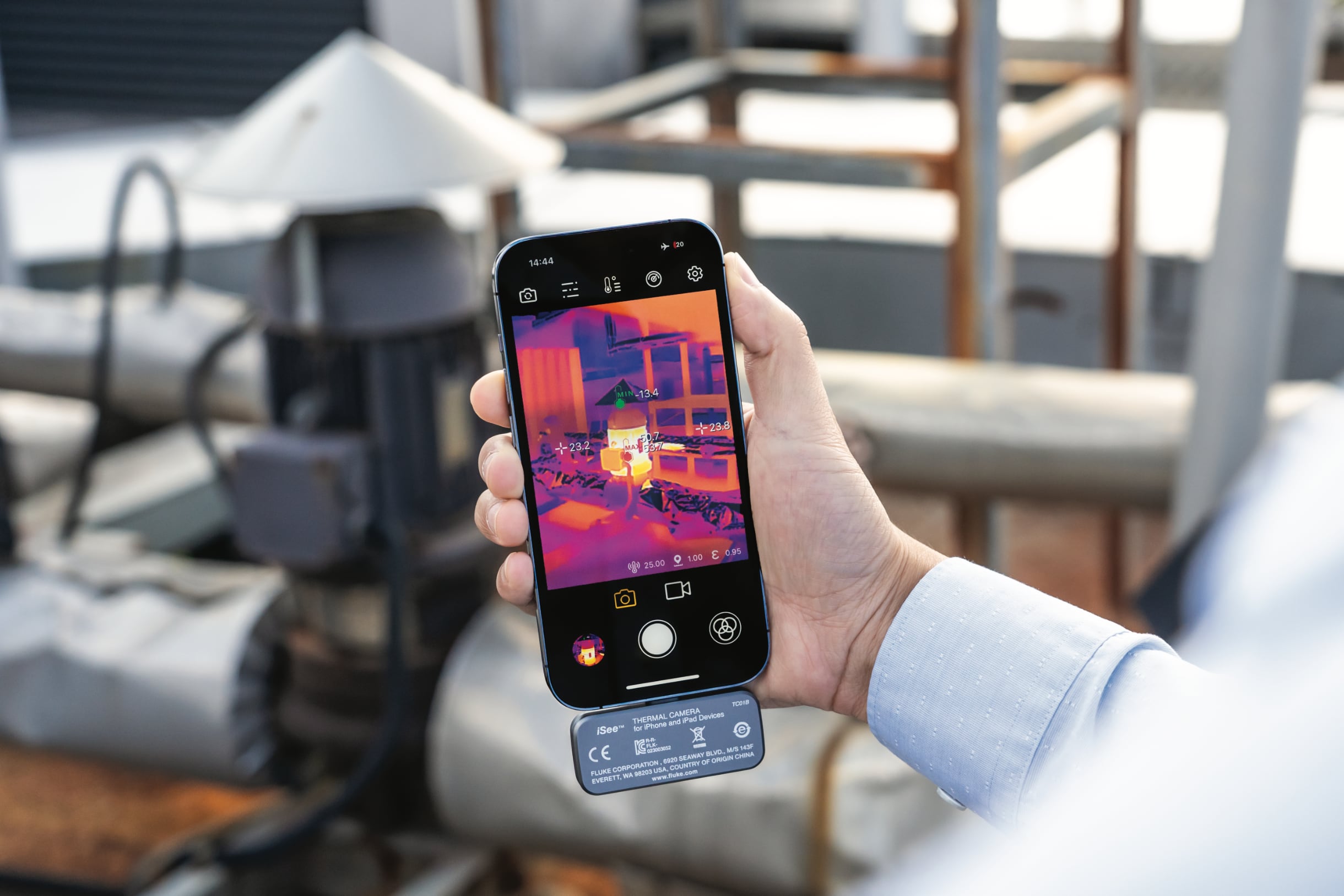

Perform inspections quickly and easily anywhere with the Fluke iSee mobile thermal imaging camera, weighing only 22g. It only takes a second to start using it. The wide temperature measurement range, up to 550°C, makes it suitable for various applications, including inspection of electrical cabinets, identification of HVAC problems and installation of underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal imaging cameras, with 256 x 192 pixel thermal resolution and smooth video recording. In addition, the software offers comprehensive temperature analysis by point, line and area for precise diagnostics.

❮ ❯

CLICK HERE TO VIEW THE FLUKE iSee SERIES

Software
With the features of the Fluke iSee app, users can perform advanced temperature analysis (using point, line, and area temperature calculations), perform thermal camera recalibration for more accurate temperature values, and access an image gallery to simplify sharing and report generation. Languages supported at launch: Czech, Simplified Chinese, Traditional Chinese, Korean, Finnish, French, Japanese, English, Italian, Dutch, Polish, Portuguese, Russian, Spanish, Swedish, German, and Turkish.

Model	TC01A	TC01B	TC01C
Performance Specifications
IR resolution	256 x 192
Pixel size	12 μm
Temperature range	-10°C to 550°C (14°F to 1022°F)	-20°C to 550°C (-4°F to 1022°F)
Temperature accuracy	± 2% of rdg or ± 2°C / 3.6°F, whichever is greater (@ 23°C ± 5°C ambient temperature)
Measurement distance	0.25m to 5m
Frame rate	9 Hz or 25 Hz	25 Hz
Focal length	Fixed: 3.2 mm
Shutter mode	Internal
Thermal sensitivity (NETD)	50 mK
Spectral range	8 to 14 μm
Field of view (H x V)	56° x 42°
Spatial resolution	3.81 mrad
General Specifications

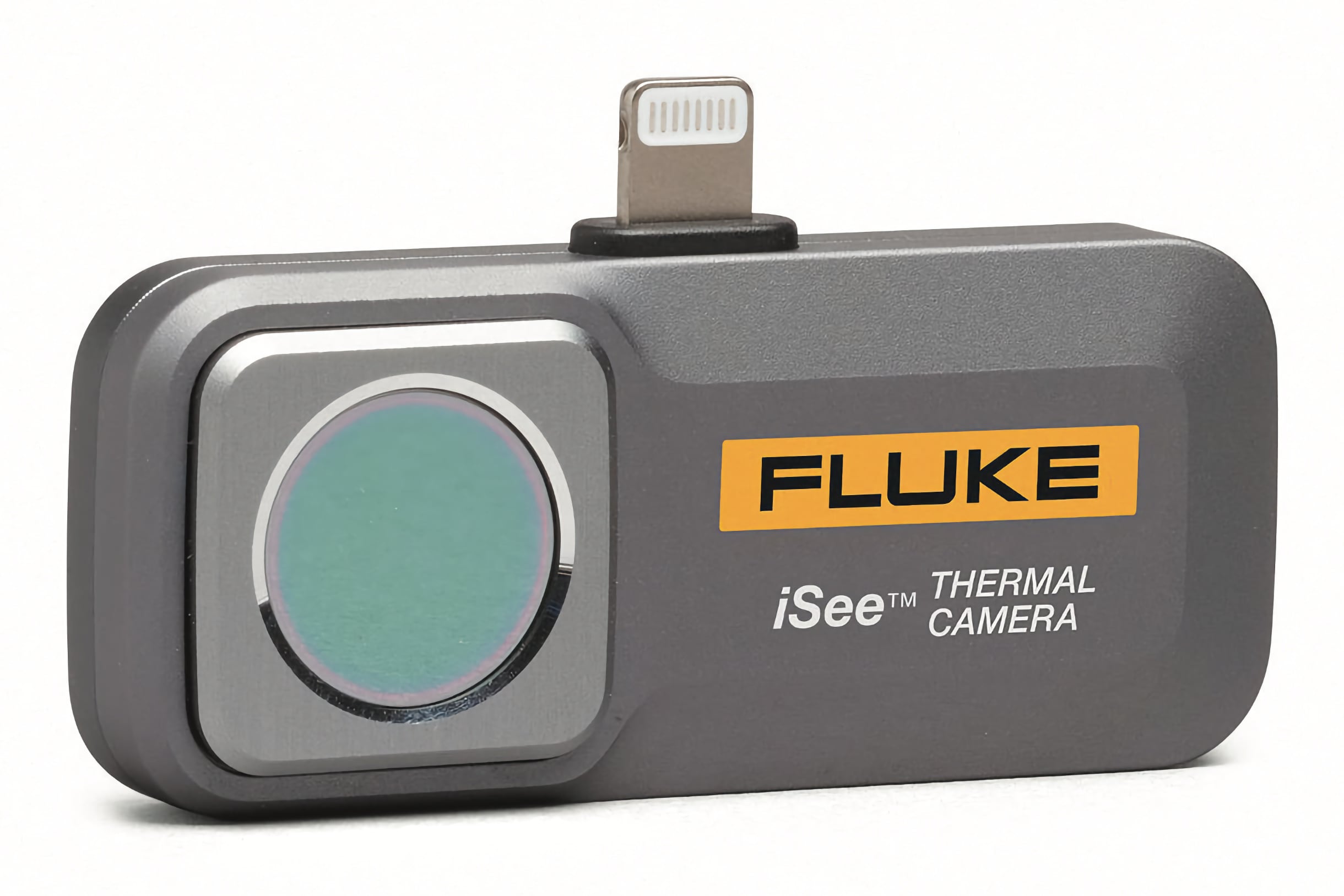

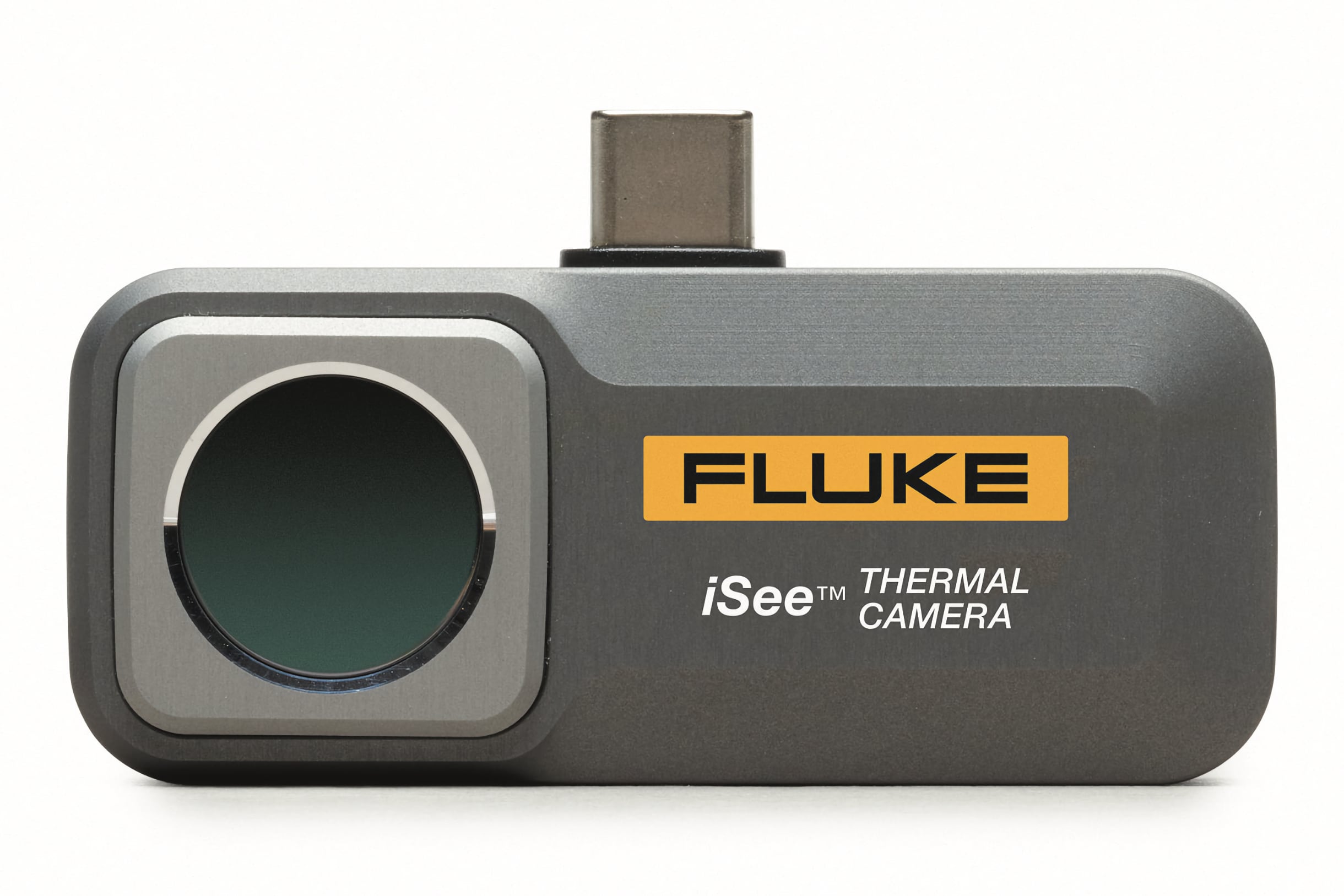

USB interface	Type-C	Lightning	Type-C
Compatible System	Android / HarmonyOS	iOS (iPhone / iPad)
Operating temperature	0°C to 40°C
Storage temperature	-30°C to 60°C
Operating humidity	10% to 90% RH, non-condensing
Power consumption	350 mW (Typical)	200 mW (Typical)
Drop test	1 m
Ingress protection	IP54	IP56
Operating altitude	2,000 m
Storage altitude	12,000 m
Dimensions	60 x 33.5 x 11.2 mm
EMC Environment	IEC 61326-1: Group 1, Class A Korea (KCC): Class A USA (FCC): 47 CFR 15 Subpart B
Warranty	2 years
