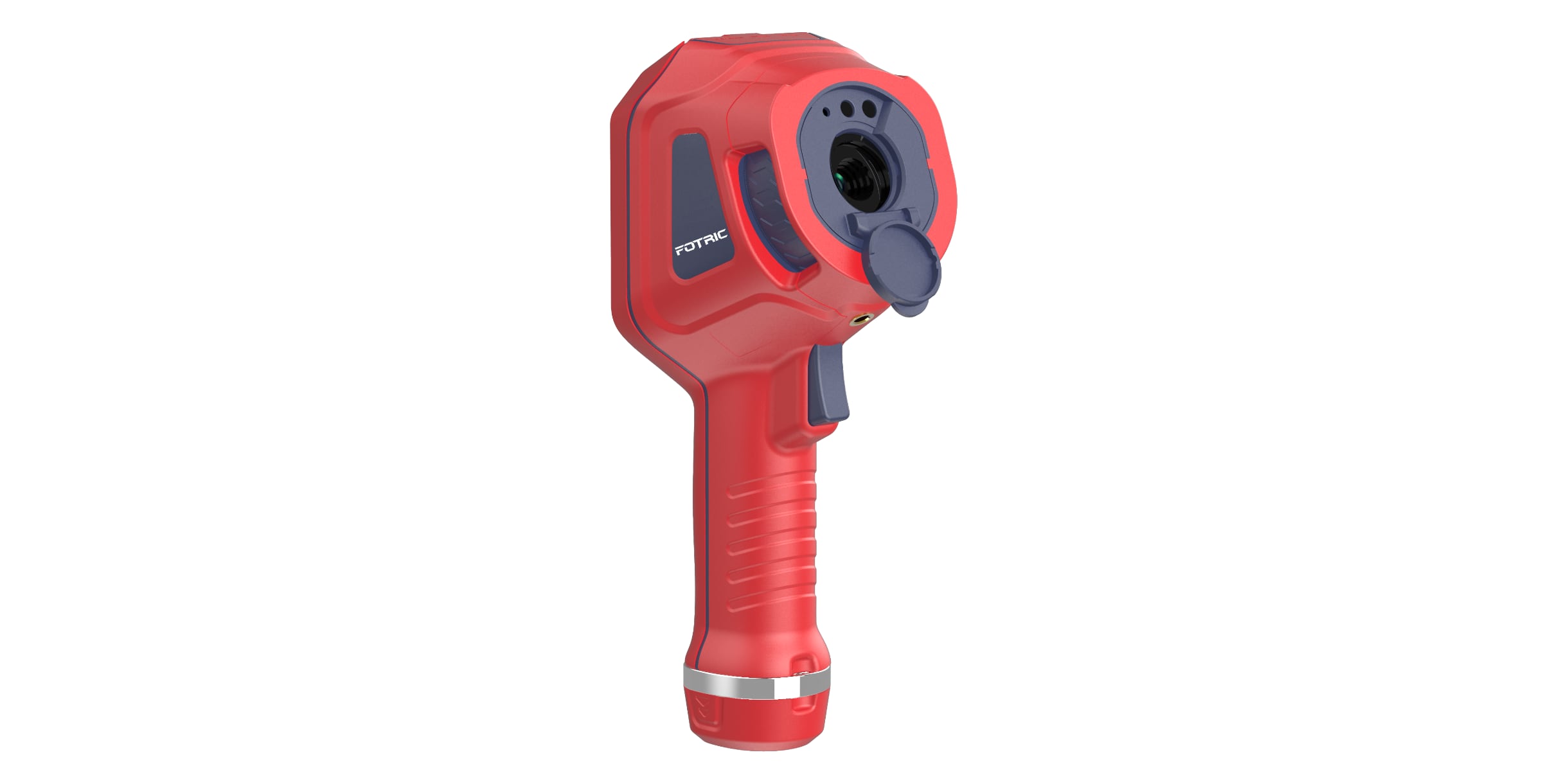

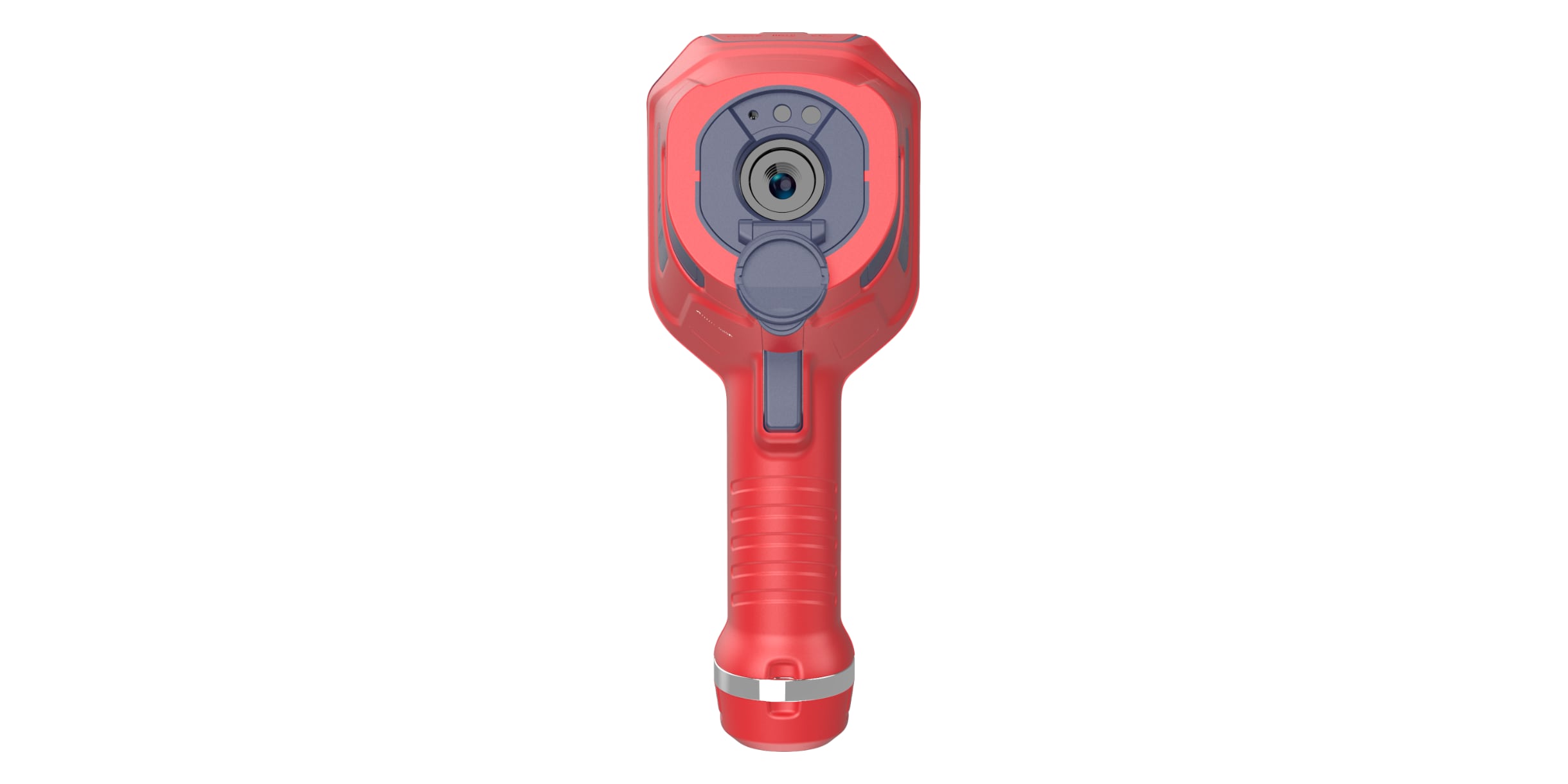

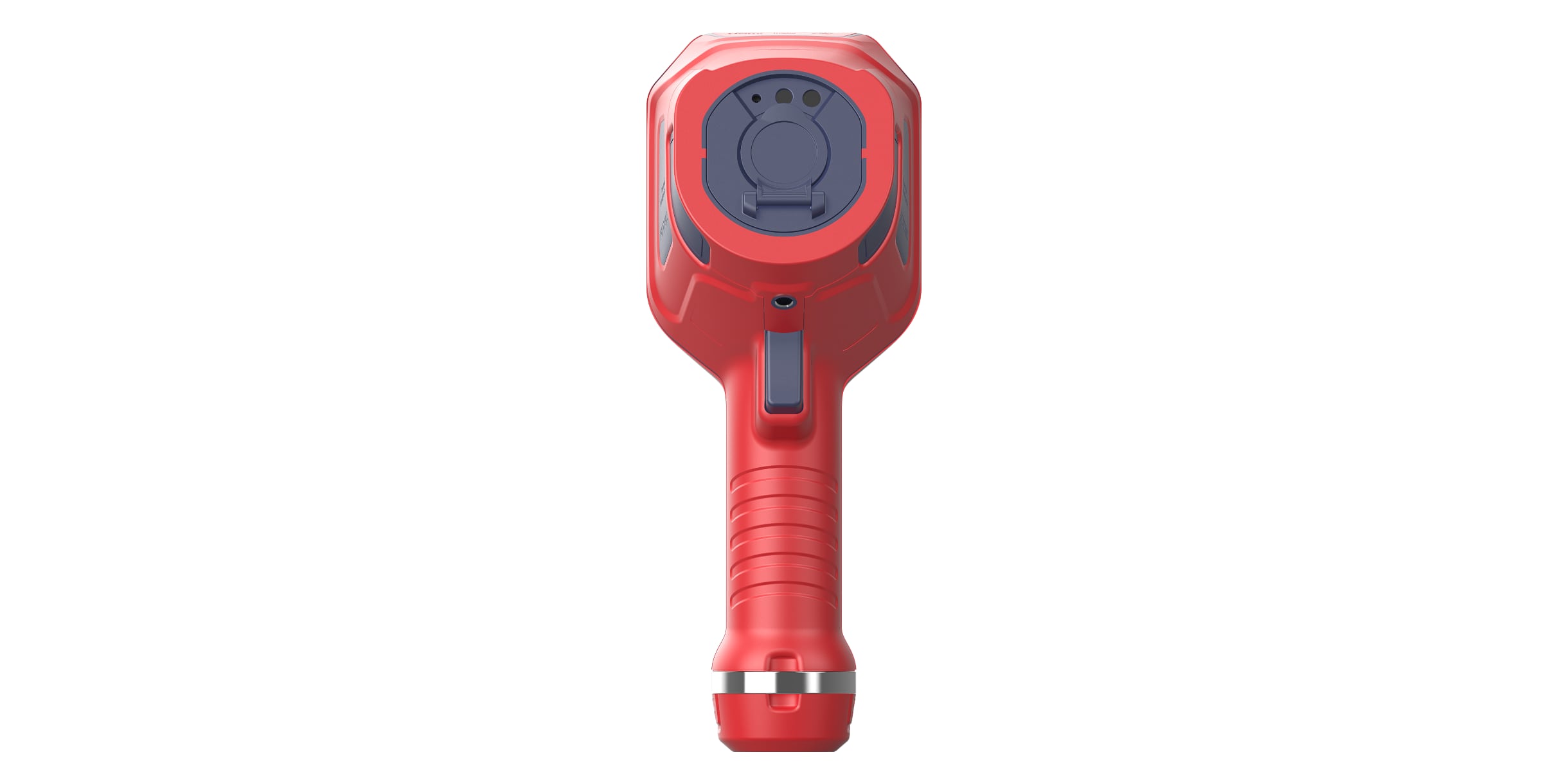

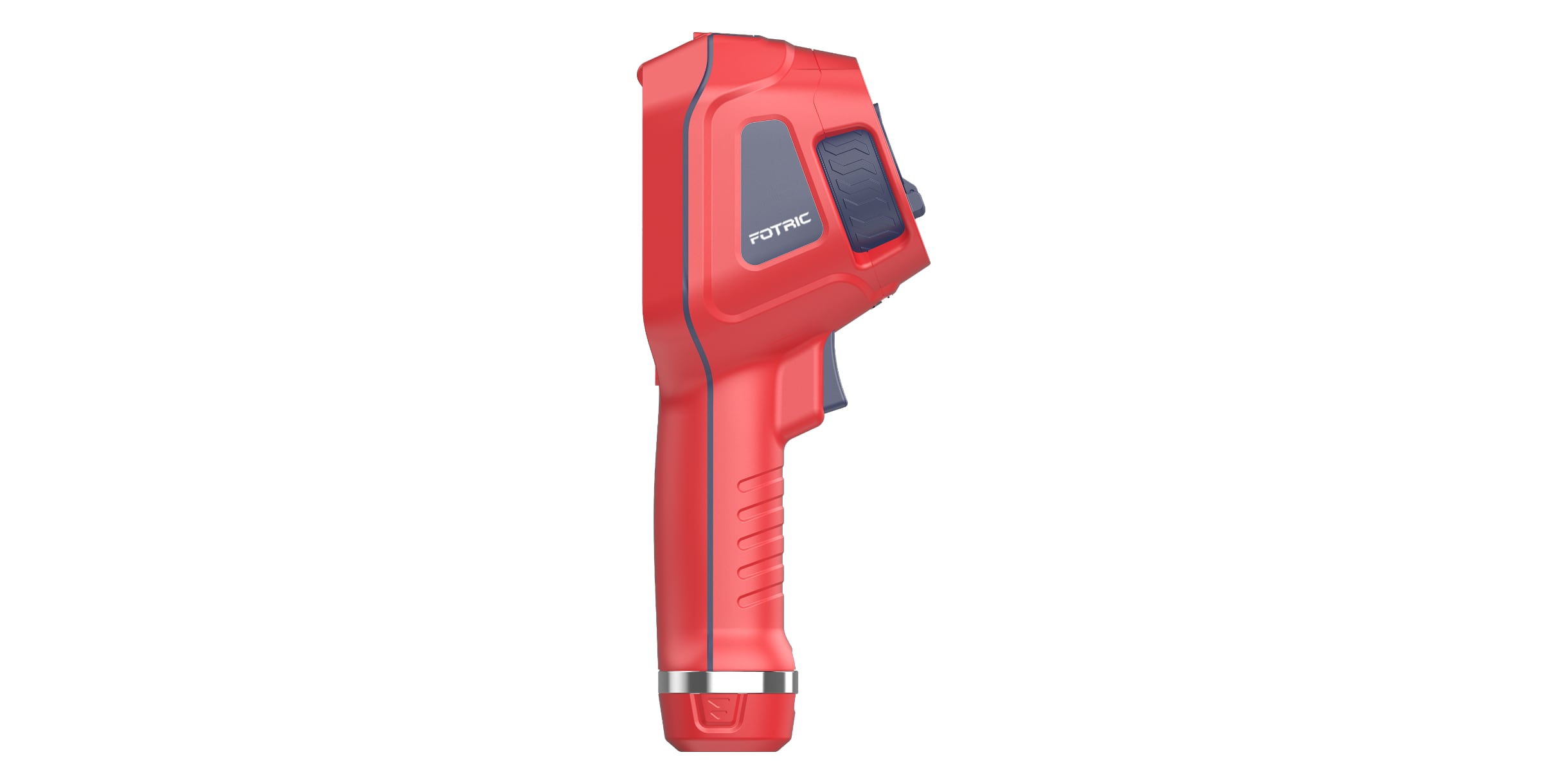

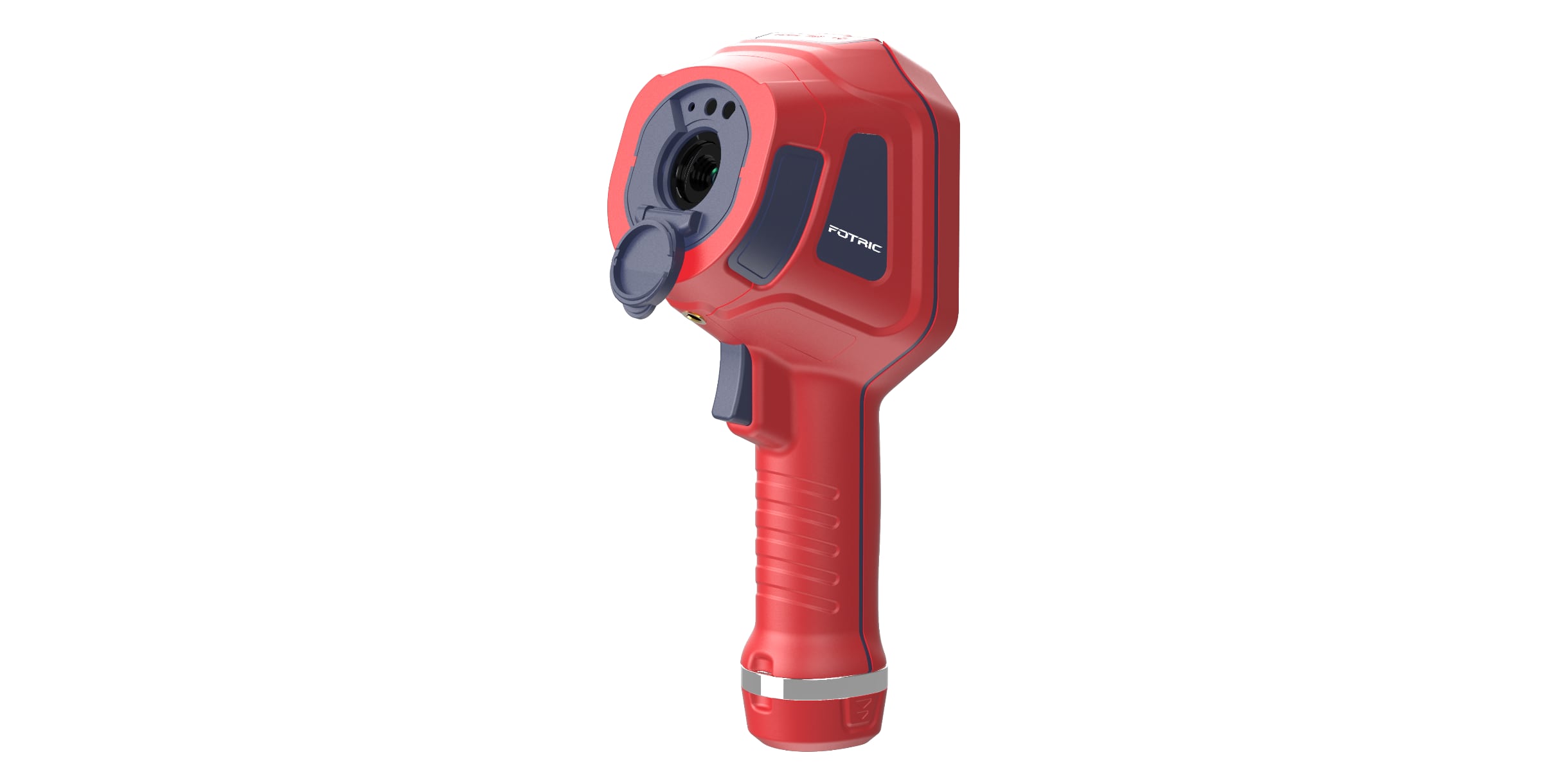

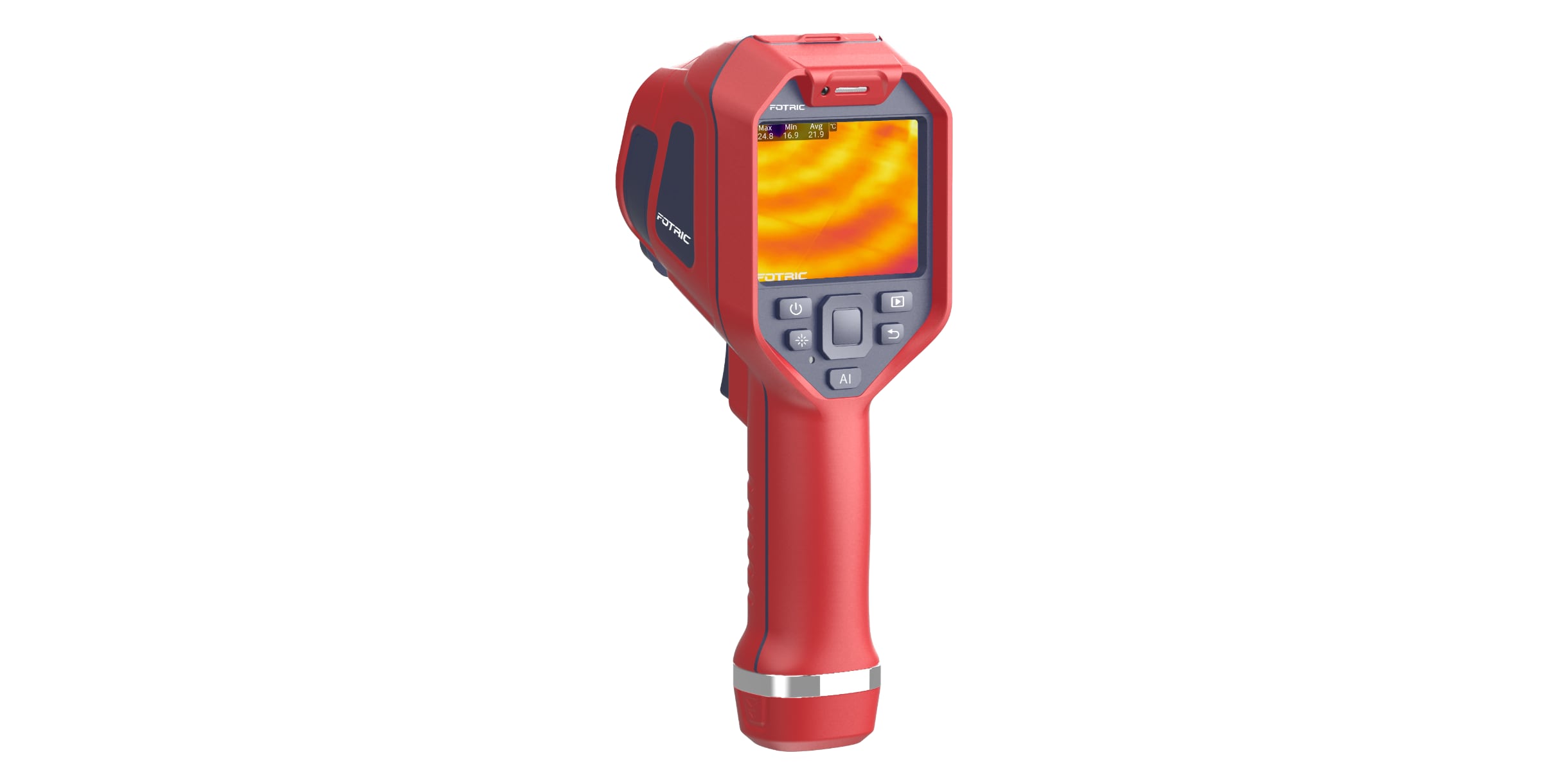

FOTRIC C-Series Introduction: Compact Thermal Cameras for Industrial Inspections and Maintenance

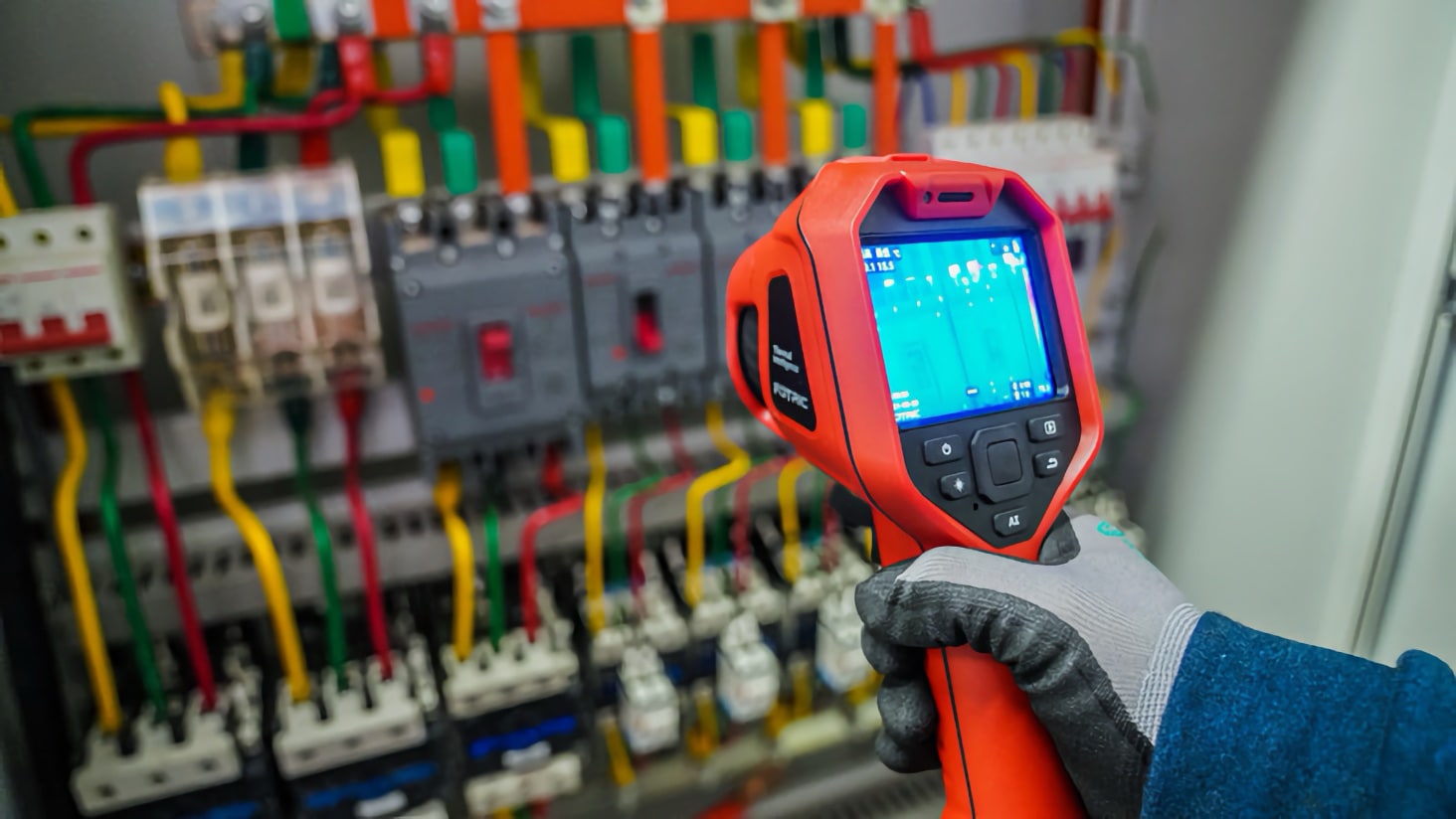

FOTRIC C2 and C5 are compact thermal cameras designed for industrial maintenance and diagnostics. They combine a rugged design, reliable performance, and ease of use with a large 3.5" touch display. With resolution up to 384×288 px and thermal sensitivity down to 40 mK, they allow users to quickly detect hotspots and thermal anomalies in electrical, building, and manufacturing systems. Thanks to manual focus (or focus-free on C5), they're perfect even for close-up inspections.
- IR resolution: up to 384 × 288 px
- Thermal sensitivity: down to 40 mK
- Temperature range: -20 ~ 650°C
- Full radiometric video recording
- 3.5” touchscreen
- Manual and focus-free operation (C5)
- Voice annotations via Bluetooth: save audio notes directly into images
- Quick tagging: using QR-Code
- Professional reporting: auto-generated via FOTRIC AnalyzIR
- Image sharing: thermal JPEGs with temperature data
- Radiometric video recording directly on device
- Fast download: via Wi-Fi or SD card
Advanced Thermal Analysis Solutions
Using the right image analysis and reporting software can have a transformative impact on your business. It simplifies issue interpretation for clients and builds trust in the effectiveness of your solutions.
FOTRIC IRExplorer is a powerful cross-platform analysis system that enables remote control and access to FOTRIC thermal cameras via web browser on various devices, including Mac, Windows, iOS, Android, and Linux over WiFi.
FOTRIC AnalyzIR is a complete analysis software designed to optimize thermal inspection and reporting processes, improving efficiency and accuracy.
FOTRIC C2 vs C5 Comparison Table
| Features |
FOTRIC C2 |
FOTRIC C5 |
| IR Resolution |
160 × 120 px |
384 × 288 px |
| Thermal Sensitivity (NETD) |
< 0.05°C (50 mK) @30°C |
< 0.04°C (40 mK) @30°C |
| Field of View |
46° × 35° |
49° × 37° |
| Focus |
Manual |
Manual & Focus-Free |
| Temperature Range |
-20°C ~ 550°C |
-20°C ~ 650°C |
| Accuracy |
±2 °C or ±2% |
| Memory |
SD card 32GB |
SD card 64GB |
| Digital Camera |
8 MP |
| Color Palettes |
8 available |
| Battery |
Li-ion 5000 mAh (≥4h) |
| Weight |
730 g |
| Protection |
IP54 |
| Drop Resistance |
2 m |
