GW Instek GCP Series: AC/DC Current Probes Introduction

Posted by Batter Fly 19/09/2025 0 Comment(s) 446 Test & Measurement,

GW Instek introduces the new series of AC/DC current probes GCP-0275, GCP-0550, and GCP-2525, designed to provide accurate, reliable, and easy-to-perform current measurements. Thanks to their split-core construction, these probes allow for a quick and easy connection to conductors without interrupting the circuit. Featuring low noise and minimal DC drift, they are the ideal tool for a wide range of applications, including the analysis of power supplies, power inverters, motor drives, and semiconductor devices.

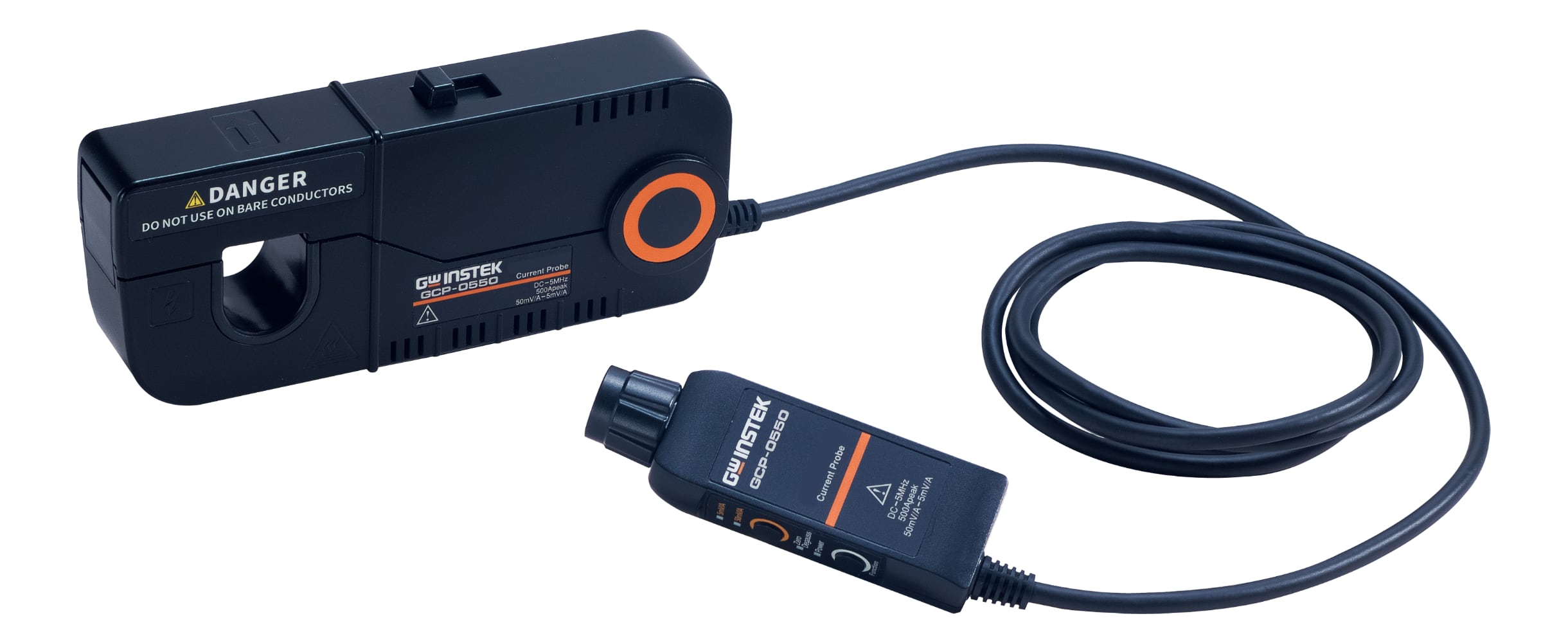

GW Instek GCP Series Current Probes

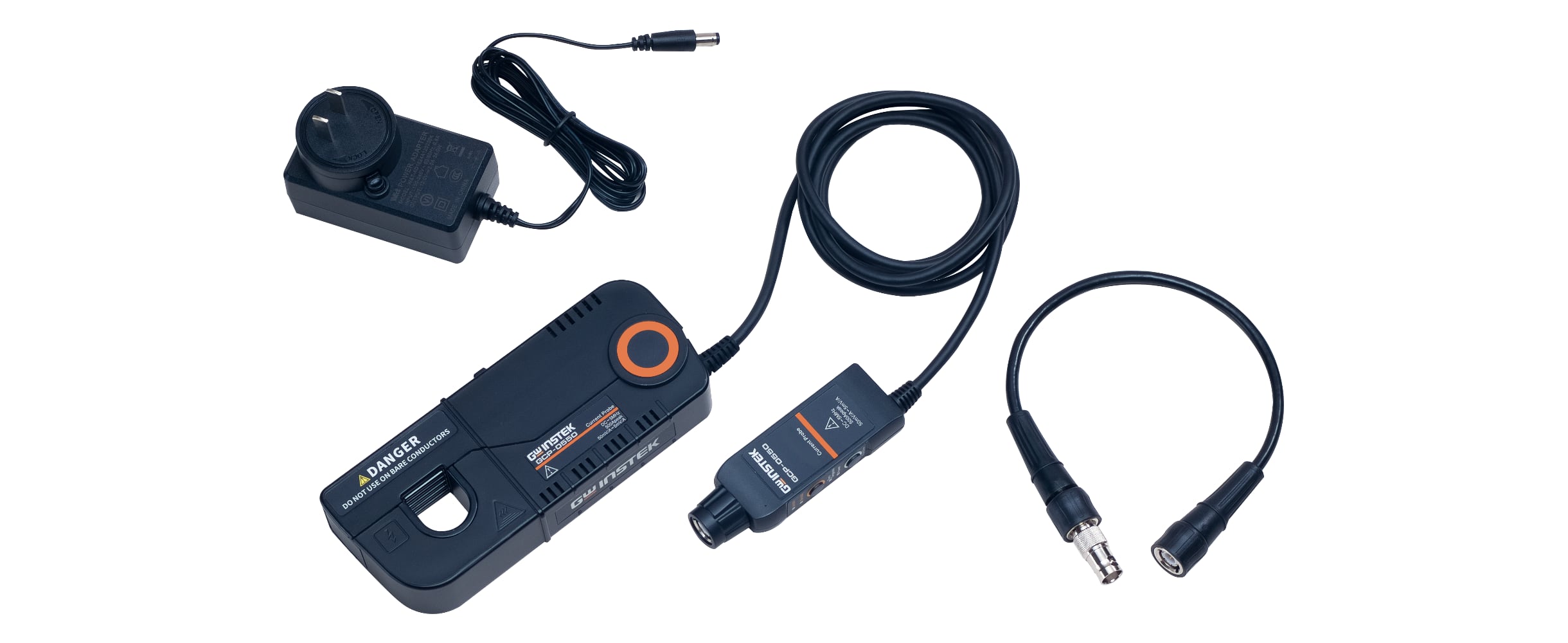

Detail of the GCP-2525 probe

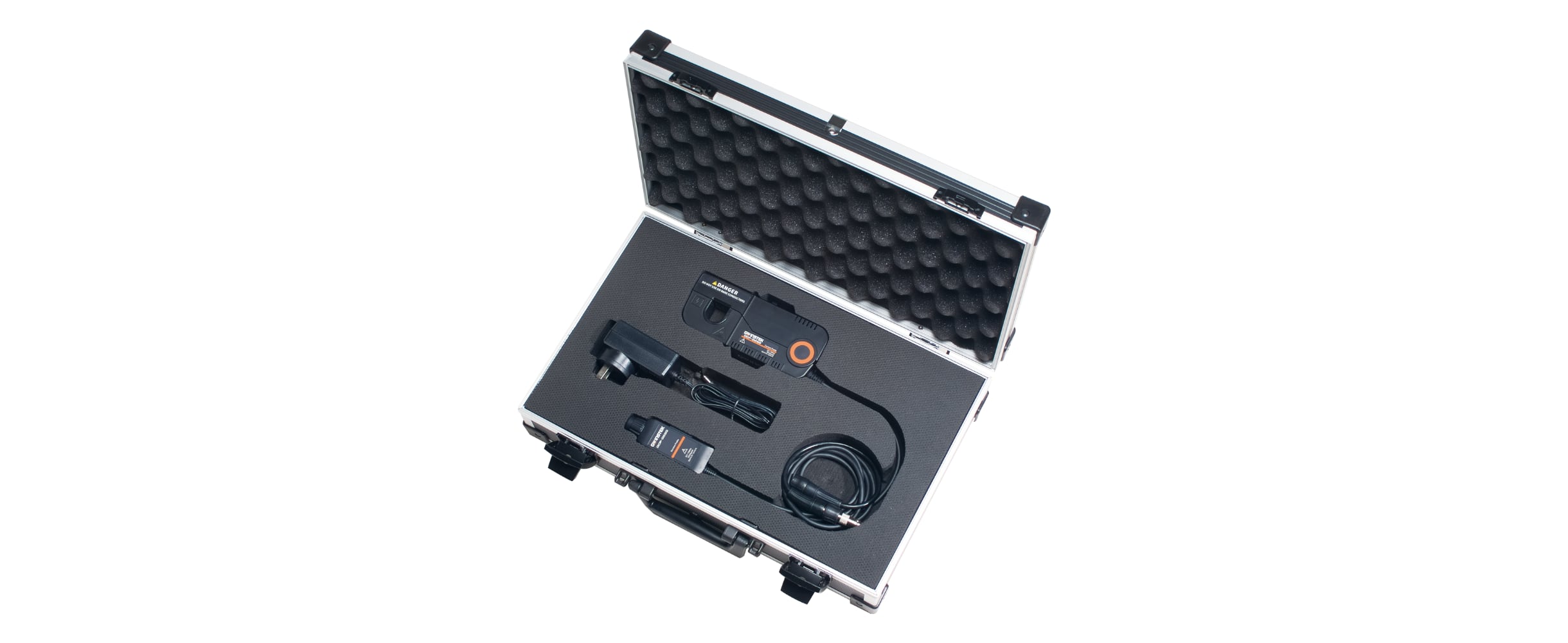

Application of GCP current probes
Specifications GCP-0275 GCP-0550 GCP-2525
Bandwidth (-3 dB) DC to 2 MHz DC to 5 MHz DC to 25 MHz
Max Peak Current (DC+AC) 750 A 500 A 250 A
Continuous Maximum Current (RMS) 500 Arms 350 Arms 170 Arms
Minimum Current 50 mA 20 mA 20 mA
Rise Time ≤ 175 ns ≤ 70 ns ≤ 14 ns
Accuracy 1% ±1mV
Jaw Diameter 20 mm
Insulated Line Voltage 600 V CAT II / 300 V CAT III
