KEYSIGHT InfiniiVision 4000G X-Series Oscilloscopes Introduction

KEYSIGHT 4000G X-Series offers the industry-leading capabilities engineers value in InfiniiVision, such as the fastest uncompromised waveform update rate and the world’s easiest triggering capability, zone trigger. The 4000G raises the bar with advanced features now included in the standard configuration, creating a combination of advanced performance, intuitive usability and versatile functionality.

KEYSIGHT 4000 X-Series – Versatility unleashed, possibilities amplified

• Advanced
  • Industry’s only uncompromised 1,000,000 waveforms per second update rate
  • Zone trigger, segmented memory, FFT, math
  • Standard on G models: dual WaveGen, mask testing, FRA, histograms, some serial decodes
• Intuitive

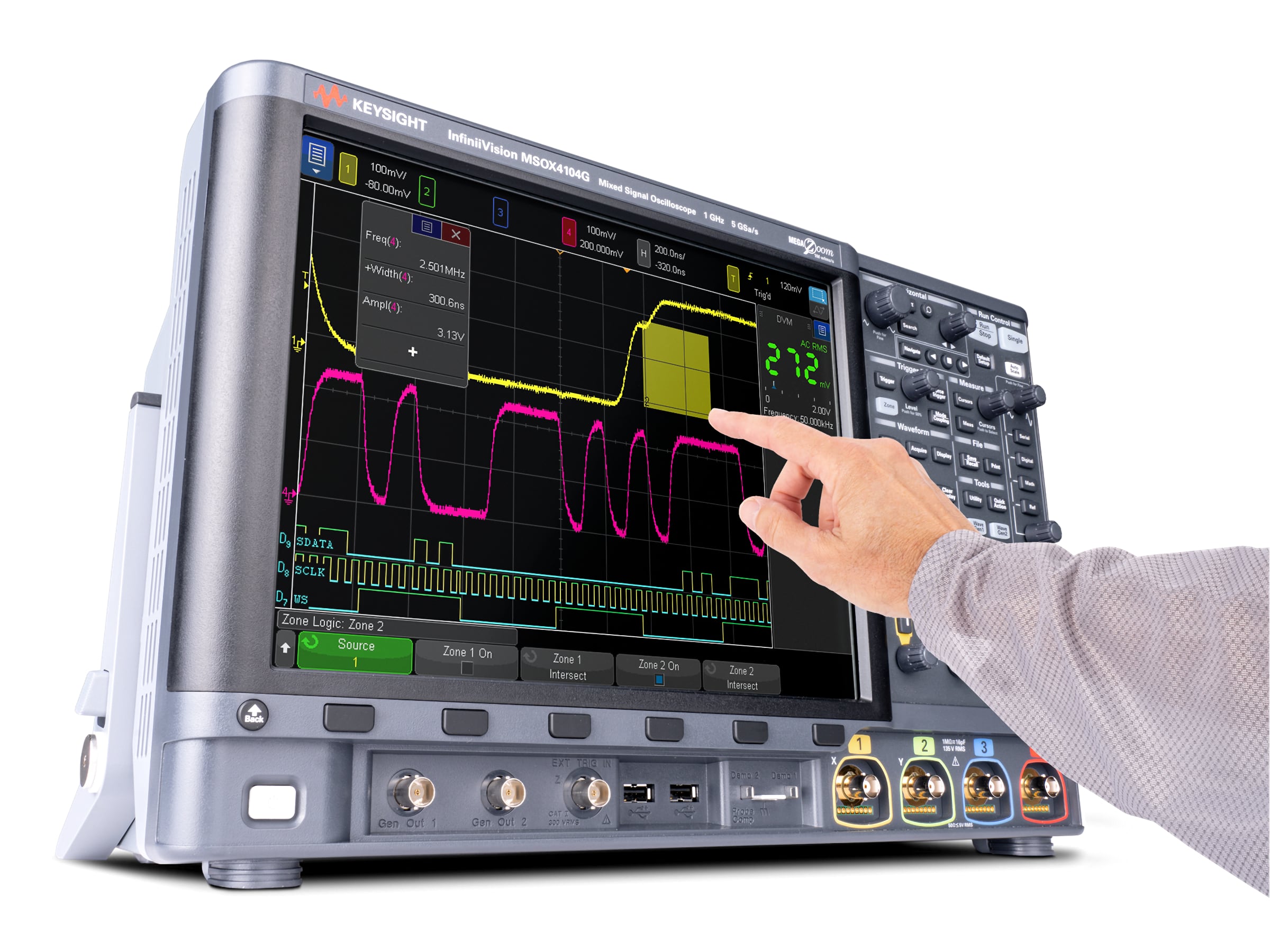

  • Large touchscreen with easy-to-use interface and built-in help, zone trigger
  • Options made standard in an easy bundle with G models
• Versatile
  • 7 instruments integrated in 1
  • General debug to industry-specific analysis
  • License upgradeable
  • Extensive probe and accessories portfolio

❮ ❯

Versatility unleashed, possibilities amplified
The InfiniiVision 4000 X-Series consists of A and G models. While there are differences among the models, they share a common foundation of industry-leading features, such as the fastest uncompromised waveform update rate and the world’s easiest triggering capability, zone trigger. In addition to these shared attributes, both 4000 X-Series models encompass a combination of advanced performance, intuitive usability and versatile functionality.

Advanced
KEYSIGHT has established fundamental features that should be standard on all oscilloscopes, including zone trigger, segmented memory, and a fast, uncompromised waveform update rate. Beyond these foundational functions that distinguish InfiniiVision from competitors, the newest InfiniiVision 4000G X-Series goes a step further by incorporating more advanced features as part of its standard configuration: dual waveform generators, mask testing, frequency response analysis, histograms, and hardware-based serial decoding capabilities.

Intuitive
Featuring the same user-friendly interface and large screen as the 4000A X-Series models, the G models ensure optimal testing efficiency with easy setup and navigation. Built-in help and zone trigger functions simplify the analysis process even further. Additionally, key software options are now bundled into the standard oscilloscope package, making the purchasing process even easier.

Versatile
Integrated instruments, license upgradeable options, and an extensive portfolio of probes and accessories make the 4000 X-Series an ideal solution for both general debugging or more industry-specific applications such as power analysis, automotive systems and semiconductor development. Having a frequency response analyzer, counter, waveform generator and other instruments built into the oscilloscope enables you to dive deeper, faster.

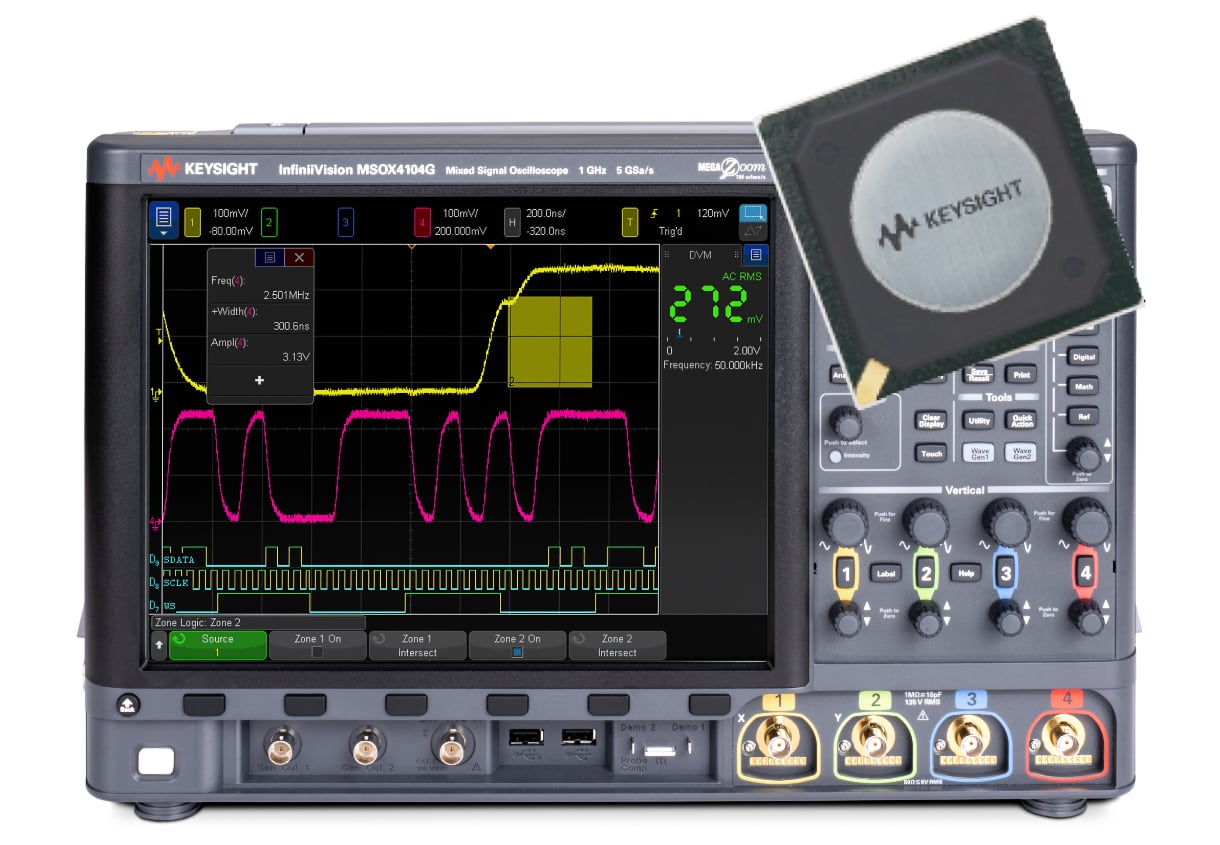

Figure 1. MegaZoom IV smart memory technology enables speed, usability and integration.

Figure 2. Take advantage of the Ultimate Bundle Software Package that enables ALL software applications (including serial decode and for one low price (D4000BDLB).
