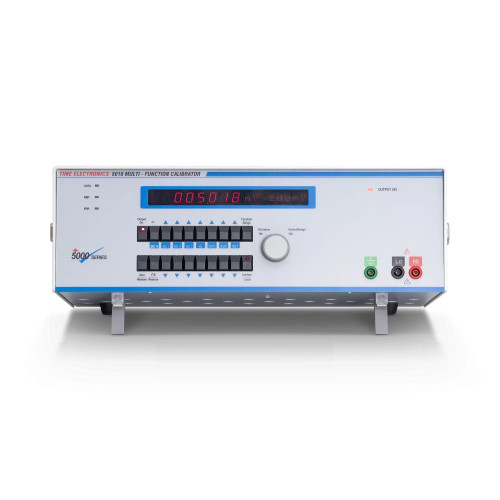

Time Electronics 5018 Programmable DC/AC V/I Calibrator
Time Electronics 5018 is a versatile programmable calibrator capable of covering a wide range of testing applications. It can be configured as a single function DC voltage source or advanced AC/DC voltage and current calibrator controlled via PC or laptop, performing any number of tasks as part of a complex ATE test rig.
It is suitable for automated signal injection in R&D and manufacturing applications where a stable and accurate source is required. The compact form factor means it takes up minimal bench space in the lab, or an optional 19" rack mount kit is available for integration into a modular test equipment setup.
GPIB, RS-232 and USB interfaces allow the 5018 to be connected to a PC and controlled by an external program such as EasyCal calibration software. The 5018 uses a SCPI command structure for programming. This makes writing control programs in Visual Basic, C and Labview a simple task.
Features:
- 0 to 22 V DC
- 220 V and 1 kV DC options
- 0 to 220 mA AC/DC options
- 0 to 22 V AC option
- Ramping feature
- GPIB / RS-232 / USB interfaces
- Ideal for ATE applications
- EasyCal Software compatible
Simple Operation
Simple front panel operation allows the user to quickly set the function and output required. Using the jog / shuttle dial deviation the user can finely adjust the output value as a percentage (+/- 99.99%). All this information is shown on a clear, easy to read LED display.
Ramping
The 5018 includes an internal ramping feature. A ramp rate per range for each function can be set via a PC. The option to ramp the output can be turned on or off via the front panel. This is particularly useful in aviation and automotive industries for testing analogue gauges.
Optionals:
9718: Internal Current Option (220mA max)
9719: Internal AC Option (22V max)
9721: Internal 200V DC Option
9720: Internal 1KV DC Option (includes 200V DC option 9721)
9728: 19” Universal Rack Mount Kit
9541: Basic Test Lead Set
9796: Premium Test Lead Set
9766: Low Noise Attenuator 1000:1
9767: Low Noise Attenuator 100:1
C142: Traceable Calibration Certificate (factory)
C104: UKAS Calibration Certificate (ISO 17025)
ECFLA: EasyCal Calibration Software
9597: GPIB Cable
9794: GPIB - USB Adaptor
