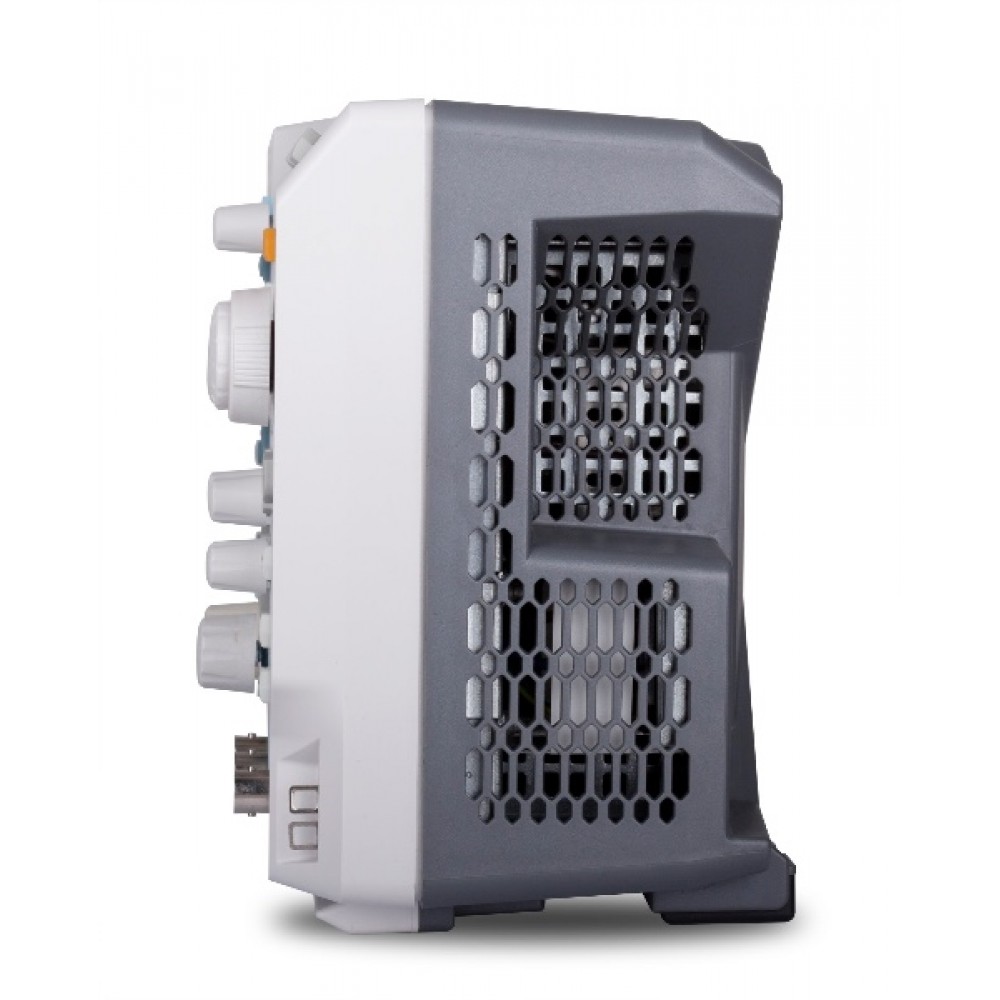

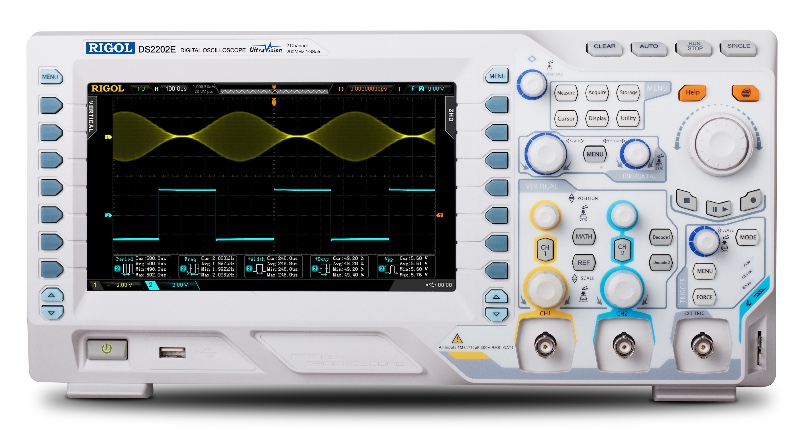

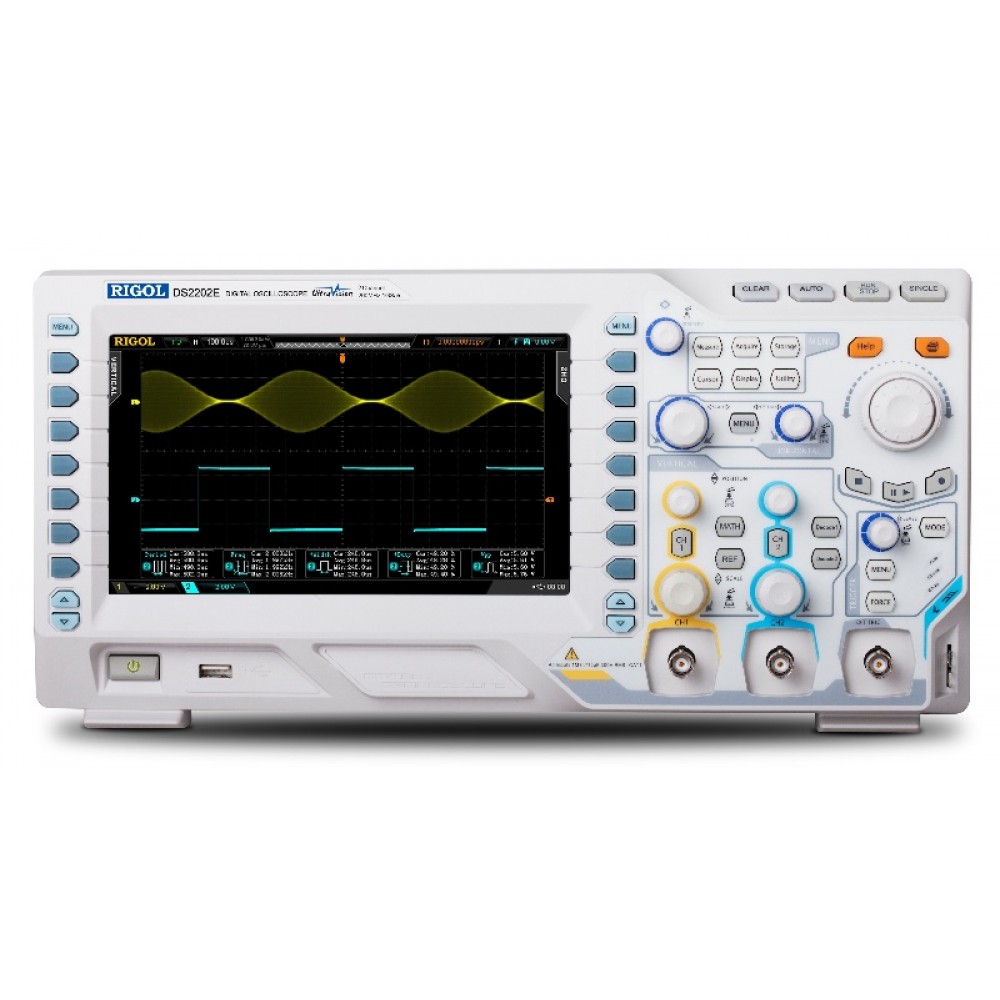

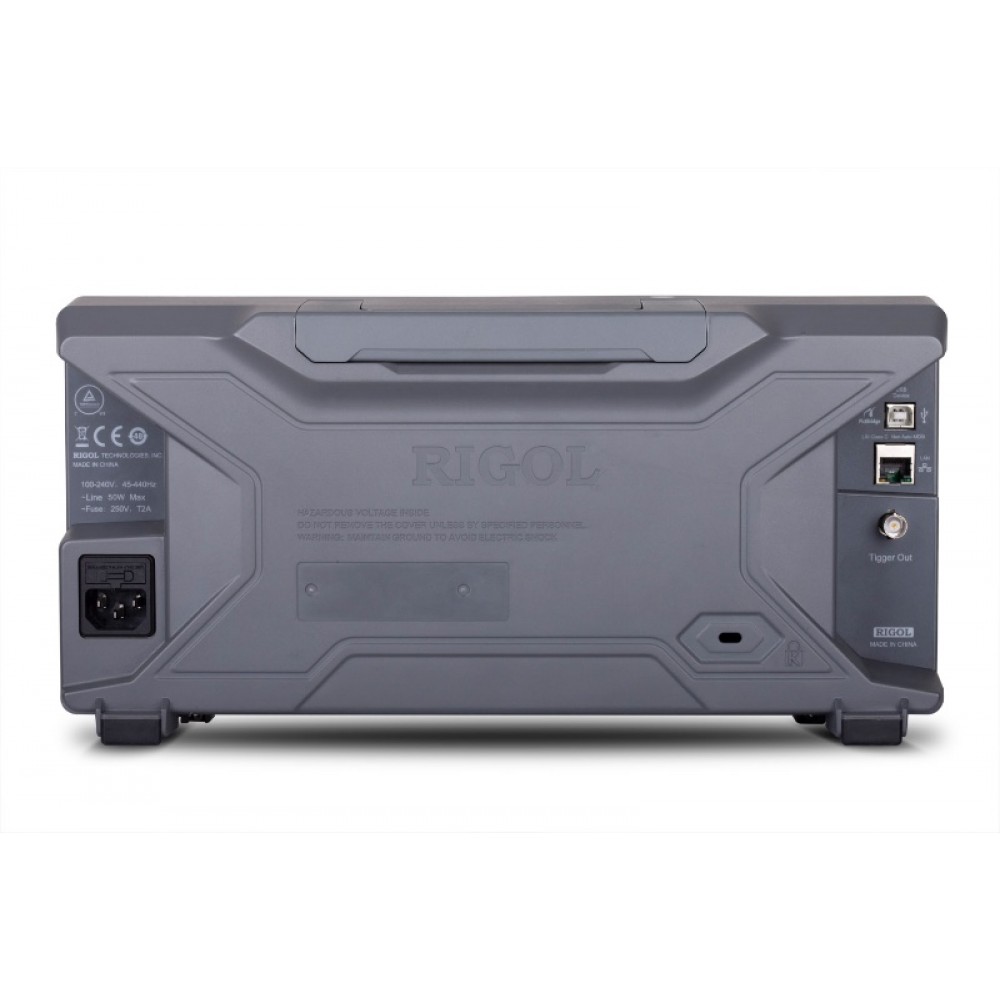

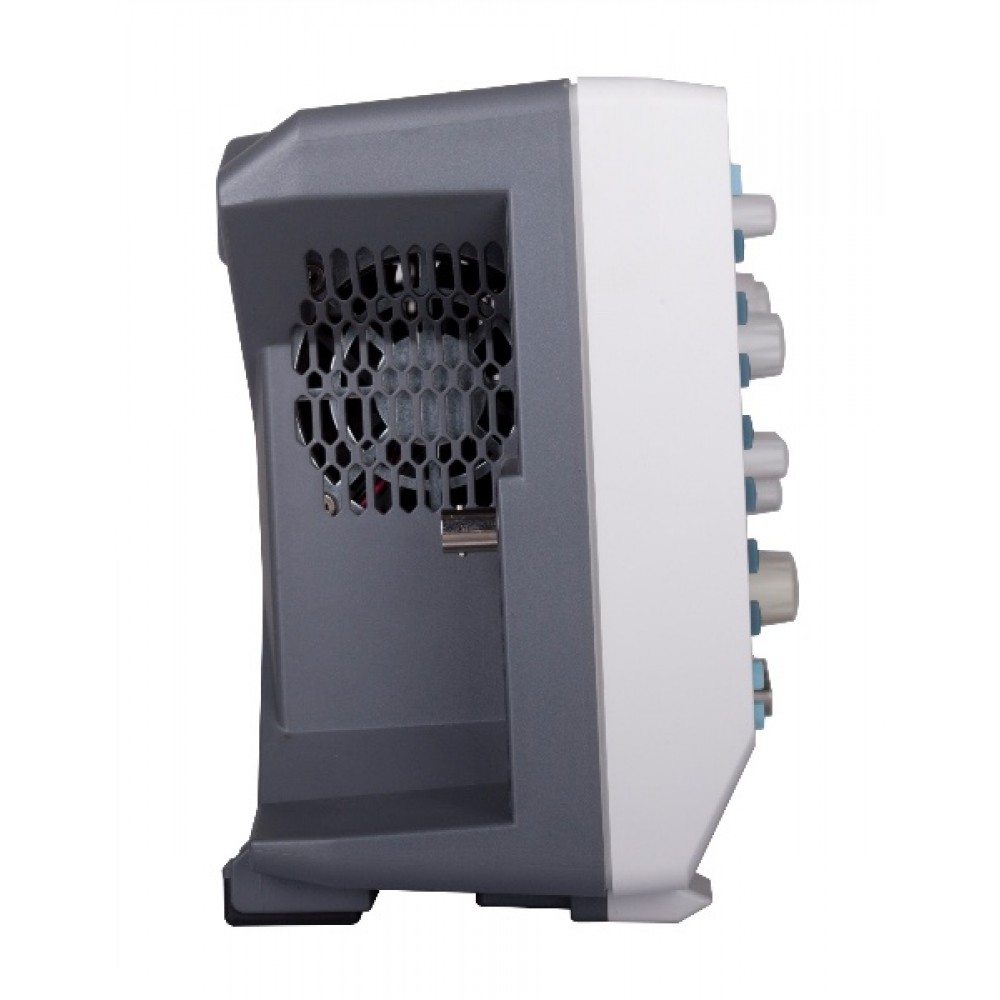

RIGOL DS2202E with FREE Decoding

Click Image for Gallery

RIGOL DS2202E, 200MHz 2 channels oscilloscope with RS232/UART, I2C, SPI, CAN and LIN Decoding, Memory up to 28Mpts

- RIGOL DS2202E 200 MHz bandwidth model

- 2 analog channels, 50 Ω input impedance (standard)

- Vertical range: 500 μV/div ~ 10 V/div

- Real-time sample rate: up to 1 GSa/s on both channels

- Memory depth: up to 28 Mpts on both channels

- Waveform capture rate: up to 50,000 wfms/s

- Real-time hardware waveform recording, playback, and analysis of up to 65,000 captured frames

- Various serial trigger and decode (RS232/UART, I2C, SPI, CAN and LIN)

- Complete connectivity: USB DEVICE, USB Host, LAN, and optional GPIB

- 8-inch WVGA (800×480), 256-level intensity grading display

Standard delivery includes:
- Power Cord
- USB Cable
- 2 x passibe probe BW 350MHz (model PVP2350)
- Quick Guide (hard copy)

Engineers and technicians needing higher performance test solutions for more advanced debug tasks will appreciate the unique price/performance attributes of the DS2202E. Based on our UltraVision technology the DS2202E delivers advanced performance and analysis capabilities, a large intensity graded display, and a proven and reliable hardware platform at an unprecedented price point.

Unique UltraVision technology:

- High memory depth (up to 28 Mpts on both channels)

- High waveform capture rate (up to 50,000 waveforms per second)

- Real-time waveform recording, playback, and analysis functions (up to 65,000 frames) Multi-level intensity grading display (up to 256-level)
